CP PLUS CP-DNW-HPU8G2-96-V3 10-Port PoE Switch | 8 PoE + 2 Gigabit Uplink | 96W PoE

Name: CP PLUS CP-DNW-HPU8G2-96-V3 10-Port PoE Switch | 8 PoE + 2 Gigabit Uplink | 96W PoE - FGTECH STORE
SKU: FGIN82J2W9HC
Price: 3029.00 INR
Availability: InStock

Original price was: ₹6,999.00.Current price is: ₹3,029.00. Inc. tax (₹2,566.95Exc. Tax)

The CP PLUS CP-DNW-HPU8G2-96-V3 is an unmanaged PoE Ethernet switch with eight PoE ports and two gigabit uplink ports, designed to power and connect compatible network devices using a 96W total PoE budget.

Add to compare

Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGIN82J2W9HC Category: PoE Switches Brand: CP Plus

Description

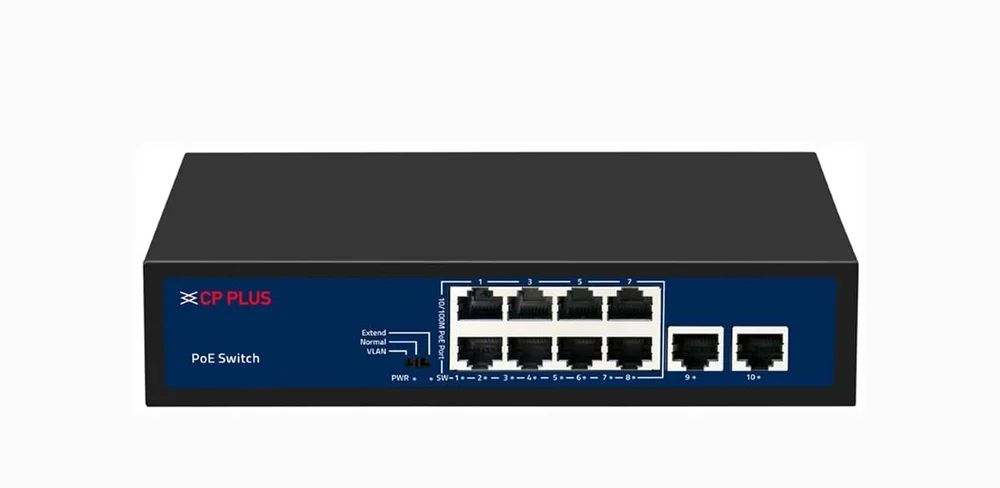

The CP PLUS CP-DNW-HPU8G2-96-V3 is an unmanaged PoE Ethernet switch designed to provide power and data connectivity to compatible wired network devices through standard RJ45 cabling.

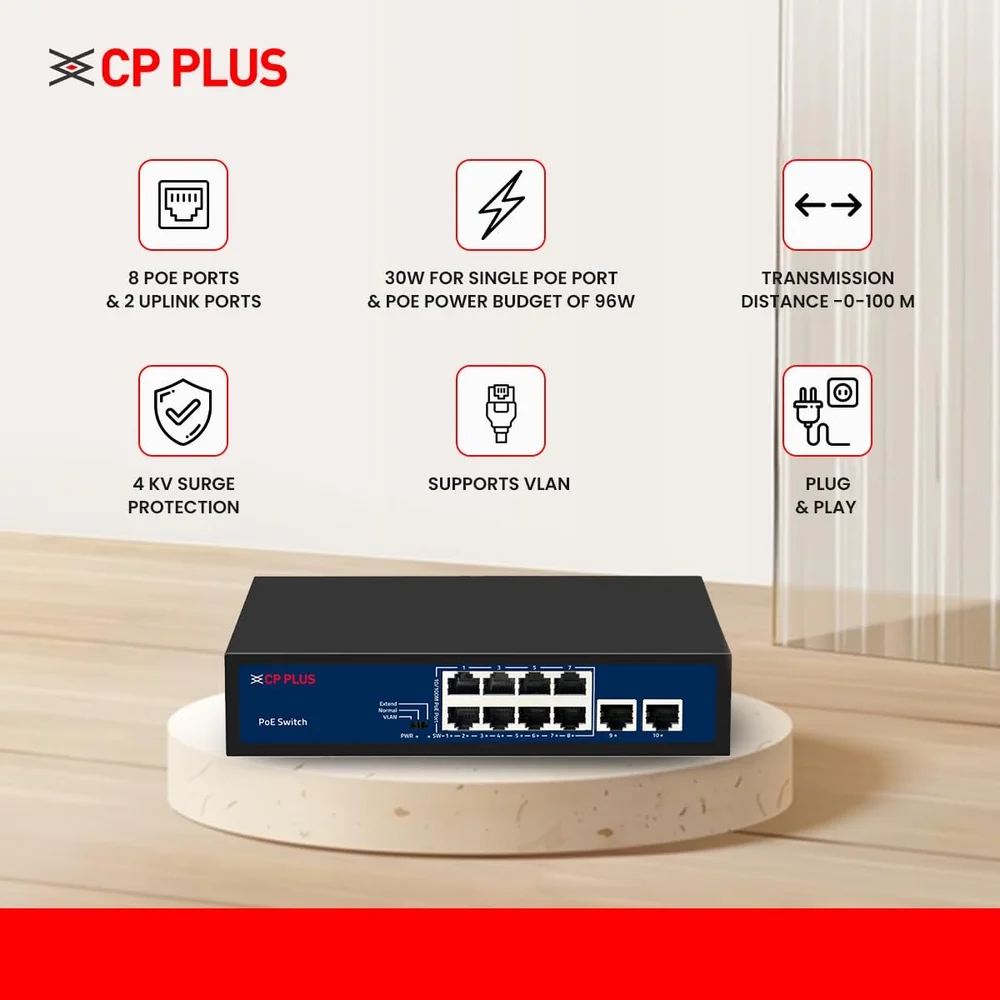

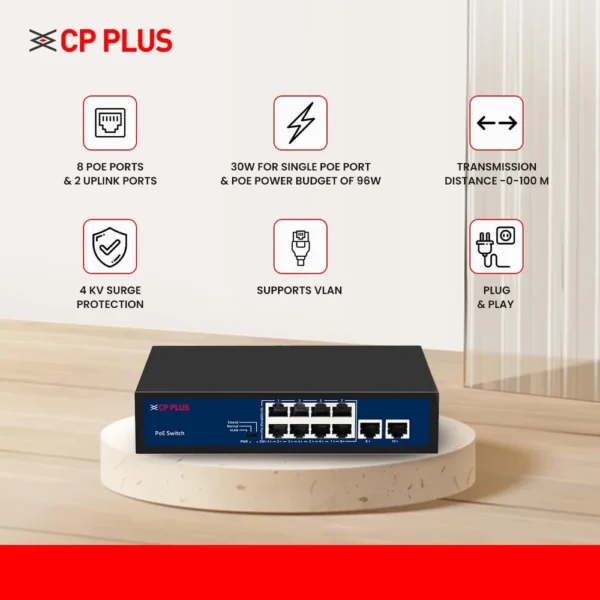

CP-DNW-HPU8G2-96-V3 features eight 10/100 Mbps PoE ports supporting IEEE 802.3af and 802.3at standards, with a maximum output of 30W per PoE port and a total PoE power budget of 96W. Two dedicated 1000 Mbps RJ45 uplink ports are provided for high-speed connection to routers, NVRs, or core network switches.

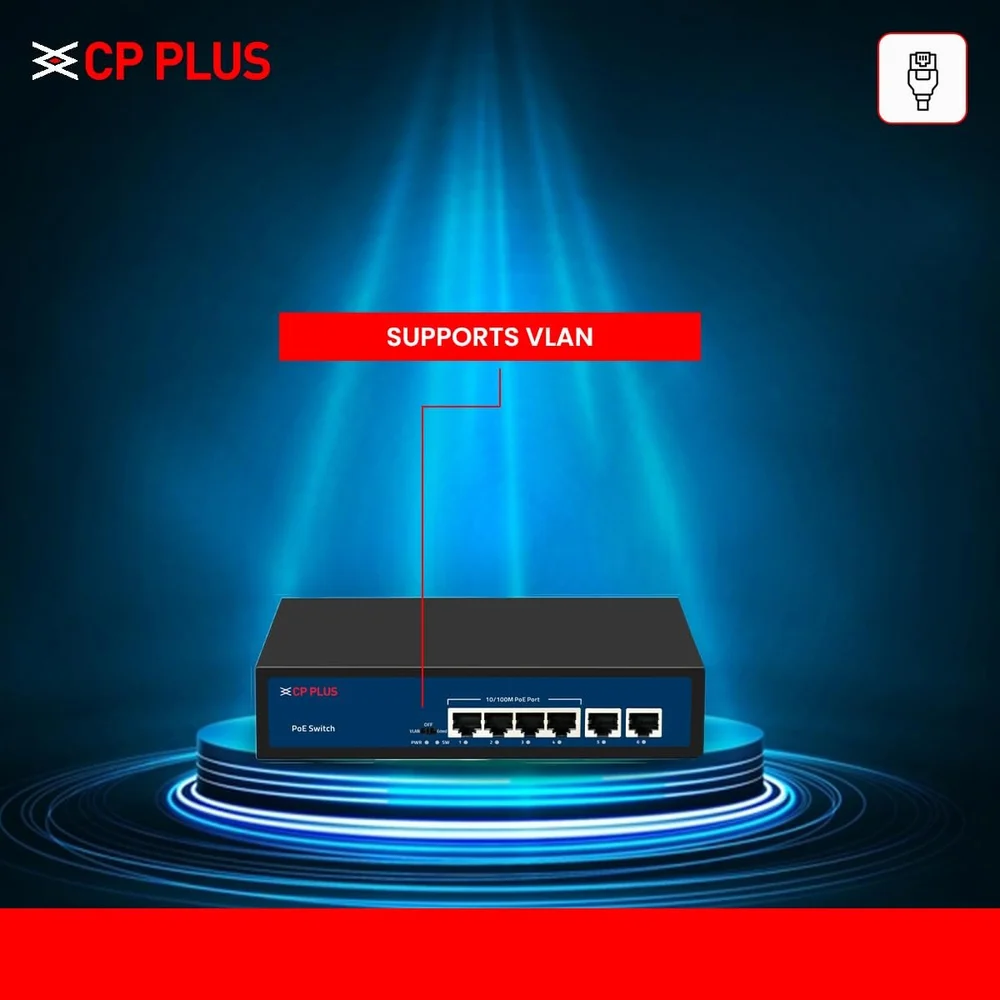

The switch operates in store-and-forward mode and supports VLAN and extend modes via a physical DIP switch. Extend mode allows increased transmission distance up to 250 meters at 10 Mbps when used with suitable cabling. A built-in power supply enables plug-and-play installation without external adapters.

This model does not include Wi-Fi, routing functions, or management software, and outdoor usage is not specified by the manufacturer.

Best suited for

• Powering PoE IP cameras, access points, or VoIP phones
• Small surveillance or network setups requiring wired PoE connectivity
• Installations needing gigabit uplinks with basic unmanaged switching

Not suitable for

• Wireless or Wi-Fi–based networking
• Outdoor installations without protective enclosures
• Managed, cloud-controlled, or Layer-3 network environments

Product Details

Category	Specification
Product Type	Unmanaged PoE Ethernet Switch
Brand	CP PLUS
Model Number	CP-DNW-HPU8G2-96-V3
Hardware Version	V3
Total Ports	10 Ports
PoE Ports	8 × RJ45 (10/100 Mbps)
Uplink Ports	2 × RJ45 (1000 Mbps)
PoE Standards	IEEE 802.3af, IEEE 802.3at
Max PoE Output (Per Port)	30 W
Total PoE Power Budget	96 W
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3x
Switching Capacity	5.6 Gbps (Non-blocking)
Packet Forwarding Rate	4.166 Mpps
MAC Address Table	2K
Packet Buffer	448 KB
Forwarding Mode	Store-and-Forward
VLAN Support	Supported (via DIP switch)
Extend Mode	Supported (up to 250 m @ 10 Mbps)
Standard Transmission Distance	0–100 m
PoE Watchdog	Supported
Surge Protection	RJ45: 4KV (Common), 2KV (Differential)
ESD Protection	Air: 8KV, Contact: 6KV
Indicators	Power, Link/Activity, PoE Status
Duplex Mode	Full Duplex
Power Supply	Built-in
Input Power	100–240 V AC, 50/60 Hz
Power Consumption (No Load)	< 5 W
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
Operating Humidity	5%–90% (Non-condensing)
Installation Options	Desktop, Wall Mount
Security Slot	Kensington Lock Slot
Dimensions (L × W × H)	20.0 × 11.8 × 4.4 cm
Weight	0.62 kg (excluding cable & packaging)
Wi-Fi Support	No
Outdoor Rated	Not specified by manufacturer
Management Type	Unmanaged
Plug and Play	Yes
