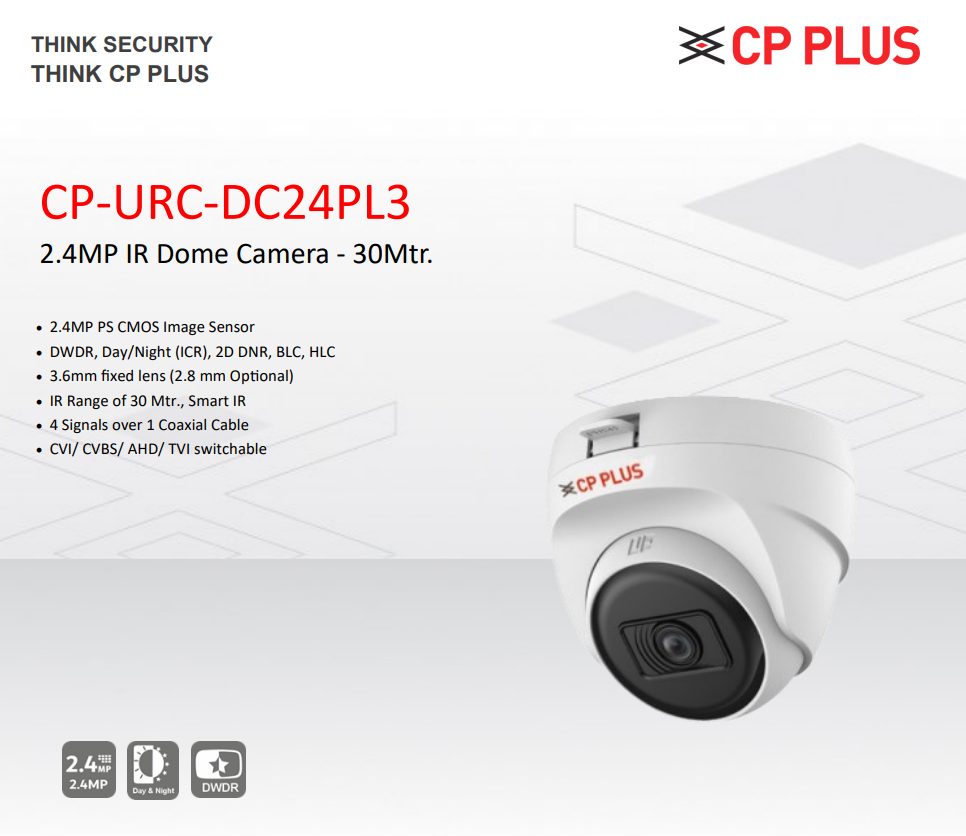

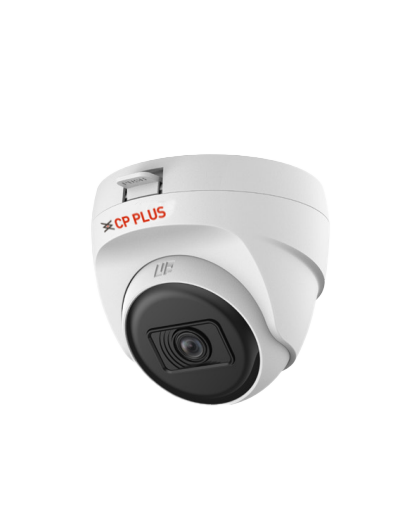

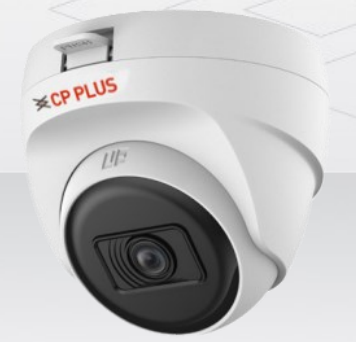

Analog HD dome CCTV camera designed for coaxial DVR systems, the CP PLUS CP-URC-DC24PL3 features a 2.4MP CMOS sensor with Smart IR night vision up to 30 meters and multi-format video output support.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS CP-URC-DC24PL3 is a 2.4MP analog HD dome camera designed specifically for coaxial DVR-based CCTV systems. CP PLUS CP-URC-DC24PL3 captures Full HD video using a progressive scan CMOS image sensor and supports multiple analog video formats for broad DVR compatibility.
• Analog CCTV installations using coaxial DVRs
• Users upgrading from standard CVBS to HD analog cameras
• Surveillance setups that do not require audio recording
• Installations where Wi-Fi or IP networking is not required
• IP or Wi-Fi–based surveillance systems
• NVR-only setups
• Installations requiring built-in audio recording
• Cloud-based or app-only smart camera systems
This camera uses a fixed-focal lens, supplied in 3.6 mm with an optional 2.8 mm variant, providing a wide field of view suitable for indoor monitoring. Smart IR night vision enables visibility in complete darkness with an infrared range of up to 30 meters, while automatic day/night switching ensures consistent image capture across lighting conditions.
Video output is delivered through a single BNC connector and can be switched between CVI, TVI, AHD, and CVBS formats, allowing use with a wide range of analog and HD analog DVRs. The camera operates on a 12 V DC power supply and does not support PoE, Wi-Fi, or Ethernet connectivity.
This model does not include a microphone or audio recording capability. Weatherproof or IP protection ratings are not specified by the manufacturer, and outdoor suitability should be evaluated based on installation conditions.
Camera Type: Analog HD dome camera
Image Sensor: 2.4MP PS CMOS
Maximum Resolution: 1920 × 1080 (1080p)
Video Output Formats: CVI / TVI / AHD / CVBS
Video Output Port: 1 × BNC
Frame Rate:
CVI: 1080p @ 25 fps (PAL), 30 fps (NTSC)
AHD: 1080p @ 25 fps (PAL), 30 fps (NTSC)
TVI: 1080p @ 25 fps (PAL), 30 fps (NTSC)
CVBS: 960H (PAL / NTSC)
Lens Type: Fixed-focal
Focal Length: 3.6 mm (2.8 mm optional)
Lens Mount: M12
Maximum Aperture: F2.0
Angle of View (3.6 mm):
Horizontal: 80°
Vertical: 43°
Diagonal: 94°
Angle of View (2.8 mm):
Horizontal: 100°
Vertical: 54°
Diagonal: 117°
Close Focus Distance:
3.6 mm: 0.8 m
2.8 mm: 0.5 m
Minimum Illumination:
Color: 0.02 lux @ F2.0
B/W: 0.002 lux @ F2.0
IR On: 0 lux
Infrared Range: Up to 30 m
IR Mode: Smart IR
IR LEDs: 1 IR light
Day / Night Mode: Auto (ICR) / Color / B/W
Noise Reduction: 2D DNR
Backlight Compensation: BLC / DWDR
Gain Control: Auto
White Balance: Auto
Signal-to-Noise Ratio: >65 dB
Microphone: Not supported
Audio Recording: Not supported
Speaker: Not supported
Wi-Fi: Not supported
Ethernet / IP Networking: Not supported
Power Supply: 12 V DC ±30%
Power Consumption: Max 2.3 W (IR on)
Casing Material: Plastic
Angle Adjustment:
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating Temperature: –40 °C to +60 °C
Operating Humidity: <95% RH (non-condensing)
Storage Temperature: –40 °C to +60 °C
Storage Humidity: <95% RH (non-condensing)
Dimensions: 85.0 mm × 77.1 mm
Weight: 0.11 kg
