CP PLUS CP-USC-TC51PL2-V5 is a 5MP IR bullet camera featuring 20m night vision, IP67 weatherproof casing, and UNI technology for multi-format compatibility, delivering sharp HD video with advanced night and day surveillance capabilities.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

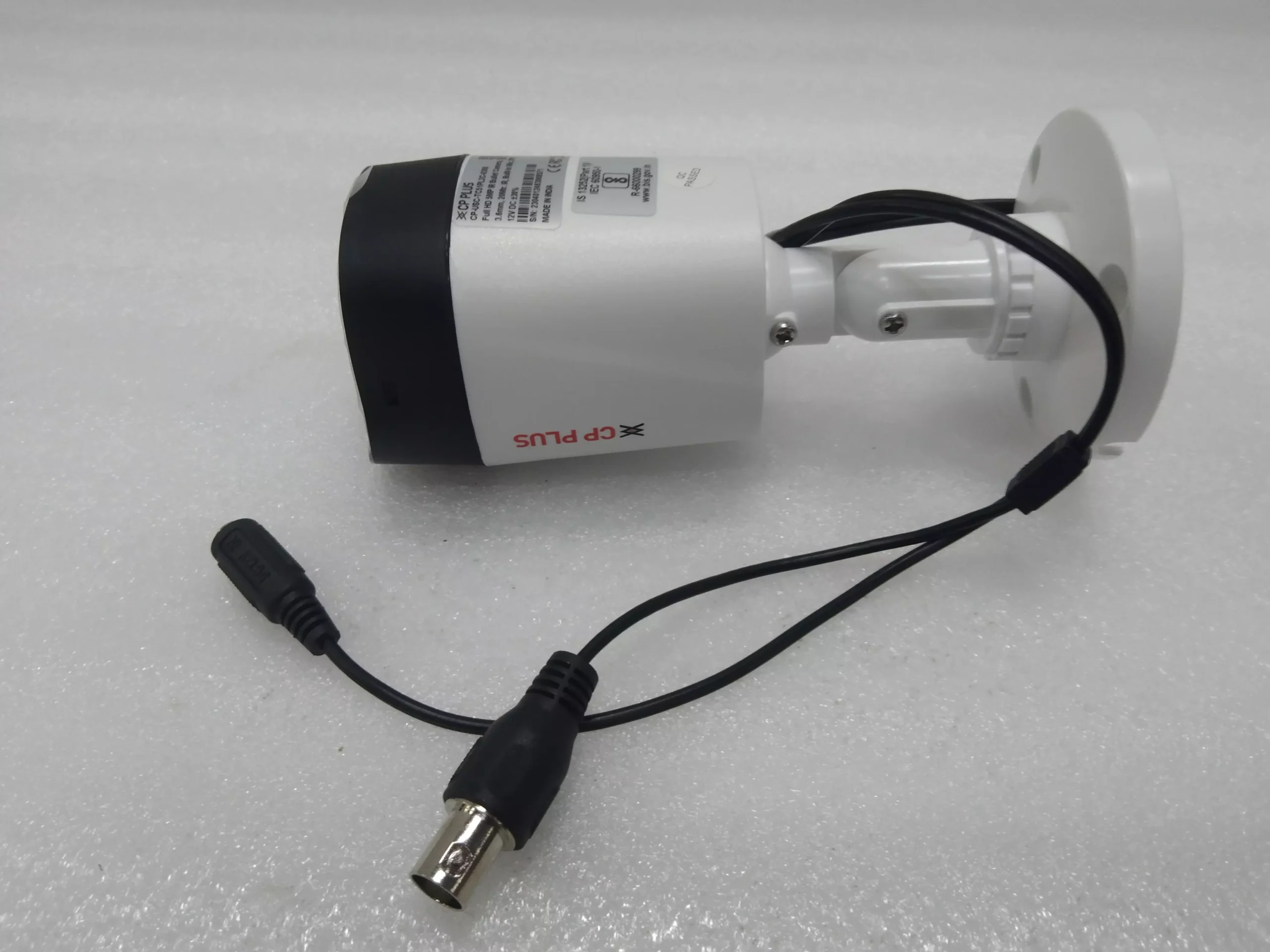

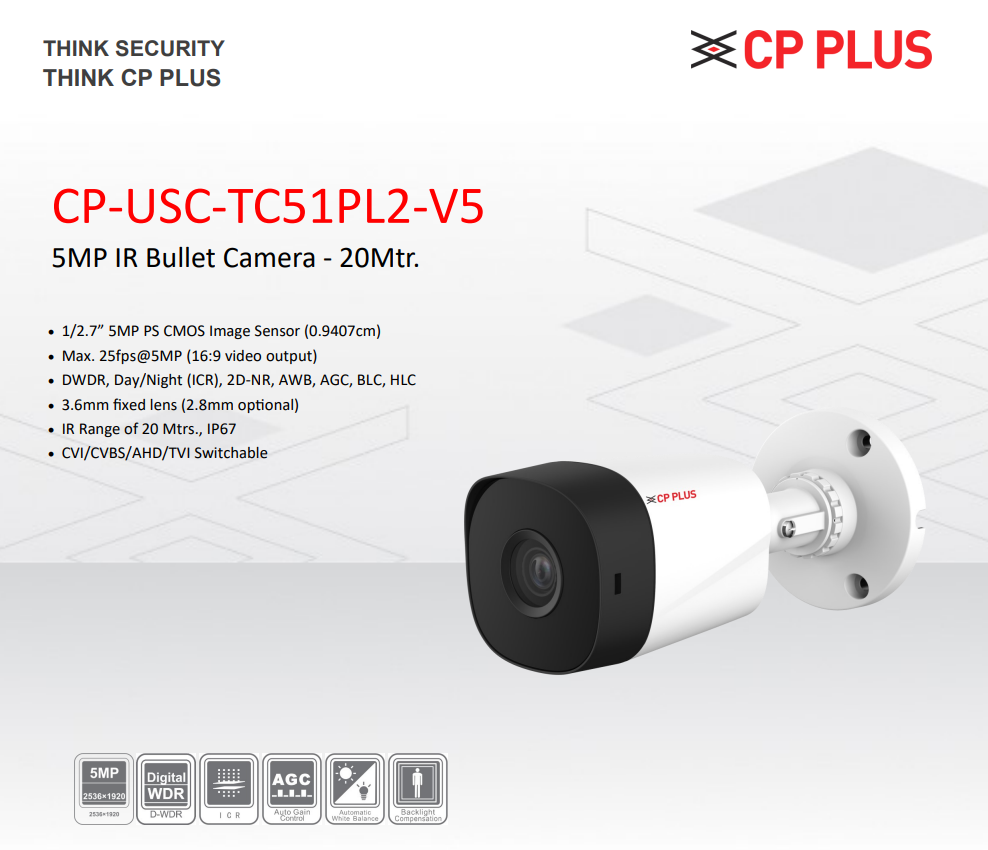

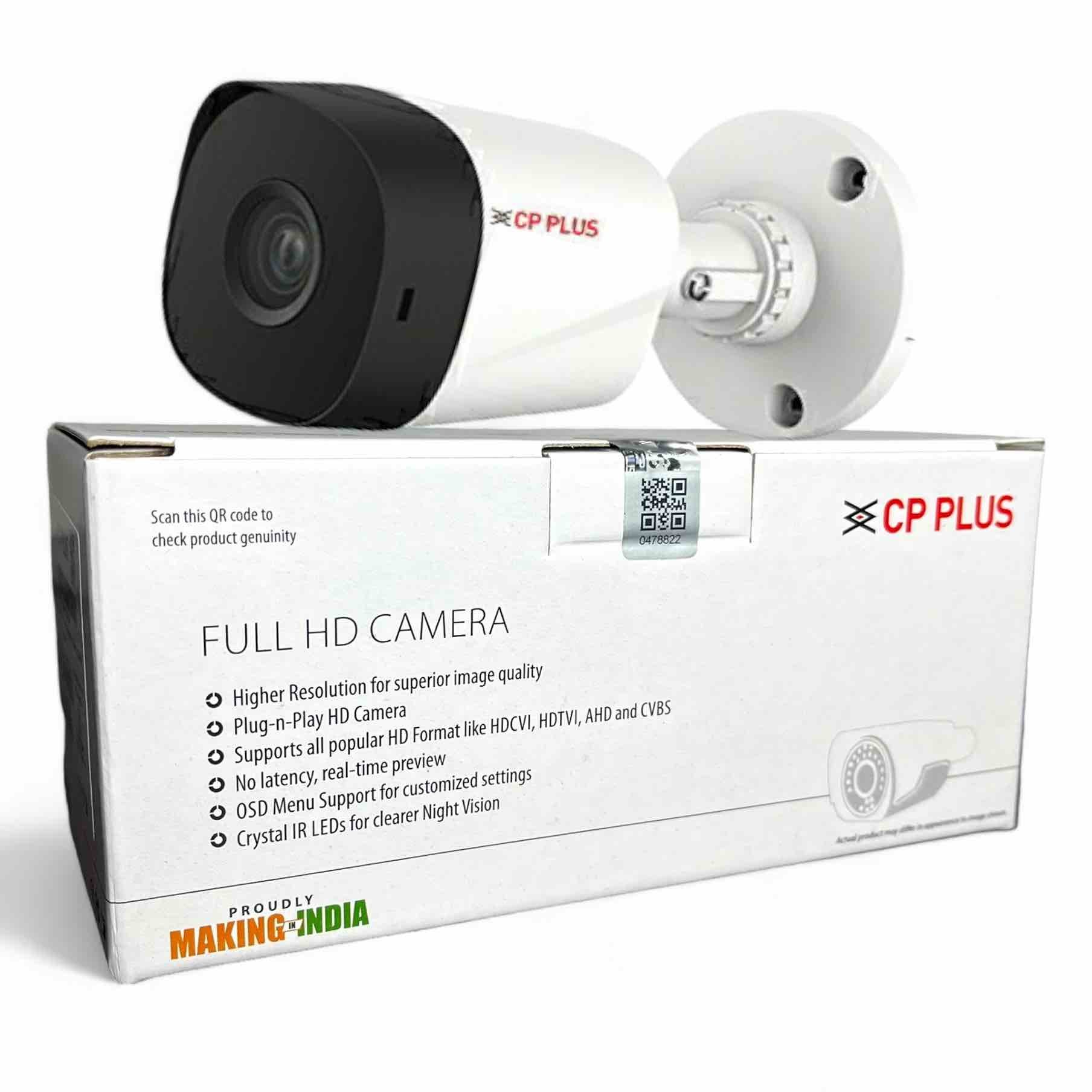

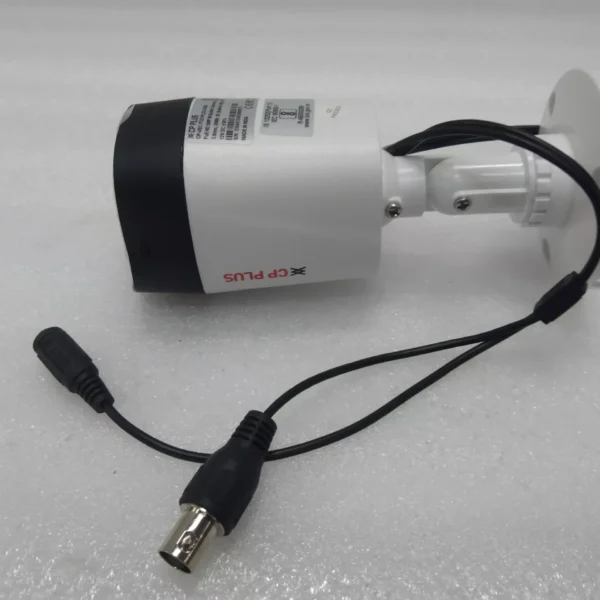

The CP PLUS CP-USC-TC51PL2-V5 5MP IR Bullet Camera is designed for superior security and surveillance with advanced imaging technology. This model features a 12.7mm 5MP Progressive Scan CMOS sensor delivering high-resolution video up to 2880×1620 pixels, ensuring crystal-clear images for reliable monitoring. With a fixed 3.6mm lens and an optional 2.8mm lens, the camera covers wide viewing angles suitable for various surveillance needs.
The CP PLUS CP-USC-TC51PL2-V5 camera excels in low-light conditions with its powerful infrared LEDs providing a 20-meter night vision range. Equipped with advanced features such as Digital Wide Dynamic Range (DWDR), Day/Night IR Cut Filter, 2D Noise Reduction (2D-NR), and Automatic Gain Control (AGC), the CP-USC-TC51PL2-V5 adapts to challenging lighting environments with ease. The robust IP67 weatherproof casing allows for outdoor installation, ensuring durability in harsh weather conditions.
The CP PLUS CP-USC-TC51PL2-V5 camera uses CP PLUS’s revolutionary UNI technology, enabling compatibility with multiple HD analog video formats (CVI, TVI, AHD, CVBS), simplifying upgrades and installations. The built-in On-Screen Display (OSD) menu supports easy customisation of camera settings, including mirror, privacy masking, and smart IR. Power protection with a wide voltage tolerance range guarantees stable operation even in fluctuating power conditions.
Key Technical Features of CP-USC-TC51PL2-V5:
12.7 mm 5MP Progressive Scan CMOS Sensor
Maximum resolution of 2880×1620 pixels at 25fps
3.6mm fixed lens (2.8mm optional) with wide viewing angle
Infrared night vision up to 20 meters
Digital Wide Dynamic Range (DWDR) and Day/Night ICR
2D Noise Reduction (2D-NR) and Automatic Gain Control (AGC)
IP67-rated weatherproof casing for outdoor use
Compatible with CVI, TVI, AHD, and CVBS analog formats via UNI technology
On-Screen Display (OSD) for easy camera adjustments
Power protection supports voltage fluctuations (12V DC, max. 3.7W).
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-USC-TC51PL2-V5 |
| Image Sensor | 12.7mm 5MP Progressive Scan CMOS |
| Resolution | Max 2880x1620 @ 25fps (5MP) |
| Lens | 3.6mm fixed (2.8mm optional) |
| Aperture | F2.0 |
| Minimum Illumination | 0.02 Lux (0 Lux IR on) |
| IR Range | Up to 20 meters |
| Video Output | CVI, TVI, AHD, CVBS (via 1 BNC port) |
| Wide Dynamic Range | Digital WDR (DWDR) |
| Noise Reduction | 2D-NR |
| White Balance | Auto |
| AGC (Automatic Gain Control) | Supported |
| Day/Night Function | ICR (Infrared Cut Filter) |
| Smart IR | Yes |
| OSD Menu | Yes (multi-language) |
| Power Supply | 12V DC |
| Power Consumption | Max 3.7W |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Weatherproof Rating | IP67 |
| Dimensions (L x W x H) | 149.3 mm x 69.8 mm x 69.8 mm |
| Weight | 0.15 kg |
| Additional Features | UNI technology compatibility across analog formats, power protection |
