CP PLUS CP-UVC-RC4K08L2-VD delivers panoramic 4K surveillance with three 12.8MP sensors, 20m IR range, IP67 weatherproof, IK10 vandal resistance, and multi-channel HDCVI output—ideal for robust, detailed enterprise security monitoring.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS CP-UVC-RC4K08L2-VD is a high-performance multi-lens panoramic HDCVI IR camera designed to deliver exceptional 4K surveillance quality. CP PLUS CP-UVC-RC4K08L2-VD model features three 12.8MP progressive scan CMOS image sensors providing a panoramic 4K resolution of 3840×832 pixels alongside three individual 2MP video streams. With a robust fixed 3.6mm lens and an infrared (IR) range of up to 20 meters, this camera ensures clear imaging even under low light conditions.
CP PLUS CP-UVC-RC4K08L2-VD supports advanced imaging technologies including 120dB Wide Dynamic Range (WDR), Day/Night IR cut filter, 2D and 3D Digital Noise Reduction (DNR), Auto White Balance (AWB), Automatic Gain Control (AGC), Backlight Compensation (BLC), and Highlight Compensation (HLC). Certified with weatherproof IP67 and vandal-resistant IK10 ratings, the CP PLUS CP-UVC-RC4K08L2-VD withstands harsh environments with ease.
CP PLUS CP-UVC-RC4K08L2-VD offers up to 500 meters transmission over RG59 coaxial cable, making it suitable for extensive surveillance setups. The camera meets CE, FCC, and ROHS compliance standards, emphasising reliability and safety. The CP PLUS CP-UVC-RC4K08L2-VD multi-functional panoramic camera is ideal for enterprise-level security, capturing a wide field of view with detailed clarity and multi-channel video outputs, making it a premium choice for seamless monitoring.

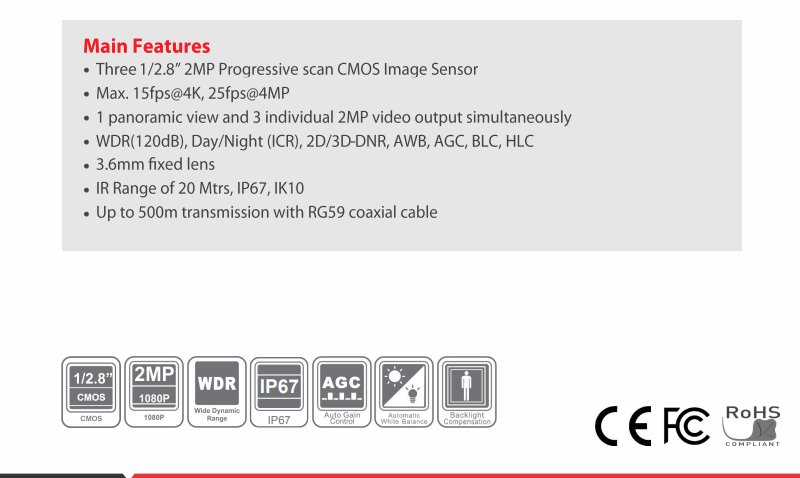

Three 12.8MP Progressive Scan CMOS Sensors
Panoramic 4K Resolution: 3840×832 pixels
Three individual 2MP video outputs simultaneously
3.6mm Fixed Lens
IR Range: 20 meters for night vision
120 dB Wide Dynamic Range (WDR)
Advanced imaging: Day/Night ICR, 2D/3D-DNR, AWB, AGC, BLC, HLC
Video Output: 1-channel panoramic HDCVI, 3-channel 2MP HDCVI
Up to 500m transmission with RG59 coaxial cable
Weather-resistant: IP67 rated
Vandal-proof: IK10 rated
Operating temperature: -30°C to 60°C
Power: 12V DC, 25W power consumption

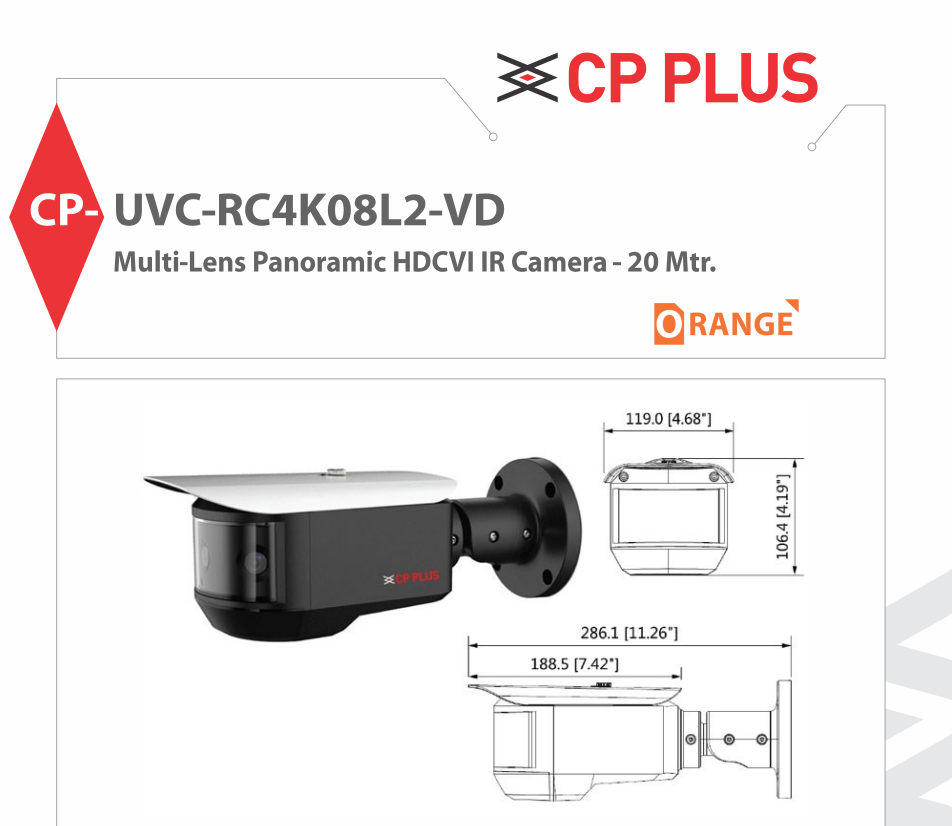

Dimensions: 286mm x 119mm x 106mm
Weight: 2.05 kg
Compliance: CE, FCC, ROHS
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVC-RC4K08L2-VD |
| Image Sensor | Three 12.8MP Progressive Scan CMOS |
| Effective Pixels | 12.8MP x3 |
| Resolution | Panoramic 4K 3840x832, 4MP 2560x1440 (individual streams) |
| Frame Rate | 15fps (4K), 25fps (4MP) |
| Lens | Fixed 3.6mm |
| Minimum Illumination | 0.005 Lux (Color), 0 Lux (IR on) |
| IR Range | 20 meters |
| Wide Dynamic Range (WDR) | 120dB |
| Noise Reduction | 2D/3D Digital Noise Reduction |
| Day/Night | IR Cut Filter (ICR) |
| White Balance | Auto/Manual |
| Video Output | 1-channel panoramic HDCVI; 3-channel 2MP HDCVI |
| Transmission Range | Up to 500m with RG59 coax cable |
| Weatherproof Rating | IP67 |
| Vandal Resistance | IK10 |
| Power Supply | 12V DC |
| Power Consumption | 25W |
| Operating Temperature | -30°C to 60°C |
| Dimensions | 286mm x 119mm x 106mm |
| Weight | 2.05 kg |
| Certifications | CE, FCC, ROHS |
