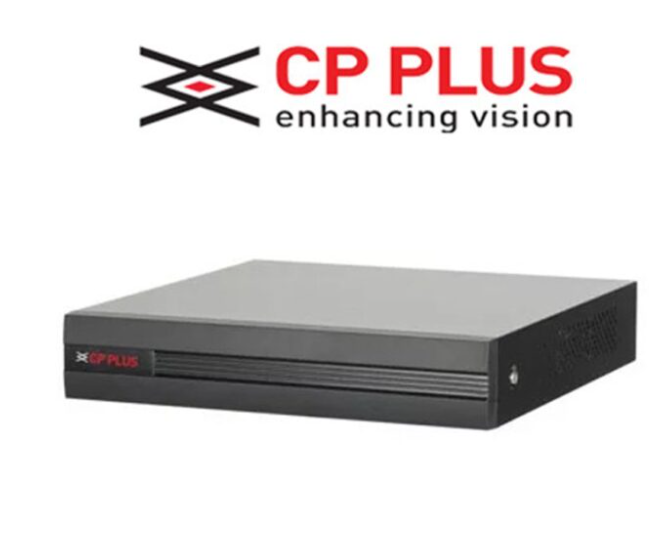

CP PLUS CP-UVR-0401F1-IC Powerful 4Ch. 5M-N Digital Video Recorder with 4K H.265 & Multi-Format Input Support

The CP PLUS CP-UVR-0401F1-IC is an advanced 4-channel 5M-N Digital Video Recorder designed to deliver superior surveillance performance with integrated 4K resolution processing and state-of-the-art H.265 dual-stream video compression technology. CP PLUS CP-UVR-0401F1-IC robust DVR supports multiple video input formats including HDCVI, AHD, TVI, CVBS, and IP, with up to 6 channels of IP camera inputs, each supporting resolutions up to 6MP, accommodating a maximum 32Mbps incoming bandwidth for high-quality video capture. The embedded Linux operating system ensures stability and smooth performance, while an intuitive shortcut operation menu allows remote control and management, enabling this device to function effectively as edge, central, or backup storage.

The CP-UVR-0401F1-IC features full-channel AI coding support, smart motion detection (SMD Plus) for human and vehicle classification, and simultaneous video output via HDMI and VGA ports. CP PLUS CP-UVR-0401F1-IC is complemented by the comprehensive CP PLUS software ecosystem, including mobile apps iCMOB, gCMOB, and KVMS Pro for hybrid video management, ensuring seamless device control and live video access.

Key Technical Features

• Supports HDCVI, AHD, TVI, CVBS, and IP video inputs

• Max 6 IP camera inputs, each up to 6MP resolution; max 32Mbps incoming bandwidth

• Full-channel AI coding support with SMD Plus for human and vehicle classification

• 1 SATA HDD port supporting up to 6TB storage

• 2 USB 2.0 ports for external storage and devices

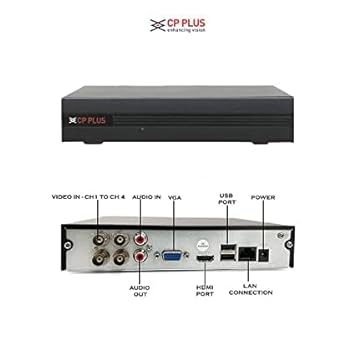

• Simultaneous video output: 1 HDMI and 1 VGA port

• Instastream and H.265 dual-stream video compression for bandwidth efficiency

• Embedded Linux OS for reliable, stable operation

• Mobile apps iCMOB and gCMOB for remote monitoring and control

• KVMS Pro hybrid software support for unified managing of multiple device types

• Signal Auto-adapt: supports CVI, TVI, AHD, CVBS without manual intervention

• Secure password policy with mandatory alphanumeric passwords

• Supports up to 128 users remotely accessing the system

• Comprehensive network protocol support including HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, and Alarm Server

• Operating temperature: -10°C to 45°C (14°F to 113°F); humidity 0-90% RH

• Dimensions: 198 mm x 203.0 mm x 41.5 mm (7.56 in x 8.01 in x 1.64 in)

• Weight: 0.55 kg (without HDD)

• RoHS, CE, FC, ONVIF compliant
