CP PLUS CP-UVR-0801F1-HC Cosmic Series delivers powerful 8-channel 1080P HD recording, universal format support, H.265 compression, cloud and mobile connectivity, and advanced security features for efficient multi-site surveillance.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

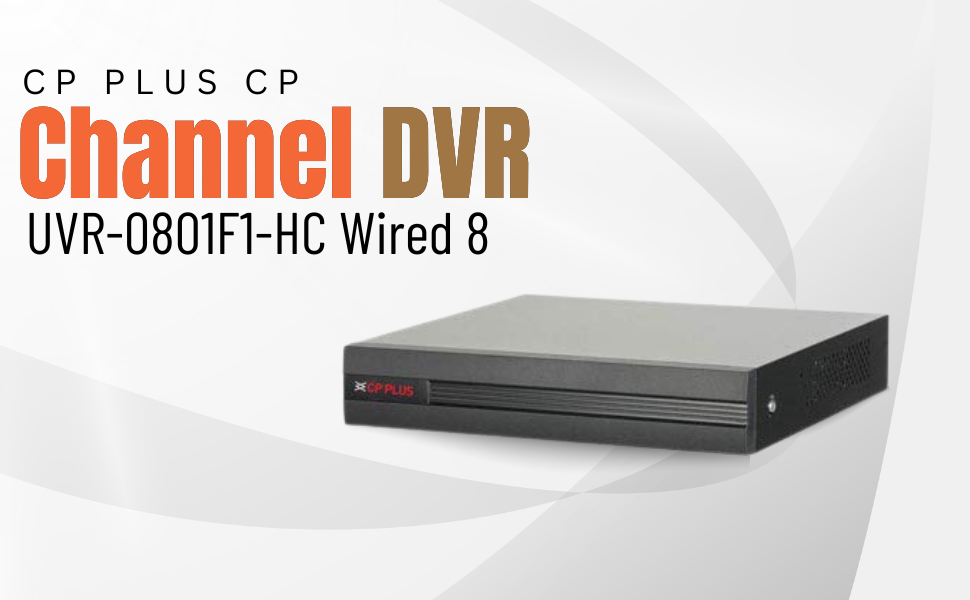

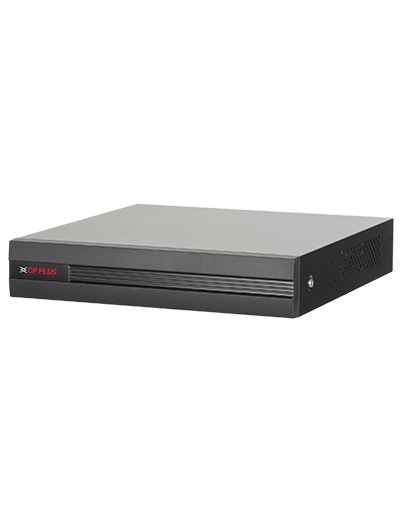

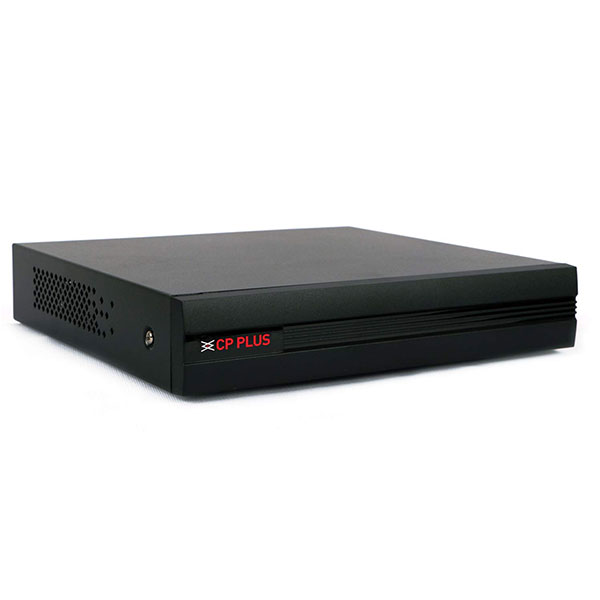

The CP PLUS CP-UVR-0801F1-HC Cosmic Series 8 Channel 1080P HD DVR represents the newest breakthrough in multi-format surveillance, designed to seamlessly connect with HDCVI, AHD, HDTVI, CVBS, and IP signals and provide the ultimate flexibility for advanced security setups. Engineered with a powerful embedded Linux processor and supporting up to 8 channels, including 6MP IP cameras, the CP PLUS CP-UVR-0801F1-HC DVR elevates real-time monitoring with up to 48 Mbps incoming bandwidth and all-channel 1080P non-realtime recording.
The CP PLUS CP-UVR-0801F1-HC ensures accessibility and control via ICMOB, gCMOB, and KVMS Pro software, while its advanced H.265 dual-stream compression optimises storage and clarity for critical footage archiving. This DVR is ideal for retail outlets, residential protection, traffic monitoring, and more – offering cost-effective system upgrades without the hassle of extensive rewiring.
Engineered for reliability, the CP-UVR-0801F1-HC features multi-signal auto-adapt technology, supports 1 SATA HDD up to 6TB, provides intuitive video outputs (HDMI/VGA), and is RoHS, FCC, and ONVIF compliant for robust compatibility. With secured password policies and up to 128 user accounts, the CP PLUS CP-UVR-0801F1-HC series delivers both convenience and security. CP PLUS CP-UVR-0801F1-HC durable casing, versatile interface, and low power consumption make this DVR the ideal choice for anyone seeking a smarter surveillance solution with full technical support from CP PLUS.

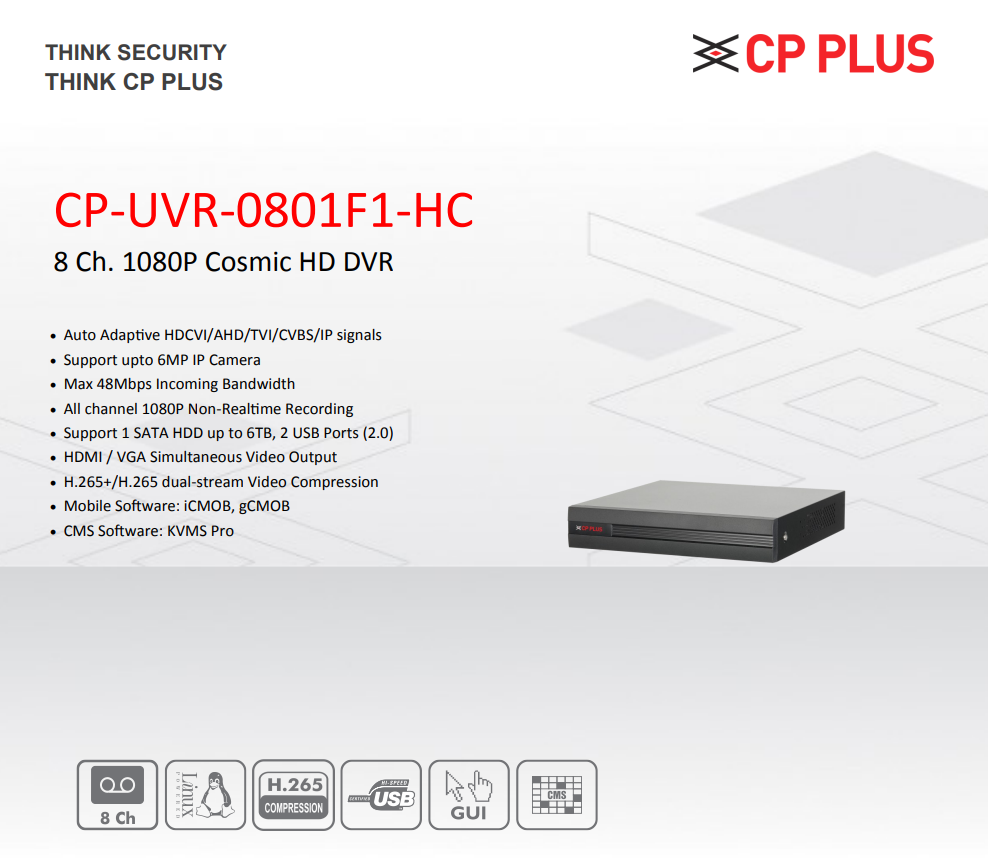

8-channel simultaneous video input (BNC) – all-channel 1080P support
Auto-adaptive signal type detection for CVI, TVI, AHD, CVBS, and IP
Supports up to 6MP IP cameras and 48 Mbps incoming bandwidth
H.265/H.264 dual-stream video compression for storage savings
Dual HDMI & VGA video output, simultaneous multi-channel display
1 SATA HDD port supporting up to 6TB internal storage
Secured password policy with alphanumeric requirement
Up to 128 user accounts for flexible access management
Mobile & CMS software support: ICMOB/gCMOB/KVMS Pro integration
Two USB 2.0 ports and RJ-45 Gigabit LAN port
Advanced playback, backup, PTZ, and event trigger support
ONVIF, RoHS, FCC certified with compliance to global standards
| Specification | Details |
|---|---|
| Brand | CP PLUS Cosmic Series |
| Model | CP-UVR-0801F1-HC |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Input | 8 channels (BNC), Auto-adapt |
| Supported Signals | HDCVI, HDTVI, AHD, CVBS, IP |
| IP Camera Support | Up to 6MP per channel |
| Incoming Bandwidth | Max 48Mbps |
| Recording Resolution | 1080P, 5M-N, 4M-N, 1080N, 720P |
| Max Display Split | 8 channels |
| Video Outputs | 1 HDMI, 1 VGA |
| Audio In/Out | 1 channel (RCA) / 1 channel |
| Video Compression | H.265, H.264, Dual-stream |
| SATA HDD Support | 1 port, up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | RJ-45 (10/100 Mbps) |
| User Accounts | Up to 128 users |
| Mobile Access | ICMOB, gCMOB (iPhone, Android) |
| CMS Software | KVMS Pro |
| Playback Modes | Play, Pause, Rewind, Digital Zoom, Shuffle |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/v6, RTSP, DDNS, FTP, ONVIF, P2P |
| Power Supply | DC 12V/1.5A |
| Power Consumption | 10W (without HDD) |
| Operating Temp | -10°C ~ 45°C, 10–90% RH |
| Dimensions (W×D×H) | 197 x 192 x 41 mm |
| Weight | 0.54 kg (without HDD) |
| Compliance | RoHS, FCC, ONVIF |
