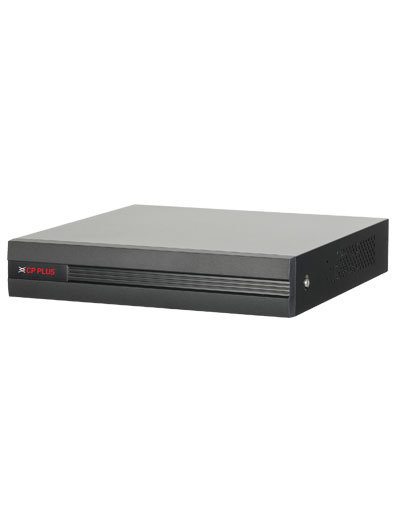

CP PLUS CP-UVR-0801F1-IC 8-channel 5M-N DVR delivers superior H.265 video recording, AI detection, remote control, and versatile multi-signal support—perfect for reliable, high-definition surveillance.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

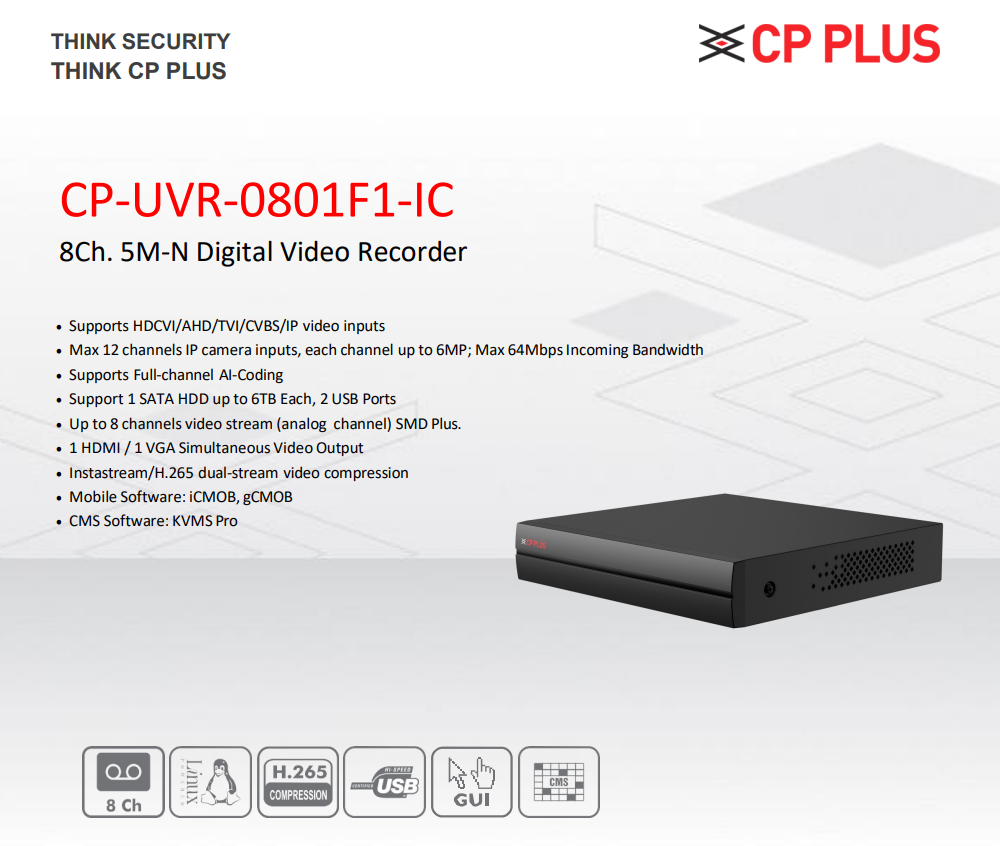

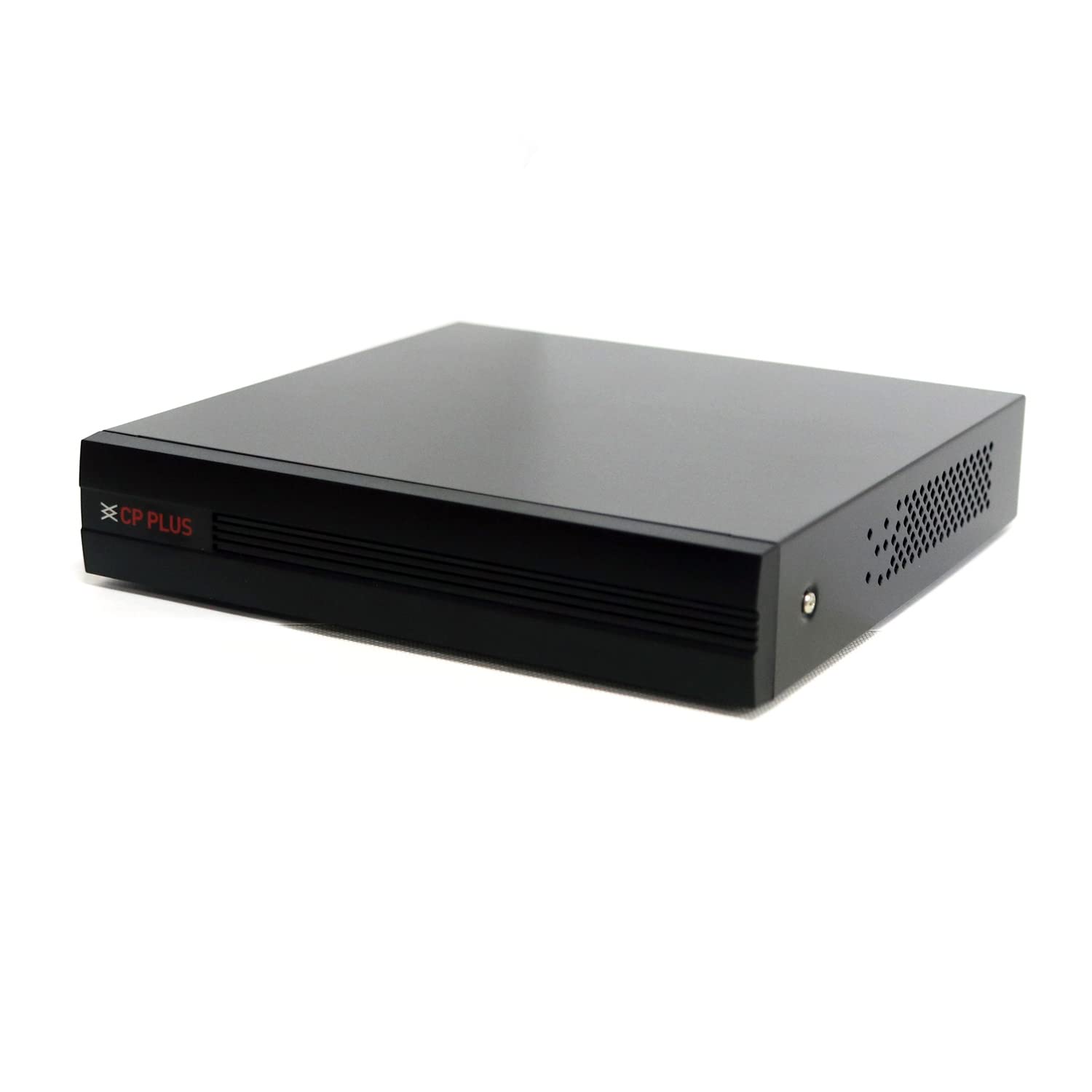

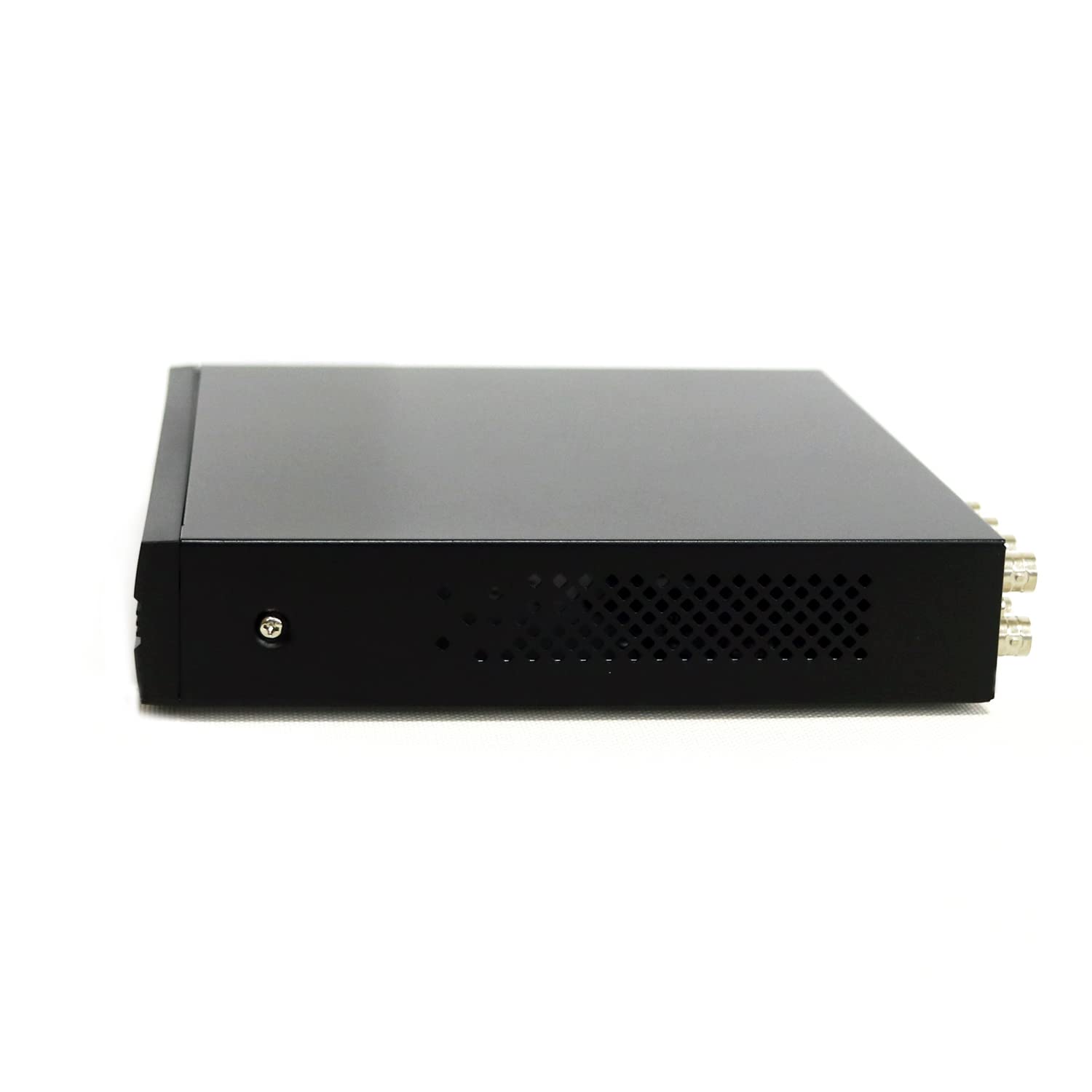

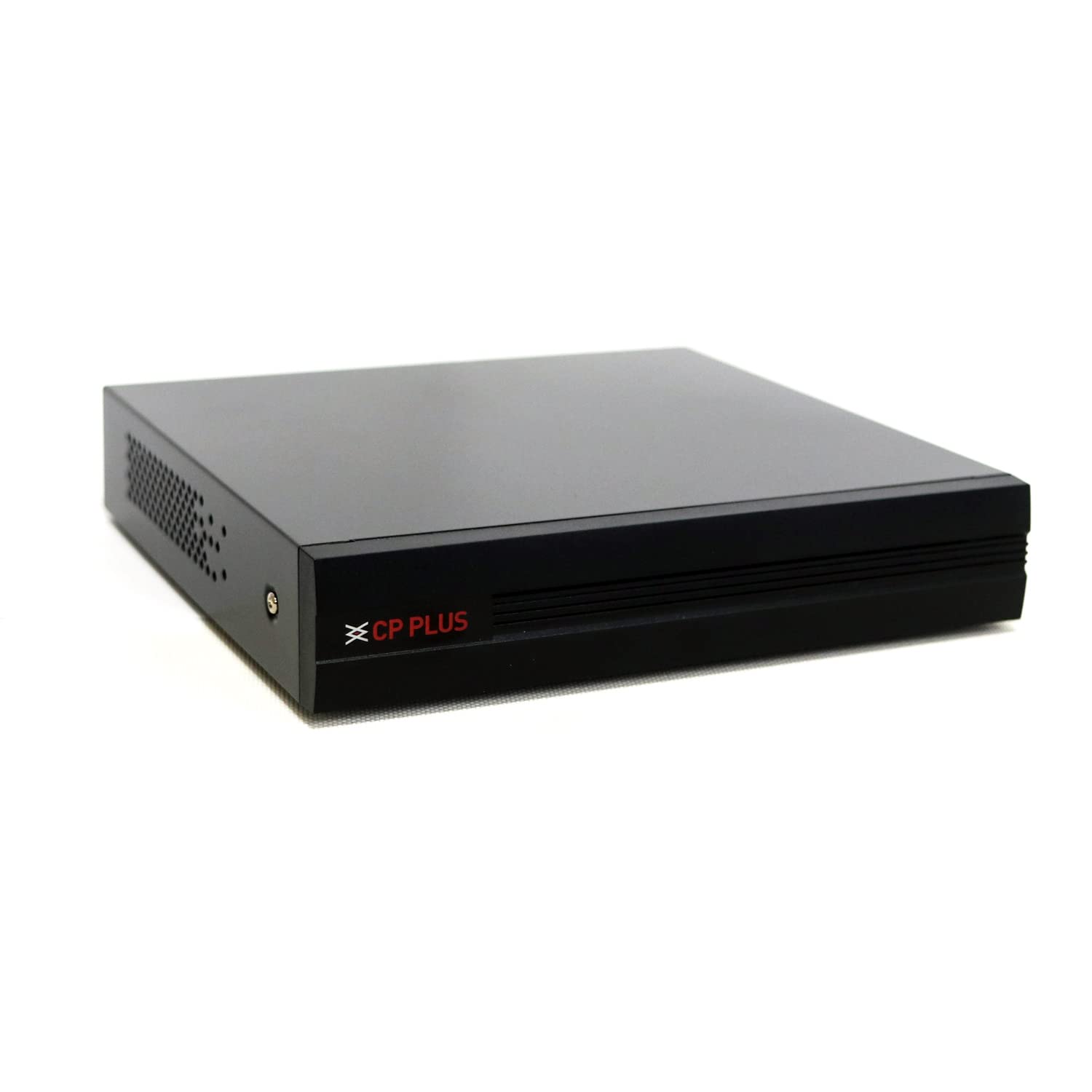

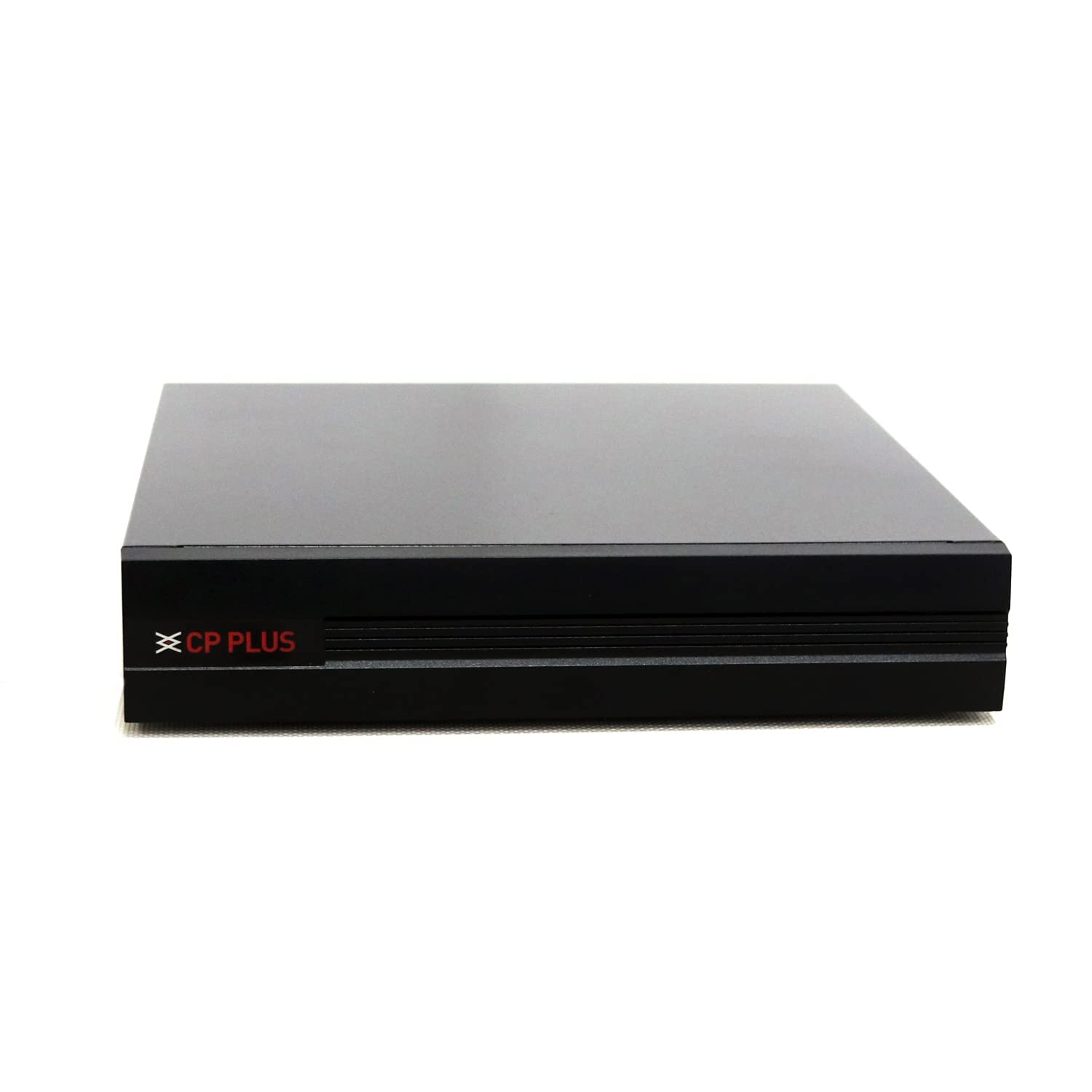

The CP PLUS CP-UVR-0801F1-IC Digital Video Recorder is a high-performance 8-channel 5M-N model from CP PLUS’s advanced Lite Series, engineered to deliver next-level surveillance efficiency at an affordable price. This cutting-edge DVR integrates HDCVI, HDTVI, AHD, CVBS, and IP video inputs, supporting up to 12 IP cameras of up to 6MP resolution each—making it a versatile choice for hybrid surveillance setups. Equipped with an embedded Linux processor and Instastream H.265 compression, the CP-UVR-0801F1-IC ensures efficient data storage without compromising image quality.
CP PLUS CP-UVR-0801F1-IC DVR supports AI features such as SMD Plus for smart motion detection, human and vehicle classification, and full-channel AI coding. It also includes robust connectivity options, including HDMI and VGA outputs, dual USB ports, and 64 Mbps incoming bandwidth. Backed by mobile apps (iCMOB, gCMOB) and CMS software (KVMS Pro), the CP PLUS CP-UVR-0801F1-IC enables seamless remote access, playback, and smart monitoring. With support for ONVIF compliance and edge, central, or backup storage, CP PLUS CP-UVR-0801F1-IC DVR guarantees compatibility, reliability, and top-tier performance for urban, institutional, and commercial security applications.
8-channel 5M-N DVR (supports up to 12 IP channels)
Supports HDCVI/HDTVI/AHD/CVBS/IP inputs
6MP per IP channel; Max 64Mbps bandwidth
AI SMD Plus for human and vehicle detection
H.265 dual-stream video compression
1 SATA HDD up to 6TB, 2 USB ports
1 HDMI and 1 VGA simultaneous outputs
Mobile apps: iCMOB, gCMOB; CMS: KVMS Pro
DC12V, 7W power consumption (without HDD)
Compact build: 198.3 × 203.4 × 41.5 mm, 0.57 kg
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-0801F1-IC |
| Series | Lite Series |
| Channels | 8 Analog + Up to 12 IP Inputs |
| Supported Formats | HDCVI, HDTVI, AHD, CVBS, IP |
| Max IP Camera Resolution | Up to 6MP per channel |
| Maximum Bandwidth | 64 Mbps |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Compression | H.265 / H.264 Dual Stream |

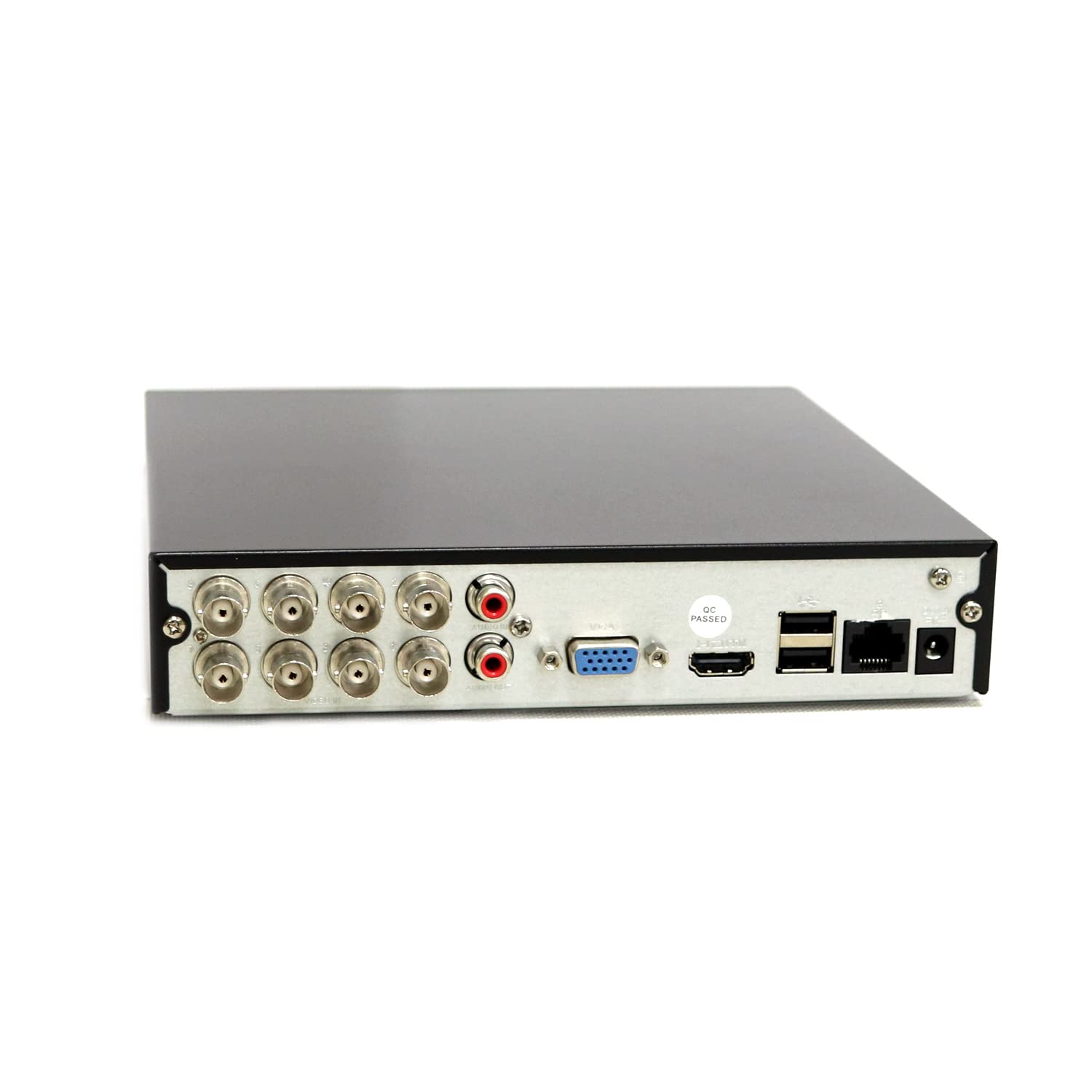

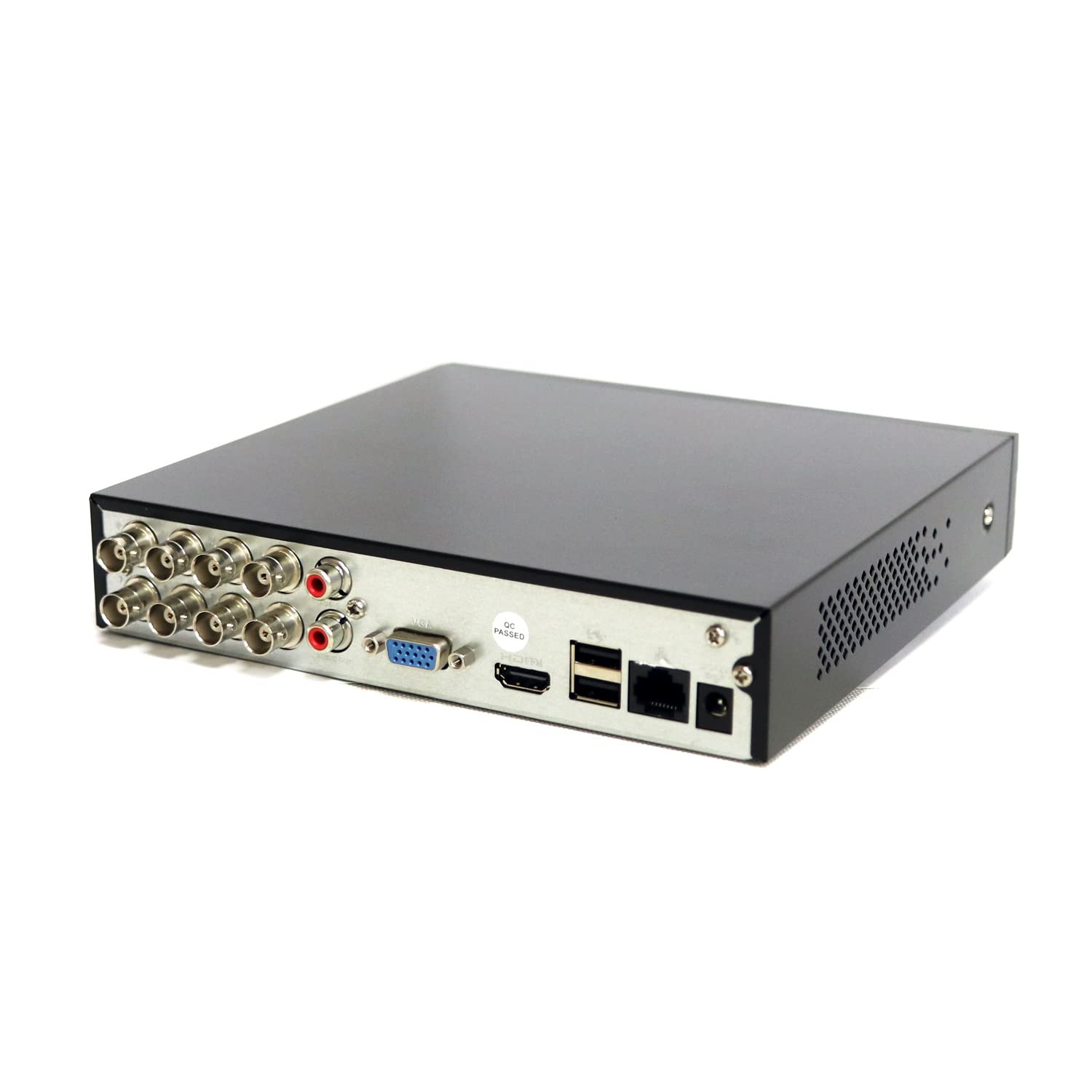

| Video Outputs | 1 HDMI, 1 VGA |
| Video Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1 |
| Recording Frame Rate | Up to 25/30 fps |
| AI Functions | SMD Plus (Human/Vehicle Detection) |
| Audio Input/Output | 1 RCA / 1 RCA |
| Audio Compression | G.711A, G.711U, PCM |
| Bit Rate | 32 Kbps – 6144 Kbps per channel |
| HDD Support | 1 SATA up to 6TB each |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 RJ-45 (100 Mbps Ethernet) |
| Supported Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, ONVIF, SNMP, NTP, DDNS, FTP |
| Mobile Access | iCMOB, gCMOB Apps |
| CMS Software | KVMS Pro |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | 7W (without HDD) |
| Working Temperature | -10°C to +45°C |
| Operating Humidity | 0–90% RH |
| Dimensions (W × D × H) | 198.3 × 203.4 × 41.5 mm |
| Weight | 0.57 kg (without HDD) |
| Certification | CE, FCC, RoHS, ONVIF Compliant |
