CP PLUS CP-VRA-1K0801-HV2 offers high-speed 8CH 1080N recording, H.265/H.264 compression, HDMI/VGA output, up to 8TB storage, robust Linux performance, advanced networking, and mobile CMS control for enterprise-grade DVR security.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLCP-VRA-1K0801-HV2 from the INDIGO SERIES by CP PLUS, engineered for high-performance surveillance and reliability. The CP-VRA-1K0801-HV2 Indigo DVR stands out with its advanced H.265 and H.264 compression, enabling crystal-clear recording on all 8 channels at 1080N resolution. This robust DVR features a powerful embedded microprocessor running on an ultra-stable Linux OS, making it an ideal choice for modern surveillance systems in enterprises, shops, and residences. Connect various video inputs (AHD, TVI, CVI, CVBS, IP) and enjoy real-time flexibility with simultaneous HDMI and VGA output options. CP PLUS CP-VRA-1K0801-HV2 system supports a large storage capacity of up to 8TB, ensuring continuous recording, and seamless backup can be achieved via USB, SATA, or the network.
The CP PLUS CP-VRA-1K0801-HV2 Indigo DVR offers advanced motion, manual, event-based, and timing recording modes, paired with smart playback and backup management. Achieve secure network connectivity with its RJ45 Ethernet port and a wide range of supported protocols, making remote access and monitoring via CMOB-20 and CVMS-2000 mobile/CMS software instantly available.
8 Channel 1080N Non-Realtime Recording with H.265/H.264 compression

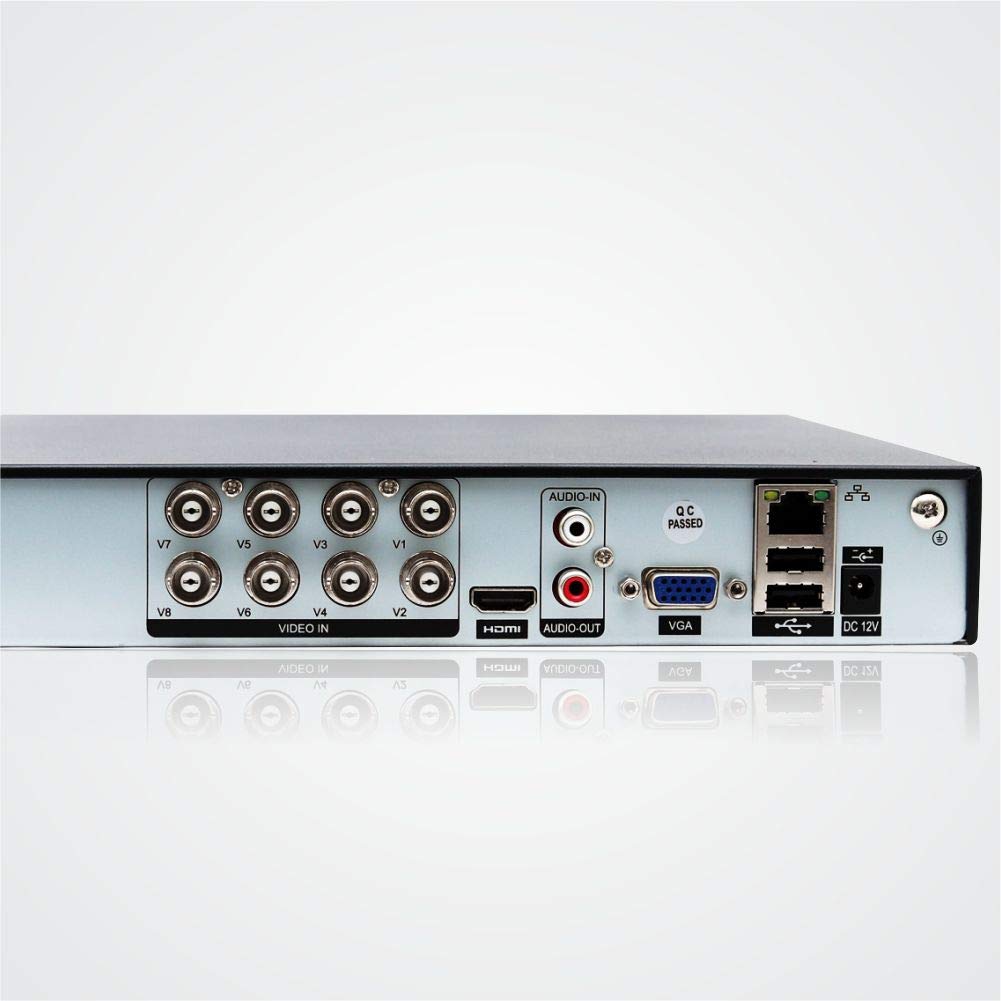

Supports AHD, TVI, CVI, CVBS, IP video input
Simultaneous HDMI and VGA video output
1 SATA HDD up to 8TB, easy USB backup
Embedded Linux OS, high-performance microprocessor
Advanced motion detection, manual & event-based recording
RJ45 (10M/100M) Adaptive Ethernet port, multiple network protocols
255mm x 236mm x 44mm dimensions; 1 kg weight
Mobile CMS support via CMOB-20 and CVMS-2000
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Series | INDIGO SERIES |
| Model Name | CP-VRA-1K0801-HV2 |
| Channels | 8 Channel |
| Compression | H.265, H.264 |
| Recording Resolution | 1080N (Non-Realtime) |
| Recording FPS | 15 fps/ch |
| Video Inputs | AHD, TVI, CVI, CVBS, IP |
| Video Output | HDMI, VGA |
| Audio Input/Output | 1 Channel each |
| Audio Compression | G.711a |
| HDD Support | 1 SATA port, up to 8TB |
| USB Ports | 2 x USB 2.0 |
| RS485 Port | 1 |
| Ethernet Port | RJ45 (10M/100M Adaptive) |
| Network Protocols | HTTP, TCPIP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI |
| CMS/Mobile Software | CVMS-2000, CMOB-20 |
| Backup Interfaces | USB, Network, SATA |
| Power Supply | 12V/2A |
| Power Consumption | 10W (Without HDD) |
| Operating Temp | 0°C - 55°C |
| Humidity | 10–90% RH |
| Dimensions (LWH) | 255mm x 236mm x 44mm |
| Weight | 1 KG |
| Compliance | CE, FC, RoHS |
