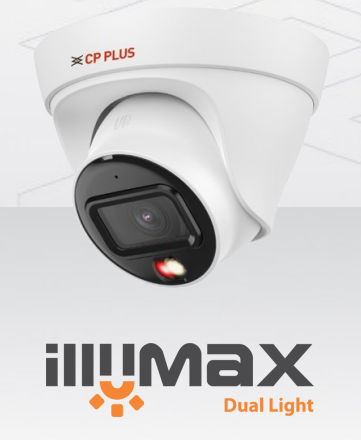

CP PLUS CP-UNC-DA21L3C-LQ 2MP Dual Light IP Dome Camera | Built-in Mic | IP67 (3.6mm)

General

• Product Type: IP Dome Camera
• Model: CP-UNC-DA21L3C-LQ

Image & Video

• Image Sensor: 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
• Effective Pixels: 1920 (H) × 1080 (V)
• Maximum Resolution: 1920 × 1080
• Frame Rate: Up to 25/30 fps
• Video Compression: Instastream
• Video Compression (Additional): H.265
• Video Compression (Additional): H.264
• Video Compression (Additional): H.264H
• Video Compression (Additional): H.264B
• Video Compression (Additional): MJPEG (sub-stream only)
• Stream Capability: Triple stream
• Day/Night Mode: Auto (ICR) / Color / B/W
• Minimum Illumination (Color): 0.005 lux @ F1.6 (30 IRE)
• Minimum Illumination (B/W): 0.0005 lux @ F1.6 (30 IRE)
• Minimum Illumination (IR): 0 lux (IR on)
• Digital Wide Dynamic Range: DWDR
• Noise Reduction: 3D NR
• Back Light Compensation: BLC
• Highlight Compensation: HLC
• Digital Watermarking: Supported
• Image Rotation: 0° / 90° / 180° / 270°

Lens

• Lens Type: Fixed-focal
• Lens Focal Length: 3.6 mm
• Lens Mount: M12
• Maximum Aperture: F1.6
• Angle of View (Horizontal): 87°
• Angle of View (Vertical): 44°
• Angle of View (Diagonal): 105°
• Close Focus Distance: 1.3 m

Illumination

• IR Illumination Range: 30 m
• Warm Light Illumination Range: 30 m
• IR Light Type: Multi-core (IR + warm light)
• IR Control: Auto / Manual
• Smart IR: Supported
• Smart Illumination: Supported

Audio

• Built-in Microphone: Supported
• Speaker: Not supported
• Audio Compression: G.711a
• Audio Compression (Additional): G.711Mu
• Audio Compression (Additional): PCM
• Audio Compression (Additional): G.726
• Audio Compression (Additional): AAC

Smart & Analytics

• Human Body Detection: Supported
• Motion Detection: Supported
• Intelligent Motion Detection (IMD): Supported
• Smart Search: Supported (with Smart NVR)
• Region of Interest (ROI): Supported (4 areas)
• Privacy Masking: Supported (4 areas)

Network & Protocols

• Ethernet Interface: RJ-45 (10/100 Base-T)
• ONVIF Support: Profile S
• ONVIF Support (Additional): Profile G
• ONVIF Support (Additional): Profile T
• Network Protocols: IPv4
• Network Protocols (Additional): IPv6
• Network Protocols (Additional): HTTP
• Network Protocols (Additional): HTTPS
• Network Protocols (Additional): TCP/IP
• Network Protocols (Additional): UDP
• Network Protocols (Additional): RTP
• Network Protocols (Additional): RTCP
• Network Protocols (Additional): RTSPS
• Network Protocols (Additional): DHCP
• Network Protocols (Additional): DNS
• Network Protocols (Additional): NTP
• Network Protocols (Additional): PPPoE
• Network Protocols (Additional): SNMP v3
• Network Protocols (Additional): TLS 1.2
• Network Protocols (Additional): SSL
• Network Protocols (Additional): ICMP
• Network Protocols (Additional): IGMP
• Network Protocols (Additional): SMTP
• Network Protocols (Additional): NFS
• Transmission Mode: Unicast
• Transmission Mode (Additional): Multicast

Storage & Recording

• Local Storage: Not specified by manufacturer

Cyber Security

• Encryption: AES 256-bit
• Configuration Encryption: Supported
• Video Encryption: Supported
• Trusted Boot: Supported
• Trusted Upgrade: Supported
• Account Lockout: Supported
• Security Logs: Supported
• IP/MAC Filtering: Supported

Power

• Power Source: 12 V DC
• Power Source (Additional): PoE (802.3af)
• Power Consumption (Basic, 12 V DC): 1.4 W
• Power Consumption (Basic, PoE): 2.2 W
• Power Consumption (Max, 12 V DC): 3.3 W
• Power Consumption (Max, PoE): 4.4 W

Physical & Environmental

• Weatherproof Rating: IP67
• Operating Temperature: –40 °C to +60 °C
• Operating Humidity: ≤95% RH (non-condensing)
• Storage Temperature: –40 °C to +60 °C
• Storage Humidity: ≤95% RH (non-condensing)
• Casing Material: Metal + Plastic

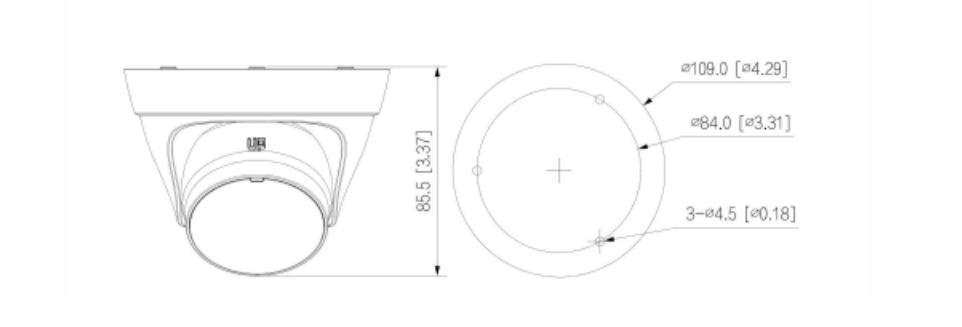

• Dimensions: 85.5 mm × 109 mm
• Weight: 250 g

System & Interface

• RAM: 128 MB
• ROM: 128 MB
• User/Host Limit: 6
• Total Bandwidth: 36 M
• Browser Support: IE
• Browser Support (Additional): Chrome
• Browser Support (Additional): Firefox

Certifications

• Certification: ISO 9001:2015
• Certification (Additional): ISO 20000-1:2018
• Certification (Additional): CE
• Certification (Additional): FCC
• Certification (Additional): RoHS
• Certification (Additional): BIS
• Certification (Additional): STQC
