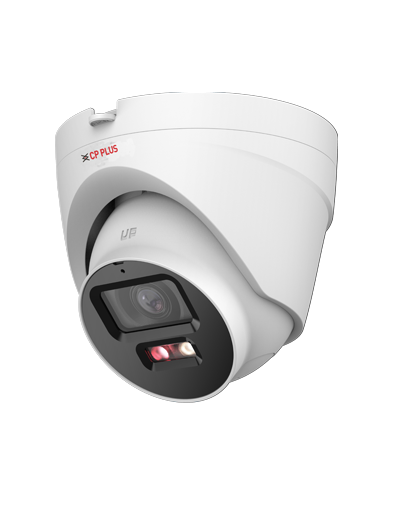

CP PLUS CP-UNC-DA41L3B-D-LQ 4MP Dual Light Dome IP Camera | 2 Way Audio | IP67 (3.6mm)

CP PLUS CP-UNC-DA41L3B-D-LQ is a 4MP dual light dome camera with infrared and warm light illumination, PoE support, built-in microphone and speaker, and IP67-rated housing for indoor or outdoor surveillance use.

Pick up from the FGTECH Store

To pick up today

0-1 Days

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINWZYEW14G Categories: Surveillance and Security, IP Cameras Brand: CP Plus

Description

The CP PLUS CP-UNC-DA41L3B-D-LQ is a 4MP network dome camera designed for fixed-location video surveillance where consistent image clarity, low-light visibility, and stable wired connectivity are required. It uses a 1/2.8-inch 4MP PS CMOS image sensor and delivers a maximum resolution of 2688 × 1520 at up to 25/30 frames per second, depending on configuration.

This model features dual light technology, combining infrared illumination and warm light, each with a specified range of up to 30 meters. The camera supports automatic day/night switching using an IR-cut filter and can operate in color or black-and-white modes based on lighting conditions. A fixed 3.6 mm lens provides a horizontal field of view of 78°, suitable for general area coverage.

Audio functionality is explicitly supported through a built-in microphone and built-in speaker, enabling audio recording and playback when used with compatible systems. Video compression formats include Instastream, H.265, H.264, and MJPEG (sub-stream only), with triple-stream capability for flexible bandwidth management.

Power can be supplied either through PoE (IEEE 802.3af) or 12 V DC. The camera includes an RJ-45 Ethernet port and does not support Wi-Fi. Its IP67-rated metal and plastic housing allows installation in outdoor environments, with an operating temperature range from –40 °C to +60 °C.

Advanced features such as WDR (120 dB), 3D noise reduction, ROI, intelligent motion detection for human and vehicle classification, and ONVIF Profile S, G, and T support are included. Image rotation is limited to 0° and 180° at 4MP resolution.

Best suited for

Fixed wired surveillance installations using PoE
Indoor or outdoor locations requiring up to 30 m night illumination
Use cases needing built-in audio monitoring
Systems requiring ONVIF-compatible IP cameras

Not suitable for

Wireless or Wi-Fi–based installations
Pan-tilt-zoom (PTZ) monitoring
Battery-powered surveillance setups

Product Details

General • Product Type: Dome IP Camera
• Brand: CP PLUS
• Model: CP-UNC-DA41L3B-D-LQ

Image & Video • Image Sensor: 1/2.8" 4MP PS CMOS
• Effective Pixels: 2688 (H) × 1520 (V)
• Maximum Resolution: 4MP (2688 × 1520)
• Frame Rate: Up to 25/30 fps (resolution dependent)
• Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
• Stream Capability: Triple stream
• Day/Night Mode: Auto (ICR) / Color / B/W
• Wide Dynamic Range (WDR): 120 dB
• Noise Reduction: 3D NR
• Region of Interest (ROI): Supported (4 areas)

Lens & Field of View • Lens Type: Fixed-focal
• Lens Size: 3.6 mm
• Maximum Aperture: F1.4
• Angle of View: H 78°, V 42°, D 92°
• Minimum Focus Distance: 1.5 m

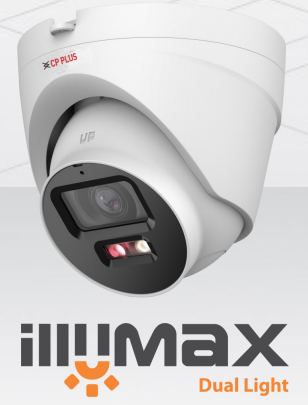

Illumination • Illumination Type: Dual Light (IR + Warm Light)
• IR Range: Up to 30 m
• Warm Light Range: Up to 30 m
• Smart Illumination: Supported

Audio • Microphone: Built-in
• Speaker: Built-in
• Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC

Intelligence & Events • Motion Detection: Supported
• Intelligent Motion Detection (Human/Vehicle): Supported
• Audio Detection: Supported
• Video Tampering Detection: Supported

Connectivity / Interfaces • Ethernet: RJ-45 (10/100 Base-T)
• Wi-Fi: Not supported
• Bluetooth: Not supported
• ONVIF: Profile S, Profile G, Profile T
• Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTP, UDP, DHCP, DNS, NTP, SNMP v3, SSL, TLS 1.2

Power • Power Supply: 12 V DC
• Power over Ethernet (PoE): Supported (IEEE 802.3af)
• Battery: Not supported

Storage • Local Storage (SD Card): Not supported

Physical & Environmental • Ingress Protection Rating: IP67
• Operating Temperature: –40 °C to +60 °C
• Operating Humidity: ≤95% RH (non-condensing)
• Casing Material: Metal + Plastic
• Dimensions: 100.9 mm × 109.9 mm
• Weight: 320 g

Security • Encryption: AES 256-bit
• Cyber Security Features: Supported

Certification • Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC

Compatibility • NVR Required: Not specified by manufacturer

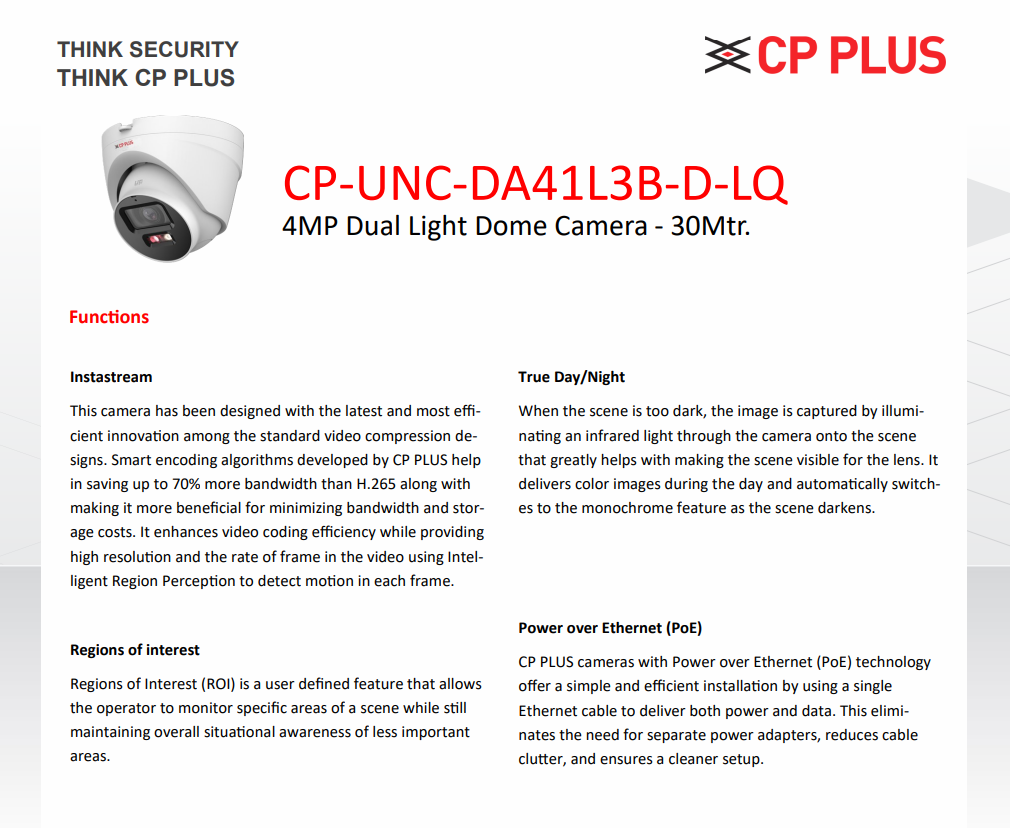

Datasheet

CP-UNC-DA41L3B-D-LQ
