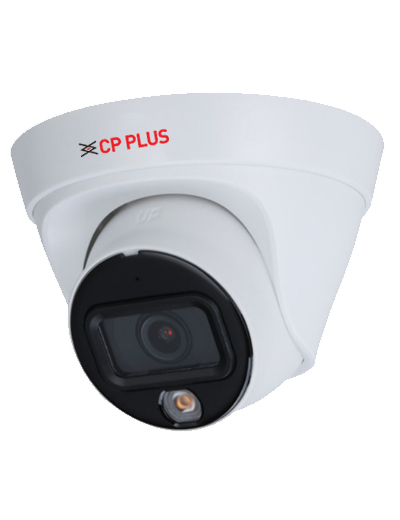

CP PLUS CP-UNC-DA61L3C-LQ is a 6MP dual light dome IP camera with fixed 3.6mm lens, built-in microphone, PoE support, and 30-meter infrared and warm light illumination for indoor and outdoor surveillance.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP-UNC-DA61L3C-LQ is a 6-megapixel dual light dome-type IP surveillance camera designed for fixed-angle monitoring in wired network environments. It uses a 1/2.7-inch PS CMOS image sensor to deliver a maximum resolution of 3200 × 1800 pixels, providing detailed video capture suitable for residential, commercial, and institutional security installations.
CP-UNC-DA61L3C-LQ features a fixed 3.6 mm lens with a wide horizontal field of view of 91 degrees. Illumination is handled through a dual-light system consisting of infrared and warm white light, each rated for up to 30 meters. The camera operates in day/night mode using an IR cut filter, automatically switching between color and monochrome imaging based on lighting conditions.
Video compression supports Instastream, H.265, H.264, and MJPEG (sub-stream only), with triple-stream capability for flexible bandwidth and recording configurations. Audio recording is supported through a built-in microphone; however, no speaker or two-way audio function is specified.
Power can be supplied either through 12 V DC or IEEE 802.3af Power over Ethernet using the RJ-45 Ethernet port. Wireless connectivity is not supported. The camera is housed in a metal and plastic enclosure with an IP67 weatherproof rating, making it suitable for outdoor use in harsh environments.
Advanced features include DWDR, 2D and 3D noise reduction, ROI, privacy masking, intelligent motion detection with human and vehicle classification (when used with compatible AI NVRs), and extensive cybersecurity protections such as AES-256 encryption and secure boot mechanisms.
Wired PoE-based CCTV installations
Outdoor or indoor fixed-view monitoring
Users requiring built-in audio recording
Installations needing dual light night visibility
Wi-Fi-only surveillance setups
Pan-tilt-zoom (PTZ) monitoring
Two-way audio communication use cases
Battery-powered installations
General
• Product Type: IP Dome Camera
• Brand: CP PLUS
• Model: CP-UNC-DA61L3C-LQ
Image & Video
• Image Sensor: 1/2.7" 6MP PS CMOS
• Effective Pixels: 3200 (H) × 1800 (V)
• Maximum Resolution: 6MP (3200 × 1800)
• Frame Rate (Main Stream): 6MP @ 1–20 fps; 2688 × 1520 @ 1–25/30 fps
• Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
• Stream Capability: Triple stream
• Day/Night Mode: Auto (ICR) / Color / B/W
• Wide Dynamic Range: DWDR
• Noise Reduction: 2D NR, 3D NR
• Backlight Compensation: BLC, HLC, DWDR
• Image Rotation: 0° / 90° / 180° / 270°
Lens
• Lens Type: Fixed-focal
• Focal Length: 3.6 mm
• Maximum Aperture: F1.4
• Lens Mount: M12
• Angle of View: H 91°, V 46°, D 110°
• Close Focus Distance: 1.7 m
Illumination
• IR Range: 30 m
• Warm Light Range: 30 m
• IR Control: Auto / Manual
• Smart IR: Supported
• Smart Illumination: Supported
Audio
• Microphone: Built-in
• Speaker: Not supported
• Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC
Smart Features
• Motion Detection: Supported
• Intelligent Motion Detection (IMD): Human and vehicle classification
• ROI: Supported (4 areas)
• Privacy Mask: 4 areas
Network & Protocols
• Ethernet: RJ-45 (10/100 Base-T)
• Wi-Fi: Not supported
• Network Protocols: IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, RTSPS, NTP, DNS, DHCP, PPPoE, UPnP, ICMP, SMTP, NFS, SNMP v3, TLS 1.2
• ONVIF: Profile S, Profile G, Profile T
Cyber Security
• Encryption: AES 256-bit
• Security Features: Secure boot, trusted execution, configuration encryption, account lockout, security logs, IP/MAC filtering
Power
• Power Source: 12 V DC, PoE (802.3af)
• Power Consumption (Basic): 2 W (DC), 2.9 W (PoE)
• Power Consumption (Maximum): 4 W (DC), 5.3 W (PoE)
Physical & Environmental
• Weatherproof Rating: IP67
• Operating Temperature: –40°C to +55°C
• Operating Humidity: ≤95% RH (non-condensing)

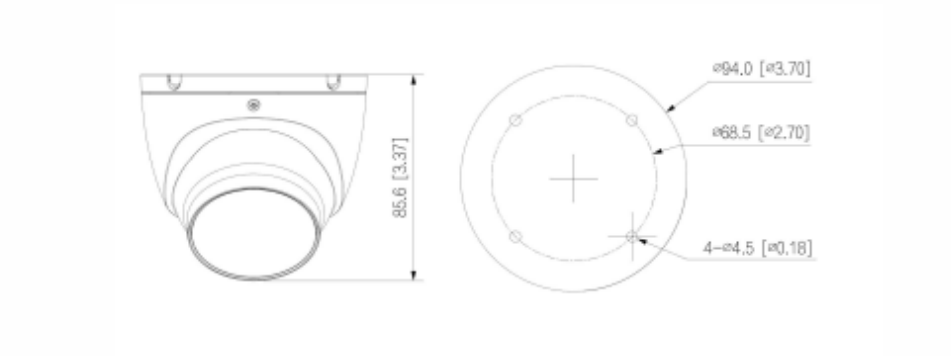

• Dimensions: 85.5 mm × 109 mm
• Casing Material: Metal + Plastic
• Weight: 280 g
Certifications • Compliance: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC
