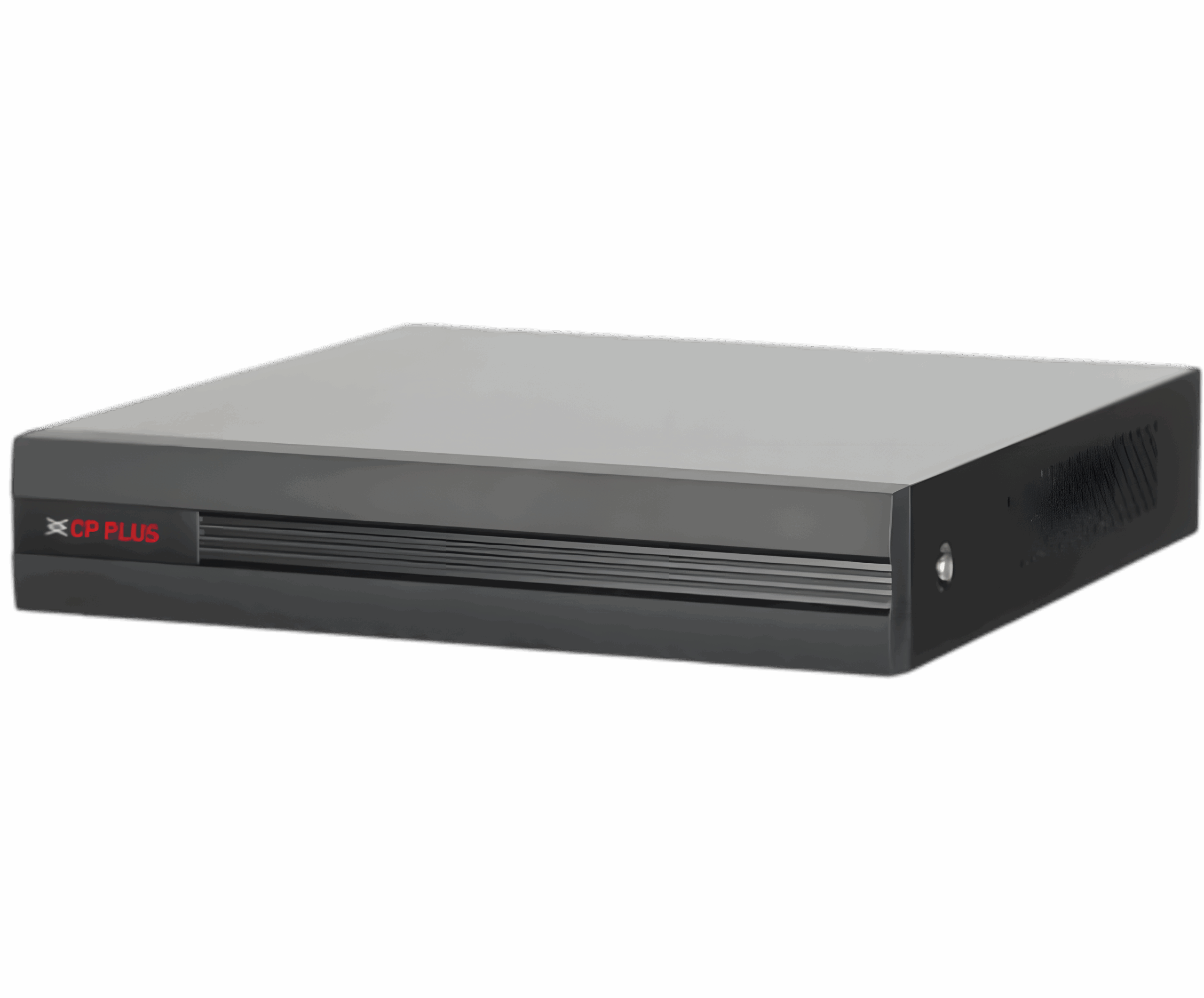

The CP-UVR-1601E1-IC Digital Video Recorder brings advanced AI-powered security to homes and businesses with its unique Smart Motion Detection Plus (SMD+), Auto-Adaptive Signal Recognition, and support for 18 total channels (16 Analog + 2 IP).
Designed for reliability and simplicity, the CP-UVR-1601E1-IC delivers flexible connectivity, powerful video compression, and seamless mobile access for complete surveillance control.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

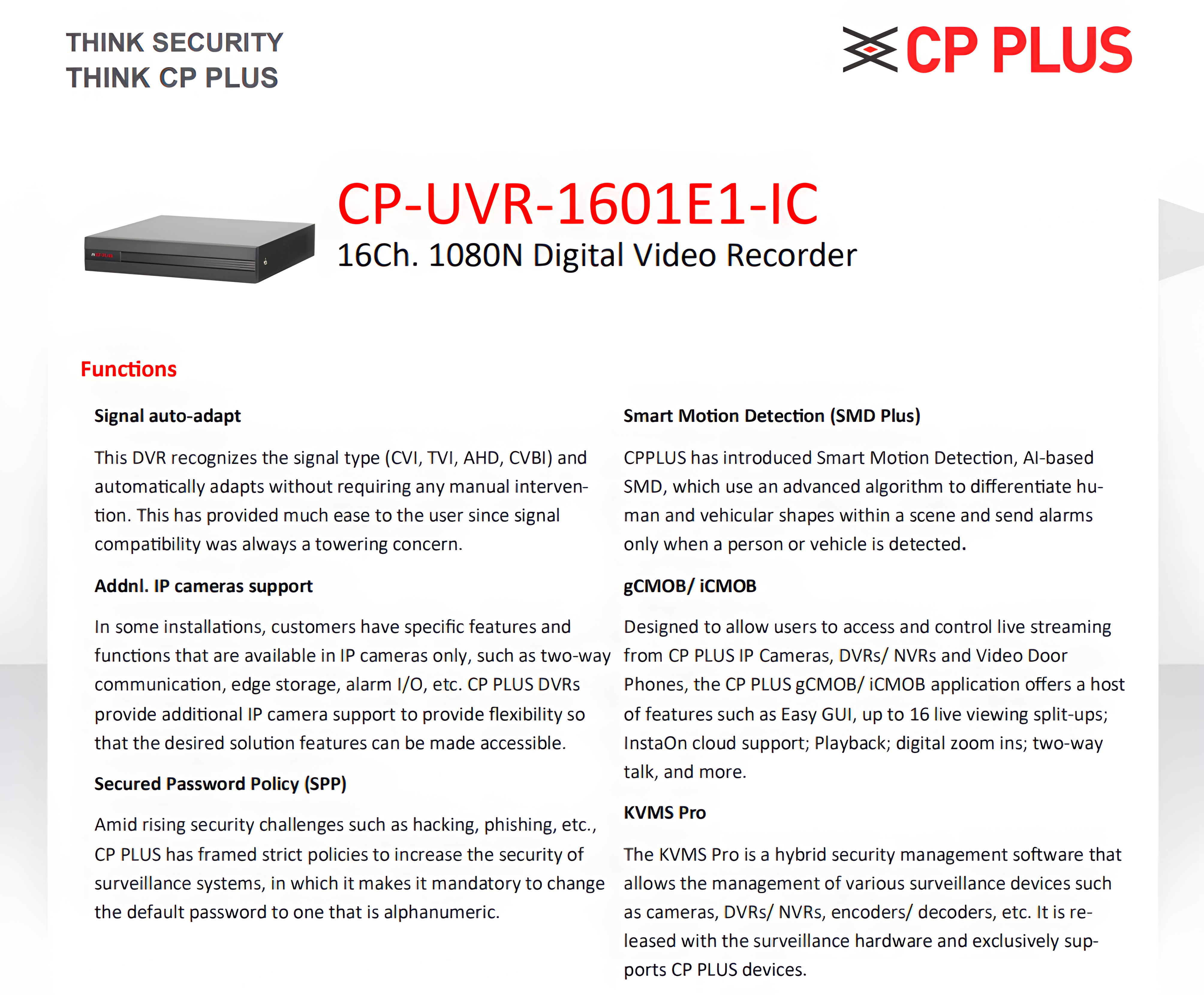

The CP-UVR-1601E1-IC 16Ch. 1080N Digital Video Recorder is engineered to provide professional-grade surveillance performance with features rarely found in DVRs of this segment. Its Auto-Adaptive 5-in-1 technology automatically detects HDCVI, AHD, TVI, CVBS, and IP signals without manual configuration, making installation effortless and highly flexible.
One of its standout advantages is the AI-powered Smart Motion Detection Plus (SMD+), developed to intelligently differentiate between human and vehicle movement. This significantly reduces false alarms triggered by shadows, animals, or environmental noise, ensuring that only real threats reach your mobile notifications.
CP-UVR-1601E1-IC supports up to 18 total channels (16 Analog + 2 IP) with each IP channel up to 6MP, this DVR offers scalability for modern hybrid installations. The Instastream + H.265 compression ensures reduced storage consumption without compromising clarity. With 1 SATA HDD up to 16TB, long-term recording retention is easily achievable.
The DVR also pairs seamlessly with iCMOB/gCMOB mobile apps and KVMS Pro CMS, enabling remote viewing, playback, cloud support, instant notifications, digital zoom, and multi-device management. Its secured password policy (SPP) ensures high-level protection against unauthorized access by enforcing strong alphanumeric passwords.

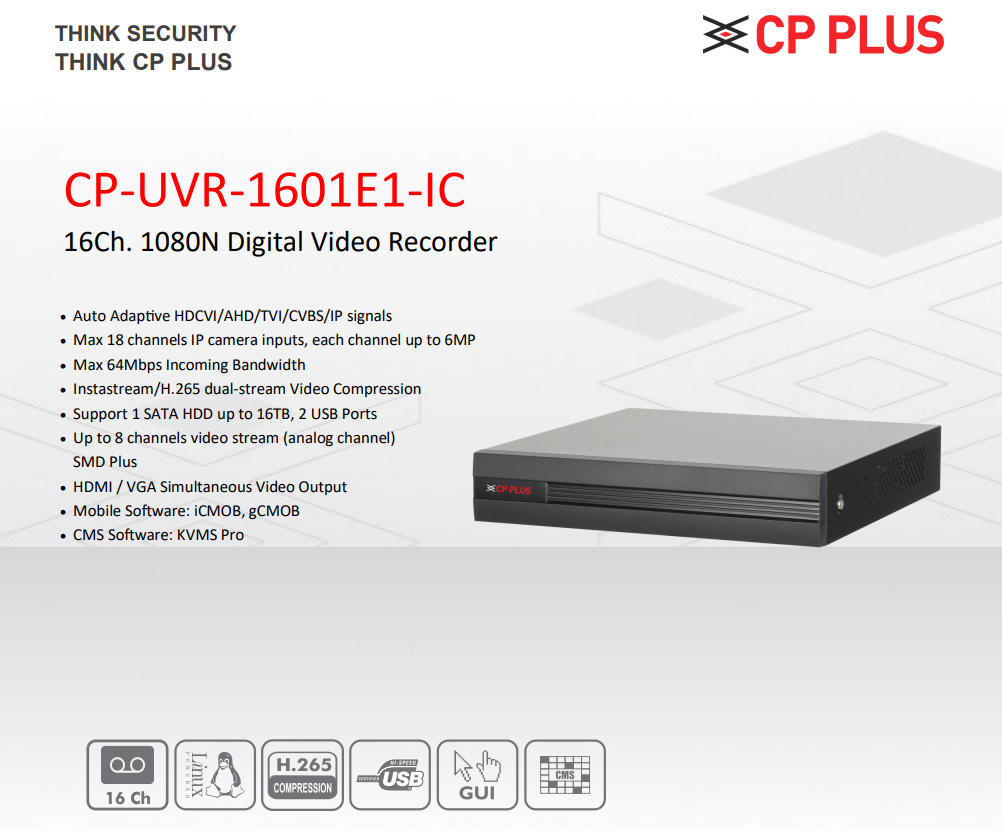

Auto-Adaptive signal support: HDCVI/AHD/TVI/CVBS/IP
Supports 18 channels total (16 Analog + 2 IP up to 6MP)
Instastream + H.265 advanced compression for optimal storage
SMD Plus for human & vehicle classification
AI search based on target type
8-channel AI performance for accurate detection
1 SATA HDD up to 16TB
2× USB ports for easy backup
64 Mbps bandwidth for smooth IP integration
Mobile apps: iCMOB / gCMOB
CMS: KVMS Pro hybrid management system
Remote playback, notifications & cloud support
| Category | Specification |
|---|---|
| Model | CP-UVR-1601E1-IC |
| Type | 16 Channel 1080N Digital Video Recorder |
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Video System | Auto adaptive HDCVI/AHD/TVI/CVBS/IP |
| IP Camera Input | 16+2 channels (up to 18 total), each up to 6MP |
| Incoming Bandwidth | Max 64 Mbps |
| Video Compression | AI Instastream / Instastream / H.265 / H.264+ / H.264 |
| SMD Plus (AI) | Smart Motion Detection with human/vehicle classification |
| AI Search | Search by target classification (Human, Vehicle) |
| Video Input | 16 channels, BNC |
| Video Output | 1 HDMI, 1 VGA (simultaneous output) |
| Supported Resolutions | 1920×1080, 1280×1024, 1280×720 |
| Recording Resolutions | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Recording Frame Rate | Main stream: 1080N/720P (1–25/30 fps); Sub stream: CIF/QCIF (1–7 fps) |
| Video Bit Rate | 32 kbps – 4096 kbps per channel |
| Video Display Split | 1 / 4 / 8 / 9 / 16 |
| OSD (On-Screen Display) | Camera title, Time, Video loss, Lock, Motion detection, Recording |
| Audio Input | 1 channel RCA + 16-channel BNC (coaxial audio) |
| Audio Output | 1 channel RCA |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8 KHz, 16-bit per channel |
| Audio Bit Rate | 64 Kbps per channel |
| Two-Way Talk | Reuse audio in/out (RCA) |
| Motion Detection | Supported |
| Video Loss Detection | Supported |
| Camera Blank | Supported |
| Smart Functions | Smart Motion Detection (SMD Plus), AI search |
| Recording Modes | Manual, Schedule (Regular/Continuous), MD (motion, video loss, tamper), Alarm, Stop |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips |
| Playback Channels | 1 / 4 / 9 / 16 channels |
| Playback Functions | Play, Pause, Stop, Rewind, Fast/Slow Play, Next/Previous, Repeat, Backup, Zoom |
| Search Mode | Time/Date, Motion Detection, Exact (to seconds) |
| Backup Mode | USB device / Network |
| Network Interface | 1 × RJ-45 (10/100 Mbps Ethernet) |
| Max User Accounts | 128 users |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, InstaOn Cloud, ONVIF 21.06, CGI conformant |
| Mobile Apps | iCMOB (iOS), gCMOB (Android) |
| CMS Software | KVMS Pro |
| Storage | 1 × SATA HDD (up to 16 TB) |
| USB Ports | 2 × USB 2.0 |
| Record Interval | 1–60 min (default 60 min); Pre-record: 1–30 sec; Post-record: 10–300 sec |
| Password Security | Secured Password Policy (SPP) – mandatory password change on setup |
| Signal Auto-adapt | Automatically detects HDCVI/AHD/TVI/CVBS |
| Power Supply | DC 12V / 2A |
| Power Consumption | <10W (without HDD) |
| Operating Temperature | -10°C to +45°C (14°F to 113°F), 10–90% RH |
| Dimensions (W×D×H) | 260 × 236 × 48 mm |
| Weight | 0.89 kg (without HDD) |
| Brand Motto | THINK CP PLUS – THINK SECURITY |
| Note | Product casing and specifications are subject to change without prior notice. |
