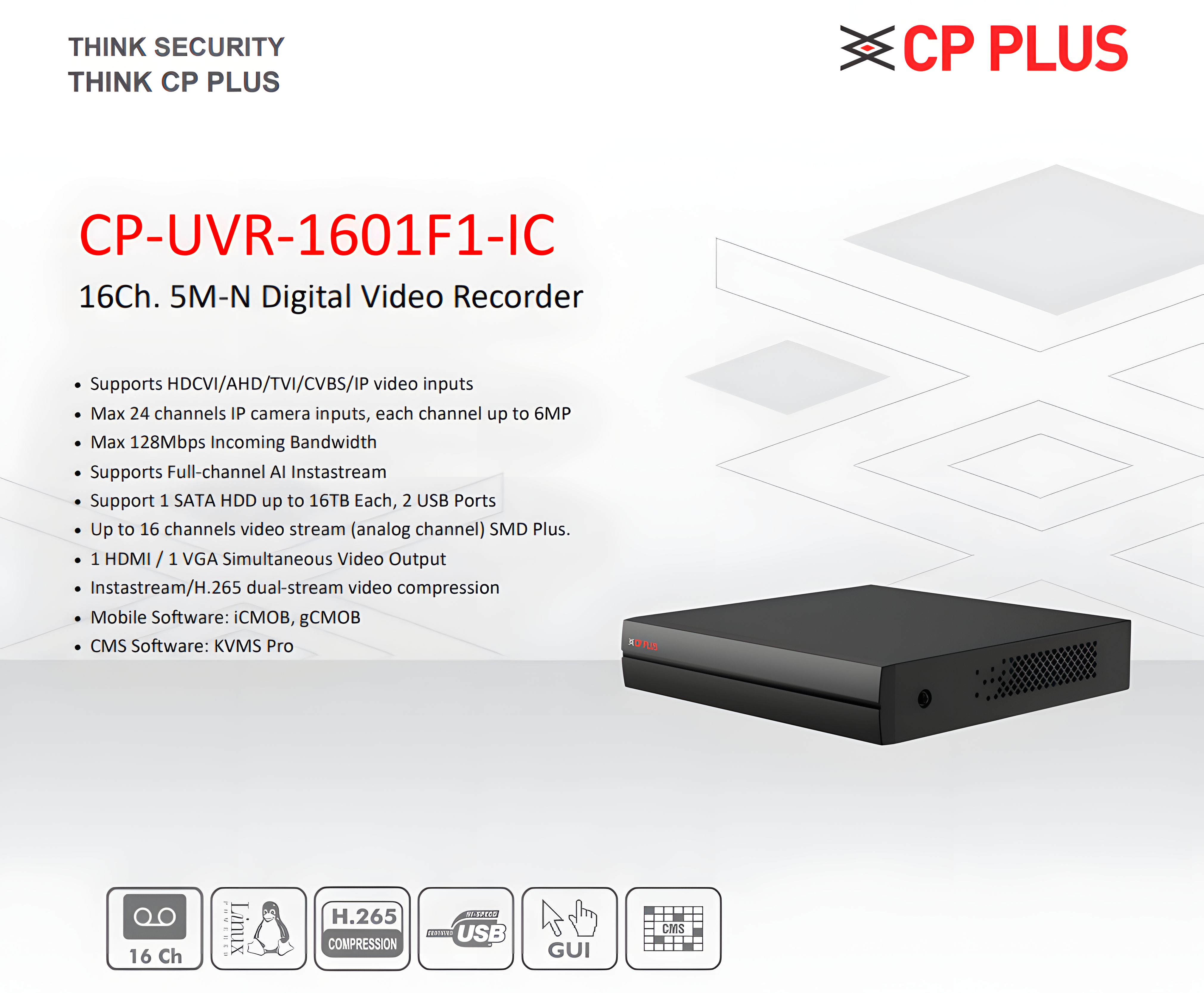

The CP-UVR-1601F1-IC is a powerful 16-channel 5M-N DVR designed for advanced hybrid surveillance. The CP-UVR-1601F1-IC delivers AI Instastream, SMD Plus, and smooth multi-format compatibility for next-gen security performance. Its 24-channel IP expansion makes it far more scalable than standard DVRs in this category.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP-UVR-1601F1-IC is a high-performance 16-channel 5M-N Digital Video Recorder built for professional surveillance environments requiring top-tier reliability, AI-powered detection, and maximum flexibility. Packed with UNI+ technology, the system supports all major video formats — HDCVI, AHD, TVI, CVBS, and IP — ensuring effortless upgrades without changing existing infrastructure.
With support for up to 24 IP channels (each up to 6MP), CP-UVR-1601F1-IC scales easily for large setups while delivering ultra-efficient compression via AI Instastream/H.265. The built-in SMD Plus analytics on all 16 analog channels offers smart human/vehicle classification, reducing false alarms and improving incident detection accuracy.
CP-UVR-1601F1-IC Connectivity is seamless with HDMI/VGA outputs, KVMS Pro support, mobile monitoring via iCMOB/gCMOB, and secure networking through an advanced password policy (SPP). Equipped with a 1× 16TB SATA HDD bay, strong alarm support, and smooth remote access, the CP-UVR-1601F1-IC is engineered to deliver dependable, scalable, and intelligent surveillance performance for homes, businesses, and enterprises.
Full-channel SMD Plus for accurate human/vehicle detection
AI Instastream for optimized storage and bandwidth savings
Smart AI search for quick incident investigation
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Handles 16 analog + up to 24 IP channels (6MP each)
Dual-stream H.265/H.264 compression for efficient recording
1 SATA HDD slot supporting up to 16TB
2 USB 2.0 ports for backups and data transfer
HDMI + VGA simultaneous output for easy monitoring
Mobile access via iCMOB/gCMOB
Central management through KVMS Pro
Supports up to 128 users with secured password policies
| Feature | Specification |
|---|---|
| Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video Input | 16 Channel BNC |
| Video Output | 1 HDMI, 1 VGA |
| IP Camera Input | 16+8 Channels, each up to 6MP |
| Maximum Incoming Bandwidth | 128 Mbps |
| Two-way Talk | Reuse audio in/out, RCA |
| Interface | Easy GUI |
| Performance | SMD Plus: 16 Channels |
| AI Search | SMD Search by Target Classification (Human, Vehicle) |
| Video Compression | AI Instastream / Instastream / H.265 / H.264+ / H.264 |
| Video Resolution | VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 1920×1080, 1280×1024, 1280×720 |
| Supported Resolutions | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Video Recording | Main Stream: 5M-N (1–10fps); 4M-N/1080p (1–15fps); 1080N/720p/960H/D1/CIF (1–25/30fps) Sub Stream: D1/CIF (1–15fps) |
| Display Split | 1 / 4 / 8 / 9 / 16 |
| On-screen Display (OSD) | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Bit Rate | 32 Kbps – 6144 Kbps per Channel |
| Audio Input | 1 Channel RCA (external), 16 Channel BNC (coaxial) |
| Audio Output | 1 Channel RCA |
| Audio Sample Rate | 8 KHz, 16-bit per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Audio Compression | G.711A, G.711U, PCM |
| Motion Detection / Video Loss / Camera Blank | Supported |
| Smartphone Compatibility | iPhone, iPad, Android |
| Mobile Software | iCMOB, gCMOB |
| CMS Software | KVMS Pro |
| Hard Disk | 1 SATA Port, up to 16 TB each |
| USB Ports | 2 x USB 2.0 |
| Anomaly Alarm | No Disk, Disk Error, Low Space, Offline, IP Conflict, MAC Conflict |
| Alarm Linkage | Record, Snapshot (Panoramic), IPC External Alarm Output, Access Controller, Voice Prompt, Buzzer, Log, Preset, Email |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips |
| Playback Channels | 1 / 4 / 9 / 16 |
| Recording Mode | Manual, Schedule (Regular/Continuous), Motion Detection, Alarm, Stop |
| Search Mode | Time/Date, Motion Detection, Exact Search (to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast/Slow Play, Next/Previous File or Camera, Full Screen, Repeat, Shuffle, Backup, Digital Zoom |
| Backup Mode | USB Device / Network |
| Max User Access | 128 Users |
| Record Interval | 1–60 min (Default: 60), Pre-record: 1–30 sec, Post-record: 10–300 sec |
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC 12V / 2A |
| Power Consumption | <12W (without HDD) |
| Working Temperature | -10°C to +45°C / +14°F to +113°F |
| Working Humidity | 10% – 90% RH |
| Dimensions (W × D × H) | 260 × 231.4 × 47.6 mm |
| Weight | 0.93 kg (without HDD) |

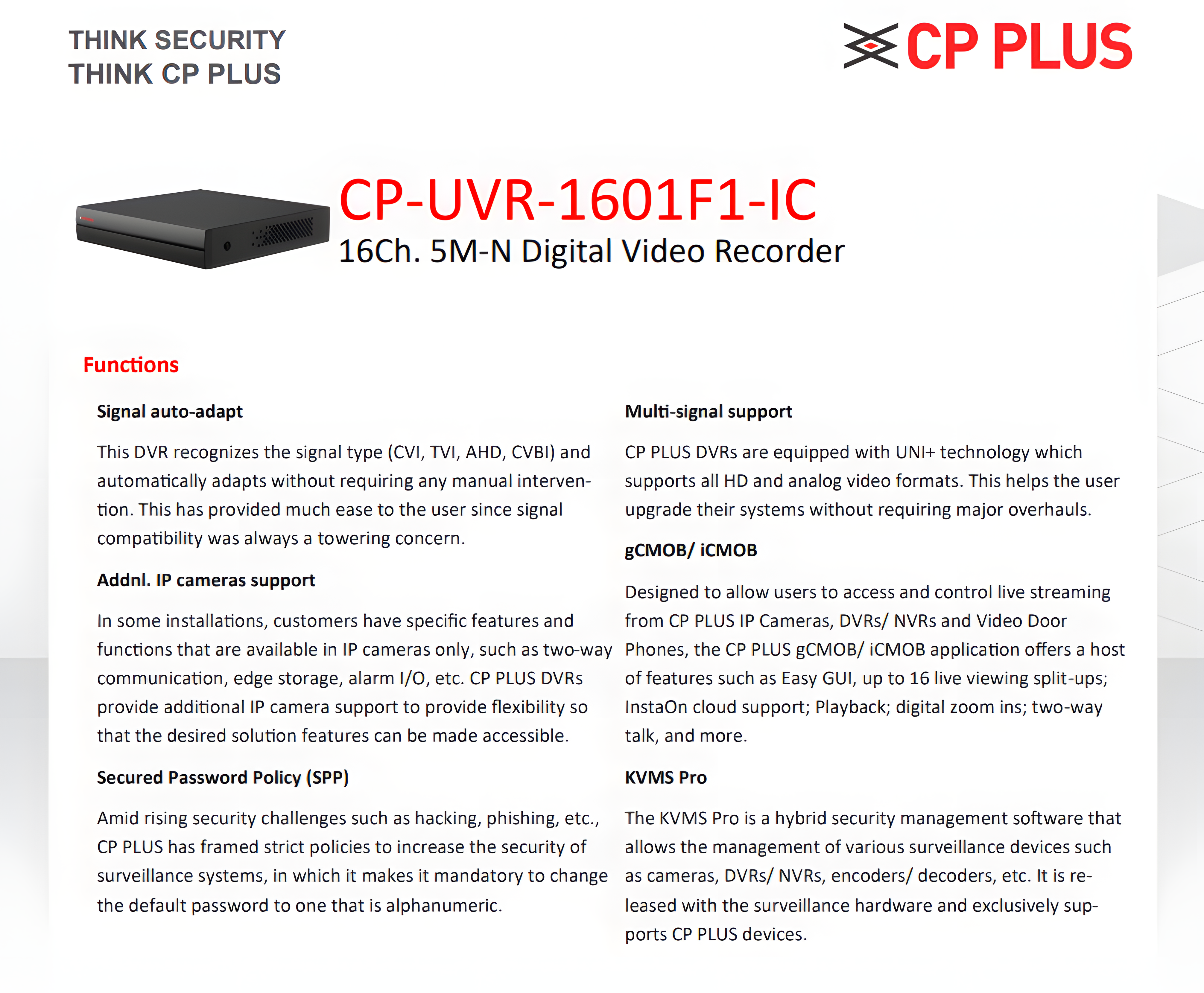

| Other Features | Signal Auto-adapt, Multi-signal UNI+ Support, Additional IP Camera Support, Secured Password Policy |
| Note | Product casing and specifications are subject to change without prior notice. |
