Mikrotik LHG LTE18 Kit LHGGM&EG18-EA High-Speed 1 Gbps Last-Mile Internet Solution

SKU: FGIN8JPQ85O1

Get ultra-fast LTE speeds of up to 1 Gbps with the Mikrotik LHG LTE18 Kit LHGGM&EG18-EA. A reliable last-mile internet solution for remote areas and rural locations.


Original price was: ₹34,999.00.Current price is: ₹29,999.00. Inc. tax (25,422.88Exc. Tax)

Estimated shipping date: 21/11/2024 - 22/11/2024

Description

Mikrotik LHG LTE18 Kit LHGGM&EG18-EA is the ideal last-mile internet solution for high-speed wireless connectivity, supporting speeds of up to 1 Gbps. With its powerful LTE 18 technology, this compact and efficient device is perfect for delivering fast and reliable internet in rural or remote locations where traditional broadband is unavailable. Whether you’re looking for a stable internet connection for your home or business, the LHG LTE18 ensures high performance with minimal downtime.

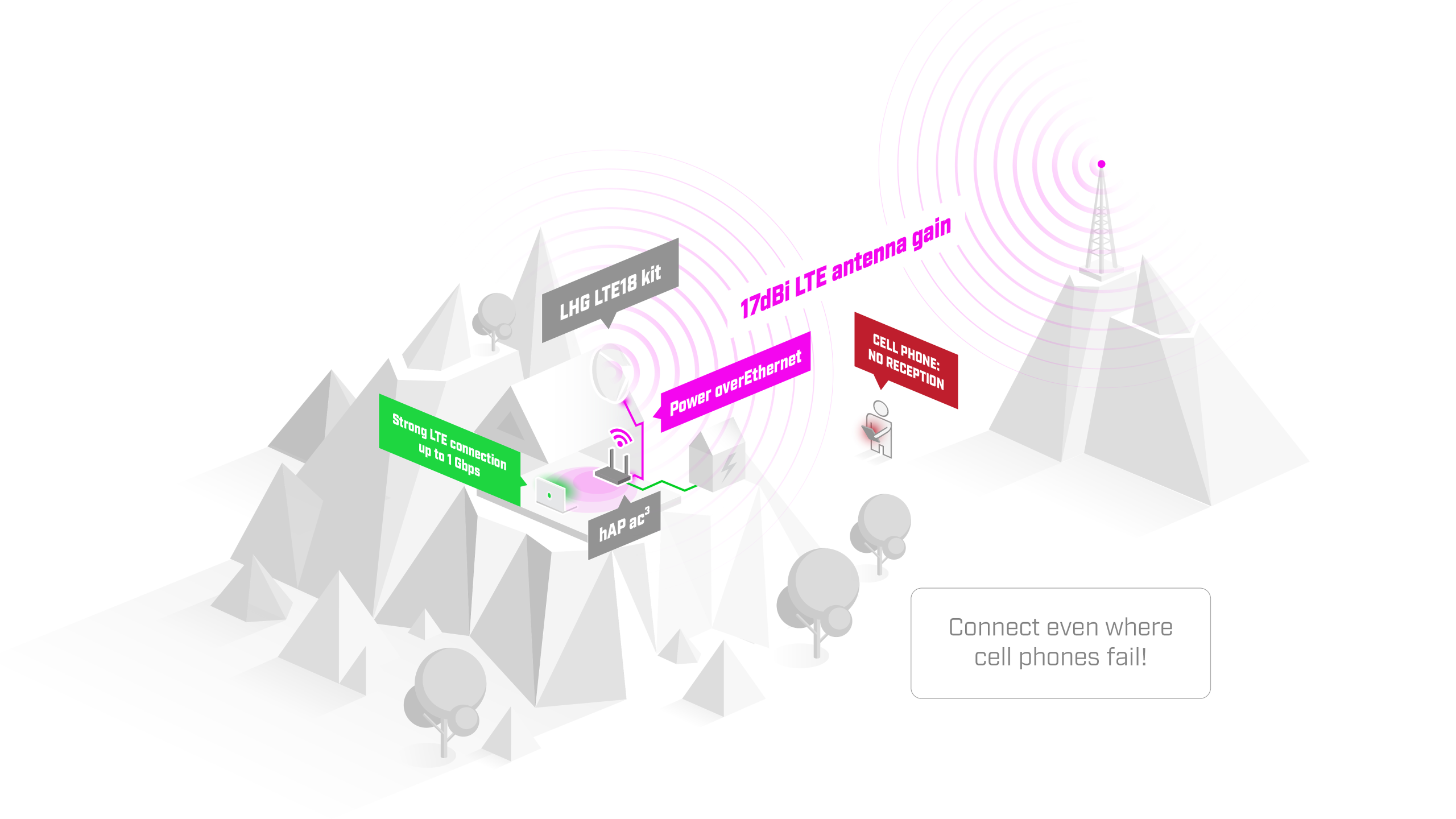

Like the previous LHG LTE models, this is a last mile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit LHGGM&EG18-EA can connect to cell towers in extreme rural locations where nothing else is available.

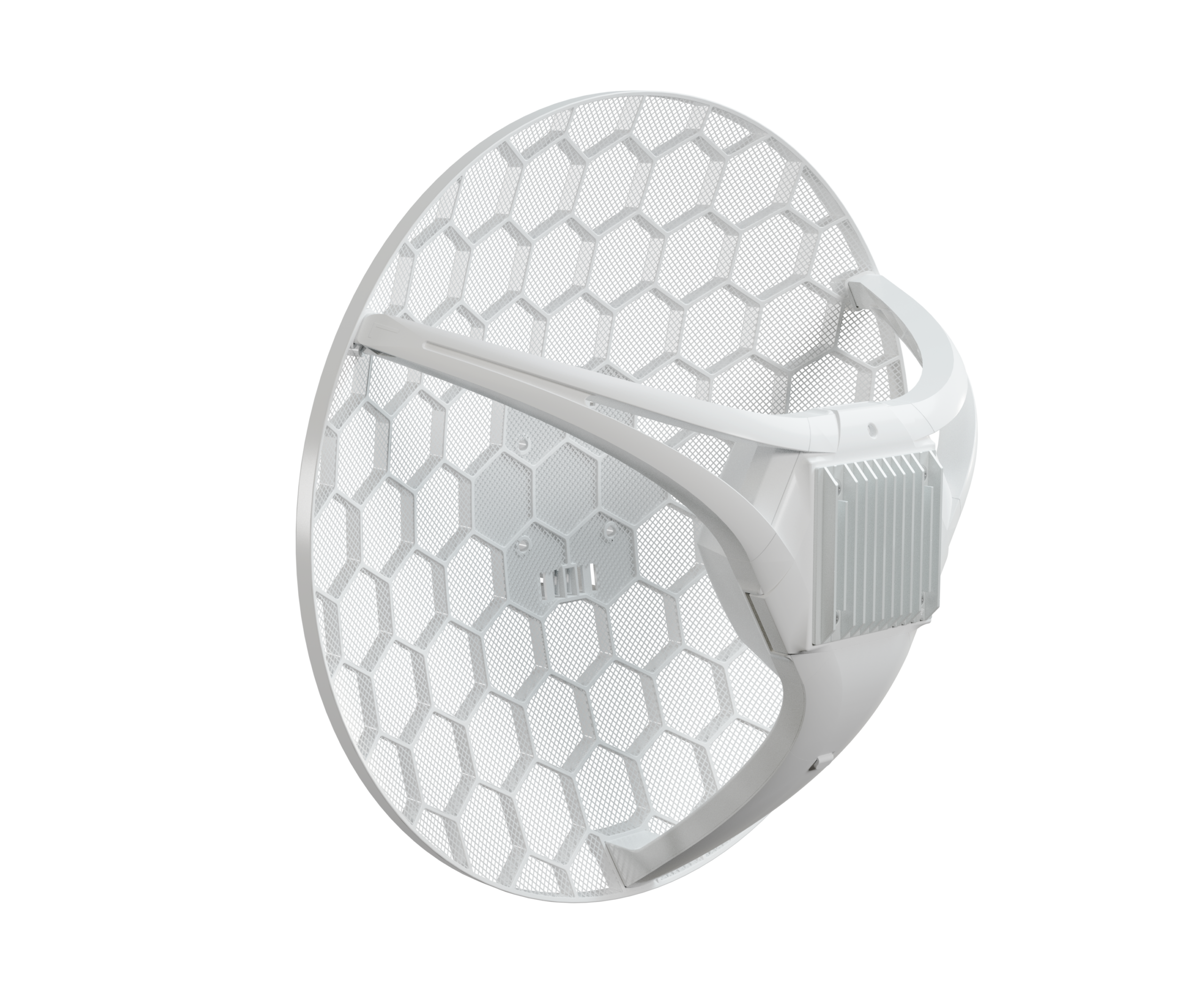

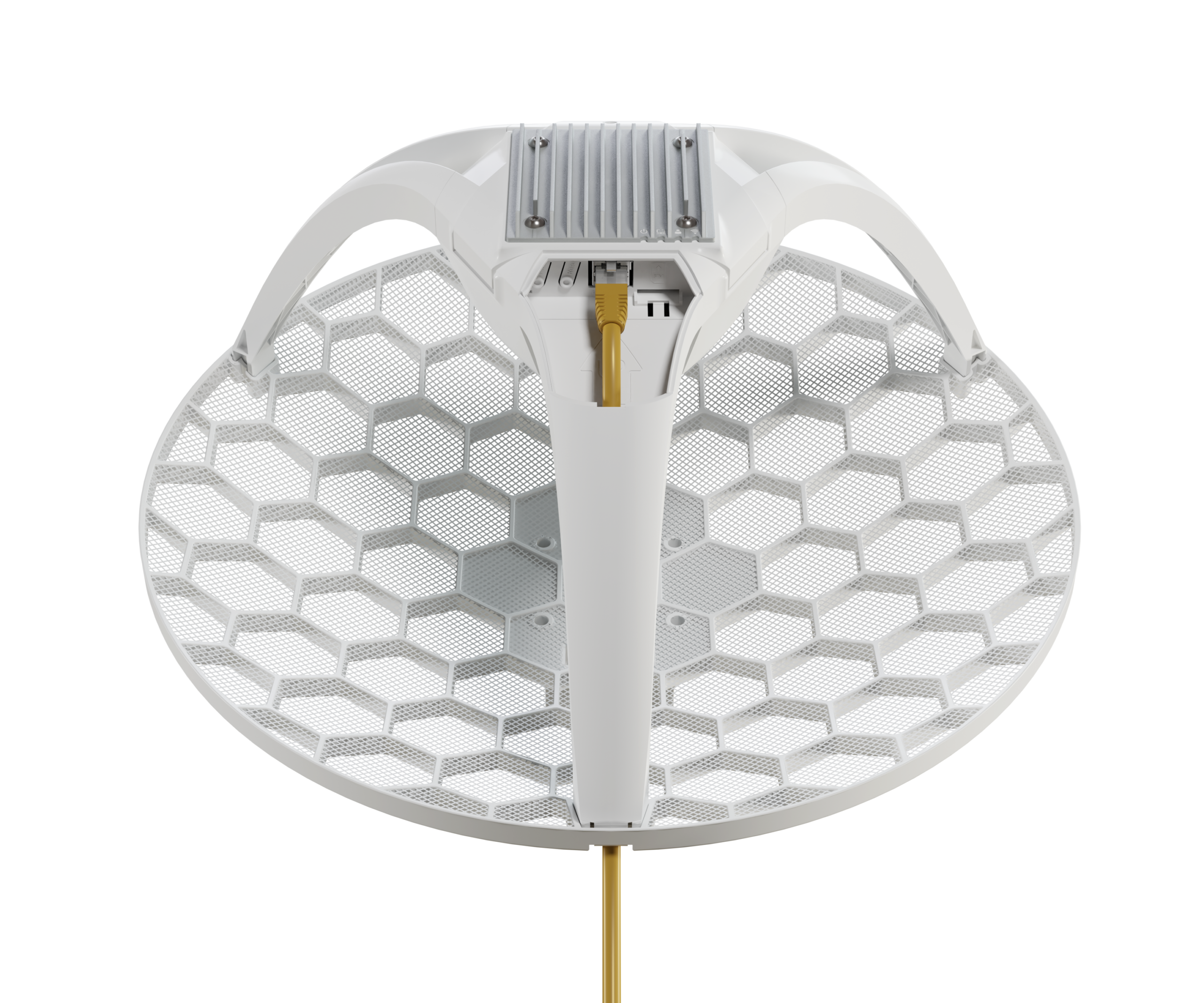

There is a massive heat sink, so you don’t have to worry about overheating. The grid antenna design can withstand harsh, windy weather. And it can be mounted in different ways, including poles and masts.

The Mikrotik LHG LTE18 kit LHGGM&EG18-EA features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions

There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well. Keep in mind that the device only supports 2×2 DL MIMO as the LHG has only 2 antenna ports. You’ll be using the Gigabit Ethernet port with PoE-in for powering from an ethernet switch. But we’ve included an injector as well. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.

So don’t wait for cable or satellite network providers to reach you – choose LHG LTE18 kit and always stay connected!

IN THE BOX

Ethernet test results

LHGGM&EG18-EA 88F3720 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.3 987.3 235.0 962.6 789.9 404.4
Bridging 25 bridge filter rules 81.3 987.3 221.3 906.4 678.3 347.3
Routing none (fast path) 81.3 987.3 235.0 962.6 790.4 404.7
Routing 25 simple queues 81.3 987.3 235.0 962.6 450.0 230.4
Routing 25 ip filter rules 81.3 987.3 219.8 900.3 219.5 112.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Additional information
Weight 2.22 kg
Dimensions 43 × 45 × 15.5 cm
Brand

Mikrotik

MODEL

LHGGM&EG18-EA

Product Details

Details
Product code LHGGM&EG18-EA
Architecture ARM 64bit
CPU 88F3720
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $279.00

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL 2x2
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC 86981604

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of M.2 slots 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 54
