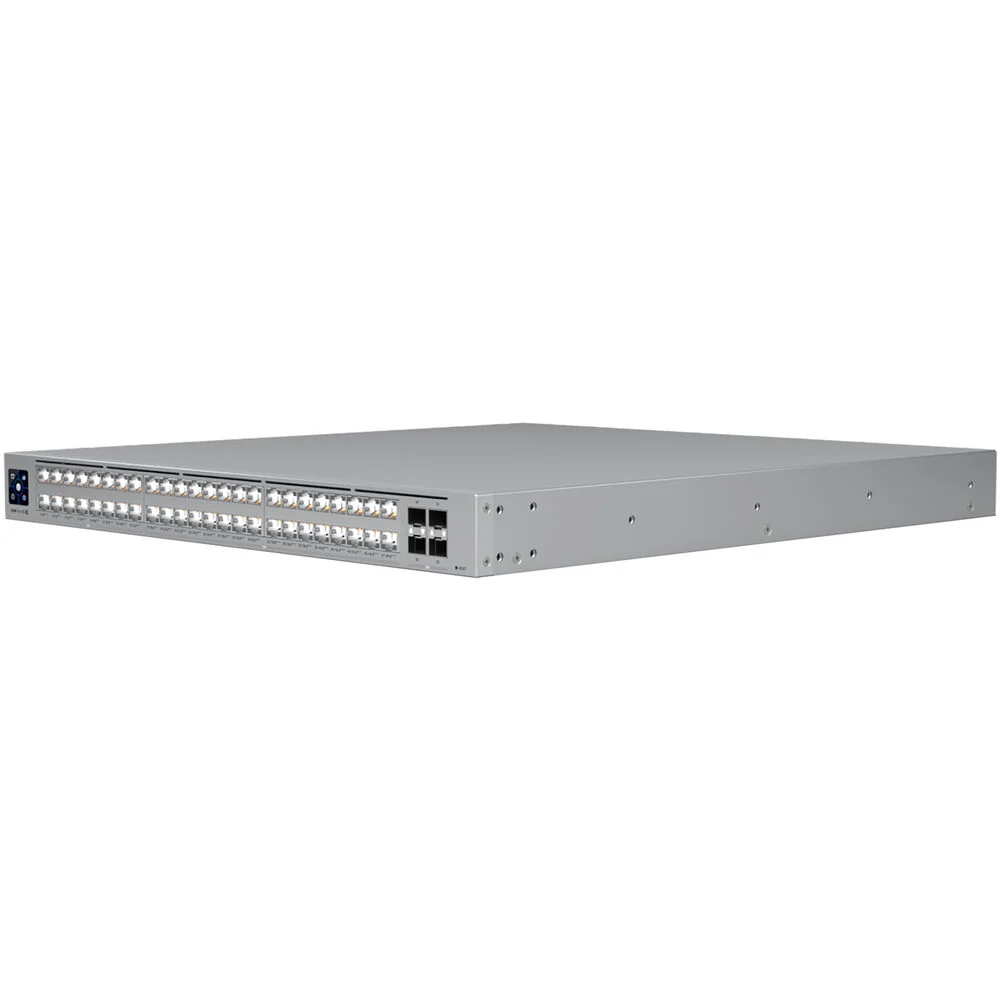

The USW-Pro-XG-48-PoE (1080W) from Ubiquiti is a next-generation Layer 3 UniFi Etherlighting™ switch designed for professional enterprise, campus, and AV infrastructure. Ubiquiti UniFi USW-Pro-XG-48-PoE provides exceptional speed, flexibility, and reliability with a mix of 48 multi-gigabit PoE+++ Ethernet ports and (4) 25G SFP28 uplink ports.
Ubiquiti UniFi USW-Pro-XG-48-PoE is engineered for ultra-fast aggregation and distribution, the switch features a 920 Gbps switching capacity, 460 Gbps non-blocking throughput, and 684 Mpps forwarding rate. The integrated Layer 3 features—including DHCP server/relay, inter-VLAN routing, and static routing—enable scalable and efficient network segmentation and management.

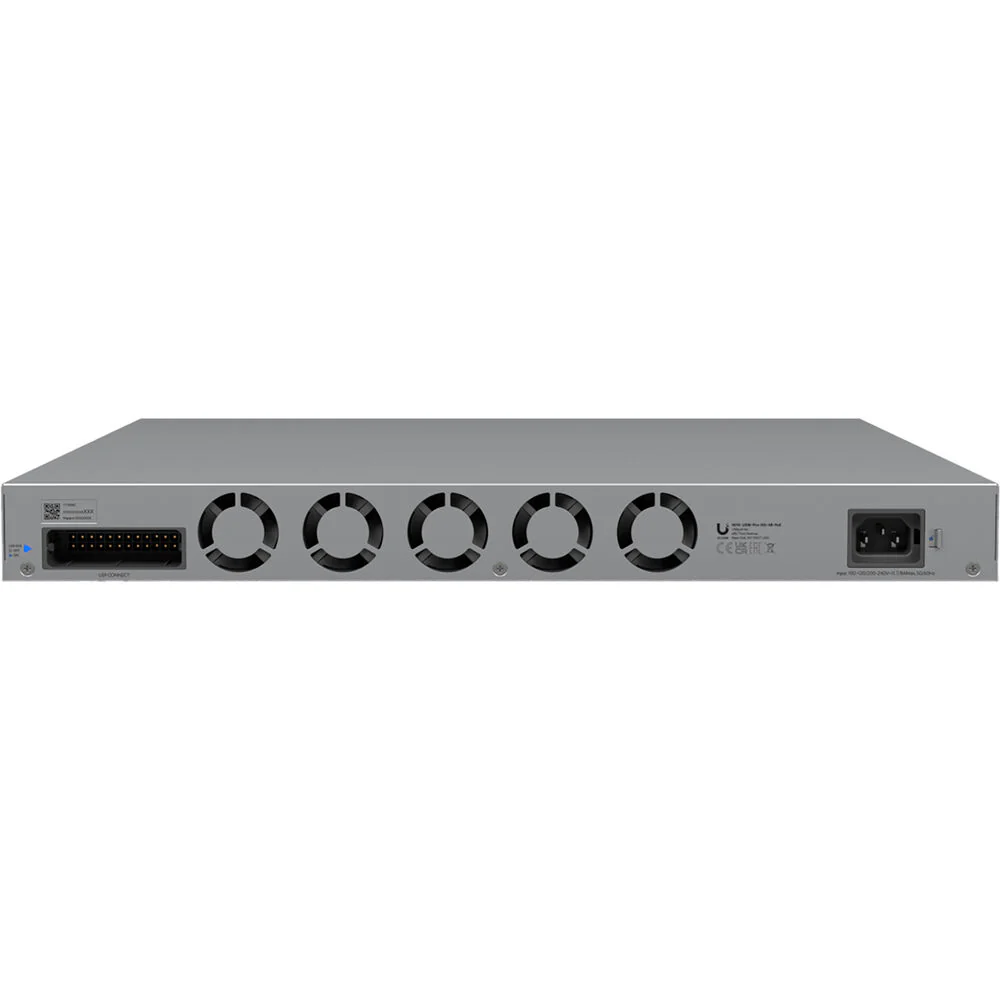

The Ubiquiti UniFi USW-Pro-XG-48-PoE supports PoE, PoE+, PoE++, and PoE+++ standards, delivering up to 90W per port with a total PoE budget of up to 1080W (at 200–240V AC). Dual power input options include an internal 1,350W AC supply and USP RPS DC backup support for redundancy.

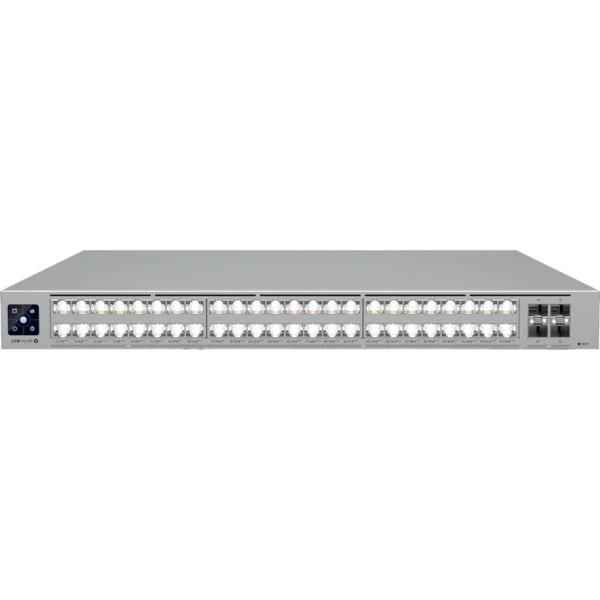

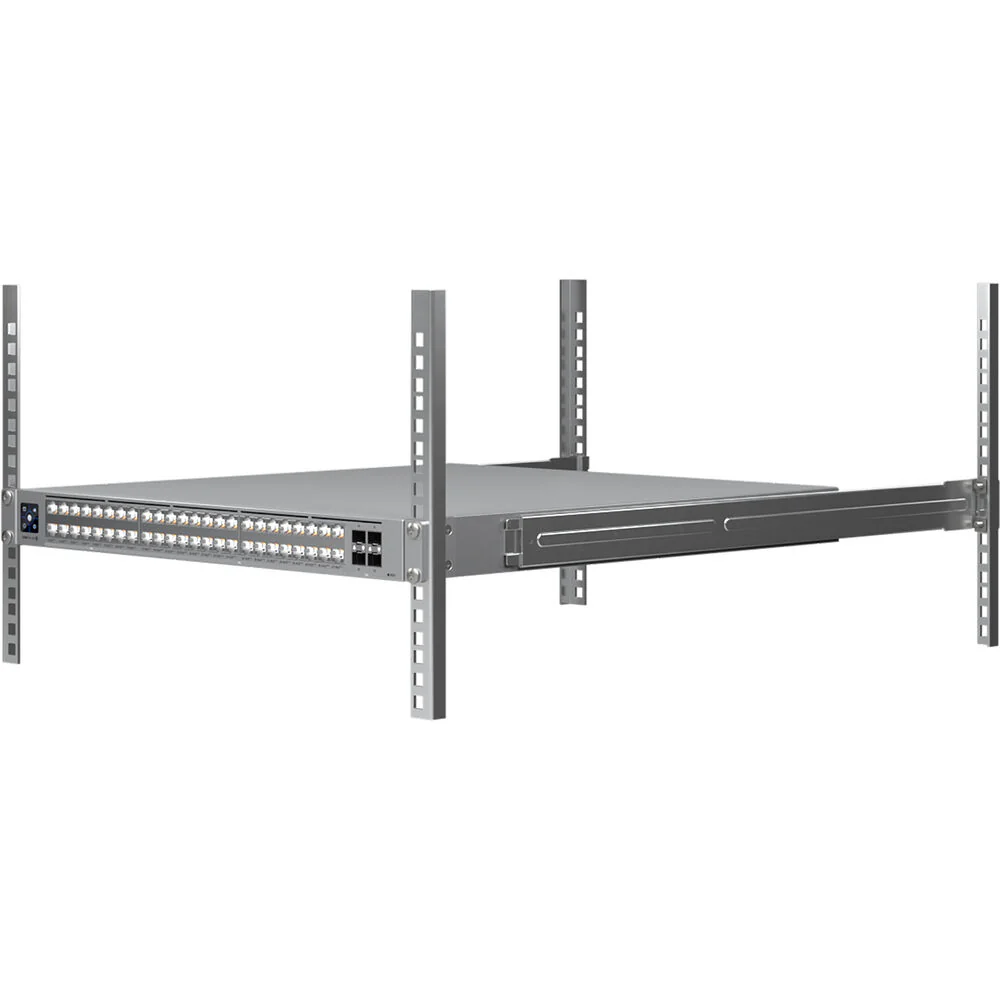

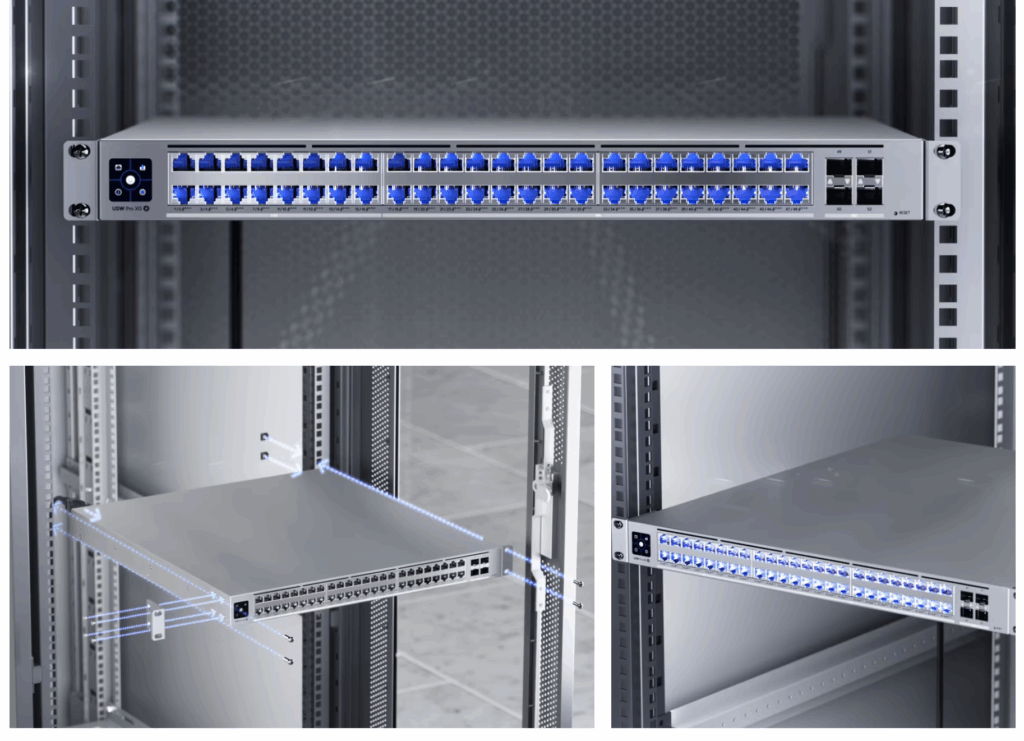

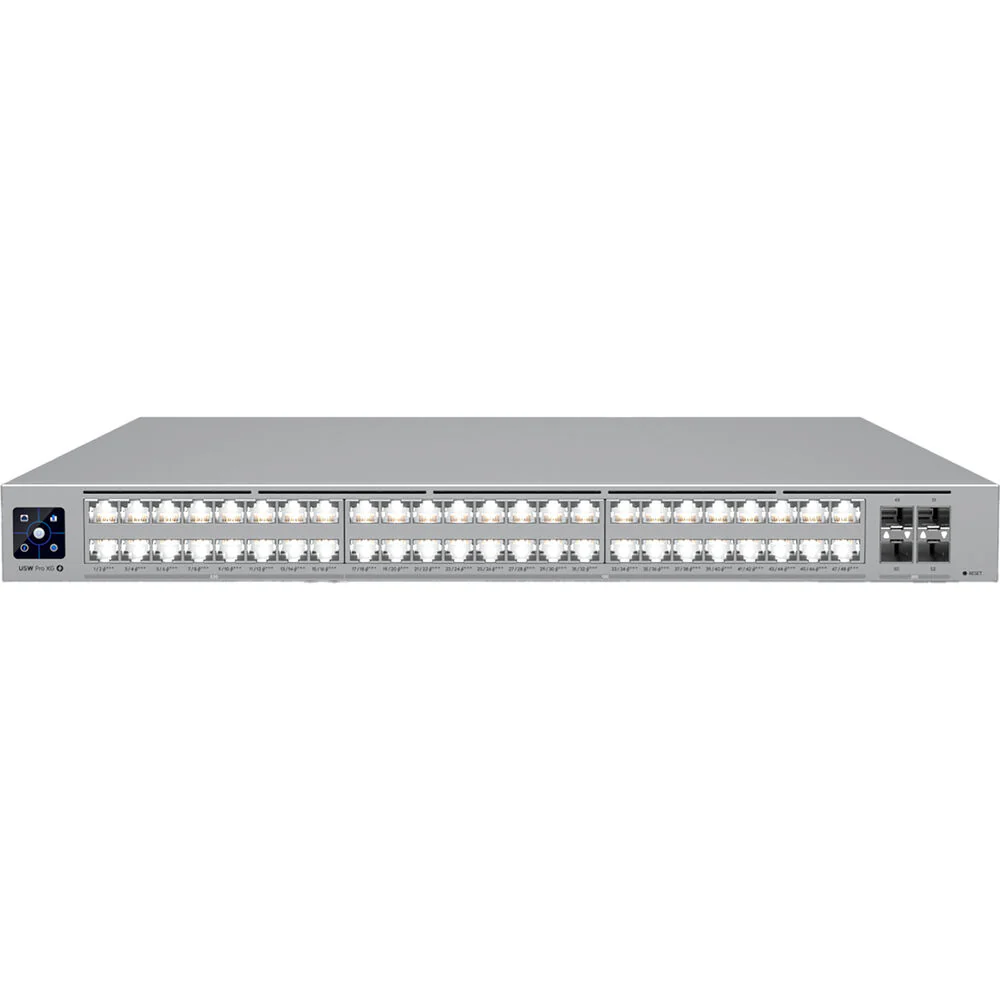

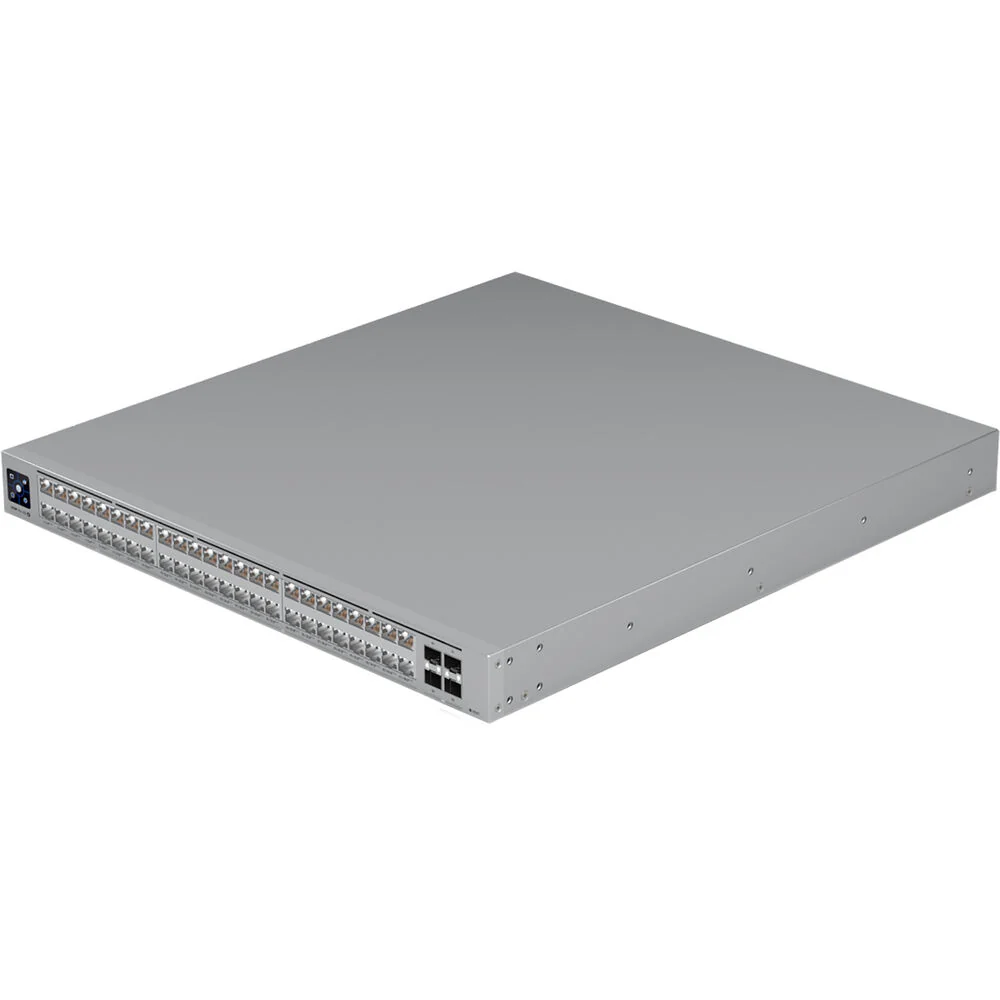

Ubiquiti UniFi USW-Pro-XG-48-PoE ideal for data centers, broadcast studios, and large enterprise networks, this 1U rackmount switch is constructed from durable SGCC steel and features a 1.3” touchscreen LCM display for real-time monitoring. Etherlighting™ status LEDs provide clear visual feedback for Ethernet and SFP28 connections, while advanced Layer 2 controls, QoS, IGMP Snooping, LACP, and Pro AV Profiles ensure seamless integration with AV systems like Dante, NDI, Crestron, and Q-SYS.
Key Features

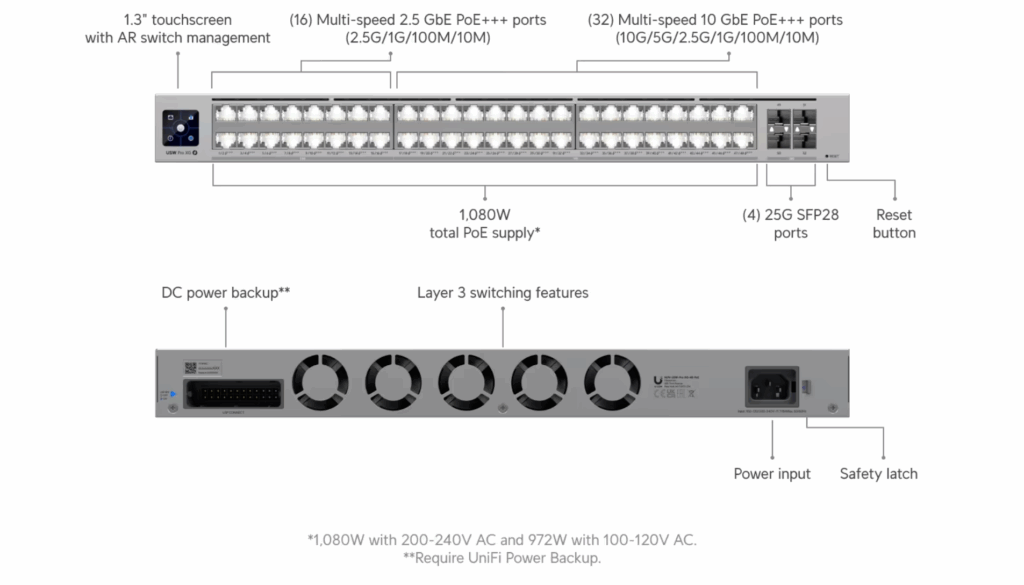

Port Configuration
(16) 2.5 GbE RJ45 ports (PoE+++)
(32) 10 GbE RJ45 ports (PoE+++)
(4) 25G SFP28 uplink ports
Performance
Switching Capacity: 920 Gbps
Non-Blocking Throughput: 460 Gbps
Forwarding Rate: 684 Mpps
VLAN Support: Up to 1,000
MAC Address Table: 128,000 entries
L3 Table: 256,000 IPv4 routes / 128,000 ARP entries
Packet Buffer: 8 MB
Layer 3 Features
DHCP Server & Relay
Static Routing
Inter-VLAN Routing
Local Network Routing
Layer 2 & Security
LACP, STP, RSTP
QoS with DSCP
Advanced IGMP Configuration & Snooping
MAC/IP-based ACLs & Device Isolation
802.1X Authentication
DHCP Snooping & Guarding
Port Mirroring, Isolation & Rate Limiting
Jumbo Frames, LLDP-MED, Voice VLAN
Loop Protection
