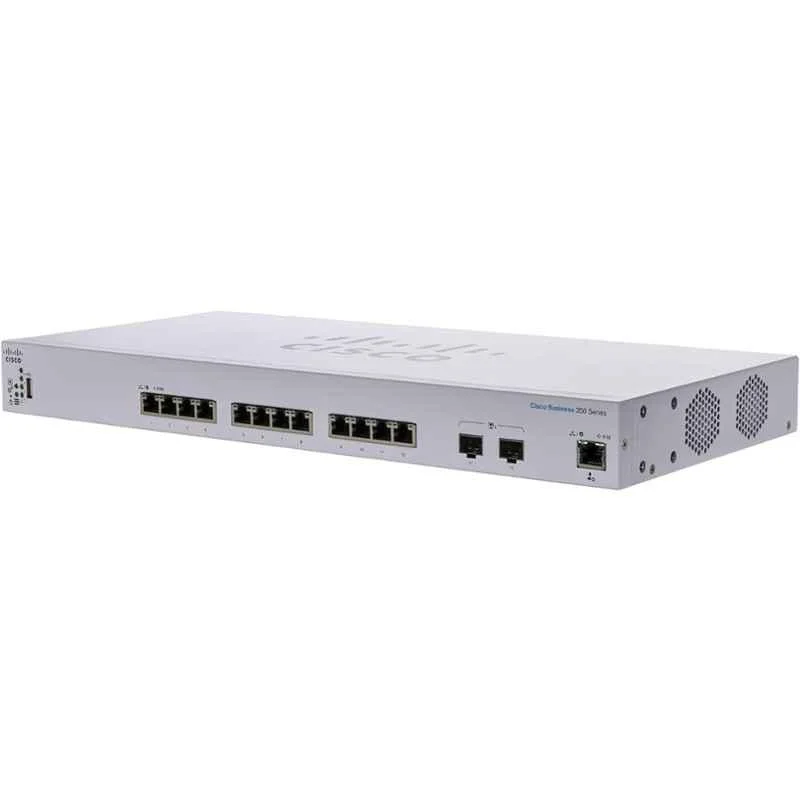

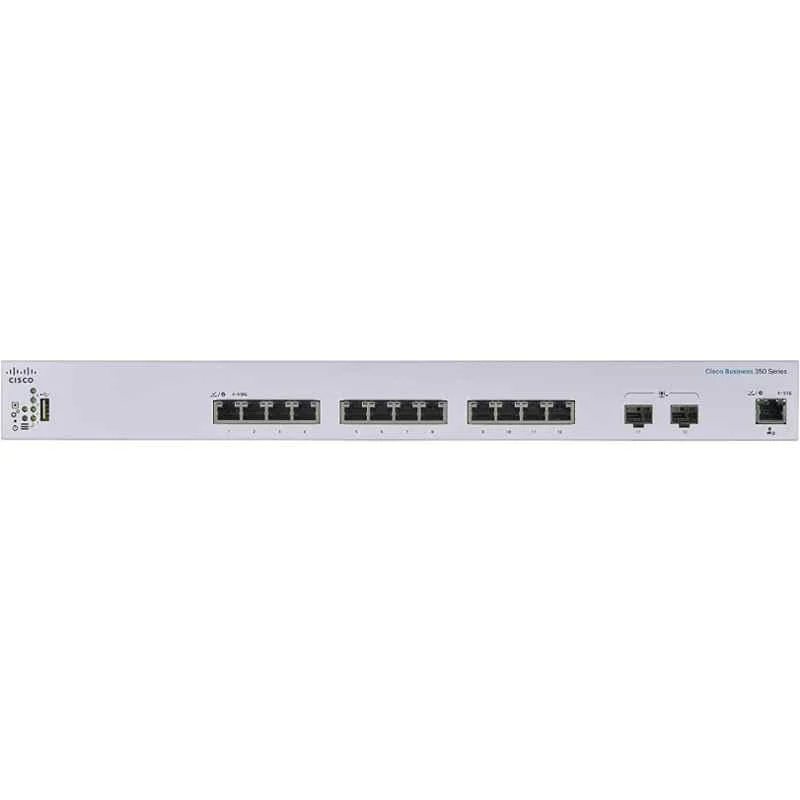

Cisco Business CBS350-12XT 12-Port 10G Managed Network Switch – Ultimate Performance & Secure Connectivity for Growing Enterprises | Cisco

The Cisco Business CBS350-12XT Managed Switch offers exceptional speed, reliability, and scalability for modern business networks. Built with an 800 MHz ARM processor, 512 MB of RAM, and 256 MB of flash memory, The Cisco Business CBS350-12XT supports a switching capacity of 240 Gbps and a forwarding rate of 178.56 million packets per second (Mpps). This ensures smooth data flow even in bandwidth-intensive environments.

Designed for ease of management, the CBS350-12XT integrates seamlessly with the Cisco Business Dashboard portal and mobile app, allowing centralized monitoring and configuration. The Cisco Business CBS350-12XT true stacking capability supports up to four units with 200 ports managed as a single system, providing robust scalability and simplified network administration. The Cisco Business CBS350-12XT switch ensures high availability with fast stack failover and link aggregation support.

Featuring comprehensive Layer 2 and Layer 3 functions, the Cisco Business CBS350-12XT supports secure connectivity, advanced traffic segmentation, and multicast protocols including IGMP and MLD versions. It includes support for multiple VLANs (up to 4094), ACL rules, and advanced routing protocols such as static IPv4/IPv6 and policy-based routing for flexible traffic management.

With energy-efficient dual fans, a low noise profile, and an MTBF (mean time between failures) of over 633,000 hours, this rack-mountable switch is reliable and built to last. It supports key security features like 802.1x authentication, DHCP snooping, access control, and storm control mechanisms that protect against various network threats. The inclusion of USB and console ports facilitates easy configuration and updates.

Ideal for unified communications and hybrid work environments, The Cisco Business CBS350-12XT switch delivers optimized performance for voice, video, and data traffic integration. Its compatibility with Cisco’s portfolio of IP telephony and business products makes it an excellent choice for growing enterprises looking for scalable, secure, and manageable 10G infrastructure.

Technical Key Features

• 12 ports including 10 x 10GBase-T RJ45 ports and 2 x 10G SFP+/RJ45 combo ports

• Switching capacity: 240 Gbps; Forwarding performance: 178.56 Mpps

• Processor: 800 MHz ARM CPU; Memory: 512 MB RAM; Flash: 256 MB

• Supports up to 4094 VLANs and 1024 ACL rules

• True stacking capability with up to 4 units and 200 managed ports

• Layer 2 and Layer 3 features: RPVST+, MSTP, static IPv4/IPv6 routing, IGMP, MLD, PBR

• Secure management protocols: SNMPv3, SSH, RADIUS, TACACS+

• Advanced security: 802.1x authentication, DHCP snooping, IP source guard, storm control

• Dual fans for quiet, efficient cooling

• Rack-mountable with dimensions 440 x 203 x 44 mm

• MTBF: 633,324 hours

• Power: Internal supply 100-240V AC; power consumption approx. 64W

• Management via Cisco Business Dashboard portal and mobile app

• USB type-A port and RJ45 console port for easy management
