Mikrotik HEX POE RB960PGS

SKU: FGINUTR78335

5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4.


Original price was: ₹7,999.00.Current price is: ₹7,099.00. Inc. tax (6,016.10Exc. Tax)

Estimated shipping date: 07/11/2024 - 08/11/2024

Description

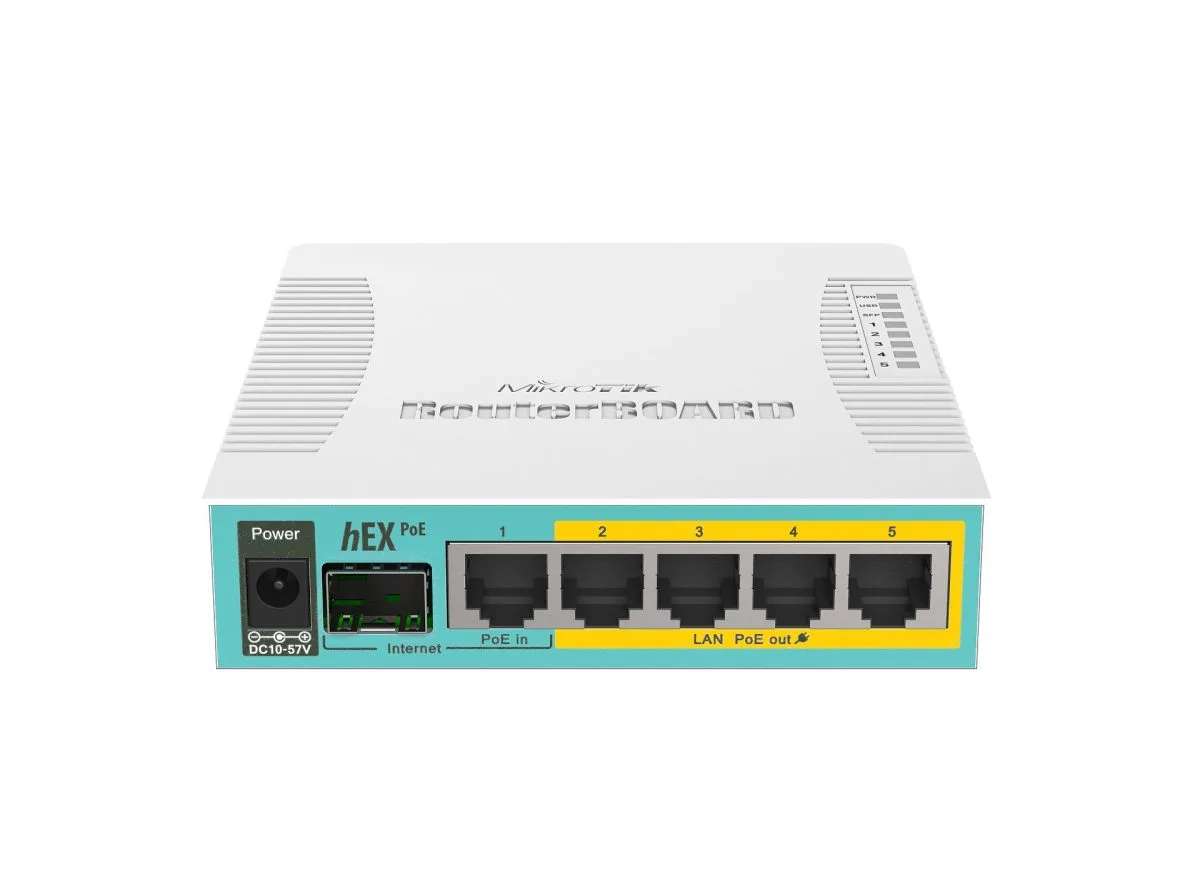

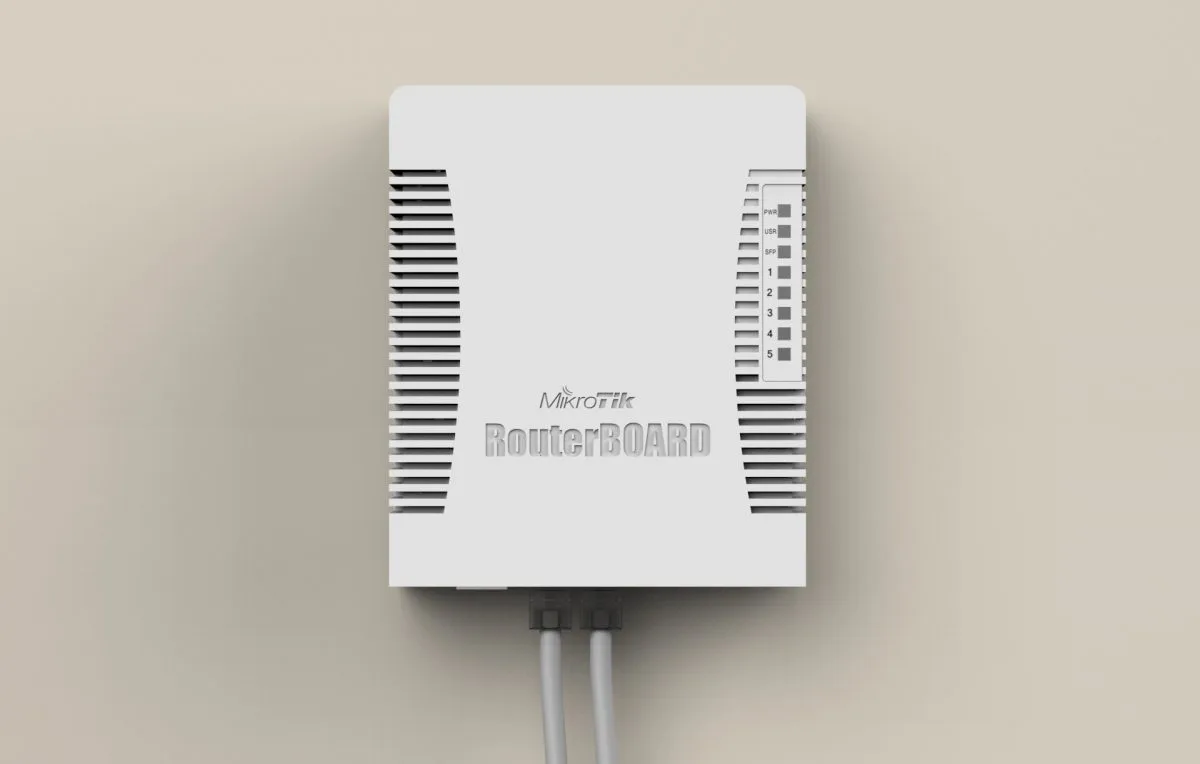

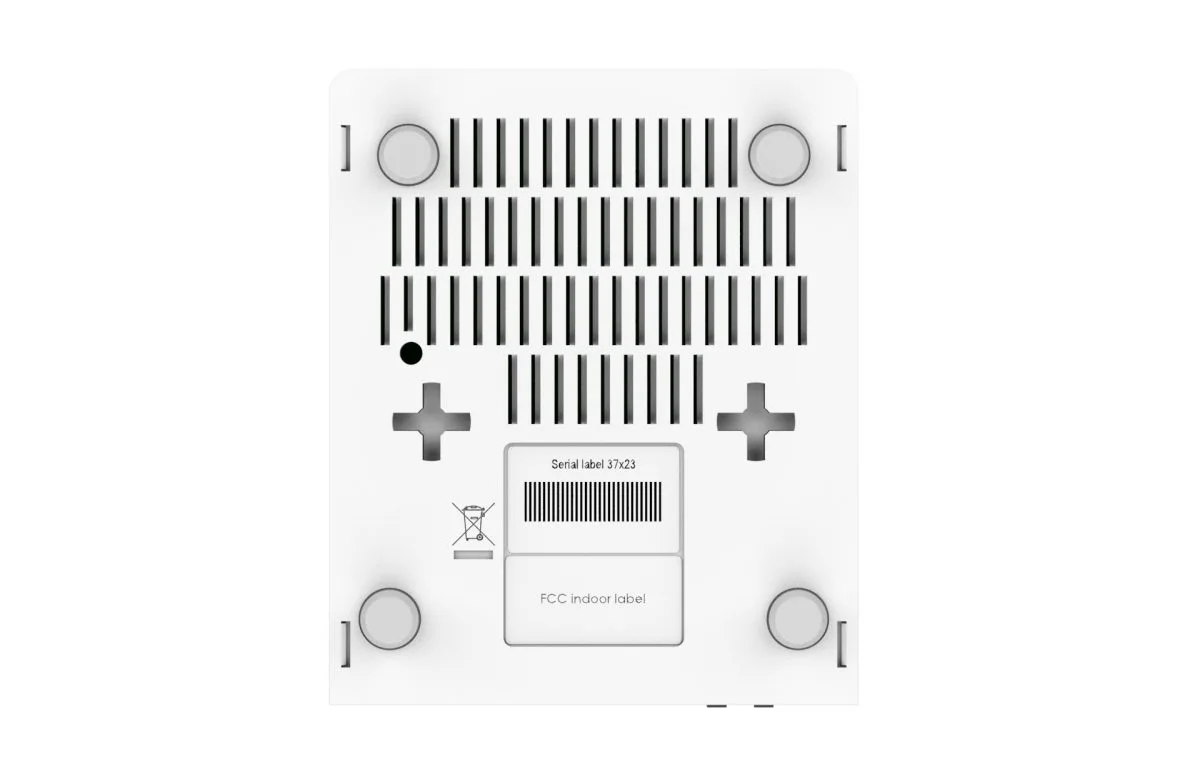

Mikrotik HEX POE RB960PGS image 0

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Included parts

24V 2.5A power adapter

IEC cord

Ethernet test results

RB960PGS QCA9557 (800Mhz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1,966.1 401.5 1,644.5 542.3 277.7
Bridging 25 bridge filter rules 143.2 1,739.0 145.5 596.0 146.2 74.9
Routing none (fast path) 161.9 1,966.1 396.3 1,623.2 521.7 267.1
Routing 25 simple queues 161.9 1,966.1 217.2 889.7 216.0 110.6
Routing 25 ip filter rules 74.6 905.9 78.0 319.5 76.5 39.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
Additional information
Weight 0.7 kg
Dimensions 22 × 5 × 7 cm
Product Details

Brand Name Mikrotik
Model Name Mikrotik HEX POE
Dimension(cm) 22X5X7
Weight(kg) 0.70
Product code RB960PGS
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model QCA8337
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $89.00

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 54 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V

PoE-out

PoE-out ports Ether2-Ether5
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 2 A

Ethernet

10/100/1000 Ethernet ports 5

Fiber

SFP ports 1

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Certification CE, EAC, ROHS
IP IP20

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin Lithuania
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
RouterOS current release Download
Block Diagram Open
SFP compatibility list Open
RouterOS software manual Open
Declaration of conformity Open (CE)
