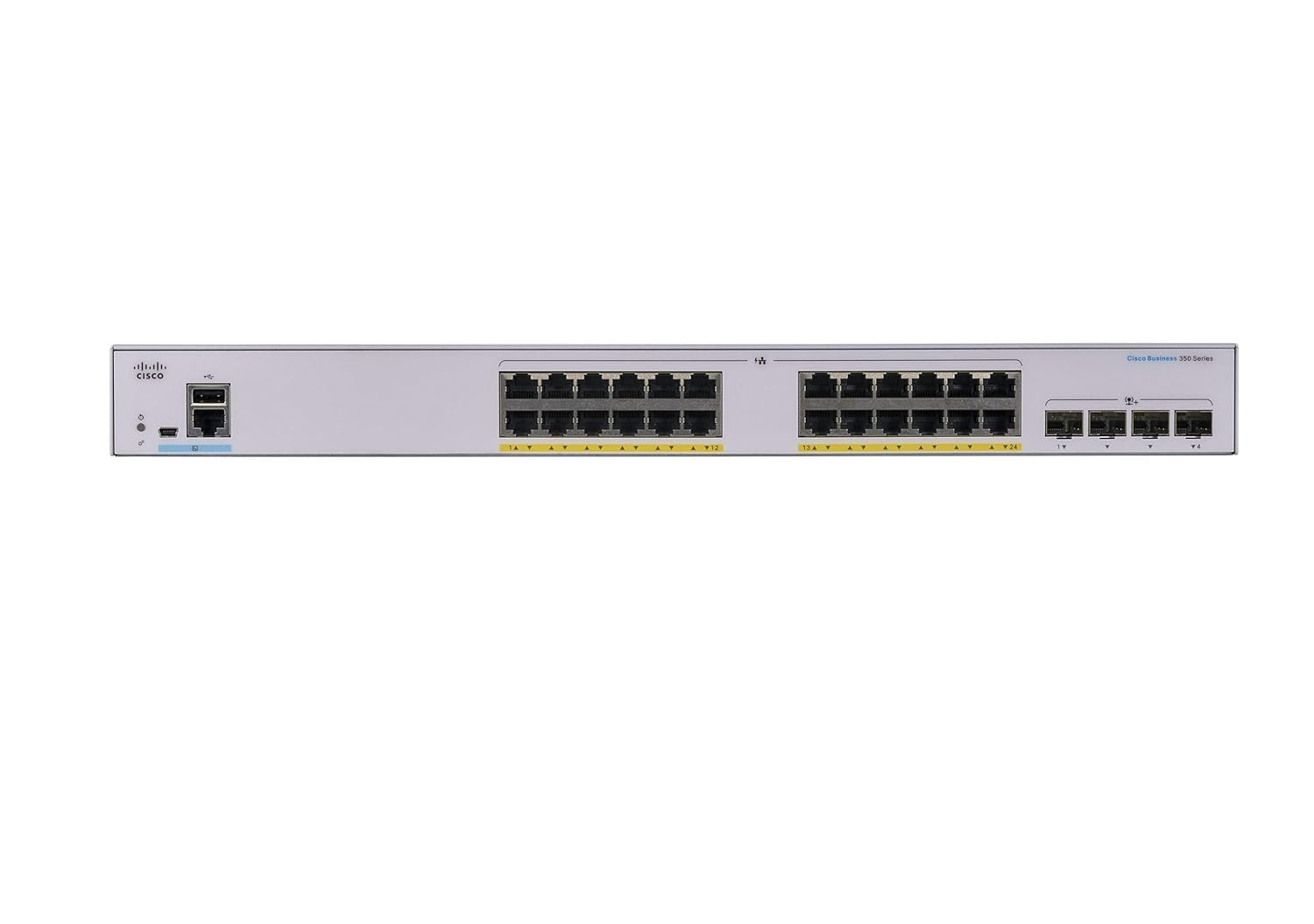

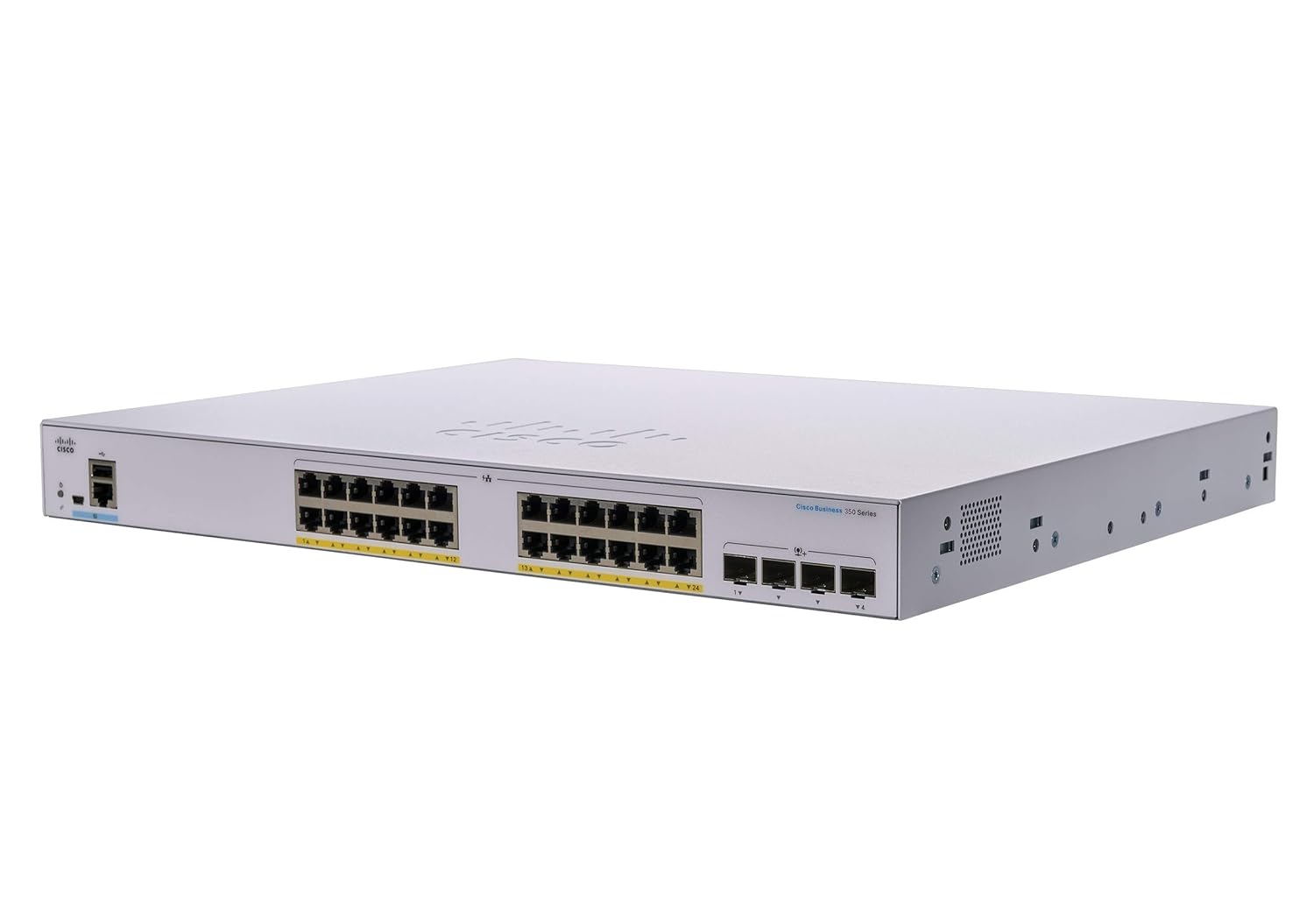

The Cisco Business CBS350-24FP-4G is a powerful 24-port Gigabit PoE+ managed switch with 4 SFP uplinks, delivering up to 370W PoE power for IP devices. Ideal for small to medium businesses, the Cisco Business CBS350-24FP-4G offers advanced Layer 2/3 features, enhanced security, and true stacking support for scalable, secure, and efficient network management. Energy-efficient and compact, this switch ensures high performance and reliable connectivity for growing business networks.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The Cisco Business CBS350-24FP-4G Managed Switch with 24-Port Gigabit PoE+, 370W Power Budget, 4 Gigabit SFP Uplinks, 56 Gbps Switching Capacity, Advanced Security & Layer 3 Features for Small and Medium Business Networks
The Cisco Business CBS350-24FP-4G switch offers a high switching capacity of 56 Gbps and a 41.66 million packets per second (Mpps) forwarding rate, ensuring smooth and uninterrupted data flow across the network. Powered by an 800 MHz ARM processor and equipped with 512 MB of memory, the CBS350-24FP-4G performs with high efficiency and reliability. The Cisco Business CBS350-24FP-4G supports extensive Layer 2 and Layer 3 features including static routing, VLAN segmentation, link aggregation for up to 8 groups of 16 ports, and advanced traffic management protocols, which contribute to optimised network control and performance.
Security is a hallmark of the Cisco Business CBS350-24FP-4G. The switch implements strong network protection with IEEE 802.1x authentication, port security, ARP inspection, IP Source Guard, DHCP snooping, and IP-MAC port binding, preventing unauthorized access and mitigating network attacks. The IPv6 First Hop Security suite further safeguards IPv6 networks against spoofing and man-in-the-middle attacks. Additionally, the switch supports IPv6 to facilitate future-proof network evolution.
The Cisco Business CBS350-24FP-4G sleek and compact 1U rack-mountable design suits deployment in wiring closets or limited space environments. The fanless construction helps minimize noise and reduces power consumption. Cisco Business Dashboard offers intuitive configuration and monitoring via web portal or mobile app, simplifying network management.
Key Technical Features:
24 Gigabit Ethernet RJ-45 PoE+ ports with 370W total PoE power budget
4 Gigabit SFP fiber uplink ports
56 Gbps switching capacity, 41.66 Mpps forwarding rate
800 MHz ARM processor, 512MB RAM
Advanced Layer 2/Layer 3 features: VLANs, static routing, link aggregation
Security: IEEE 802.1x, port security, ARP inspection, IP source guard, DHCP snooping, IP-MAC port binding, IPv6 First Hop Security
IPv6 support for modern network compatibility
Fanless, energy-efficient, rack-mountable 1RU design
Managed via Cisco Business Dashboard portal and mobile app
| Feature | Specification |
|---|---|
| Model | Cisco CBS350-24FP-4G |
| Switch Type | Managed Ethernet Switch |
| Total System Ports | 28 Gigabit Ethernet |
| RJ-45 Ports | 24 x 10/100/1000 Mbps Gigabit Ethernet with PoE+ |
| SFP Uplink Ports | 4 x Gigabit SFP Ports |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Million Packets per Second (mpps) |
| PoE Standard | IEEE 802.3at PoE+ |
| PoE Power Budget | 370 W total |
| PoE Power per Port | Up to 30 W per port |
| Processor | 800 MHz ARM |
| Memory | 512 MB |
| Packet Buffer | 1.5 MB |
| Power Consumption (System) | 110V: 46.6 W, 220V: 46.35 W |
| Power Consumption (with PoE) | 110V: 449.7 W, 220V: 438.3 W |
| Heat Dissipation | 271.95 BTU/hr |
| Dimensions (WxHxD) | Approx. 44 mm height, fits 1 RU rack unit (exact dimensions not detailed in source) |
| Weight | Approx. 4.6 kg (from general CBS350-24FP-4G references) |
| Fan | Fanless design for silent operation |
| Layer 2 Features | 802.1d STP, 802.1w RSTP, 802.1s MSTP, PVST+, VLAN support up to 4094, Link Aggregation (LACP) support with up to 8 groups and 8 ports/group |
| VLAN Types Supported | Port-based, 802.1Q tag-based, MAC-based, Protocol-based, IP subnet VLAN, Private VLAN Edge (PVE), Guest VLAN, Voice VLAN, Multicast TV VLAN, VLAN translation, Q-in-Q, etc. |
| Layer 3 Routing | Static IPv4/IPv6 routing, up to 990 static routes, 128 IP interfaces, Routing Information Protocol v2 (RIP v2) support, ACL-based routing |
| Security | IEEE 802.1X authentication, dynamic ARP inspection, IP Source Guard, DHCP snooping, BPDU Guard, STP root guard and loopback guard, ACL support up to 1024 rules, DoS prevention, Secure Core Technology (SCT) |
| Management | Cisco Business Dashboard support, CLI, SNMP v1/v2c/v3, Web UI, SSH, Telnet, RADIUS, TACACS+ |
| Advanced Features | True stacking up to 4 units, Fast failover, Cross-stack QoS, VLANs, LAGs, Port mirroring, sFlow, DHCP server and relay, Quality of Service (QoS) with 8 hardware queues, Strict priority and WRR scheduling, Energy Efficient Ethernet (IEEE 802.3az) support |
| IPv6 Support | Dual stack IPv4/IPv6, IPv6-first hop security, DHCPv6 guard, RA guard, Neighbor Discovery inspection, IPv6 Gold certification |
| Environmental & Power Saving | Auto power down on idle ports, cable length detection, LEDs manually turned off, time-based PoE and port operation schedules |
| Compliance & Certifications | USGv6 and IPv6 Gold certification |
