Mikrotik Hap RB951UI-2ND

SKU: FGIN92ZVXA4X

2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support.

Original price was: ₹7,999.00.Current price is: ₹4,499.00. Inc. tax (3,812.71Exc. Tax)

Payment Methods:

Description

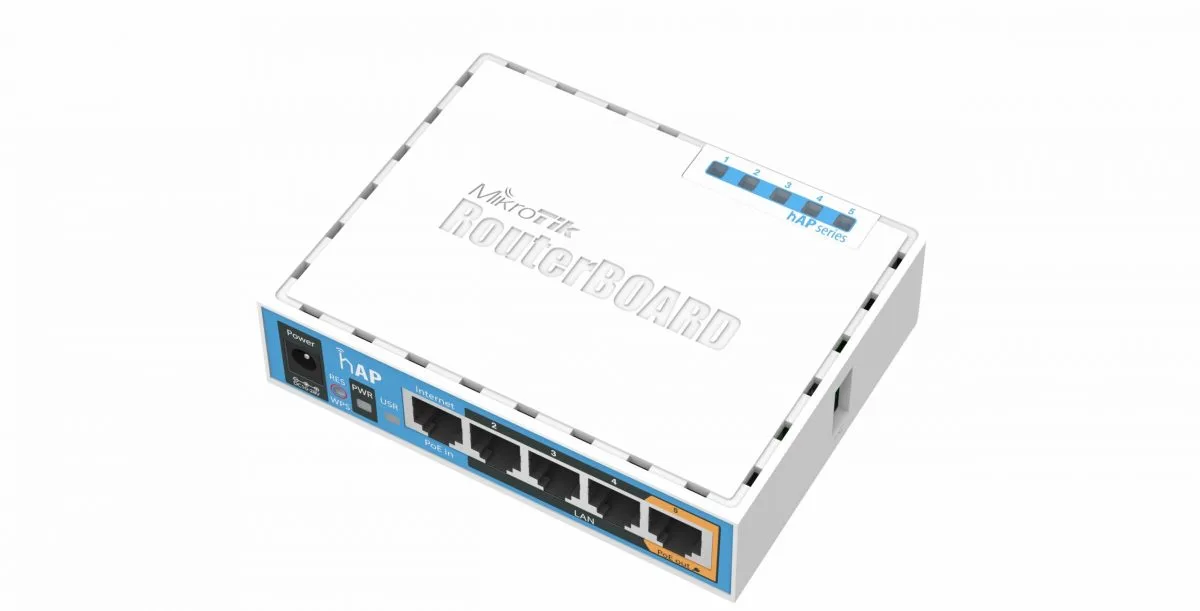

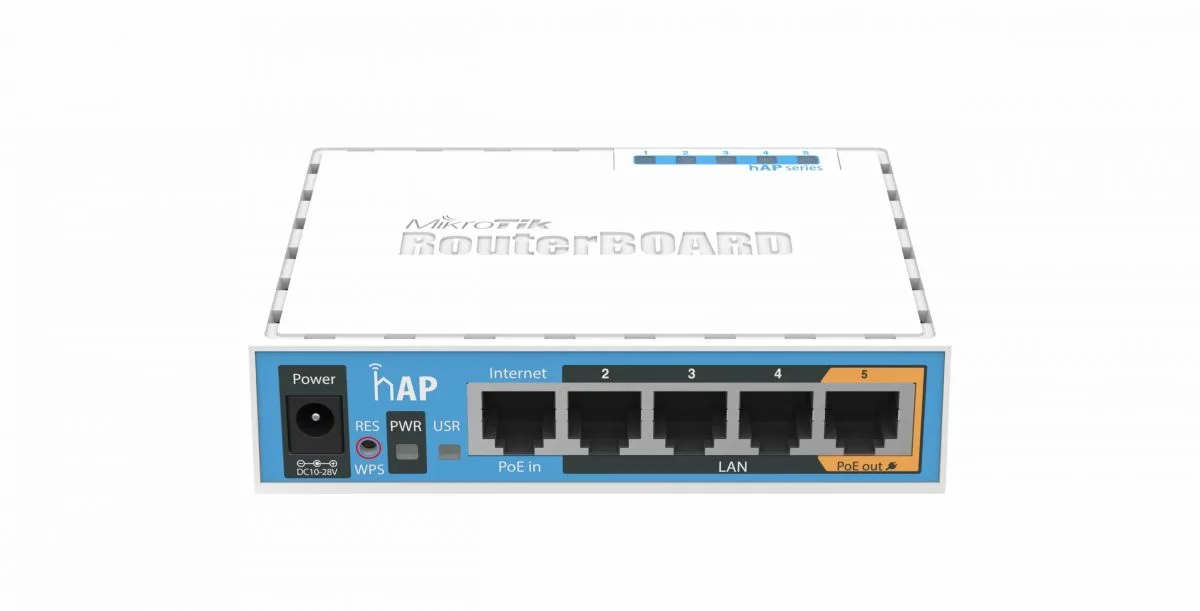

Mikrotik Hap RB951UI-2ND

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.

The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.

hAP provides PoE output function for port #5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

Included parts

24V 0.8A power adapter



Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71

Ethernet test results

RB951Ui-2nD QCA9531 (650Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 217.0 111.1
Bridging 25 bridge filter rules 40.6 493.0 70.1 287.1 70.9 36.3
Routing none (fast path) 40.6 493.0 117.4 480.9 200.8 102.8
Routing 25 simple queues 40.6 493.0 79.6 326.0 90.8 46.5
Routing 25 ip filter rules 40.6 493.0 42.2 172.8 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

Product Details

Brand Name Mikrotik
Model Name Hap RB951UI-2ND
Dimension(cm) 17.5X12X5
Weight(kg) 0.32
Product code RB951Ui-2nD
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
Dimensions 113 x 89 x 28mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $45.00

Wireless capabilities

Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

10/100 Ethernet ports 5

Peripherals

Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-28 V
Max power consumption 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V

PoE-out

PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max total out (A) 500 mA

Certification & Approvals

Certification CE, FCC, IC, EAC, ROHS
IP IP20

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin China
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
Block Diagram Open
RouterOS software manual Open
Declaration of conformity Open (CE)
Declaration of conformity Open (FCC)
RouterOS current release Routeros-7.14.3-mipsbe.npk
RouterOS current release wireless-7.14.3-mipsbe.npk
