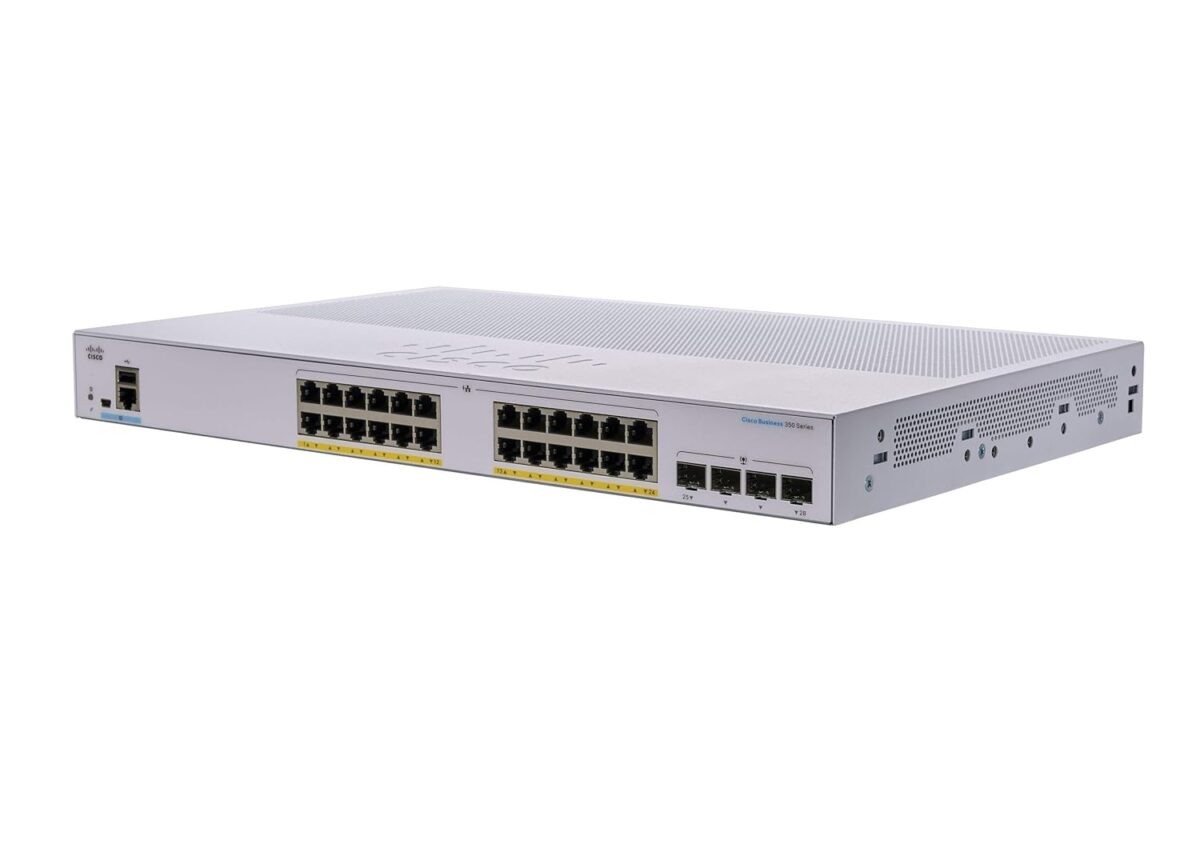

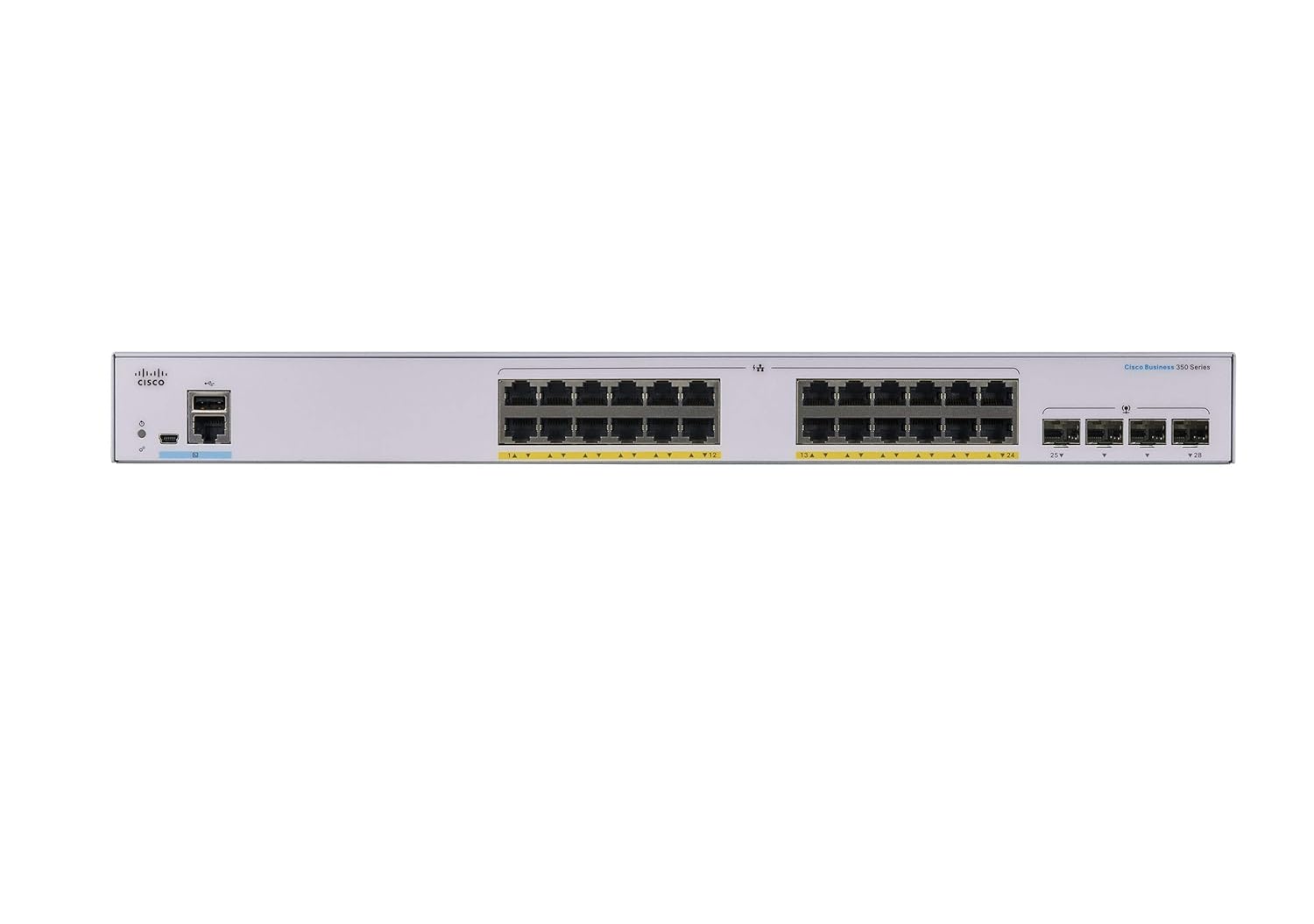

Cisco Business CBS350-24MGP-4X Managed Layer 3 Multi-Gigabit Switch | Ultimate Power-Packed Networking Solution | Cisco Systems

The Cisco Business CBS350-24MGP-4X is a high-performance, managed switch featuring 24 Gigabit Ethernet ports, 4 multi-gigabit 2.5G ports, and 4 x 10G SFP+ uplinks. With a robust 375W PoE power budget, advanced Layer 3 routing, and comprehensive security features, it ensures reliable, scalable, and secure network connectivity for growing businesses. Ideal for powering IP phones, wireless access points, and IoT devices, the Cisco Business CBS350-24MGP-4X switch combines ease of management with energy-efficient technology for optimal business network performance.

We are trying hard to provide best price, still not satisfied. Let us know


    Please prove you are human by selecting the plane.

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    SKU: FGIN38G8XWAO Categories: , Brand:
    Description

    The Cisco business CBS350-24MGP-4X model features 24 Gigabit Ethernet ports, enhanced with 4 multi-gigabit 2.5G ports and 4 high-speed 10G SFP+ uplinks, allowing seamless connectivity for high-demand applications and demanding workloads. With a total PoE power budget of 375W, including support for 60W PoE on select ports, this switch efficiently powers IP telephony, wireless access points, and IoT devices, reducing infrastructure complexity and installation costs.

    Built for ease of deployment and management, the Cisco Business CBS350-24MGP-4X integrates with the Cisco Business Dashboard and mobile app for quick setup, monitoring, and maintenance. Advanced Layer 3 features, including static routing and RIP v2 support, enable intelligent traffic management to optimise network efficiency across VLANs and workgroups.

    Security is paramount with The Cisco business CBS350-24MGP-4X switch, featuring IEEE 802.1X port security, dynamic ARP inspection, DHCP snooping, IP source guard, and IPv6 First Hop Security protections against spoofing and network attacks. Network resiliency is enhanced with stacking capability for up to 4 units, and dual firmware images ensure uninterrupted operations during upgrades.

    Furthermore, energy-saving technologies such as IEEE 802.3az Energy Efficient Ethernet and cable-length power adjustment help reduce operational costs and environmental impact without sacrificing performance.

    Key Technical Features:

    • 24 Gigabit Ethernet ports plus 4 multi-gigabit 2.5G ports and 4 x 10G SFP+ uplinks

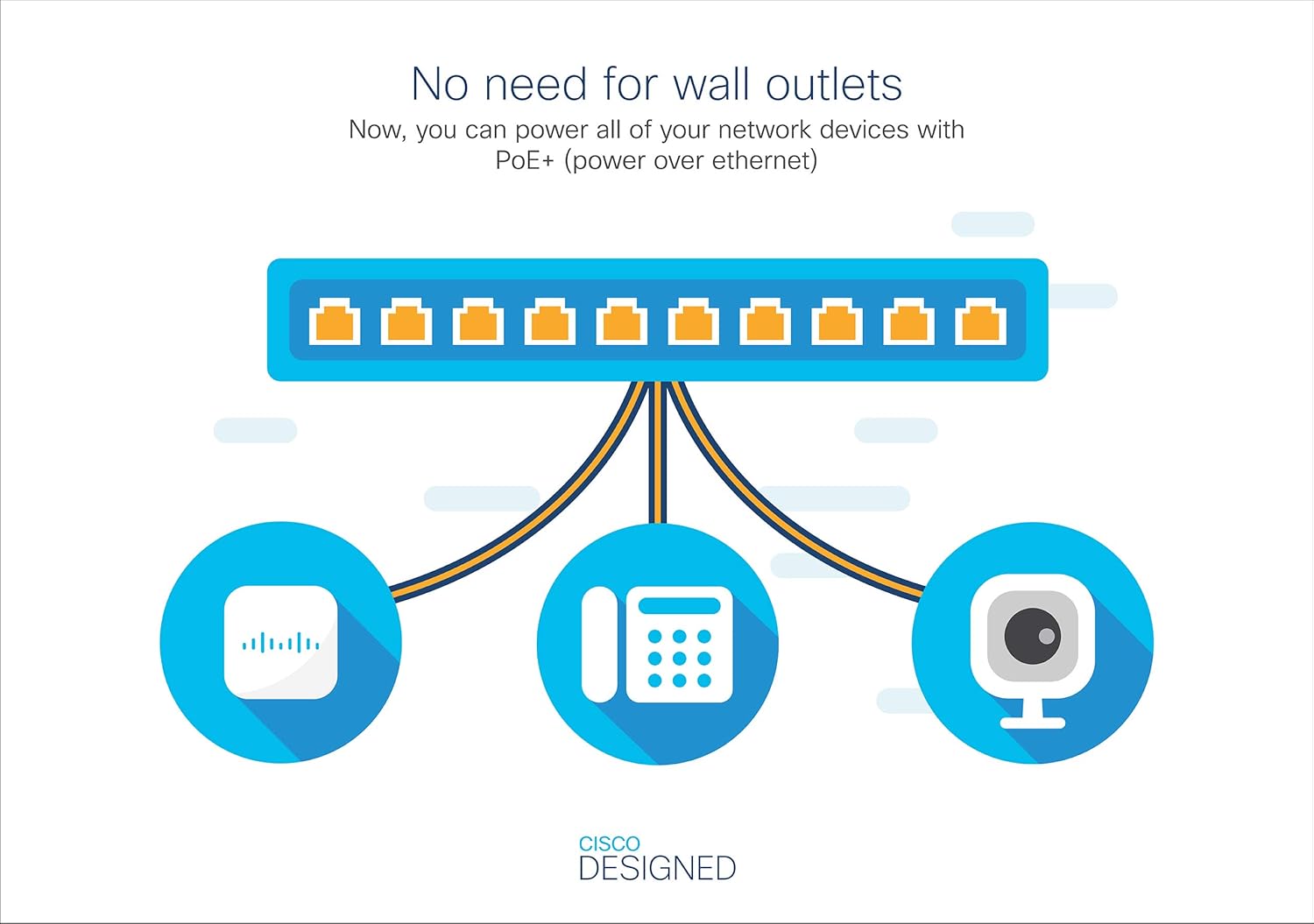

    • 375W total PoE power budget with 60W PoE support on select ports

    • Advanced Layer 3 static routing and RIP v2 dynamic routing

    • Robust security: IEEE 802.1X, DHCP snooping, dynamic ARP inspection, IP source guard, IPv6 security

    • True stacking support for up to 4 switches with fast failover and unified management

    • Simple, intuitive network management via Cisco Business Dashboard and mobile app

    • Energy-efficient design with IEEE 802.3az support and cable-length power optimization

    • Compact form factor suitable for flexible deployment environments

    The Cisco Business CBS350-24MGP-4X is an ideal choice for businesses seeking a powerful, secure, and manageable network foundation to support their growing connectivity needs and digital innovations.

    Product Details

    SpecificationDescription
    Product NameCisco Business CBS350-24MGP-4X
    BrandCisco Systems
    Model NumberCBS350-24MGP-4X
    Switch TypeManaged Layer 3 Switch
    Total Number of Ports24 Multigigabit Ethernet ports
    - 10/100/1000 Mbps Ports20 PoE+ enabled
    - 2.5 Gbps Ports4 PoE++ enabled (2.5GBase-T)
    Uplink Ports4 x 10 Gbps (2 combo 10G SFP+/RJ-45 + 2 SFP+ 10G)
    PoE StandardUltra PoE / PoE++ (up to 60W per port)
    Max PoE Budget375 W
    Network Standards Supported10/100/1000 Mbps Ethernet, 2.5 Gbps Multigigabit Ethernet, 10 Gbps Ethernet (10 GbE)
    Switching Capacity128 Gbps
    Forwarding RateApprox. 95.23 million packets per second (mpps) (64-byte packets)
    CPU800 MHz ARM
    Memory256 MB Flash, 512 MB DRAM
    Packet Buffer1.5 MB
    Routing FeaturesLayer 3 IPv4 and IPv6 routing, support for RIP v2, CIDR, DHCP server and relay
    ManagementWeb-based GUI, SNMP, CLI, and Cisco Network Assistant
    StackingPhysical stacking supported
    IPv6 CompatibilityYes
    Console PortCisco standard mini USB Type-B / RJ45 console port
    USB SlotUSB Type-A for file and image management
    Form FactorRack-mountable (1 RU)
    Dimensions (WxDxH)Approx. 440 mm x 257 mm x 44 mm
    WeightNot explicitly specified but typical for 1 RU managed switch
    Power ConsumptionApprox. 64 W (varies by voltage and load)
    Special FeaturesAdvanced security, intuitive dashboard, high PoE budget for powering Wi-Fi 6/6E access points and IoT devices, stacking up to 4 units

    The Cisco Business CBS350-24MGP-4X switch is designed for small to medium business networks that require high-performance multigigabit Ethernet connectivity with robust Layer 3 features, extensive PoE capabilities, and advanced management options. It supports high-speed uplinks for backbone and aggregation and is optimized for next-generation Wi-Fi and IoT deployments with its multiple 2.5 Gbps PoE++ ports and 10 Gbps uplinks
