MikroTik hEX RB750gr3 Powerful Gigabit Ethernet Router for Home and Small Office

SKU: FGINLFD4OCA4

Mikrotik hEX rb750gr3 is a five port Gigabit Ethernet router with multi-WAN and VPN features. It also has a full USB port.


Original price was: ₹6,999.00.Current price is: ₹5,099.00. Inc. tax (4,321.19Exc. Tax)

Estimated shipping date: 05/12/2024 - 06/12/2024

Description

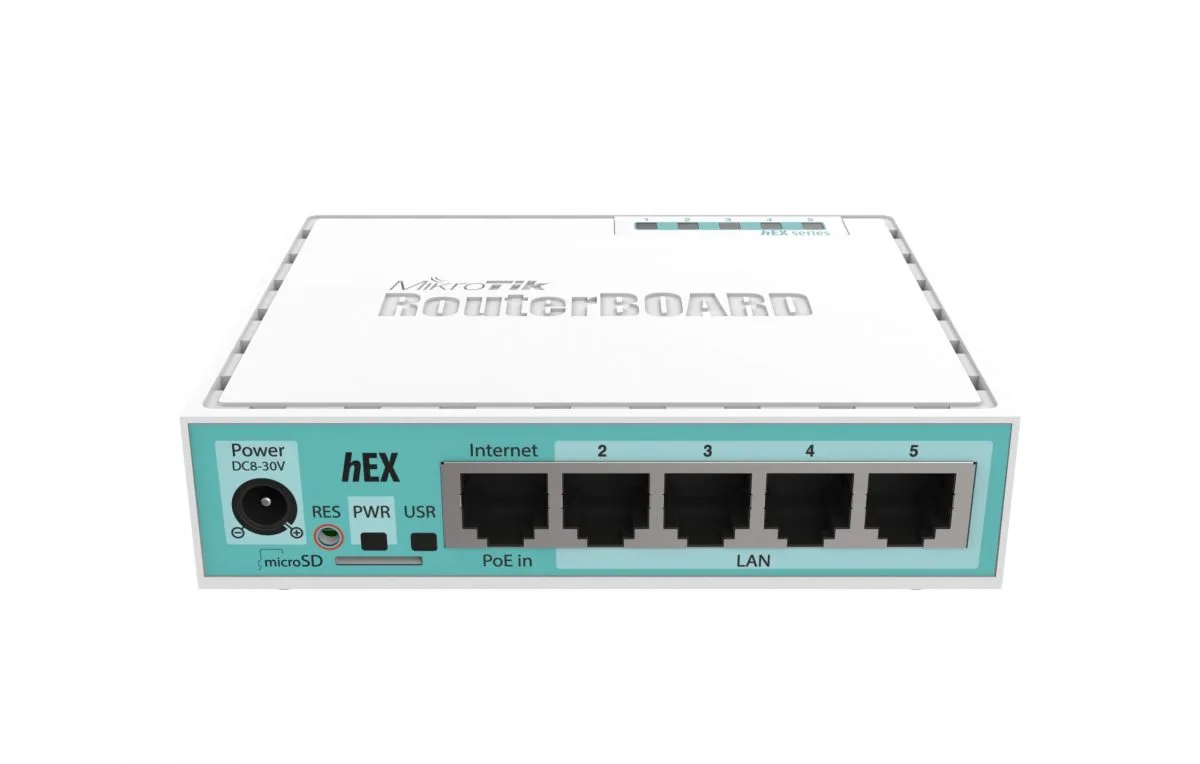

Mikrotik HEX RB750GR3- image 0

MikroTik hEX RB750gr3 is a reliable and cost-effective wired router designed for small offices and home networks that require efficient, high-speed internet connectivity. With advanced features packed into a compact design, this router is ideal for users looking for robust wired networking without wireless capability.

Key Features:

  • Gigabit Ethernet Ports: Equipped with 5 Gigabit Ethernet ports, the hEX RB750gr3 ensures fast and stable wired connections, perfect for high-speed data transfers and supporting multiple devices simultaneously.
  • Powerful Performance: The router features a dual-core 880 MHz CPU and 256MB of RAM, delivering the power needed for complex configurations and smooth performance during heavy network loads.
  • RouterOS with Level 4 License: The hEX RB750gr3 runs on MikroTik’s RouterOS with an L4 license, offering a comprehensive suite of advanced networking features, including routing, firewall, VPN support, and more.
  • MicroSD Slot: Includes a microSD card slot for external storage, which can be utilized for various RouterOS functions like data caching or additional storage for configuration files.
  • MPLS Support: The hEX RB750gr3 is an affordable router that supports MPLS, making it suitable for more complex networking needs and ensuring efficient data forwarding.

MikroTik hEX RB750gr3 is perfect for users needing a compact, high-performance router that supports advanced routing and networking tasks, all at an affordable price.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Included parts

24V 0.38A power adapter

Ethernet test results

RB750Gr3 MT7621A (880Mhz) 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162.4 1,972.2 443.7 1,817.4 1039.1 532.0
Bridging 25 bridge filter rules 162.4 1,972.2 168.1 688.5 174.3 89.2
Routing none (fast path) 162.4 1,972.2 444.4 1,820.3 1035.0 529.9
Routing 25 simple queues 162.4 1,972.2 179.6 735.6 171.4 87.8
Routing 25 ip filter rules 92.9 1,128.2 94.1 385.4 93.8 48.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB750Gr3 MT7621A IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 41.9 469.3 42.3 173.3 41.5 21.2
256 tunnels AES-128-CBC + SHA1 41.9 469.3 43.7 179 42.7 21.9
256 tunnels AES-128-CBC + SHA256 42.2 472.6 44.4 181.9 42.7 21.9
256 tunnels AES-256-CBC + SHA1 32 358.4 40 163.8 40.5 20.7
256 tunnels AES-256-CBC + SHA256 32.1 359.5 39.7 162.6 40.5 20.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544).
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes.
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results.
Mikrotik hEX rb750gr3 has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.



Additional information
Weight 0.53 kg
Dimensions 13 × 9.5 × 6.5 cm
MODEL

hEX RB750gr3

Badges

24Hr Dispatch

,

FG Choice

Product Details

Brand Name Mikrotik
Model Name Mikrotik HEX
Dimension(cm) 13X9.5X6.5
Weight(kg) 0.30
Product code RB750Gr3
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Switch chip model MT7621A
Dimensions 113x89x28mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C
IPsec hardware acceleration Yes
Suggested price $59.95

Powering

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 10 W
Max power consumption without attachments 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Ethernet

10/100/1000 Ethernet ports 5

Peripherals

Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Beeper Yes

Certification & Approvals

Certification CE, EAC, ROHS
IP IP20

Warranty & Manufacturer Details

Warranty Period 1 Year
Warranty Provider Contact Fgtech Store for service warranty
Country of Origin China
Manufacturer Details SIA Mikrotlks, Unijas iela 2, Riga, LV-1039 LATVIA
Importer Details Mikrotik India, Green Park, Delhi 110016
Packer Details FGTECH INNOVATIONS LLP, Sakinaka, Andheri East, Mumbai 400072

Download Brochure

Brochure Open
Quick Guide Open
User Manual Open
RouterOS current release Download
RouterBoot firmware Download
Block Diagram with disabled switching Open
Block Diagram with enabled switching Open
RouterOS software manual Open
Declaration of conformity Open (CE)
