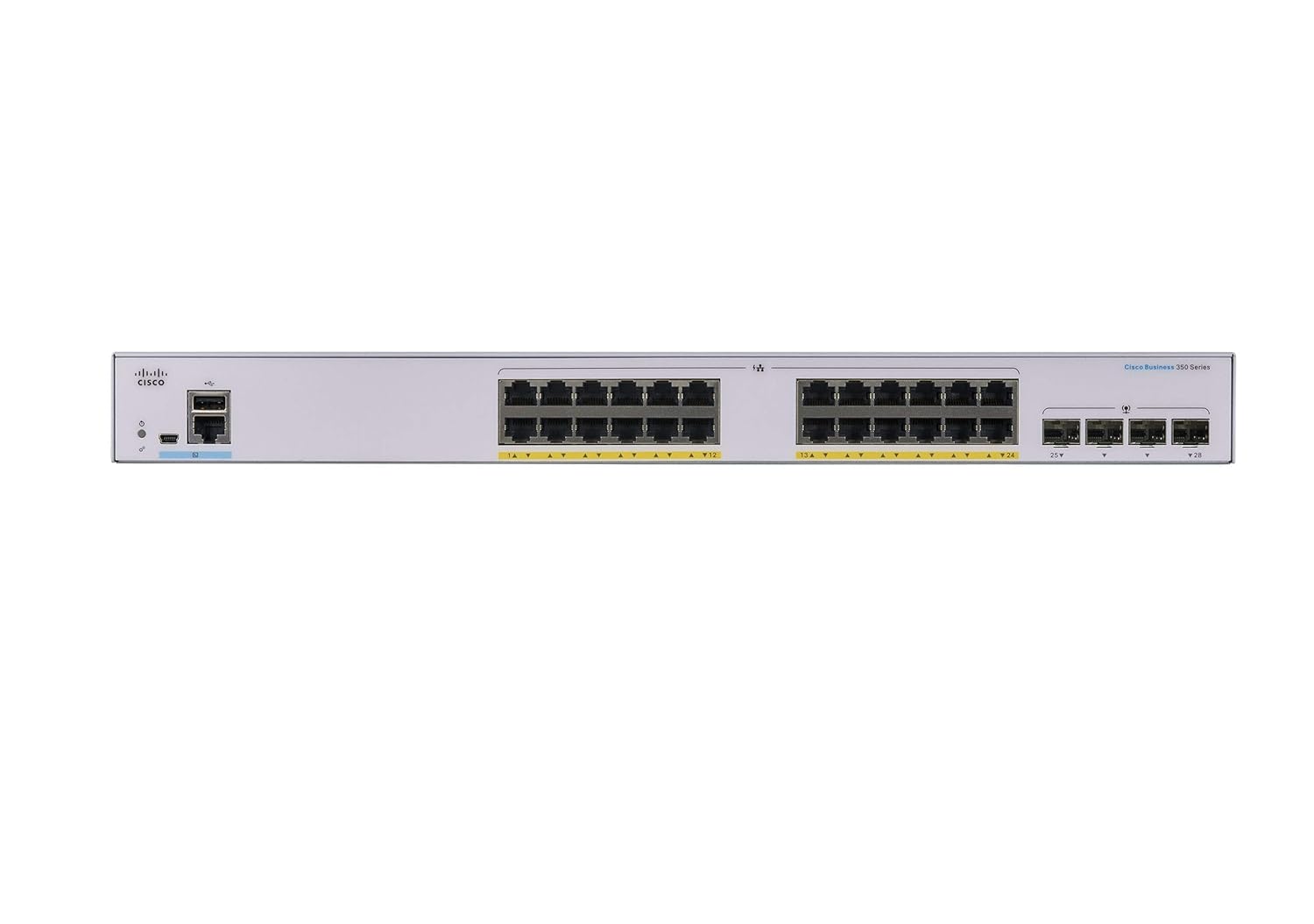

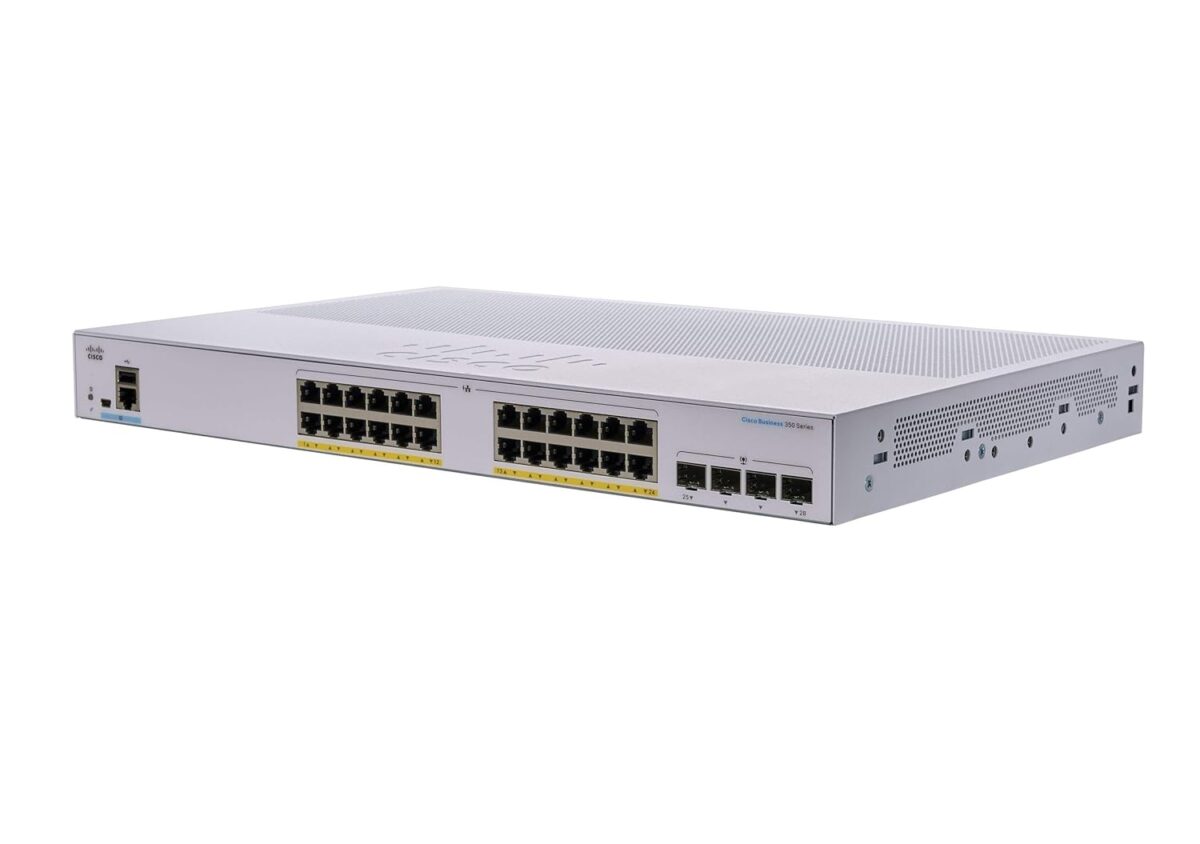

Cisco Business CBS350-24P-4G Power-Packed 24-Port Gigabit PoE+ Managed Switch with Advanced Security & 195W Budget

The Cisco Business CBS350-24P-4G is a high-performance managed switch designed for small to medium-sized businesses seeking robust connectivity and advanced network features. The Cisco Business CBS350-24P-4G switch from Cisco Business features 24 Gigabit Ethernet PoE+ ports with a total power budget of 195 W, ideal for powering IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices. Alongside these, it includes 4 Gigabit SFP ports to facilitate high-speed fiber connections, providing enhanced flexibility for network uplinks or long-distance links.

Built on a powerful architecture with an 800 MHz ARM processor and 512 MB of memory, The Cisco Business CBS350-24P-4G offers a switching capacity of 56 Gbps and a forwarding rate of 41.66 million packets per second (Mpps), ensuring smooth and reliable data transmission throughout the network. The Cisco Business CBS350-24P-4G supports extensive Layer 2 and Layer 3 features such as VLAN segmentation, static and dynamic routing (including RIP v2), link aggregation with up to eight groups of 16 ports, IPv4 and IPv6 routing, and classless interdomain routing (CIDR). These capabilities allow businesses to segment and optimize their networks for security and performance without sacrificing ease of management.

Security is a key focus for the Cisco Business CBS350-24P-4G. It supports IEEE 802.1x port-based authentication, port security, and advanced defense protocols like Dynamic ARP Inspection, IP Source Guard, and DHCP Snooping, collectively offering IP-MAC binding to prevent network attacks. IPv6 First Hop Security features guard against spoofing and man-in-the-middle attacks in IPv6 environments.

The Cisco Business CBS350-24P-4G switch supports true stacking of up to four units, allowing centralized management of up to 200 ports as a single system, simplifying network expansion and management. The fanless design ensures silent operation and reduced power consumption, while Energy Efficient Ethernet (IEEE 802.3az) support further decreases energy usage during low traffic periods.

Ease of use is enhanced by the Cisco Business Dashboard portal and mobile app, providing intuitive configuration, monitoring, and management of the CBS350-24P-4G and its connected devices. The compact 1 RU rackmount form factor fits well in wiring closets, retail environments, and office installations.

Key Technical Features:

• 24 x 10/100/1000 PoE+ Gigabit Ethernet ports with 195W total power budget

• 4 x Gigabit SFP fiber uplink ports

• Switching capacity: 56 Gbps; Forwarding rate: 41.66 Mpps

• 800 MHz ARM processor, 512 MB memory

• Layer 2 and Layer 3 features including static routing, RIP v2, VLANs, and link aggregation

• IPv4 and IPv6 routing support including CIDR

• Security features: IEEE 802.1x, port security, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, IPv6 First Hop Security

• Fanless, energy-efficient design with IEEE 802.3az support

• True stacking up to 4 units, managing up to 200 ports as one

• Cisco Business Dashboard portal and mobile app for easy network management

• Compact 1 RU rackmount design suitable for small to medium business environments

The Cisco Business CBS350-24P-4G Managed Switch delivers reliability, security, and performance in a cost-effective and scalable platform, making it an essential network foundation for growing businesses.
