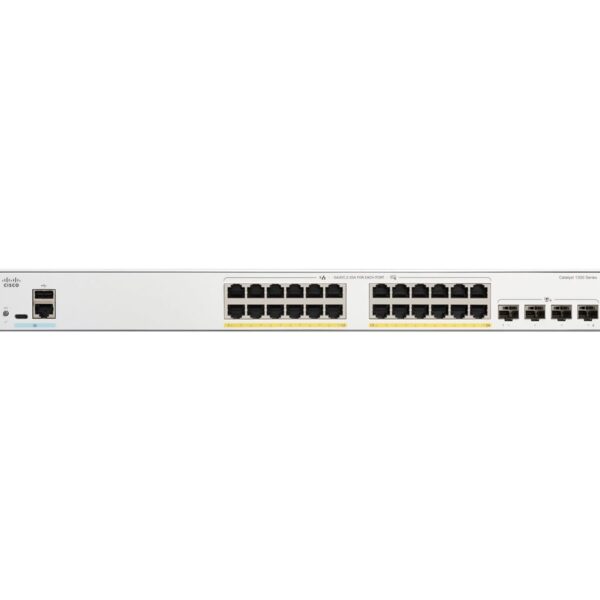

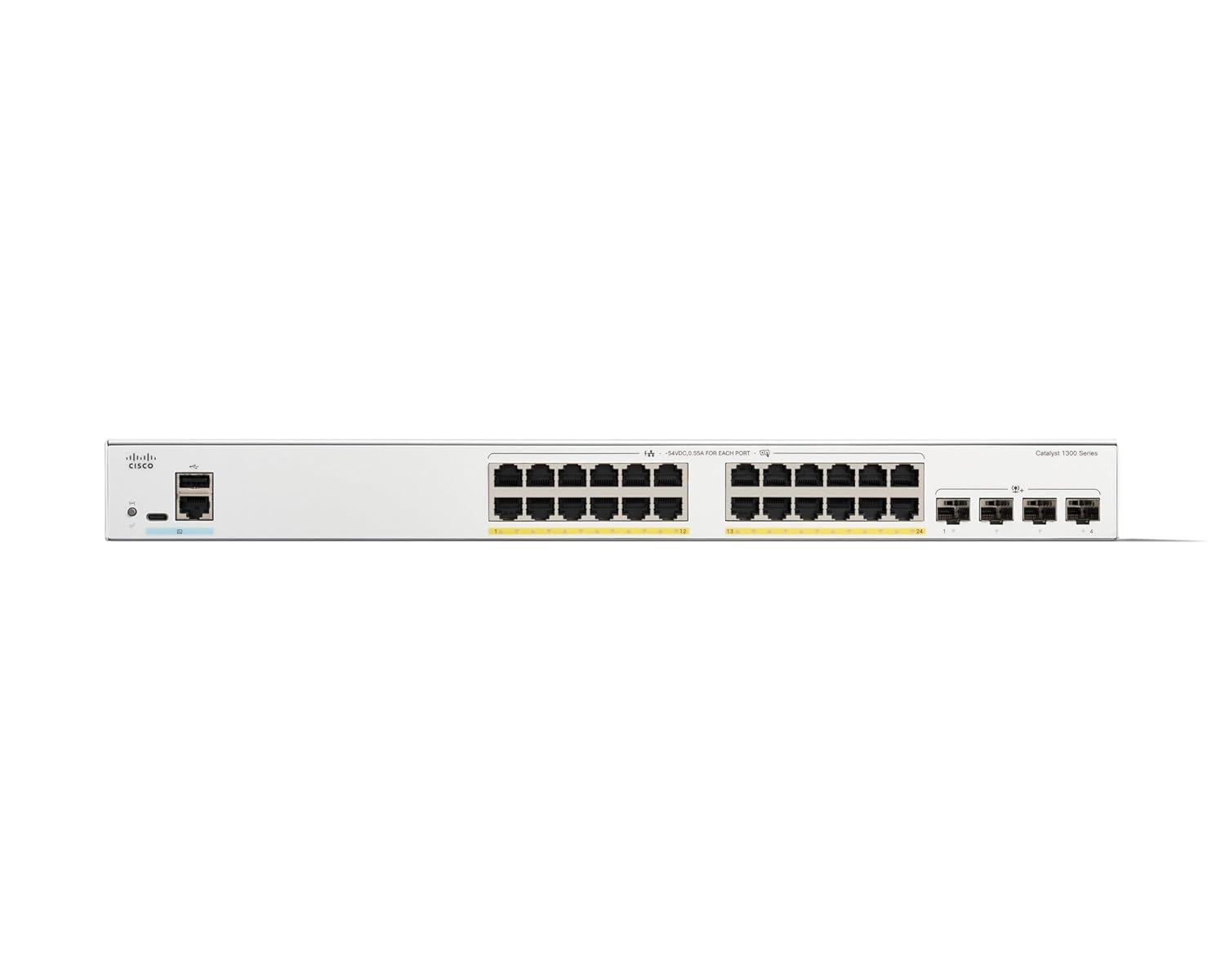

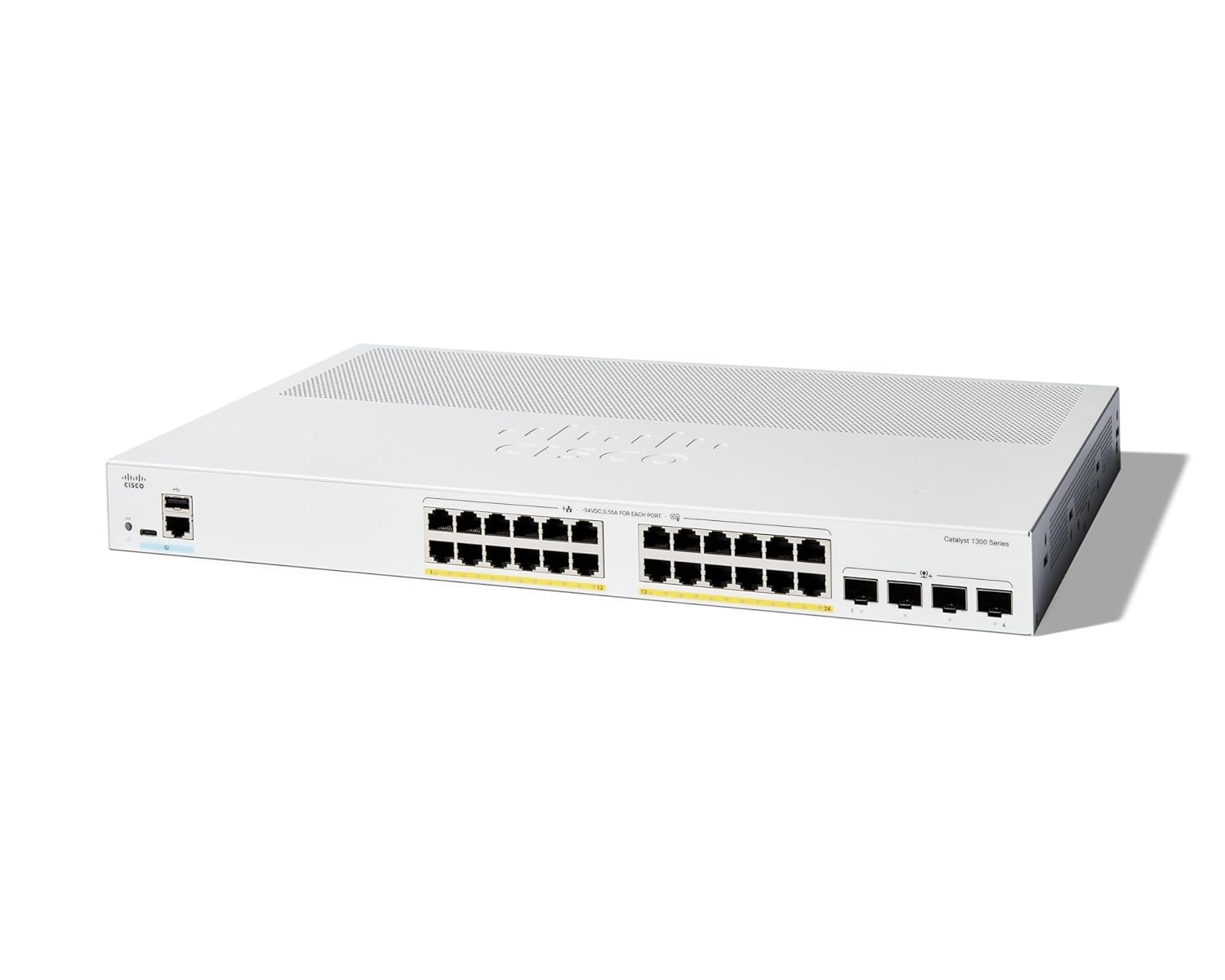

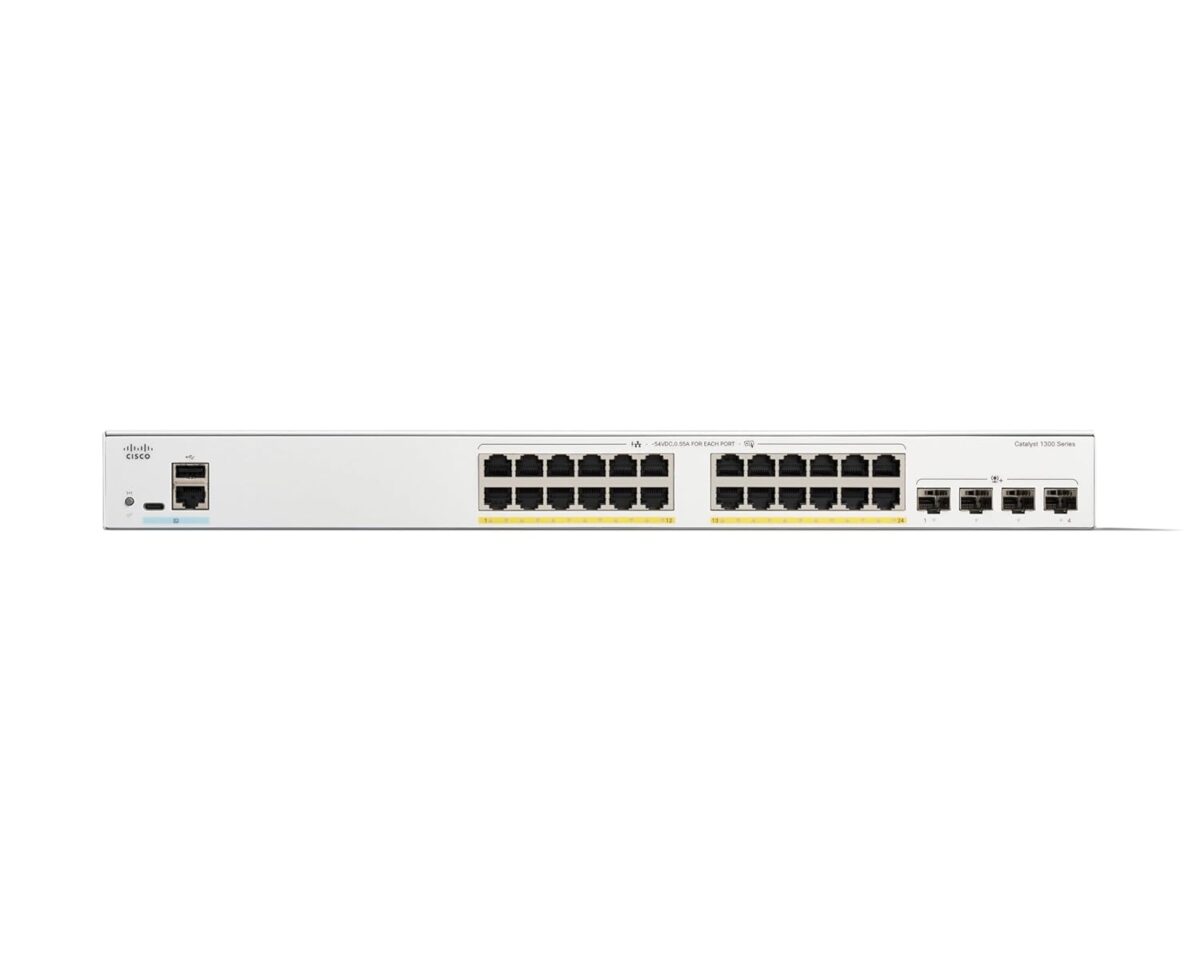

Cisco Catalyst C1300-24FP-4X 24-Port Full PoE+ Managed Switch | Ultimate Power & Performance Solution | 4 x 10G SFP+ Uplinks, Layer 3 Routing, Advanced Security

The Cisco Catalyst C1300-24FP-4X is a powerful, fully managed enterprise-class Layer 3 gigabit ethernet switch designed to meet the demanding needs of modern small to medium-sized businesses and branch offices. With 24 auto-sensing 10/100/1000 Mbps Full PoE+ ports delivering up to 375 W of PoE power, the Cisco Catalyst C1300-24FP-4X switch efficiently powers IP phones, wireless access points, surveillance cameras, and other network endpoints over a single Ethernet cable. Four dedicated 10G SFP+ uplink ports provide high-speed connectivity to the network backbone, enabling excellent scalability and performance for digital transformation initiatives.

Operating on a robust Linux-based OS with an intuitive, customizable dashboard, the C1300-24FP-4X simplifies network deployment, monitoring, and management through the Cisco Business Dashboard and mobile app. The Cisco Catalyst C1300-24FP-4X supports advanced Layer 3 routing features, IPv4/IPv6 dual stack, and comprehensive security protocols, including 802.1X, DHCP snooping, IP source guard, and IPv6 First Hop Security to protect critical business data and ensure secure, segmented network traffic.

The Cisco Catalyst C1300-24FP-4X switch also offers stacking capabilities of up to eight units, enabling unified management of multiple switches as a single entity with minimal downtime due to dual image support. Energy-efficient design includes support for IEEE 802.3az Energy Efficient Ethernet, automatic power shutoff on inactive ports, and fanless operation to reduce power consumption and noise. Compact and rack-mountable, the Cisco Catalyst C1300-24FP-4X fits perfectly in a wiring closet or open office environment.

Key Technical Features:

• 24 x 10/100/1000 Mbps RJ45 Full PoE+ ports, supporting IEEE 802.3af/at with a total PoE budget of 375W

• 4 x 10-Gigabit SFP+ uplink ports for high-throughput connectivity

• Managed Layer 3 switching with static routing, RIP v2, multicast routing, and IPv4/IPv6 dual stack support

• Advanced security features: IEEE 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 First Hop Security

• Cisco Business Dashboard and mobile app for simplified network setup, monitoring, and lifecycle management

• Front panel stacking of up to 8 switches with single IP management and high resiliency through fast stack failover

• ARM dual-core 1.4 GHz CPU, 1GB DDR4 RAM, 512MB flash memory for fast, reliable processing

• Fanless design with energy-efficient Ethernet (IEEE 802.3az), automatic power shutoff, and cable length-based power adjustment

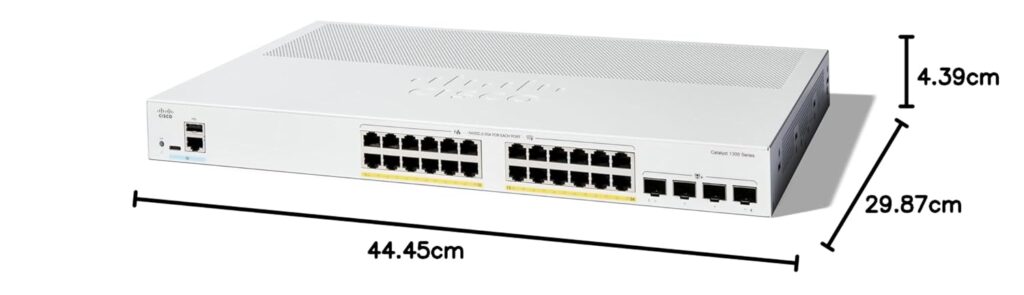

• Dimensions: 445 x 345 x 44 mm; Weight: 4.92 kg; Rack-mountable 1RU design

• Operating temperature range: -5°C to 50°C; Humidity: 10% to 90%, non-condensing

• USB Type-C and RJ45 console ports for flexible management and maintenance

The Cisco Catalyst C1300-24FP-4X is the ideal choice for businesses seeking a cost-effective yet feature-rich switching solution that supports growth, advanced applications, and robust security within a compact footprint, ensuring a resilient and efficient network foundation.
