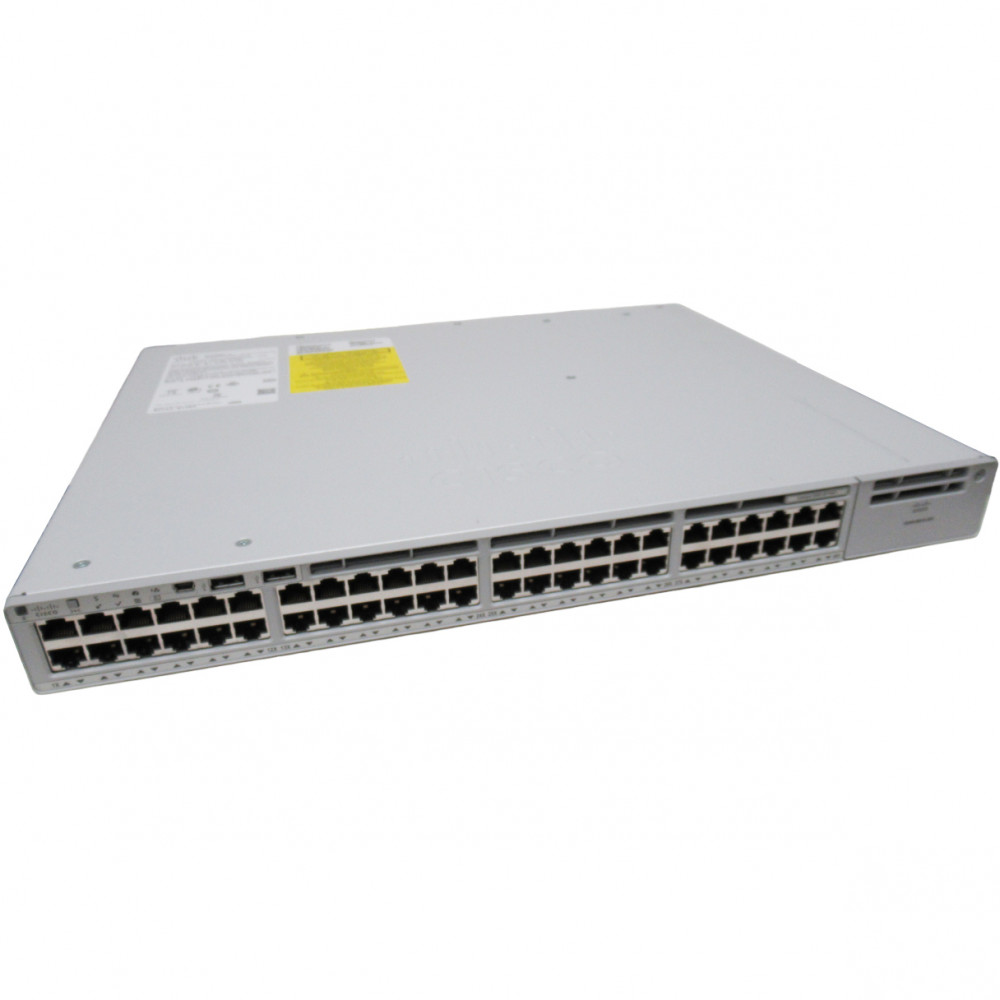

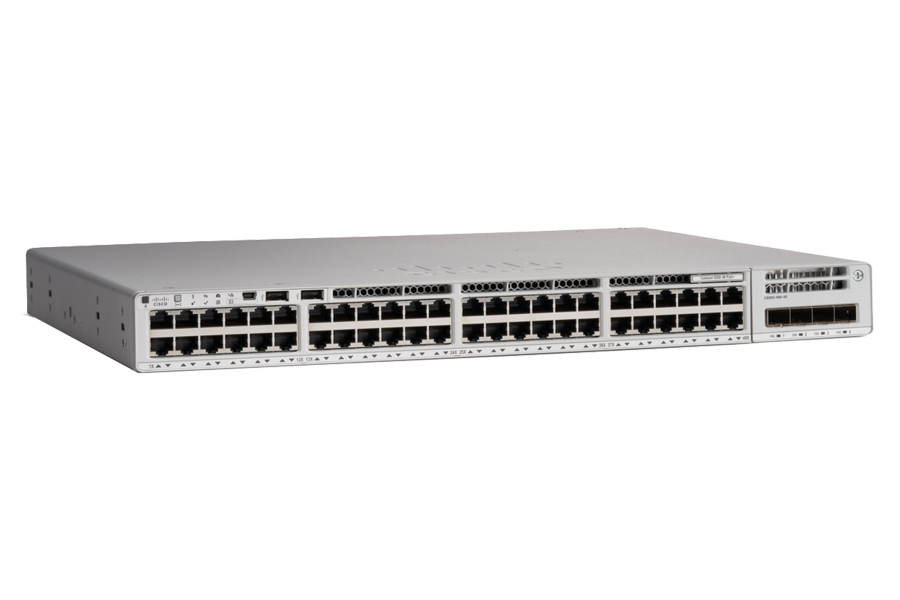

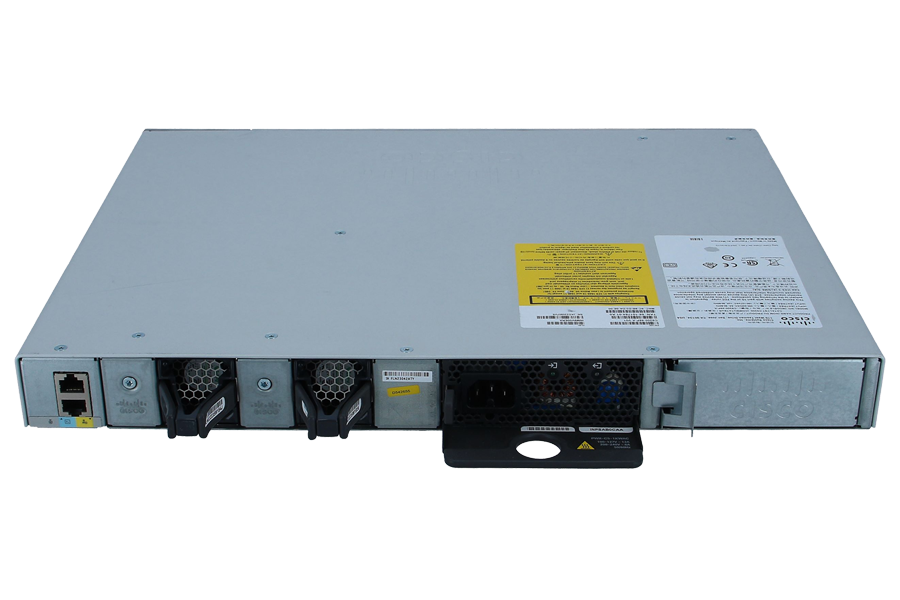

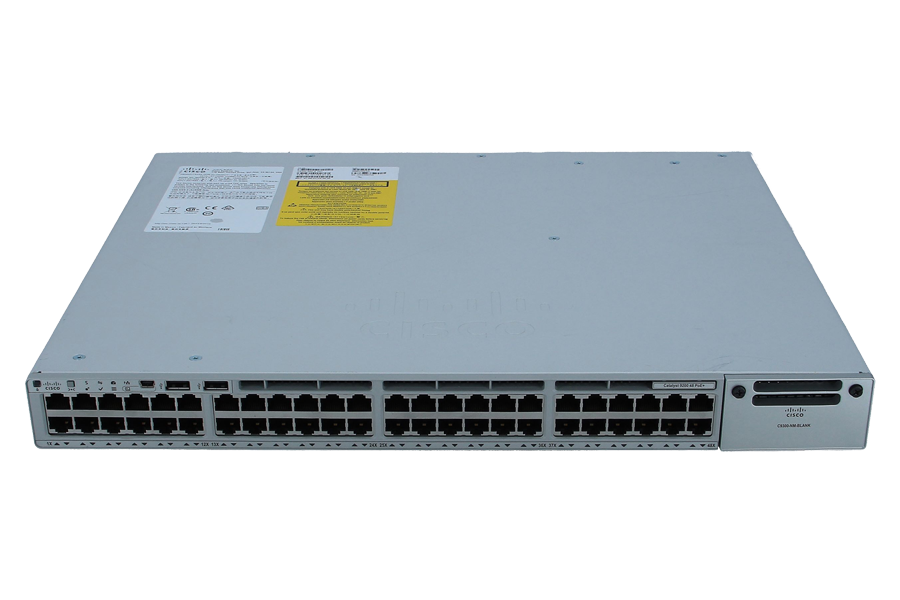

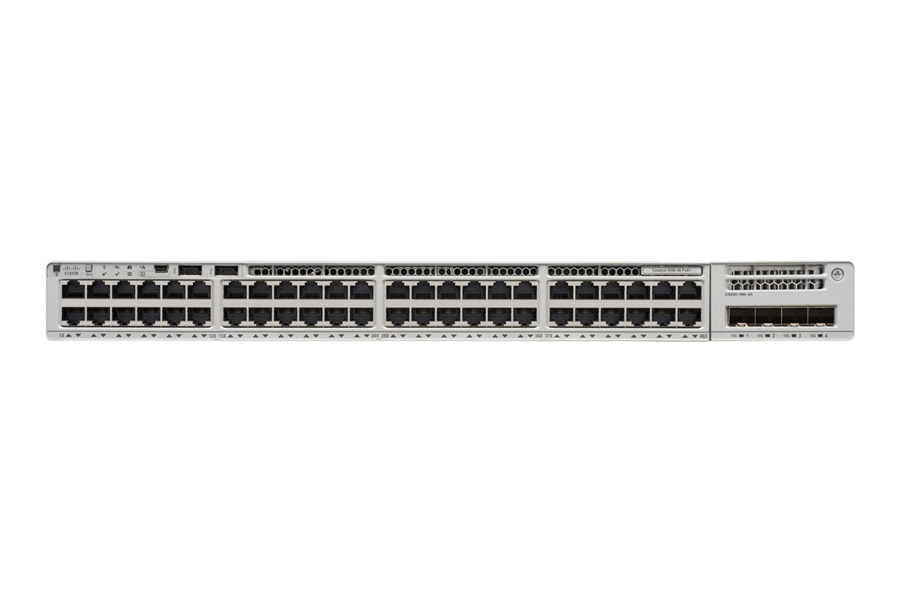

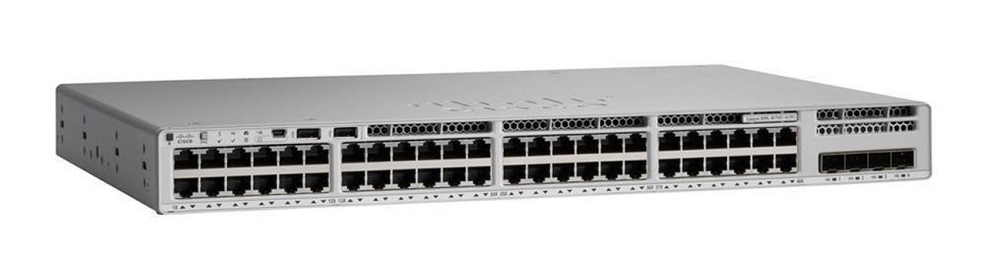

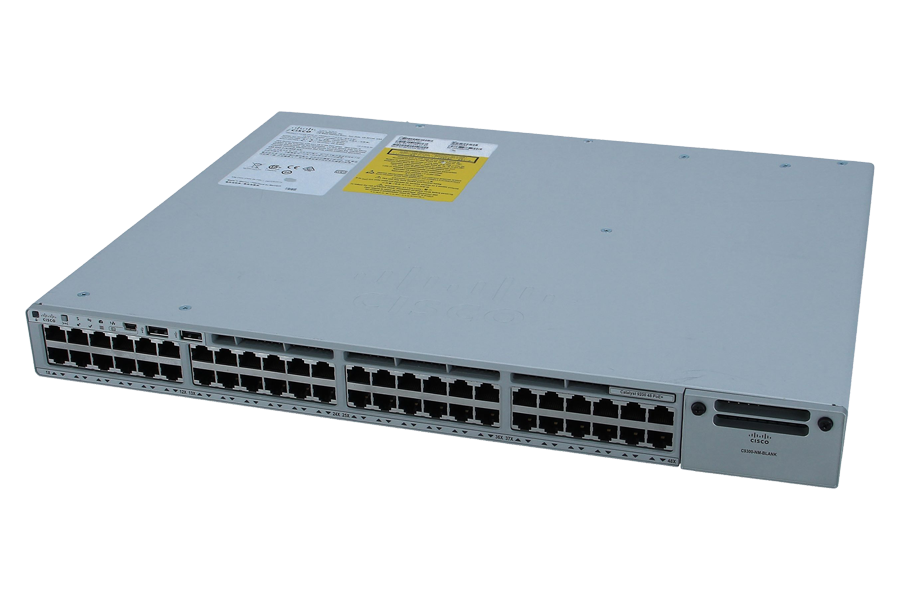

Cisco Catalyst C9200-48PL – Powerful Partial PoE 48-Port Layer 3 Modular Uplink Switch with 160 Gbps Stacking Bandwidth

The Cisco Catalyst 9200-48PL is a robust Layer 3 enterprise switch offering 48 partial PoE ports with modular uplinks and stacking bandwidth up to 160 Gbps. Powered by Cisco IOS XE, the Cisco Catalyst C9200-48PL delivers advanced security, resilient hardware with redundant power supplies and fans, and simplified network automation with SD-Access support—ideal for scalable, secure, and energy-efficient enterprise access layers.

We are trying hard to provide best price, still not satisfied. Let us know


    Please prove you are human by selecting the tree.

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    SKU: FGINECF34DLB Categories: , Brand:
    Description

    The Cisco Catalyst C9200-48PL is a powerhouse Layer 3 switch designed to deliver flexibility, scalability, and resiliency for modern enterprise networks. Part of the acclaimed Cisco Catalyst C9200 Series, this model provides partial Power over Ethernet (PoE) capabilities across 48 ports, making it an ideal choice for businesses aiming to simplify network complexity while maximising efficiency.

    Equipped with modular uplinks and support for up to 160 Gbps stacking bandwidth, the C9200-48PL switch is engineered to handle demanding enterprise access layer requirements with exceptional speed and reliability. Powered by Cisco’s industry-leading IOS XE software, it offers seamless integration with intent-based networking, advanced security features including AES-128 MACsec encryption, and programmable ASIC technology to future-proof your network investment.

    Operational efficiency is further enhanced with field-replaceable power supplies and fans, ensuring high availability and minimal downtime. The Cisco Catalyst C9200-48PL switch supports comprehensive Layer 3 routing protocols like OSPF, EIGRP, ISIS, and RIP to facilitate scalable network architectures. Additionally, the C9200-48PL supports Cisco’s SD-Access architecture for software-defined segmentation and automation across wired and wireless networks.

    With embedded support for advanced features such as Plug and Play (PnP) deployment, flexible power source options, and energy-efficient Ethernet (EEE), the Cisco Catalyst C9200-48PL caters to both performance and sustainability goals. The Cisco Catalyst C9200-48PL switch empowers network administrators with granular visibility, telemetry streaming, and automation via open APIs, delivering effortless network management at a lower total cost of ownership.

    In summary, the Cisco Catalyst C9200-48PL switch is a versatile, secure, and scalable solution for modern enterprise networking that drives both innovation and operational excellence.

    Key Technical Features

    • 48 Ports with Partial PoE support (IEEE 802.3at, delivering up to 370W PoE power with single power supply)

    • Modular uplinks, supporting 1G/10G network modules for enhanced scalability

    • Stacking bandwidth up to 160 Gbps via Cisco StackWise-160 technology

    • Layer 3 routing with support for OSPF, EIGRP, ISIS, RIP, and routed access

    • Powered by Cisco IOS XE software with full programmability and automation features

    • Advanced security with AES-128 MACsec encryption for data integrity

    • Field-replaceable redundant power supplies (default 600W, optional secondary for increased PoE power)

    • Dual field-replaceable fans for high availability and resilient cooling

    • SD-Access support for simplified network segmentation and policy automation

    • Energy Efficient Ethernet (EEE) for reduced power consumption

    • Support for Plug and Play (PnP) for streamlined deployment and management

    • Wide protocol support including IPv4, IPv6, multicast routing, and full QoS capabilities

    • RFID asset management and blue beacon LEDs for easy switch identification

    Cisco Catalyst C9200-48PL

    Product Details

    Specification CategoryDetails
    ModelCisco Catalyst 9200-48PL
    Switch TypeLayer 3 Modular Uplink Switch
    Ports48 x 10/100/1000 Mbps Ethernet (Partial PoE)
    PoE Power370W with single PWR-C6-600WAC power supply; 740W with redundant power supply
    PoE StandardIEEE 802.3at (PoE+)
    Uplink ConfigurationModular uplinks supporting 1G/10G network modules
    Stacking BandwidthUp to 160 Gbps via Cisco StackWise-160
    Layer 3 Routing ProtocolsOSPF, EIGRP, ISIS, RIP, Routed Access
    SoftwareCisco IOS XE
    SecurityAES-128 MACsec encryption, policy-based segmentation, Cisco Trust Anchor Technologies
    Power SuppliesDual field-replaceable 600W AC power supplies (redundant optional)
    Cooling FansDual field-replaceable
    Dimensions (HxWxD)1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35 cm)
    Weight12.12 lbs (5.5 kg)
    Energy EfficiencyEnergy Efficient Ethernet (EEE)
    Management OptionsCLI, Cisco Catalyst Center (formerly DNA Center), Meraki Dashboard
    SD-Access SupportYes
    MAC Address Table Size32,000
    IPv4 Routing Entries10,000 direct + 4,000 indirect (14,000 total)
    IPv6 Routing Entries2,000
    Multicast Routing Scale1,000
    QoS Scale Entries1,000
    ACL Scale Entries1,600
    Packet Buffer Size6 MB
    DRAM4 GB
    Flash Memory4 GB
    VLAN Support4096 VLAN IDs
    STP Virtual Ports (PVST)13,000
    Switch Virtual Interfaces512
    Jumbo Frame Support9198 bytes
    Wireless Bandwidth SupportUp to 48 Gbps (on compatible models)
    Forwarding Rate130.95 million packets per second (Mpps)
    Switching Capacity176 Gbps non-stacked, 336 Gbps with stacking
    Power RedundancySupported with optional secondary PSU
    Stack Members SupportedUp to 8
    Stacking TechnologyCisco StackWise-160
    Operating Temperature-5 °C to +45 °C (up to 10,000 ft / 3000 m altitude)
    Storage Temperature-40 °C to +70 °C
    Humidity5% to 90% non-condensing
    Acoustic Noise LevelTypical 42 dB, Max 45 dB at 25°C
    CertificationsENERGY STAR certified; UL 60950-1, CAN/CSA-C22.2, IEC 60950-1, FCC Class A, CE Marking, etc.
