General

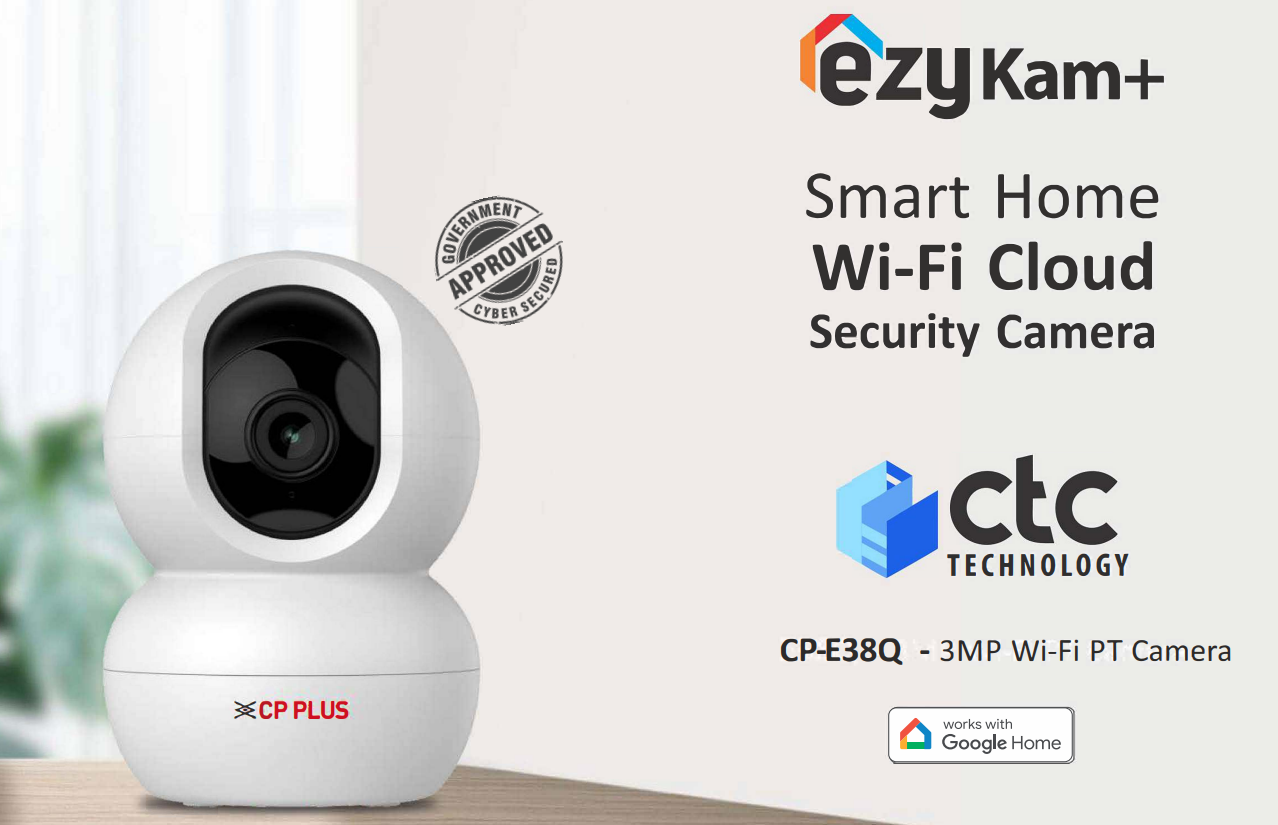

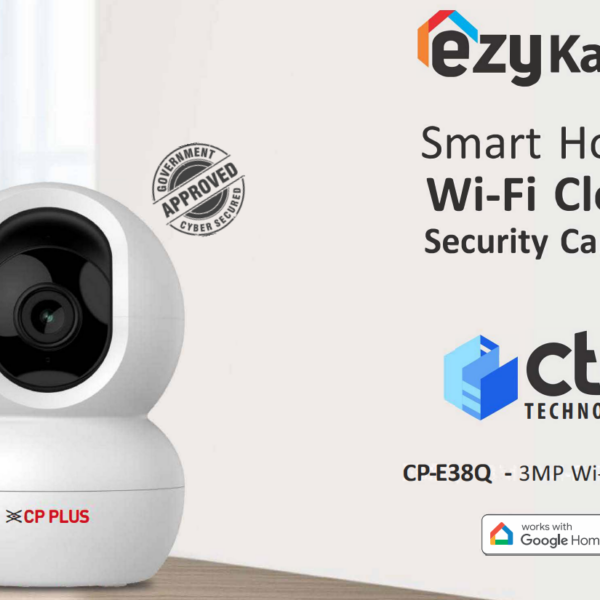

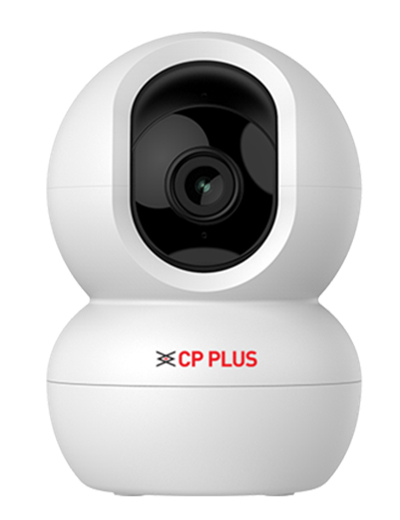

• Product Type: Wi-Fi IP PT Camera
• Brand: CP PLUS
• Model: CP-E38Q
• Application Environment: Indoor
Imaging
• Image Sensor: 1/2.7" 3MP PS CMOS
• Maximum Resolution: 3MP (2304 × 1296)
• Frame Rate: 20 fps
• Minimum Illumination (Color): 0.1 Lux
• Minimum Illumination (B/W): 0.01 Lux
• Lens: 4 mm
• Maximum Aperture: F2.0
• Angle of View (Diagonal): 107°
• Angle of View (Horizontal): 89°
• Angle of View (Vertical): 48°
Video
• Video Compression: H.265
• Back Light Compensation: DWDR
• Electronic Shutter: 1/50s (1/60s) – 1/100,000s
• Noise Reduction: 3D DNR
• S/N Ratio: ≥40.4 dB
Pan / Tilt
• Pan Range: 355°
• Tilt Range: 75°
Night Vision
• IR Night Vision: Supported
• IR LEDs: 6 pcs
• IR Distance: 15 m
• IR Cut Filter: Auto
Detection & Alerts
• Motion Detection: Supported
• Motion Tracking: Supported
• Human Body Detection: Supported
• Sound Detection: Supported
• Alarm Notification (Push): Supported
Audio
• Built-in Microphone: Supported
• Built-in Speaker: Supported
• Audio Compression: G.711A
• Two-Way Talk: Supported
• Echo Cancellation: Supported
• Built-in Siren: Supported
Connectivity
• Wireless Standard: Wi-Fi 802.11 b/g/n
• Wireless Frequency: 2.4 GHz
• Ethernet: Not supported
• PoE: Not supported
Storage
• Local Storage: MicroSD card
• Max MicroSD Capacity: Up to 256 GB
• Cloud Recording: Supported
Smart Features & Compatibility
• Smartphone Support: Android, iOS
• Google Home Compatibility: Supported
• Privacy Mode: Supported
Power
• Power Supply: DC 5 V, 1 A
• Power Connector: USB Type-C
• Power Consumption: Max. 5 W
Physical
• Dimensions: 76 × 76 × 111 mm
• Weight: 186 g
• Casing Material: ABS Plastic
Environmental
• Operating Temperature: −20 °C to 60 °C
• Operating Humidity: <95% (non-condensing)
Certifications
• Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, WPC
Protection
• IP Rating: Not specified by manufacturer
