-63%

CP PLUS CP-UNC-DA41L3C-D-Q 4MP IP Dome Camera | Built-In Mic | IP67 (3.6mm) - Image 2

CP PLUS CP-UNC-DA41L3C-D-Q 4MP IP Dome Camera | Built-In Mic | IP67 (3.6mm) - Image 3

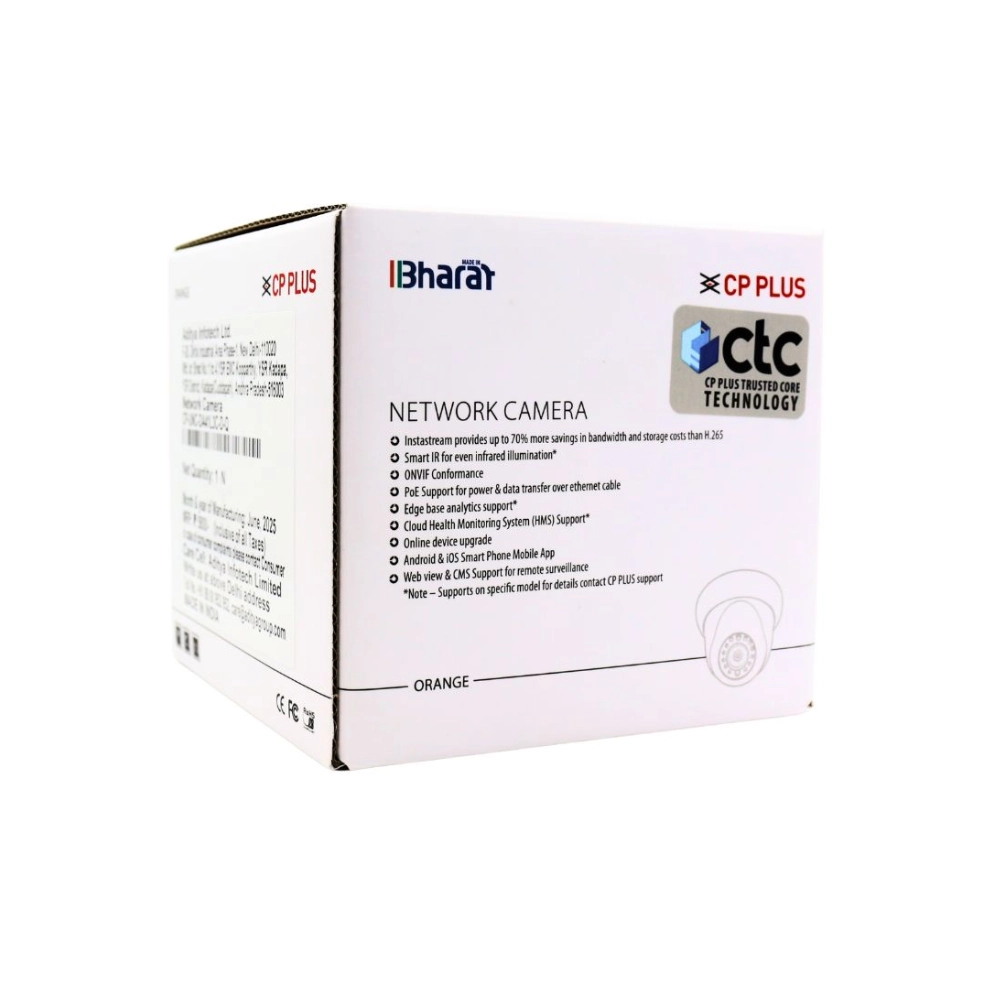

CP PLUS CP-UNC-DA41L3C-D-Q 4MP IP Dome Camera | Built-In Mic | IP67 (3.6mm)

Name: CP PLUS CP-UNC-DA41L3C-D-Q 4MP IP Dome Camera | Built-In Mic | IP67 (3.6mm) - FGTECH STORE
SKU: FGIN35TPC25K
Price: 2849.00 INR
Availability: InStock

Original price was: ₹7,599.00.Current price is: ₹2,849.00. Inc. tax (₹2,414.41Exc. Tax)

CP PLUS CP-UNC-DA41L3C-D-Q is a 4MP network dome camera with PoE support, 30-meter infrared night vision, a fixed 3.6 mm lens, and a built-in microphone for IP-based surveillance systems.

Add to compare

Pick up from the FGTECH Store

To pick up today

0-1 Days

Free

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Free

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGIN35TPC25K Categories: Surveillance and Security, IP Cameras Brand: CP Plus

Description

The CP PLUS CP-UNC-DA41L3C-D-Q is a 4-megapixel network-based IR dome camera designed for fixed-location video surveillance in indoor and outdoor environments. It captures video at a maximum resolution of 2688 × 1520 and supports multiple frame rate and resolution configurations through triple-stream capability.

This camera uses a 1/2.9-inch PS CMOS image sensor and a fixed 3.6 mm lens, providing a horizontal field of view of 78 degrees. Infrared illumination supports visibility up to 30 meters in complete darkness, with Smart IR automatically adjusting LED intensity to reduce overexposure at close distances. True Day/Night functionality with an IR cut filter enables color imaging in daylight and monochrome imaging in low-light conditions.

Video compression formats include Instastream, H.265, H.264, and MJPEG (sub-stream only), allowing bandwidth and storage optimization when used with compatible recording systems. The camera supports built-in audio recording through an integrated microphone but does not include a speaker.

Power can be supplied via PoE (IEEE 802.3af) or 12V DC, and network connectivity is provided through a 10/100 Mbps Ethernet interface. The housing carries an IP67 weatherproof rating, making it suitable for outdoor installation. Cybersecurity features include AES-256 encryption, HTTPS, trusted boot, and access control mechanisms.

The camera supports ONVIF Profiles S, G, and T for interoperability with compatible NVRs and video management systems. Smart functions include motion detection, human body detection, ROI configuration, and event-based alerts when paired with supported systems.

Best suited for

Wired IP surveillance systems using PoE
Indoor or outdoor fixed-angle monitoring
Homes, retail stores, offices, and small enterprises
Installations requiring audio recording
Systems using ONVIF-compatible NVRs

Not suitable for

Wi-Fi–based camera installations
Pan-tilt-zoom (PTZ) surveillance needs
Two-way audio communication
Battery-powered setups
Installations requiring onboard storage (SD card not specified)

Product Details

General

• Product Type: Network IR Dome Camera
• Brand: CP PLUS
• Model: CP-UNC-DA41L3C-D-Q

Imaging

• Image Sensor: 1/2.9” 4MP PS CMOS
• Effective Pixels: 2688 × 1520
• Maximum Resolution: 4MP (2688 × 1520)
• Minimum Illumination (Color): 0.03 lux @ F2.0
• Minimum Illumination (B/W): 0.003 lux @ F2.0
• Minimum Illumination (IR): 0 lux (IR on)
• Day/Night Mode: Auto (ICR)
• Wide Dynamic Range (WDR): 120 dB
• Noise Reduction: 3D NR

Lens

• Lens Type: Fixed
• Focal Length: 3.6 mm
• Maximum Aperture: F2.0
• Lens Mount: M12
• Angle of View (Horizontal): 78°
• Angle of View (Vertical): 43°
• Angle of View (Diagonal): 92°
• Minimum Focus Distance: 1.3 m

Video

• Video Compression: Instastream, H.265, H.264, H.264H, H.264B
• MJPEG Support: Supported (sub-stream only)
• Stream Capability: Triple stream
• Frame Rate (Main Stream): Up to 25/30 fps at 4MP
• Frame Rate (Sub Stream 1): Up to 25/30 fps
• Frame Rate (Sub Stream 2): Up to 25/30 fps
• Bit Rate Control: CBR / VBR
• Video Format: PAL / NTSC
• Image Rotation: 0° / 180° (4MP only)

Infrared & Night Vision

• IR Range: 30 meters
• Smart IR: Supported
• IR LED Count: 1

Audio

• Microphone: Supported (Built-in)
• Speaker: Not supported
• Audio Recording: Supported
• Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC

Smart & Analytics

• Motion Detection: Supported
• Human Body Detection: Supported
• Region of Interest (ROI): Supported
• Privacy Masking: Supported
• Smart Search: Supported (with compatible NVR)

Network & Protocols

• Ethernet: RJ-45 (10/100 Base-T)
• Wi-Fi: Not supported
• ONVIF: Supported (Profile S, G, T)
• Network Protocols: IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTSP, RTP, NTP, DHCP, DNS, SNMP v3, SSL, TLS 1.2, SMTP

Power

• Power Supply: 12 V DC
• PoE: Supported (IEEE 802.3af)
• Power Consumption (Basic): 1.5 W (DC), 1.9 W (PoE)
• Power Consumption (Max): 3.5 W (DC), 4.3 W (PoE)

Storage

• Onboard Storage (SD Card): Not supported

Physical & Environmental

• Weatherproof Rating: IP67
• Operating Temperature: –40 °C to +60 °C
• Operating Humidity: ≤95% RH
• Casing Material: Metal + Plastic
• Dimensions: 85.5 mm × 109 mm
• Weight: 250 g
