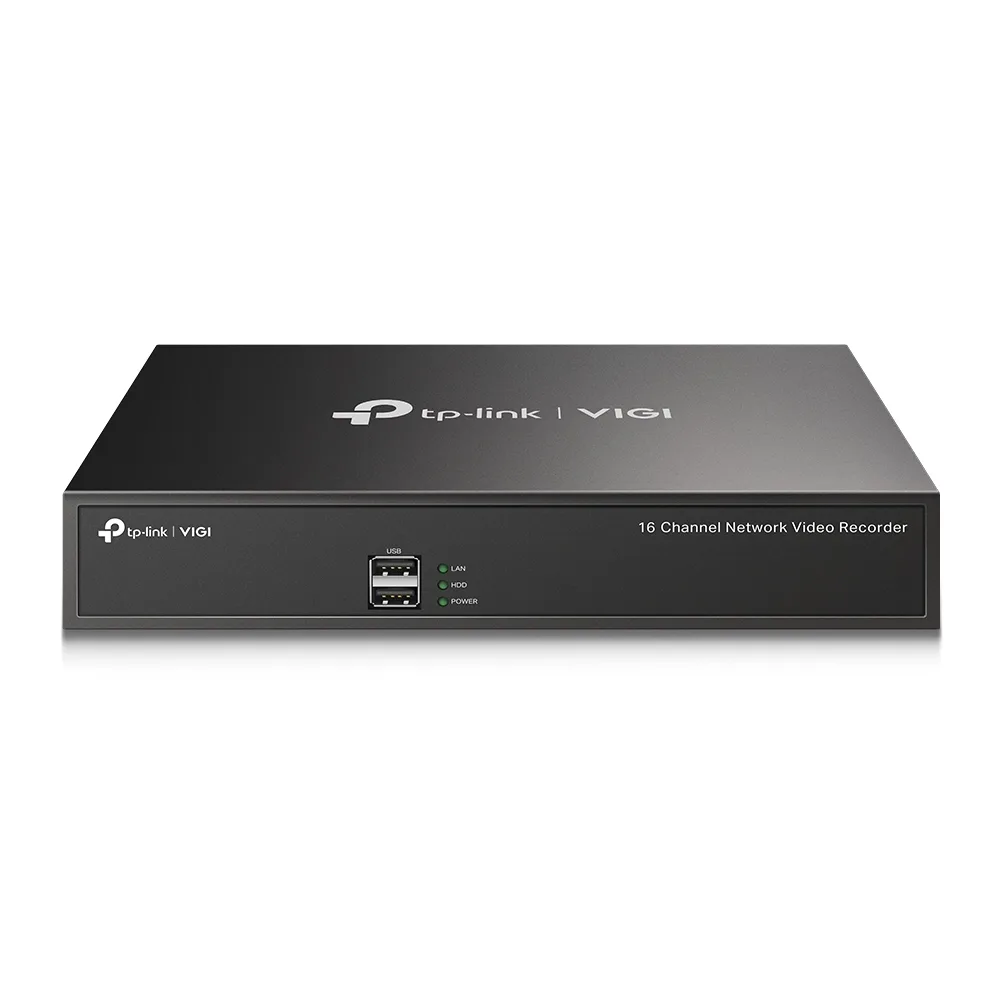

TP-Link VIGI NVR1016H 16 Channel Network Video Recorder with Quick Lookup and Playback
The TP-link VIGI NVR1016H is a 16-channel network video recorder offering high-definition 24/7 surveillance with up to 10TB storage, Quick Lookup and Playback, simultaneous playback, remote monitoring via the VIGI app, and efficient H.265+ video compression. Perfect for comprehensive security setups.
₹13,999.00 Original price was: ₹13,999.00.₹5,399.00Current price is: ₹5,399.00. Inc. tax (₹4,575.42Exc. Tax)
Description
The TP-Link VIGI NVR1016H offers 24/7 recording with support for up to 10TB of storage, enabling secure data access. Featuring 16-channel live viewing with up to 8MP definition, it allows detailed monitoring from multiple angles. Quick lookup and playback make footage review efficient, while remote monitoring is accessible via the VIGI app.
Using H.265+ compression, it saves bandwidth and disk space without compromising video quality. ONVIF compatibility supports integration with various IP cameras, and two-way audio enables real-time communication.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

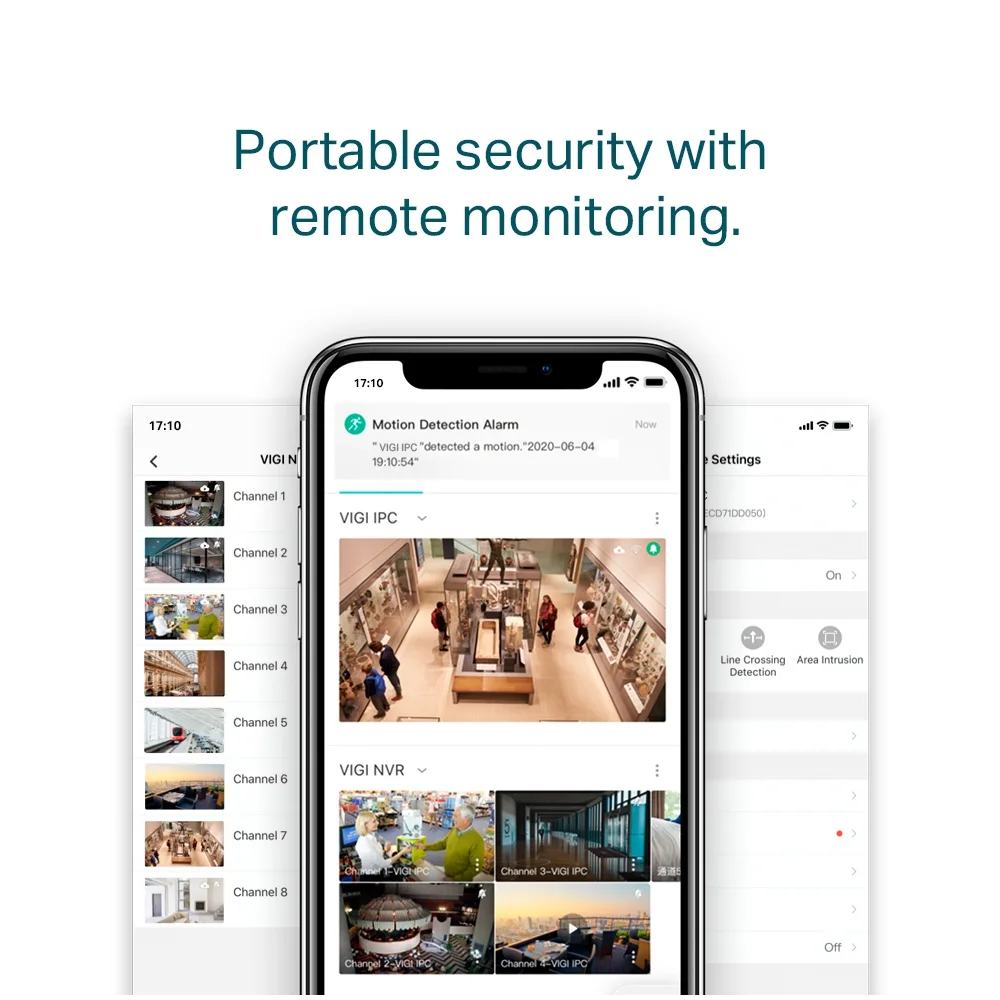

- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

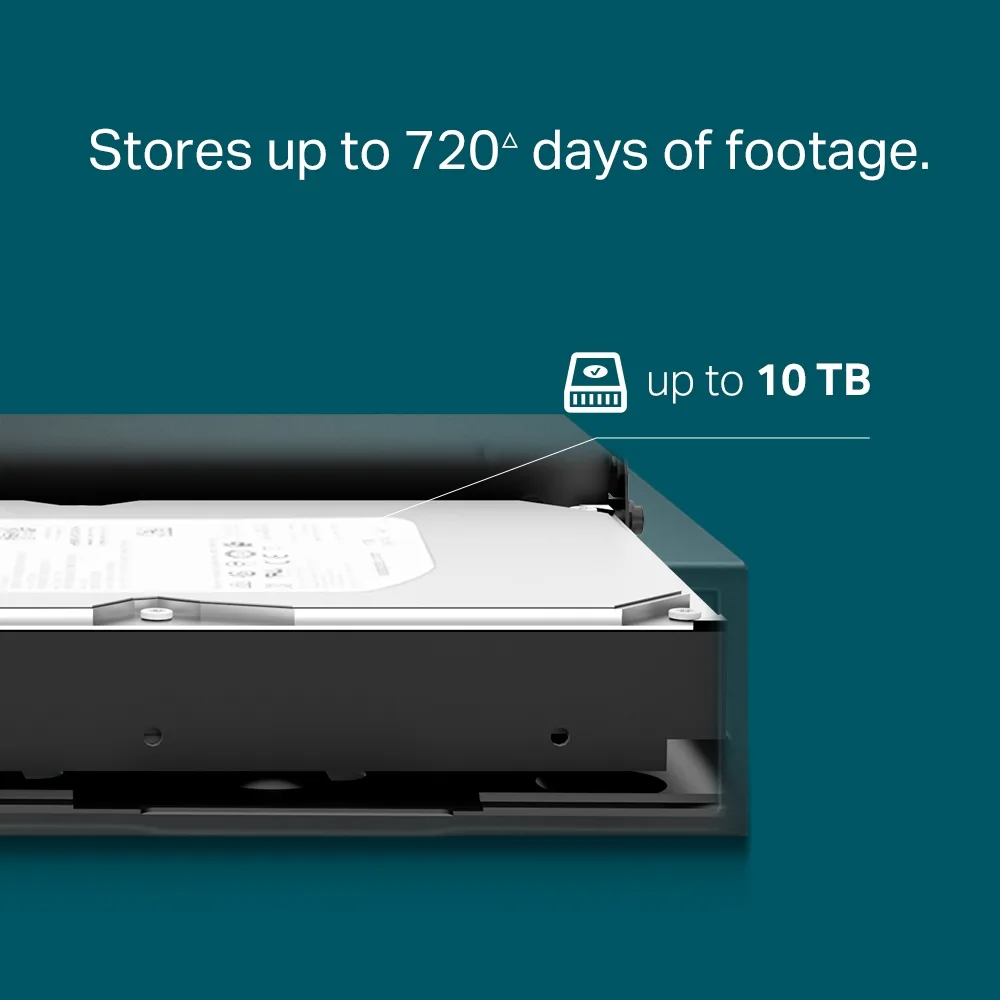

- 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
Tp-link VIGI NVR1016H High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 16 HD cameras.
Weight | 1.07 kg |
---|---|
Dimensions | 29 × 28 × 6 cm |
Brand | |
CHANNEL |
16 |
SATA |
1 |
Badges |
24Hr Dispatch |
VIDEO AND AUDIO | |
---|---|
IP Video Input | 16-Channel |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4/6/8/9/16 |
DECODING | |
---|---|
Audio Compression | G.711A/G.711U/G.726 |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 16-Channel |
Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
RECORD MANAGEMENT | |
---|---|
Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
Backup Mode | • Regular Backup • Video Clip Backup |
Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
NETWORK | |
---|---|
Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
Mobile Phone Access | Android, iOS |
Incoming Bandwith | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |

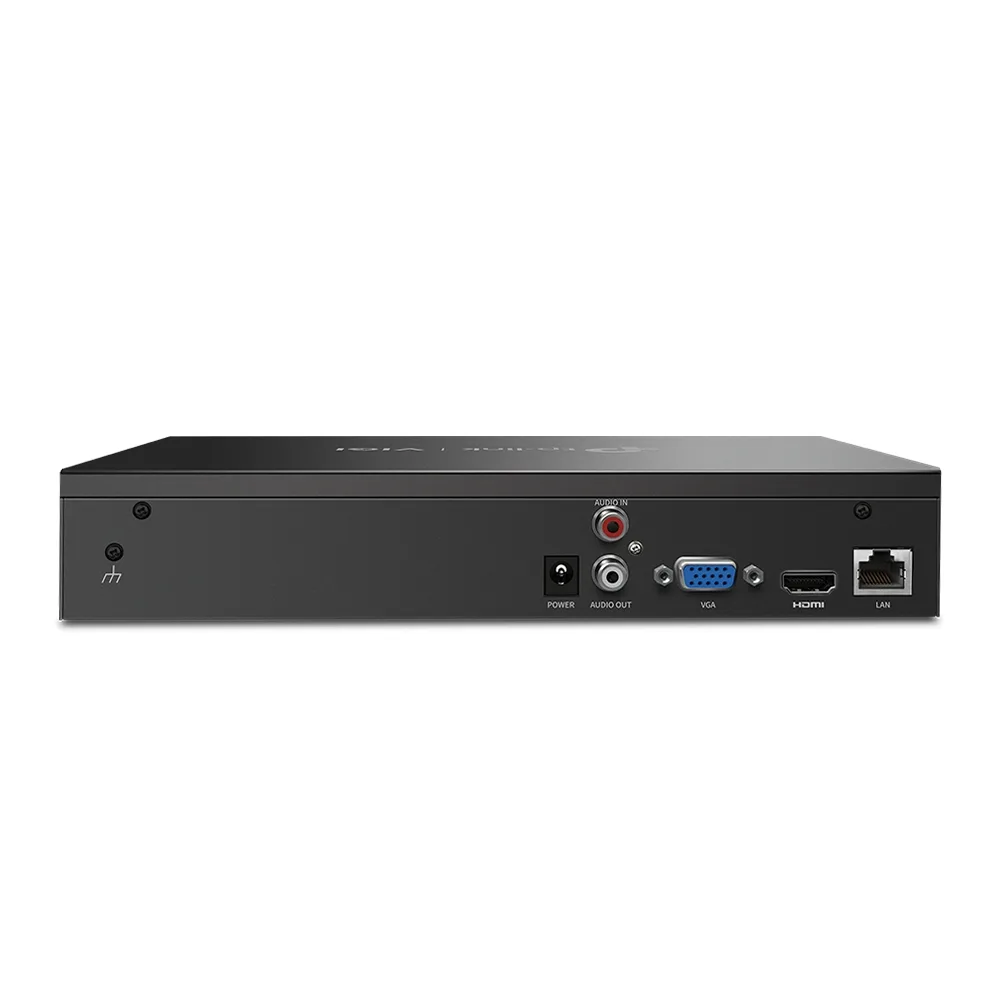

EXTERNAL INTERFACE | |
---|---|
Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | N/A |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
---|---|
SATA | 1 SATA Interface |
Capacity | Up to 10 TB |
ALARM | |
---|---|
General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
INTERFACES | |
---|---|
Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
GENERAL | |
---|---|
Operating Temperature | -10–55 °C |
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Weight | 578.5 g |
Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
External Power Supply | DC 12V/1.5A |
Net Weight | 0.61 Kg |
Gross Weight | 1.12 Kg |
Power Consumption | 4.25 W (without disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC |
VIDEO/IMAGE | |
---|---|
Synchronous Playback | 16-Channel |
Video Input | 16-Channel IP Video Input, up to 8 MP Resolution |
Recording Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
Origin Country | China |
