CP-UNR-4K5644-FI 64Ch 4K AI NVR with 384 Mbps bandwidth, 4 SATA (20TB each), 2 HDMI/2 VGA outputs, AI face detection & SMD Plus, mobile & CMS support.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

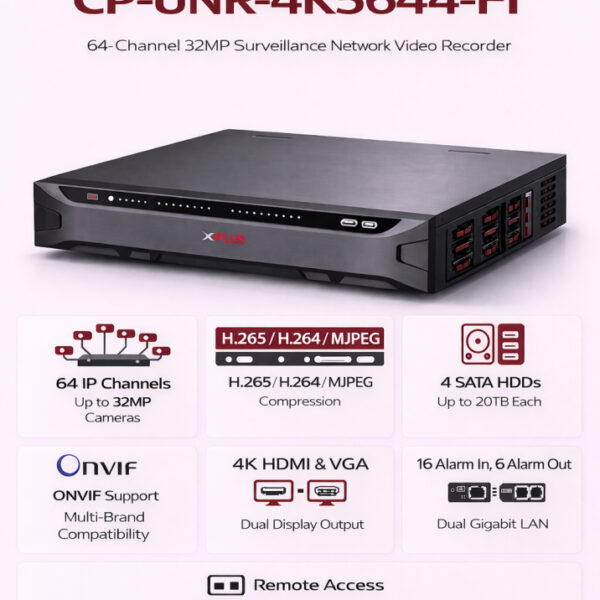

CP-UNR-4K5644-FI 64 Channel 4K AI Network Video Recorder is a high-performance surveillance solution designed for large-scale security deployments. Supporting up to 64 IP camera inputs, this NVR delivers exceptional scalability and performance, making it ideal for enterprise, commercial, and industrial applications that require reliable multi-channel recording.
Engineered for efficiency, the CP-UNR-4K5644-FI provides a maximum of 384 Mbps bandwidth for incoming, recording, and outgoing video streams, ensuring smooth performance even with multiple high-resolution cameras. It supports advanced video compression and encoding technologies including Instastream, H.265, H.264+, H.264, and MJPEG, reducing storage requirements while maintaining superior image quality. With a decoding capability of up to 32 × 1080p@30 fps or 32 × 2MP@30 fps, the NVR ensures clear and seamless playback for all connected channels.
The recorder includes powerful AI features, enabling intelligent surveillance analytics. By recorder, it supports 2-channel face detection and recognition with up to 20 face databases and 20,000 images, 4-channel perimeter protection, and 8-channel SMD Plus to minimize false alarms and enhance security efficiency.
The CP-UNR-4K5644-FI is built for scalable storage and reliability, supporting 4 SATA HDDs up to 20TB each and 3 USB ports (2 × USB 3.0) for easy backup. For display, it offers 2 HDMI and 2 VGA simultaneous outputs, ensuring flexible monitoring setups.

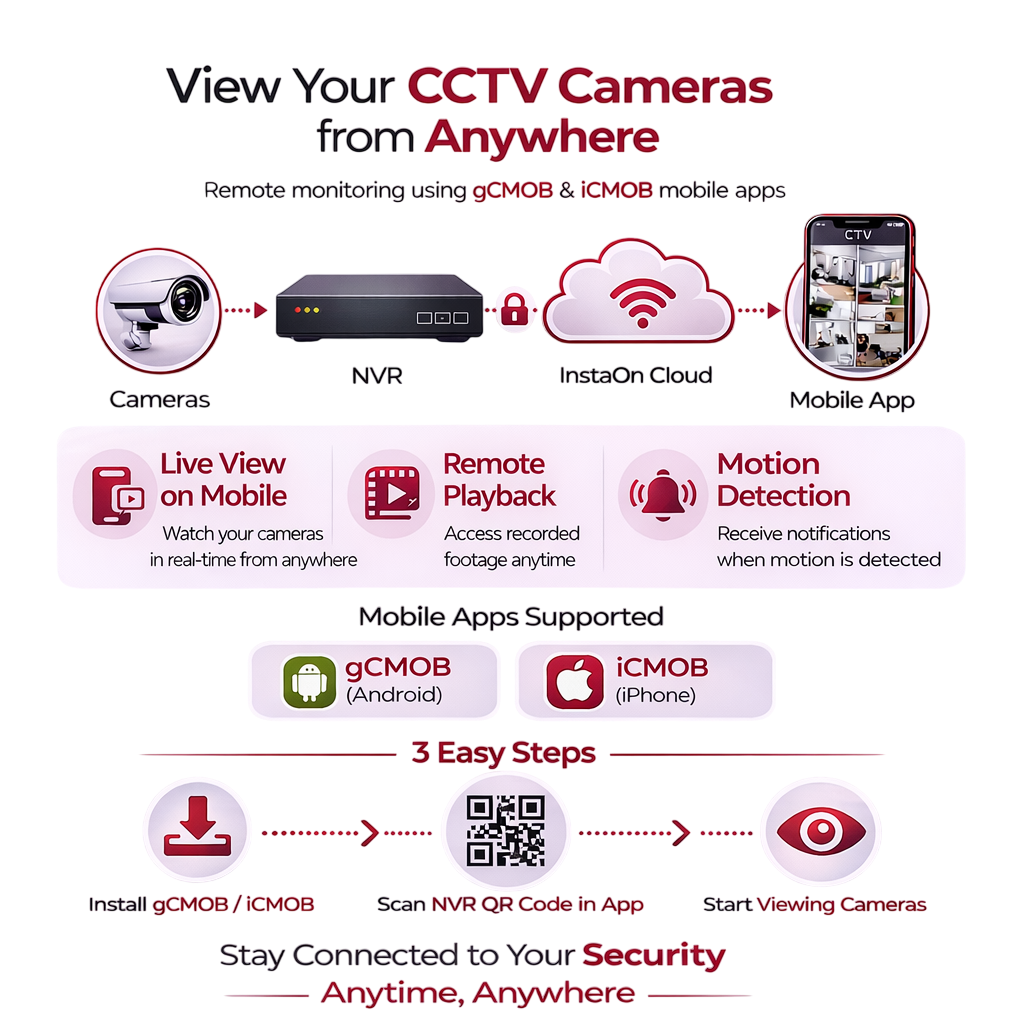

Remote access and management are simple via iCMOB and gCMOB mobile apps, while centralized monitoring is supported through KVMS Pro Lite CMS software. Combining advanced AI, robust storage, and enterprise-grade performance, the CP-UNR-4K5644-FI is an ideal choice for professional, mission-critical surveillance systems.
| Feature | Details |
|---|---|
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 64 Channels |
| User Interface | Web, Local GUI |
| AI by Camera | Face detection, Face recognition, Video metadata (human, motor vehicles, non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| AI by NVR | Face detection, Face recognition, Perimeter protection, SMD Plus |
| Perimeter Performance AI by NVR | 4 Channels, 10 IVS rules per channel |
| Perimeter Performance AI by Camera | All Channels (16 targets/s) |
| Video Output | VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 2 HDMI / 2 VGA simultaneous output |
| Face Detection AI by NVR | 2 Channels (up to 12 face images/s each) |
| Face Detection by Camera | 16 Channels |
| Abnormality Alarm | Camera offline, Storage error, Disk full, IP/MAC conflict, Login lock, Fan abnormality, Cybersecurity exception |
| Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Database Capacity | Up to 20 databases, 20,000 images, 2.5GB total; metadata includes Name, Gender, DOB, Address, ID type, ID No., Country/Region, State |
| SMD Plus by NVR | 8 Channels: Secondary filtering for humans and vehicles to reduce false alarms |
| Face Recognition AI by NVR | 16-Channel FD (camera) + FR (recorder), 16 images/s 2-Channel FD+FR (recorder), 12 images/s |
| Face Recognition AI by Camera | 16 Channels |
| SMD Plus by Camera | All Channels (32 targets/s) |
| Network Bandwidth | AI Disabled: 384 Mbps incoming/recording/outgoing AI Enabled: 200 Mbps incoming/recording/outgoing |
| Network Mode | Multi-address, load balance, fault tolerance, port binding modes |
| Supported Resolution | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, 960p, D1, CIF, QCIF |
| IntelliCheck AI | Max 32 Channels, 1 combined event per channel/s |
| Multi-channel Playback | Up to 16 Channels |
| Video Metadata by Camera | 8 Channels |
| ANPR by Camera | All Channels (8 targets/s) |
| Encode Strategy | Instastream, H.264+ |
| Video Display Split | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Decoding Capability | AI Disabled: 2×32MP@25fps, 2×24MP@25fps, 4×16MP@30fps, 5×12MP@30fps, 8×8MP@30fps, 10×6MP@30fps, 12×5MP@30fps, 16×4MP@30fps, 32×1080p@30fps AI Enabled: 1×32MP@25fps, 1×24MP@25fps, 2×16MP@30fps, 4×12MP@30fps, 6×8MP@30fps, 8×6MP@30fps, 8×5MP@30fps, 12×4MP@30fps, 24×1080p@30fps |
| Non-motor Vehicle Attributes | Vehicle model, color, number of persons, helmet |
| Motor Vehicle Attributes | License plate, plate color, body, model, logo, seatbelt, interior, registration location |
| Human Attributes | Top color/type, Bottom color/type, Hat, Bag, Age, Gender, Umbrella |
| Audio Input/Output | 1×RCA In, 2×RCA Out |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Video Compression | H.265, H.264, MJPEG |
| Alarm Input/Output | 16 Inputs, 6 Outputs (1×12V/1A each) |
| Disk Group | Supported |
| Disk Interface | 4×SATA (up to 20TB each, environment-dependent) |
| General Alarm | Motion detection, local alarm, alarm box, external camera alarm, network alarm, scene change, PIR alarm, thermal alarm |
| Intelligent Alarm | Face detection, perimeter, face recognition, metadata, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map |
| Recording Mode | General, Motion detection, Intelligent, Alarm, POS |
| Playback Mode | Instant, General, Event, Tag, Smart (face & motion detection) |
| Backup Mode | USB device, Network |
| Alarm Linkage | Record, Snapshot, Local/IPC alarm output, Access controller, Audio, Buzzer, Log, Preset, Email |
| Interface Ports | 3 USB (1 front 2.0, 2 rear 3.0), 2 HDMI, 2 VGA, 1 RS232, 1 eSATA, 1 RS485 |
| Ethernet | 2×RJ45 (10/100/1000 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12 (Profile T/S/G), CGI, SDK |
| Smartphone Support | iPhone, iPad, Android |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | ≤ 13 W (without HDD) |
| Operating Temp/Humidity | -10°C to +55°C; 10%–93% RH, non-condensing |
| Storage Temp | -20°C to +60°C |
| Dimensions | 440 × 415.1 × 70 mm |
| Weight | 4.74 kg (without HDD) |
