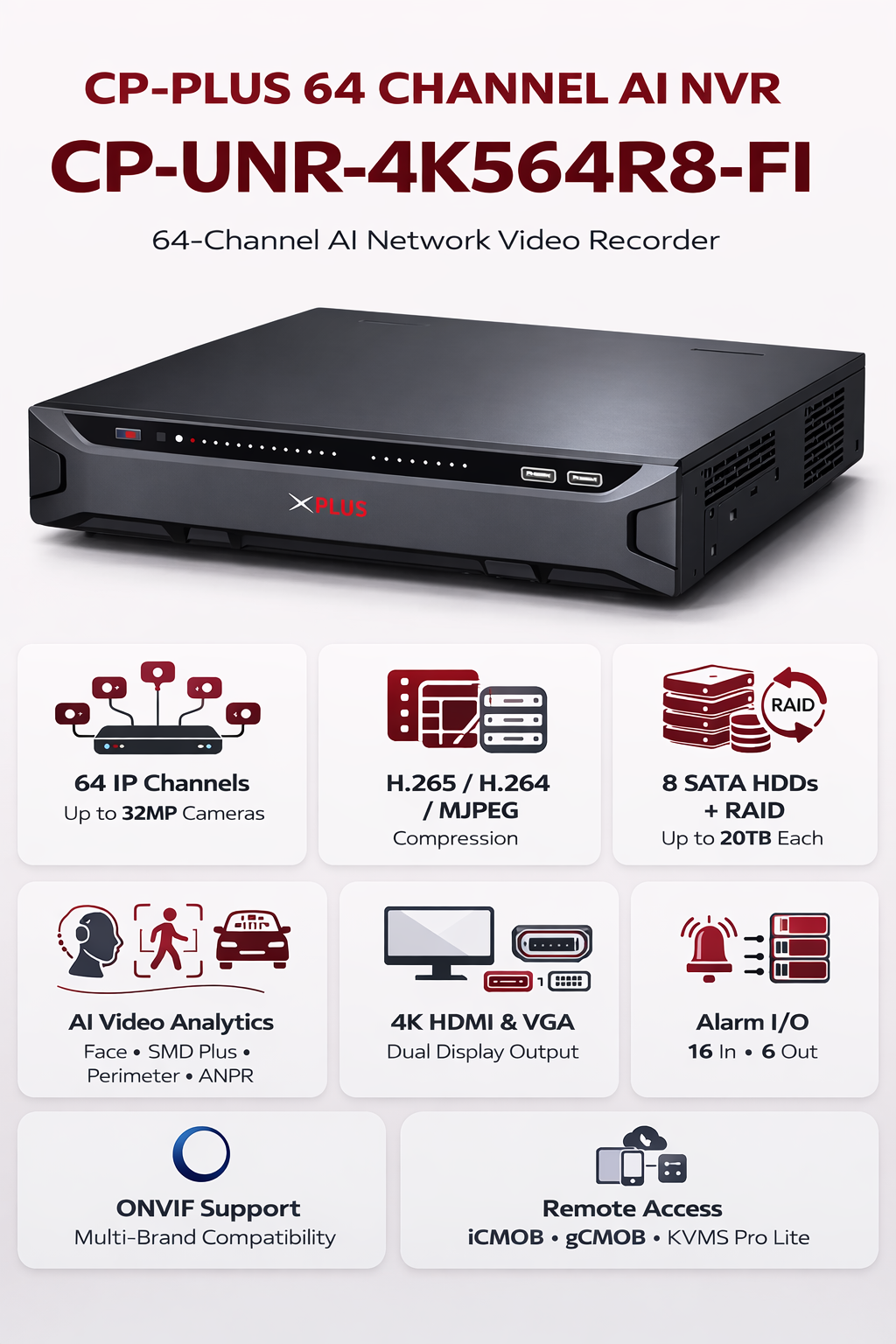

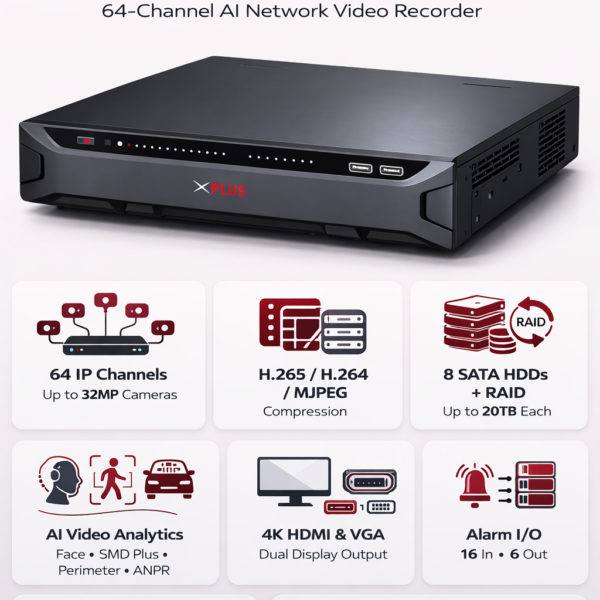

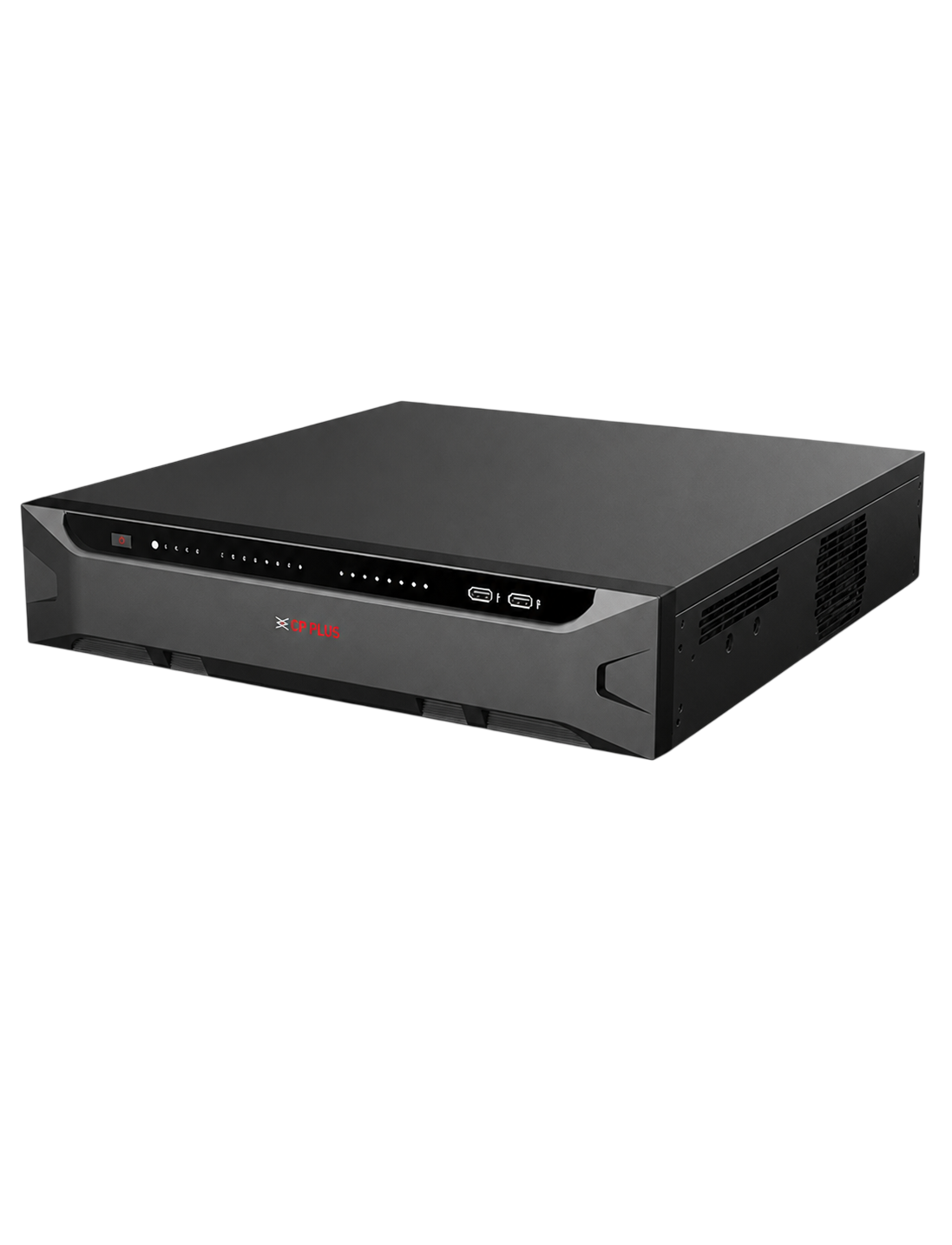

| General | Model | CP PLUS CP-UNR-4K564R8-FI |
| Product Type | 64 Channel AI Network Video Recorder |
| Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| User Interface | Web, Local GUI |
| Camera Support | IP Camera Input | Up to 64 Channel IP camera input |
| Video Output | VGA Output | 2 Ă— VGA |
| VGA Resolution | 1920 Ă— 1080, 1280 Ă— 1024, 1280 Ă— 720 |
| HDMI Output | 2 Ă— HDMI |
| HDMI Resolution | 3840 Ă— 2160, 1920 Ă— 1080, 1280 Ă— 1024, 1280 Ă— 720 |
| HDMI Mode | Heterogeneous video source output for HDMI1 and HDMI2 |
| VGA & HDMI Sync | Simultaneous video source output for VGA1 and HDMI1 |
| VGA & HDMI Sync 2 | Simultaneous video source output for VGA2 and HDMI2 |
| Video Compression | Supported Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Decoding Capability (AI Disabled) | 32MP Decoding | 2 Channel 32MP @25fps |
| 24MP Decoding | 2 Channel 24MP @25fps |
| 16MP Decoding | 4 Channel 16MP @30fps |
| 12MP Decoding | 5 Channel 12MP @30fps |
| 8MP Decoding | 8 Channel 8MP @30fps |
| 6MP Decoding | 10 Channel 6MP @30fps |
| 5MP Decoding | 12 Channel 5MP @30fps |
| 4MP Decoding | 16 Channel 4MP @30fps |
| 1080p Decoding | 32 Channel 1080p @30fps |
| Decoding Capability (AI Enabled) | 32MP Decoding | 1 Channel 32MP @25fps |
| 24MP Decoding | 1 Channel 24MP @25fps |
| 16MP Decoding | 2 Channel 16MP @30fps |
| 12MP Decoding | 4 Channel 12MP @30fps |
| 8MP Decoding | 6 Channel 8MP @30fps |
| 6MP Decoding | 8 Channel 6MP @30fps |
| 5MP Decoding | 8 Channel 5MP @30fps |
| 4MP Decoding | 12 Channel 4MP @30fps |
| 1080p Decoding | 24 Channel 1080p @30fps |
| AI Features (By NVR) | Supported AI Functions | Face detection, Face recognition, Perimeter protection, SMD Plus |
| AI Features (By Camera) | Supported AI Functions | Face detection, Face recognition, Video metadata (Human, Motor vehicles, Non-motor vehicles), Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| IntelliCheck | AI by Camera + Recorder | Max. 32 Channel, 1 combined event per Channel/s |
| Supported Resolution | Resolution Support | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth (AI Disabled) | Incoming Bandwidth | 384 Mbps |
| Recording Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Network Bandwidth (AI Enabled) | Incoming Bandwidth | 200 Mbps |
| Recording Bandwidth | 200 Mbps |
| Outgoing Bandwidth | 200 Mbps |
| Display | Main Screen Split | 1/4/8/9/16/25/36/64 |
| Sub Screen Split | 1/4/8/9/16 |
| Perimeter Protection | AI by NVR | 4 Channels, 10 IVS rules for each Channel |
| AI by Camera | All Channels (16 targets/s) |
| Face Analytics | Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Detection Performance | AI by Recorder | 2 Channels (up to 12 face images/s each Channel) |
| AI by Camera | 16 Channels |
| Face Database | Database Capacity | Up to 20 face databases |
| Total Face Images | 20,000 images |
| Total Capacity | 2.5GB |
| Face Data Fields | Name, gender, birthday, address, credential type, credential No., countries & regions and state |
| Face Recognition Performance | Camera FD + NVR FR | 16 Channel FD (by camera) + FR (by NVR), image stream: 16 face images/s |
| NVR FD + NVR FR | 2 Channel FD (by NVR) + FR (by NVR), video stream: 12 face images/s |
| AI by Camera | 16 Channels |
| SMD Plus | AI by NVR | 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| AI by Camera | All Channels (32 targets/s) |
| Metadata Performance | AI by Camera | 8 Channels |
| Human Metadata | Human Attributes | Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella |
| Vehicle Metadata | Motor Vehicle Attributes | License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, Vehicle color, Number of persons, Helmet |
| ANPR | ANPR by Camera | All Channels (8 Targets/s) |
| License Plate Database Capacity | Create up to 20,000 plate numbers |
| Plate List Types | Blocklist and Allowlist |
| Alarm | Abnormality Alarm | Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal behaviour of fan, cyber security exception |
| Intelligent Alarm | Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| General Alarm | Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal alarm |
| Alarm Linkage | Record, snapshot (panoramic), local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email |
| Audio | Audio Input | 1 Channel RCA |
| Audio Output | 2 Channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Storage | Disk Group Support | Supported |
| HDD Bays | 8 SATA ports |
| Max HDD Capacity | Up to 20TB per HDD |
| HDD Capacity Note | Capacity varies depending on environment temperature |
| Playback | Multi-channel Playback | Up to 16 Channels |
| Playback Modes | Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection) |
| Recording | Record Modes | General, Motion detection, Intelligent, Alarm, POS |
| Backup | Backup Method | USB device and network |
| Alarm Interface | Alarm Input | 16 Channel |
| Alarm Output | 8 Channels |
| Alarm Output Power | 1-channel 12V 1A output |
| RAID | RAID Support | RAID 0/1/5/6/10 |
| Interface Ports | USB Ports | 4 Ports |
| USB Configuration | 2 front USB 2.0 ports, 2 rear USB 3.0 ports |
| eSATA | 1 eSATA Port |
| RS232 | 1 RS232 |
| RS485 | 2 RS485 |
| RS485 Function | 1 port for half-duplex serial communication, 1 port for full-duplex serial communication |
| Protocols | Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto Registration, iSCSI, ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK |
| Network | Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Ethernet | 2 Ă— 10/100/1000 Mbps Ethernet port, RJ-45 |
| Browser Support | Supported Browsers | Chrome, IE, Safari, Edge, Firefox |

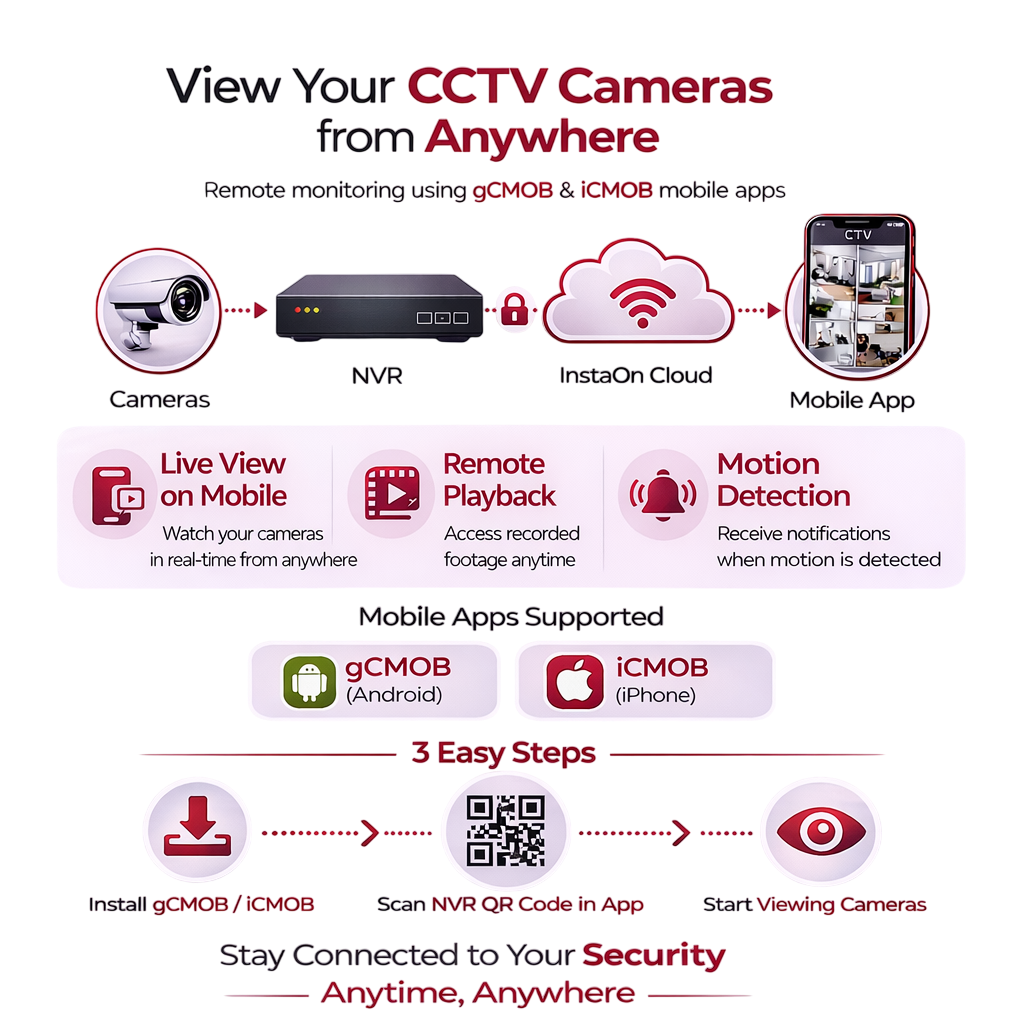

| Mobile Support | Mobile Software | iCMOB, gCMOB |
| CMS Software | CMS Software | KVMS Pro Lite |
| Cluster Support | N+M Cluster | Supported |
| Power | Power Supply | 100–240VAC, 50–60Hz |
| Power Consumption | Total output of NVR is ≤13W (without HDD) |
| Environmental | Operating Temperature | -10°C to +55°C (14°F to +131°F) |
| Operating Humidity | 10%–93% RH, non-condensing |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
| Physical | Dimensions | 439.9mm Ă— 457.9mm Ă— 89.0mm |
| Weight | 6.40kg |
| Company | Brand | CP PLUS |
| Company Name | CP PLUS (Aditya Infotech Ltd.) |
| Address | F-28 Okhla Industrial Area, Phase 1, New Delhi - 110020, India |
| Contact Email | [email protected] |
