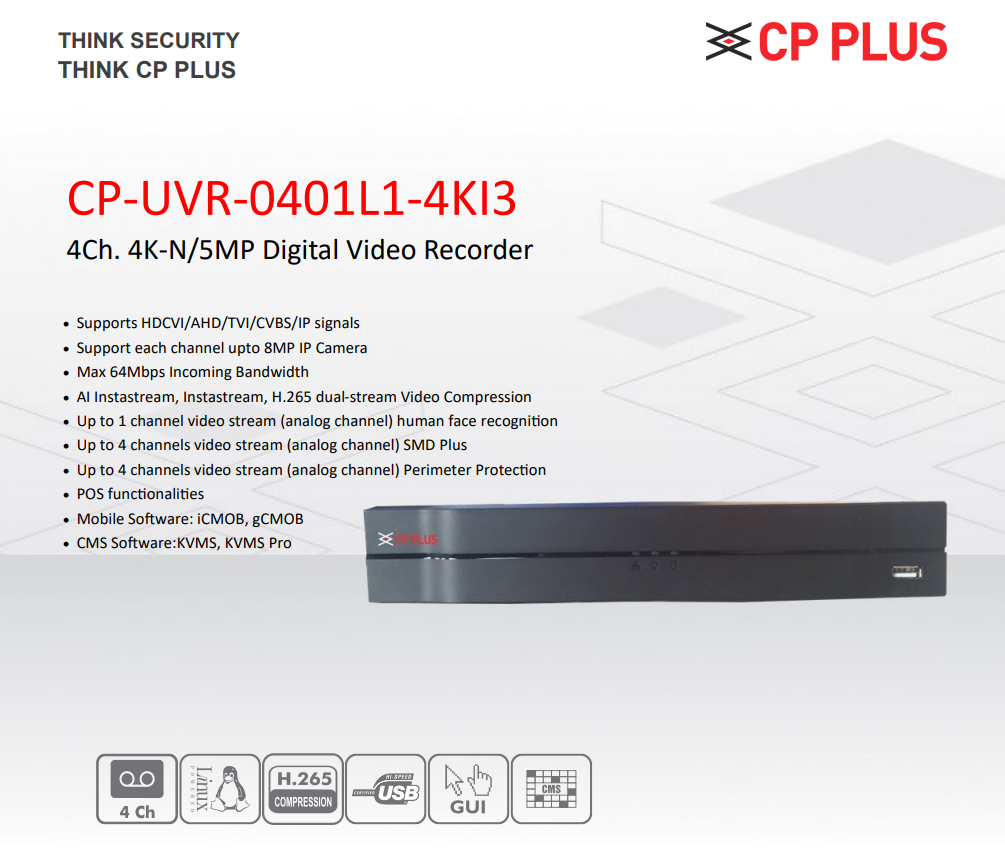

The CP PLUS CP-UVR-0401L1-4KI3 is a 4-channel 4K digital video recorder with AI face recognition, smart motion detection, and multi-format support, ensuring reliable, high-quality surveillance for professional security setups.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS CP-UVR-0401L1-4KI3 is a cutting-edge 4-channel 4K-N5MP Digital Video Recorder designed for high-performance IP video surveillance, integrating advanced deep learning AI technology. This sophisticated DVR supports multiple video formats including HDCVI, AHD, TVI, CVBS, and IP signals, offering seamless compatibility and flexibility with up to 8MP resolution per channel. Powered by an industrial-grade processor and embedded Linux OS, this device delivers premium recording quality with H.265 dual-stream video compression that optimises bandwidth and storage.
The CP-UVR-0401L1-4KI3 excels in smart surveillance tasks, featuring AI modules such as human face recognition, Smart Motion Detection (SMD Plus), and perimeter protection for faster event response and actionable video intelligence. Designed for professional security applications, it supports KVMS Pro software for comprehensive device management via mobile and desktop platforms. Reliable, feature-rich, and future-proof, this DVR is a perfect choice to strengthen your surveillance infrastructure.
Key Features:
Supports 4 channels with up to 8MP IP camera input per channel
AI-powered face recognition and perimeter event detection
Compatible with multiple video signal formats: HDCVI, AHD, TVI, CVBS, and IP
H.265 dual-stream video compression for efficient storage and bandwidth use
Smart Motion Detection (SMD Plus) reduces false alarms intelligently
Industrial-grade embedded Linux OS ensuring robust and stable operation
KVMS Pro software support for enhanced device management
HDMI and VGA video outputs up to 4K resolution
Max incoming and recording bandwidth of 64 Mbps
Supports up to 16TB HDD capacity for extensive recording needs
| Specification | Details |
|---|---|
| Model Name | CP PLUS CP-UVR-0401L1-4KI3 |
| Channels | 4 Analog Channels (convertible IP channels) |
| Max Resolution per Channel | Up to 8MP IP Camera |
| Supported Video Formats | HDCVI, AHD, TVI, CVBS, IP |
| Video Compression | H.265, H.264, H.264 Encode Strategy, AI Instastream |
| Incoming Bandwidth | 64 Mbps |
| Recording Bandwidth | 64 Mbps |
| Operating System | Embedded Linux |
| Face Recognition Channels | 1 Analog Channel |
| SMD Plus Channels | Up to 4 Analog Channels |
| Perimeter Protection | Yes (AI-based) |
| Video Outputs | 1 HDMI (up to 3840x2160), 1 VGA (up to 1920x1080) |
| User Interface | GUI, WEB Interface |
| Audio Input | 1 RCA Channel (shared with 4 BNC) |
| Audio Output | 1 RCA Channel Coaxial |
| Network Port | 1 RJ45 10/100 Mbps |
| USB Ports | 2 x USB 2.0 |
| RS485 | 1 Port |
| Power Supply | DC 12V, 2A |
| Power Consumption | 7W |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 0% to 90% RH |
| Dimensions (W x D x H) | 325.0 mm x 257.2 mm x 55.0 mm |
| Weight | 1.16 kg |
| HDD Support | 1 SATA up to 16TB HDD |
| Software | KVMS, KVMS Pro, iCMOB, gCMOB |
| Certifications | RoHS, FC, ONVIF Compliant |
