CP PLUS CP-UVR-0801E1-CV2 8-Channel DVR, H.265 Compression, universal video input, up to 6TB HDD, advanced security features, and remote access for powerful, flexible surveillance. Ideal for commercial and institutional safety.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The CP PLUS CP-UVR-0801E1-CV2 8-Channel 1080N Digital Video Recorder stands out as a high-performance surveillance solution, tailor-made for modern security needs across business, institutional, and urban environments. This CP PLUS model leverages advanced H.265 video compression and robust 4K processors, enabling crystal-clear detail with minimal storage usage, supporting up to 10 IP camera channels (each up to 6MP) and maintaining a maximum incoming bandwidth of 40Mbps for seamless multi-channel monitoring. The CP-UVR-0801E1-CV2 integrates an embedded Linux OS powered by an efficient processor, delivering reliable operations and remote management through intuitive GUI, mobile apps (ICMOB, gCMOB), and CMS software (KVMS Pro).
Compatibility with multiple analog and HD formats (CVI/TVI/AHD/CVBS/IP) ensures flexible installation and future-proof upgrades, with automatic signal adaptation minimising setup hassle.
The CP PLUS CP-UVR-0801E1-CV2 further enhances data protection protocols with its Secured Password Policy (alphanumeric enforcement) and boasts support for edge, central, and backup storage solutions on up to a 6TB SATA HDD. Instastream H.265/H.264 compression, multiple video outputs (HDMI, VGA), and USB interfaces streamline integration and operation within diverse security architectures, truly making this model a leading choice in the DVR market.
Model Name: CP PLUS CP-UVR-0801E1-CV2
8-ch 1080N DVR with universal video input (CVI/TVI/AHD/CVBS/IP)
Supports up to 10 IP channels, max each 6MP, max 40Mbps bandwidth
H.265/H.264 video compression for efficient storage and crystal-clear detail
User-friendly embedded Linux OS and intuitive GUI control
Seamless mobile & CMS remote access (ICMOB, gCMOB, KVMS Pro)
Automatic signal adaptation for multi-format ease

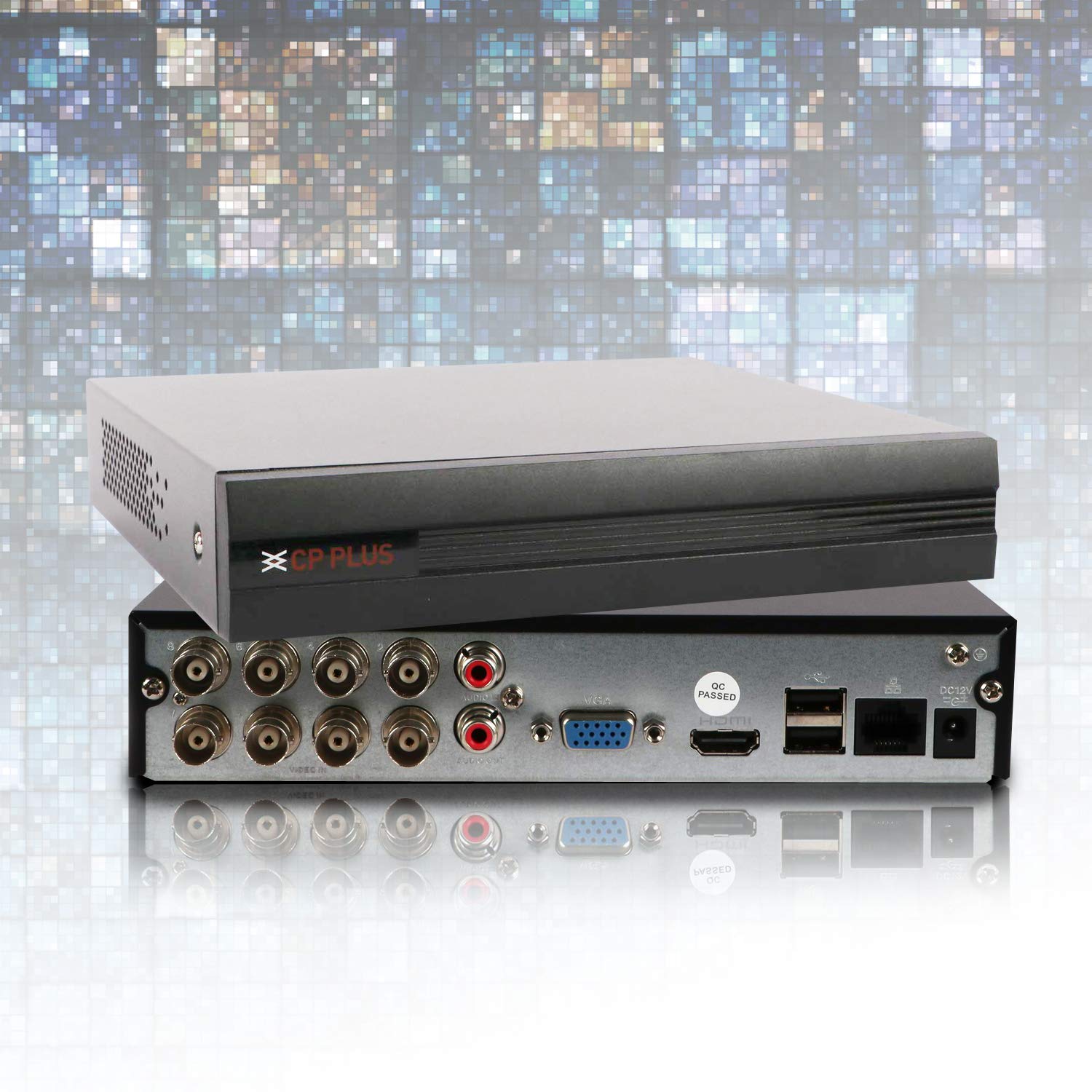

1 SATA HDD (up to 6TB), 2 USB 2.0 ports, 1 HDMI & 1 VGA outputs
Enhanced password security policies for robust protection
RoHS, FC, ONVIF compliant; reliable edge/central/backup storage modes
| Specification | Detail |
|---|---|
| Model Name | CP PLUS CP-UVR-0801E1-CV2 |
| Power Supply | DC 12V/1.5A |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Input | 8 channels, BNC |
| IP Camera Input | Max 10 channels, each up to 6MP |
| Compatible Signals | CVI, TVI, AHD, CVBS, IP – Auto Signal Adaptation |
| Incoming Bandwidth | Max 40Mbps |
| HDD Support | 1 SATA port, up to 6TB capacity |
| USB Ports | 2x USB 2.0 |
| Video Output | 1 HDMI, 1 VGA |
| Video Compression | Instastream H.265/H.264 |
| Audio Input/Output | 1 in/1 out, RCA |
| Audio Compression | G.711A, G.711U, PCM |
| Alarm I/O | None |
| GUI | CP PLUS User Interface |
| CMS Software | KVMS Pro, Mobile Apps (ICMOB, gCMOB) |
| Max User Access | 128 users |
| Record Interval | Default 160 min, Pre-Record 1–30 sec, Post-Record 10–300 sec |
| Ethernet | 1 RJ-45 port, 100Mbps (IPv4/IPv6, HTTP/HTTPS, etc.) |
| Power Consumption | 10W (without HDD) |
| Video Resolution | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Supported Phones | iPhone, iPad, Android Phone |
| Dimension (W x D x H) | 198mm x 202.9mm x 41.5mm |
| Weight | 0.55kg (without HDD) |
| Operating Temp | -10°C to 45°C (14°F to 113°F), 10–90% RH |
| Storage Temp | -20°C to 70°C (-4°F to 158°F), 0–90% RH |
| Certifications | RoHS, FC, ONVIF Compliant |
