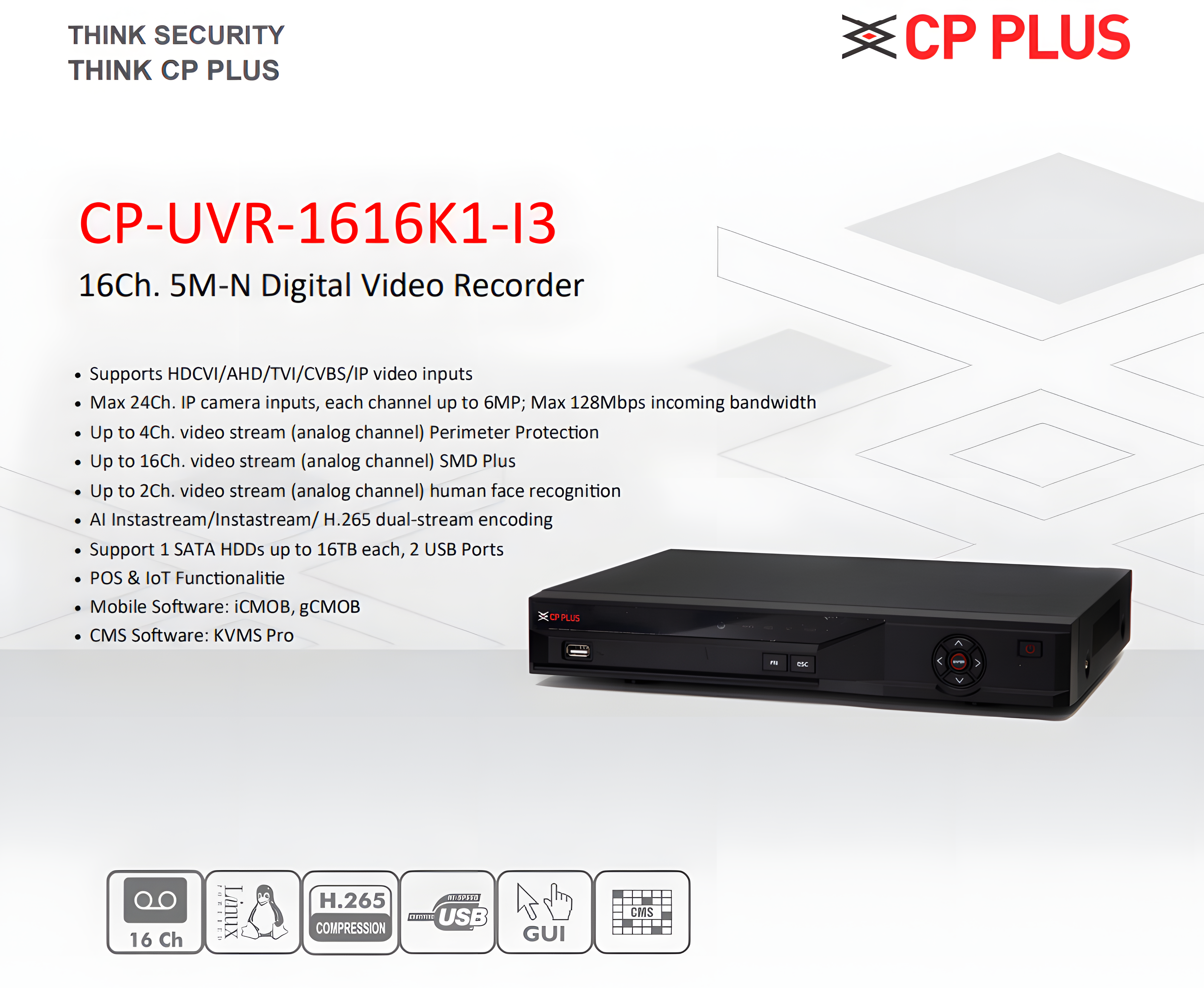

CP PLUS CP-UVR-1616K1-I3 | 16Ch. 5M-N Hybrid AI DVR (16 Analog + 8 IP) | SMD Plus, Face Recognition, Perimeter Protection | H.265 Compression

CP PLUS CP-UVR-1616K1-I3 Advanced 16-channel 5M-N DVR with AI features like SMD Plus, Face Recognition & Perimeter Protection. Supports up to 24 IP cameras, 16TB storage, and H.265 compression for efficient recording.

Pick up from the FGTECH Store

To pick up today

0-1 Days

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGIN6RS35F8H Categories: DVR, Surveillance and Security Brand: CP Plus

Description

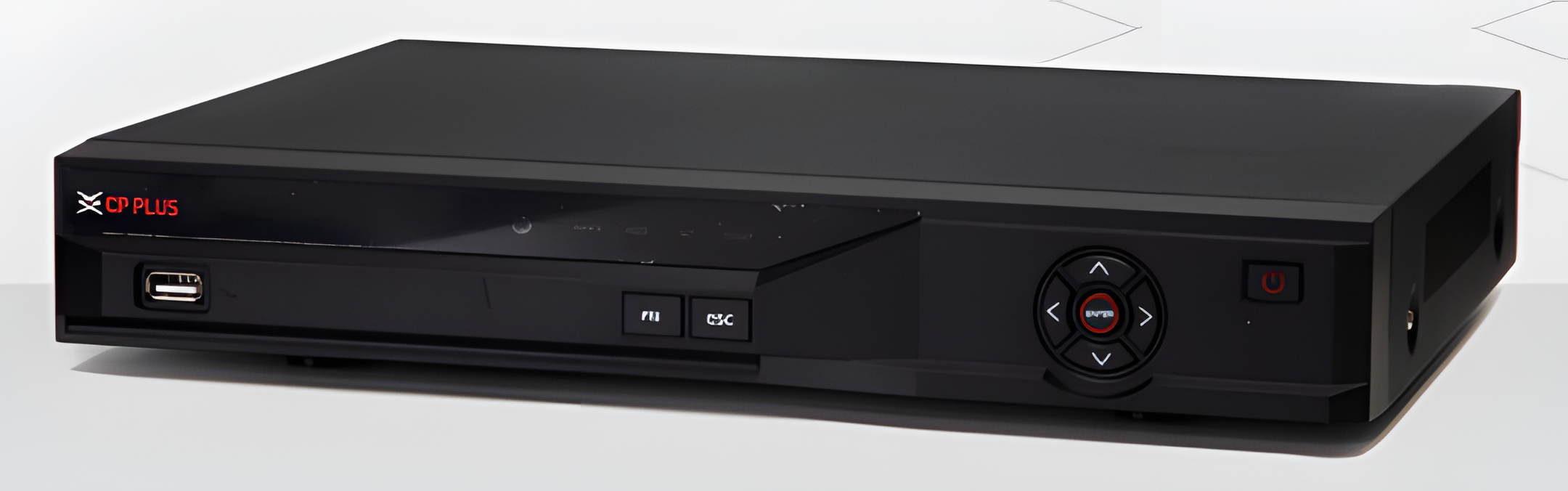

The CP PLUS CP-UVR-1616K1-I3 is a next-generation AI-powered 16-channel 5M-N Digital Video Recorder designed for professional-grade surveillance systems. It supports multi-format camera inputs (HDCVI, AHD, TVI, CVBS, and IP), ensuring compatibility with both analog and IP setups. CP PLUS CP-UVR-1616K1-I3 supports up to 24 IP cameras (each up to 6MP) and a 128Mbps incoming bandwidth, it offers seamless monitoring and recording performance.

CP PLUS CP-UVR-1616K1-I3 is equipped with Smart Motion Detection (SMD Plus), Face Recognition, and Perimeter Protection, this DVR minimizes false alarms while enhancing threat identification. The H.265 AI Instastream compression ensures high-quality video with optimized storage use.

Users can manage their systems easily through mobile apps (iCMOB, gCMOB) or CMS software (KVMS Pro). With support for 1 SATA HDD up to 16TB, 2 USB ports, and IoT functionalities, CP PLUS CP-UVR-1616K1-I3 provides a reliable, scalable, and intelligent security solution ideal for offices, commercial complexes, and large premises.

🎥 High-Performance Hybrid DVR

16Ch. 5M-N DVR (16 Analog + 8 IP)
Supports HDCVI, AHD, TVI, CVBS & IP cameras
Up to 24 total camera channels (each IP up to 6MP)
H.265 AI Instastream compression for superior efficiency

🤖 Smart AI Surveillance

Full-Channel SMD Plus for accurate human & vehicle detection
Face Recognition (2Ch) with up to 10,000 stored faces
Perimeter Protection (4Ch) to detect intrusions & tripwire events

💾 Storage & Connectivity

1 SATA HDD slot, supports up to 16TB
Dual USB (2.0 + 3.0) & Gigabit Ethernet port
Supports iCMOB / gCMOB / KVMS Pro for remote access

🏢 Reliable & Efficient Design

Embedded Linux OS with industrial-grade processor
Operating Temp: -10°C to +55°C
Compact metal body, low power consumption (<12W)

Product Details

Feature	Specification
Model	CP-UVR-1616K1-I3
Type	16Ch. 5M-N Digital Video Recorder
Processor	Embedded processor
Operating System	Embedded LINUX
Analog Camera Input	16 Channels (BNC: adaptive access by default; supports HDCVI, AHD, TVI, CVBS configurable access)
IP Camera Input	16 + 8 channels (up to 6MP per channel)
Video Input Formats	- CVI: 5MP, 4MP, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps - TVI: 5MP, 4MP, 3MP, 1080p@25/30fps, 720p@25/30fps - AHD: 5MP, 4MP, 3MP, 1080p@25/30fps, 720p@25/30fps
Two-Way Talk	Supported (shares audio input with first channel)
User Interface	GUI, Web
Video Output	1 HDMI, 1 VGA
VGA Output Resolution	1920×1080, 1280×1024, 1280×720
HDMI Output Resolution	3840×2160, 1920×1080, 1280×1024, 1280×720 (drops to 1920×1080 when Face/IVS&SMD is enabled)
Video Frame Rate	PAL: 1fps–25fps; NTSC: 1fps–30fps
Video Compression	H.265 / H.264+ / H.264
Encode Strategy	AI Instastream / Instastream
Encoding Capacity	All channel 5M-N (1–10fps); 4M-N/1080p (1–15fps); 1080N/720p/960H/D1/CIF (1–25/30fps)
Bit Rate	32 Kbps to 6144 Kbps per channel
Bit Rate Type	Video stream / Composite stream
Stream Capability	Dual stream
AI Features (Analog Channel)	- Perimeter Protection: Up to 4 channels - SMD Plus: Up to 16 channels - Face Recognition: Up to 2 channels
Perimeter Protection (AI by DVR)	2 channels (Advanced Mode: 2 ch, 10 IVS each; General Mode: 4 ch, 10 IVS each)
Face Detection (AI by DVR)	2 channels; one channel can detect up to 12 faces
Face Database Capacity	Up to 10 databases / 10,000 pictures
Face Attributes Detection	Gender, Age groups (6), Glasses, Expressions (8), Mask, Beard (up to 4 detection panels)
SMD Plus	Full-channel AI-based human and vehicle detection with false alarm reduction
Multi-Screen Preview (Local Display)	1/4/8/9/16 (25 split in IP extension mode)
Recording Modes	Manual, Schedule (General/Continuous), Motion Detection (MD), Alarm, Stop
Playback	1/4/9/16 channels (switches to 1/4/9 in AI mode)
Playback Functions	Instant, General, Event, Tag, Smart (Face & Motion detection)
Backup Mode	USB Device / Network
Audio Compression	G.711A, G.711U, PCM
Audio Sample Rate	8 KHz, 16-bit per channel
Audio Bit Rate	64 kbps per channel
Audio Input	16 RCA (external), 16 BNC (coaxial)
Audio Output	1 Channel (RCA)
Alarm Input / Output	16 In / 3 Out
General Alarms	Motion Detection, Video Loss, Tampering, Local Alarm
Intelligent Alarms	Face Detection, Face Recognition, Perimeter Protection
Anomaly Alarms	No disk, Disk error, Low space, Offline, IP conflict, MAC conflict
Alarm Linkage	Recording, Snapshot, IPC alarm output, Voice prompt, Buzzer, Preset, Email, Log
Hard Disk	1 SATA port (up to 16 TB)
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, ONVIF 16.12, CGI Conformant
Ethernet Interface	1 RJ-45 (10/100/1000 Mbps)
Other Interface Ports	2 USB (1×USB 2.0 + 1×USB 3.0), 1 RS-485
Mobile Apps	gCMOB, iCMOB (Android & iPhone)
CMS Software	KVMS Pro
Supported Browsers	Chrome, IE9+, Firefox
Power Supply	DC 12V / 2A
Power Consumption	<12W
Operating Temperature	-10°C to +55°C
Operating Humidity	10% – 90%
Dimensions (W×D×H)	325.0 × 256.6 × 55.0 mm
Weight	1.36 kg
POS & IoT Functionality	Supported
Max Incoming Bandwidth	128 Mbps
HDD Support	1 SATA HDD up to 16 TB
