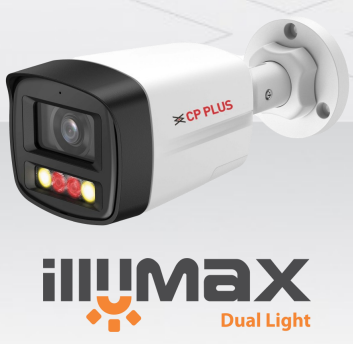

The CP-UNC-TA41L3B-D-LQ is a 4MP dual light bullet camera with PoE, fixed 3.6 mm lens, IR 30M, built-in microphone and speaker, and IP67 housing for outdoor surveillance.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra

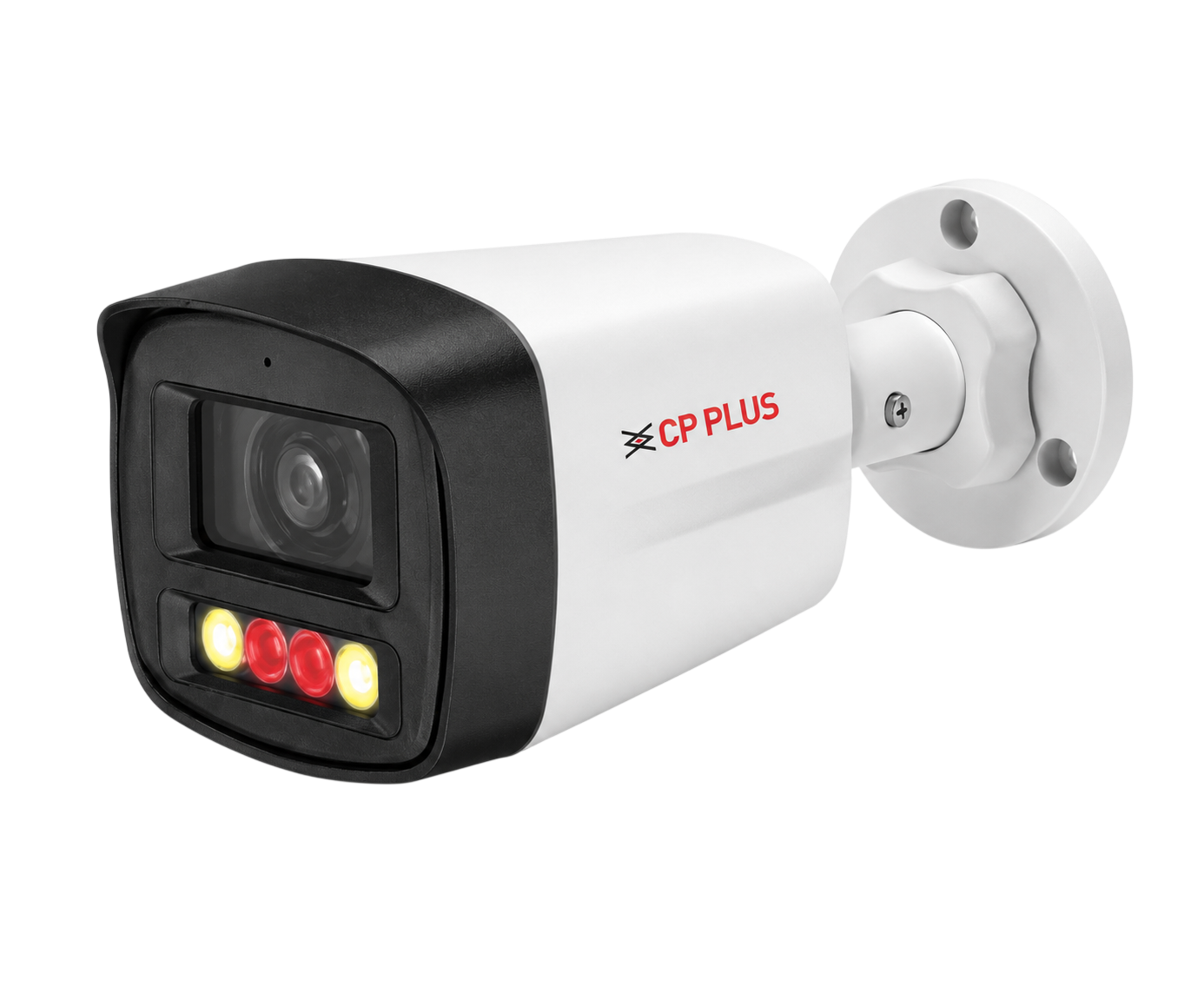

The CP-UNC-TA41L3B-D-LQ is a fixed-lens, IP-based 4-megapixel bullet camera designed for outdoor video surveillance applications requiring dual-light illumination and wired network connectivity. It captures video at up to 2688 × 1520 resolution and supports triple streaming using Instastream, H.265, H.264, and MJPEG compression formats.
This camera uses a 1/2.8-inch PS CMOS image sensor and a fixed 3.6 mm lens, delivering a horizontal field of view of 78°. It supports true day/night operation using an IR cut filter and provides infrared and warm light illumination up to 30 meters, enabling visibility in low-light and zero-light environments. Smart IR and smart illumination functions help manage exposure when illumination is active.
Audio capture and output are supported through a built-in microphone and built-in speaker, with audio compression formats including G.711, G.726, PCM, and AAC. Intelligent motion detection supports human and vehicle classification when used with compatible systems.
The camera connects via a wired RJ-45 Ethernet interface and supports Power over Ethernet (IEEE 802.3af) or 12 V DC power input. It is housed in a metal and plastic enclosure with an IP67 weatherproof rating, making it suitable for outdoor installation in harsh environmental conditions. The unit does not include a motorized zoom or pan-tilt mechanism and uses a fixed focal length lens only.
The camera supports ONVIF profiles S, G, and T for interoperability and can operate with an NVR or as a standalone IP camera, depending on system design.
Outdoor perimeter surveillance with wired Ethernet
Installations requiring dual-light night visibility
Use cases needing built-in audio monitoring
PoE-based CCTV deployments
Wi-Fi-only installations
Pan-tilt-zoom (PTZ) surveillance needs
Optical zoom or variable focal length requirements
Battery-powered setups
General
• Product Type: IP Bullet Camera
• Brand: CP PLUS
• Model: CP-UNC-TA41L3B-D-LQ
Image & Video
• Image Sensor: 1/2.8" 4MP PS CMOS Image Sensor
• Effective Pixels: 2688 (H) × 1520 (V)
• Maximum Resolution: 2688 × 1520
• Frame Rate: Up to 25/30 fps
• Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
• Video Streaming: Triple stream
• Video Standard: PAL / NTSC
• Wide Dynamic Range (WDR): 120 dB
• Day/Night Mode: Auto (ICR) / Color / B/W
• Noise Reduction: 3D NR
• Region of Interest (ROI): Supported (4 areas)
• Image Rotation: 0° / 180°
Lens & Field of View
• Lens Type: Fixed-focal
• Focal Length: 3.6 mm
• Maximum Aperture: F1.4
• Lens Mount: M12
• Close Focus Distance: 1.5 m
• Angle of View (Horizontal): 78°
• Angle of View (Vertical): 42°
• Angle of View (Diagonal): 92°
Illumination
• Infrared Illumination: Supported
• IR Range: Up to 30 m
• Warm Light Illumination: Supported
• Warm Light Range: Up to 30 m
• Smart IR: Supported
• Smart Illumination: Supported
Audio
• Built-in Microphone: Supported
• Built-in Speaker: Supported
• Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC
Intelligence & Events
• Motion Detection: Supported
• Intelligent Motion Detection (IMD): Supported (Human & Vehicle classification)
• Audio Detection: Supported
• Video Tampering Detection: Supported
• Alarm Events: Network disconnection, IP conflict, illegal access, security exception
Connectivity / Interfaces
• Ethernet: RJ-45 (10/100 Base-T)
• Wi-Fi: Not supported
• Bluetooth: Not supported
• ONVIF: Supported (Profile S, G, T)
• Network Protocols: IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, RTP, RTSP, RTCP, DNS, DHCP, NTP, SNMP v3, TLS 1.2, SSL, IGMP, ICMP, SMTP, FTP, SFTP, NFS, PPPoE, Unicast, Multicast
Storage • Local Storage (SD Card): Not supported
Power
• Power Supply: 12 V DC
• Power over Ethernet (PoE): Supported (IEEE 802.3af)
• Power Consumption (Basic): 1.9 W (DC), 2.4 W (PoE)
• Power Consumption (Maximum): 11.5 W (DC), 13.1 W (PoE)
Physical & Environmental

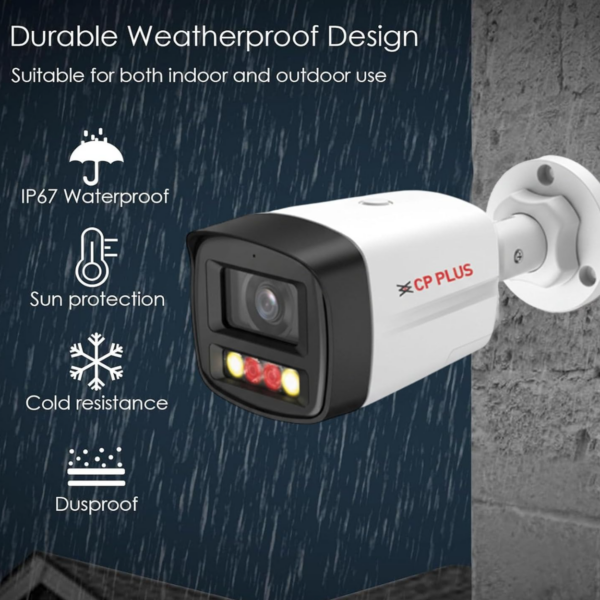

• Weatherproof Rating: IP67
• Operating Temperature: –40 °C to +60 °C
• Operating Humidity: ≤95% RH (non-condensing)
• Housing Material: Metal + Plastic
• Dimensions: 197.9 × 80.2 × 76.2 mm
• Weight: 350 g
System & Memory
• RAM: 128 MB
• ROM: 128 MB
• User/Host Support: 6 users
Cyber Security
• Encryption: AES 256-bit
• Security Features: Configuration encryption, trusted execution, trusted boot, trusted upgrade, account lockout, IP/MAC filtering, security logs, WSSE, syslog, video encryption
Certifications • Certifications: ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC approved compliance report
