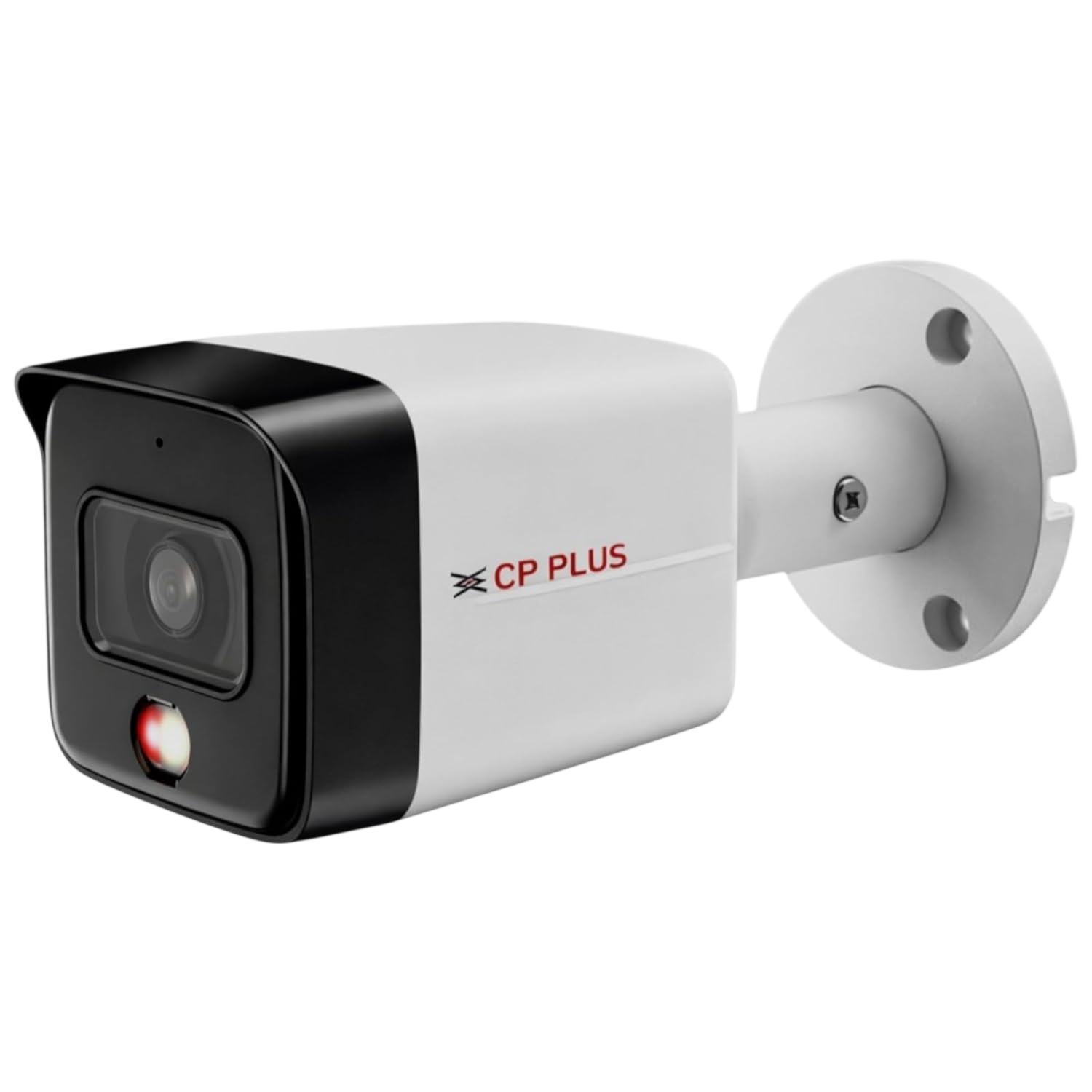

CP PLUS CP-UNC-TA81L3C-LQ 8MP IP Bullet Camera | Built-in Mic | IP67 | CCTV Security Surveillance System (3.6 mm)

CP-UNC-TA81L3C-LQ is an 8MP PoE-based IP bullet camera with a fixed lens, built-in microphone, infrared night vision up to 30 meters, and IP67-rated metal housing for outdoor surveillance use.

We are trying hard to provide best price, still not satisfied. Let us know


    Please prove you are human by selecting the flag.

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    SKU: FGIN71QELSLR Categories: , Brand:
    Description

    CP-UNC-TA81L3C-LQ is an 8-megapixel network bullet camera designed for wired IP surveillance systems requiring high-resolution video, infrared night monitoring, and PoE-based power delivery.

    CP-UNC-TA81L3C-LQ uses a 1/2.7-inch progressive scan CMOS sensor and supports up to 3840 × 2160 resolution at 15 fps, with lower resolutions available at higher frame rates. The camera features a fixed focal lens (3.6 mm standard, 2.8 mm optional) and Smart IR with an infrared range of up to 30 meters for low-light and night conditions.

    CP-UNC-TA81L3C-LQ camera supports Instastream, Smart H.264+, H.265, and H.264 video compression, dual-stream output, and ONVIF Profile S/T compatibility. A built-in microphone allows audio recording, but no speaker is provided. Connectivity is via wired Ethernet only, with power supplied through PoE (802.3af) or 12V DC.

    Its metal enclosure is rated IP67 for outdoor use and supports operation in extreme temperatures. The camera integrates with CP PLUS mobile applications and KVMS Pro CMS software and can be used with compatible NVRs or third-party VMS platforms.

    Best suited for

    • Wired IP surveillance installations

    • PoE-based security camera networks

    • Outdoor monitoring requiring IP67 protection

    • Installations needing built-in audio recording

    • Use with CP PLUS or ONVIF-compatible NVRs/VMS

    Not suitable for

    • Wi-Fi-only camera setups

    • Battery-powered surveillance systems

    • Two-way audio communication use cases

    • Installations requiring onboard SD card storage

    • Consumer plug-and-play cloud-only cameras

    About CP Plus

    Authorized CP Plus Products in India: Professional Security, Made Accessible

    CP Plus isn't just a CCTV brand; it's India's own benchmark for reliable, high-value security and surveillance technology. From compact cameras for homes to expansive systems for enterprises, CP Plus delivers robust performance, innovative features, and steadfast reliability that meet the diverse security demands of the Indian market.

    At FGTECH Store, we bring you the full spectrum of genuine CP Plus solutions. As an authorized partner, we provide more than just equipment—we offer the expertise to design a surveillance system that truly sees what matters.

    🚀 Why CP Plus is the Intelligent Choice for Indian Security
    In a landscape where security cannot be compromised, CP Plus stands out by offering a powerful blend of advanced technology and exceptional value:

    • Engineered for Indian Conditions: Built to withstand dust, humidity, and temperature variations, CP Plus cameras offer unwavering performance in diverse Indian environments, from coastal areas to industrial zones.

    • Crystal-Clear Intelligence: With advanced models featuring starlight sensors, AI-based human/vehicle detection, and high-resolution imaging, CP Plus provides not just footage, but actionable insights for proactive security.

    • Seamless Ecosystem: Cameras, recorders (DVRs/NVRs), and management software are designed to work together flawlessly, ensuring a hassle-free setup and a unified view of your security landscape.

    Solution-Driven Product Categories

    1. The "Essential Shield" Series - Your First Step to Security

    Perfect for homes, small shops, and offices starting their security journey. These cameras offer reliable 24/7 monitoring with clear imaging and essential night vision.

    • Core Products: CP-UNC-DA21L3C-Q (2MP Dome), CP-UNC-TA21L3C-Q (2MP Turret)

    • Best For: Cost-effective coverage for entry points, living rooms, or retail counters.

    • Key Feature: Built-in infrared or quad-LED lights for clear night vision.

    2. The "Detail Defender" Series - Capture Every Critical Detail

    Designed for scenarios where identifying details is crucial. Featuring 4MP, 5MP, and 8MP resolutions, these cameras ensure license plates, facial features, and product labels are captured with precision.

    • Core Products: CP-UNC-DA41L3C-D-Q (4MP Dome), CP-E38Q (5MP Bullet), CP-UNC-TA81L3C-LQ (8MP Turret)

    • Best For: Parking lots, cash counters, warehouse aisles, and perimeter walls.

    • Key Feature: Higher megapixel resolution and superior low-light performance.

    3. The "Professional Sentinel" Series - Advanced Intelligence & Coverage

    For demanding commercial and industrial applications. This series includes AI-powered cameras with human/vehicle analytics, motorized varifocal lenses for perfect zoom, and ultra-long-range laser illuminators.

    • Core Products: CP-UNP-D2521L10-DAQ (2MP AI Dome), CP-UNP-F4521L30-DPQ (5MP AI PTZ)

    • Best For: Large premises, traffic monitoring, smart cities, and sites requiring forensic search capabilities.

    • Key Feature: Built-in AI analytics, powerful optical zoom, and automated tracking.

    Your CP Plus Product Grid



    Product SeriesExample ModelForm FactorKey ResolutionStandout FeatureIdeal For
    EssentialCP-UNC-DA21L3C-QDome2MPCost-Effective Quad LightHomes, Small Retail
    EssentialCP-UNC-TA21L3C-LQTurret2MPLaser + LED Hybrid LightBetter Low-Light Coverage
    Detail DefenderCP-UNC-DA41L3C-D-QDome4MP4MP with Deep LearningSharper Image for Wider Areas
    Detail DefenderCP-E38QBullet5MPLong-Range VisibilityParking, Building Facades
    Professional SentinelCP-UNP-D2521L10-DAQAI Dome2MPAI Human/Vehicle DetectionSmart Retail, Entry Gates
    Professional SentinelCP-UNP-F4521L30-DPQAI PTZ5MP30x Optical Zoom & Auto-TrackLarge Perimeters, Critical Assets

    Explore Our CP Plus Collection
    Browse and purchase genuine CP Plus security solutions directly from our curated collection:
    Explore CP Plus Products at FGTECH Store →

    The FGTECH Advantage for CP Plus

    • Authorized Partnership: We supply 100% genuine, brand-warranted CP Plus products with valid warranties, ensuring peace of mind and reliable support.

    • Security-First Consulting: Our experts help you choose the right camera types, lens sizes, and recorder capacity to build a system that matches your property layout and monitoring goals.

    • Professional Support Services: From planning to post-installation, we provide guidance. For complex setups, we offer professional configuration and integration services.

    • Fast Pan-India Logistics: Quick dispatch from our warehouse ensures your security upgrade proceeds on schedule.


    CP Plus Q&A

    Q: How does the warranty and support work for CP Plus products?
    A: Every CP Plus product comes with a standard manufacturer's warranty. As an authorized partner, we facilitate a smooth support process. For technical guidance during setup or in case of any hardware issues, you can contact our team directly for assistance.

    Q: Why should I choose CP Plus when there are other international premium brands available?
    A: CP Plus represents the optimal balance of performance, durability, and value specifically tuned for the Indian market. While global brands command a premium, CP Plus invests its expertise directly into robust hardware and features that matter most in real-world conditions—like superior dust/weatherproofing and excellent performance in challenging Indian lighting. You get professional-grade reliability and clear imaging without the imported brand premium, making it the most sensible and effective choice for securing homes, businesses, and institutions across India.

    Q: Do you provide installation and configuration services for CCTV systems?
    A: We provide comprehensive pre-sales consultation and system design to ensure you purchase the right components. While basic installation is often handled by local technicians, we offer professional remote configuration services for NVRs/DVRs, including network setup, recording schedules, and mobile alert configuration

    Product Details

    General • Product Type: IP Bullet Camera
    • Brand: CP PLUS
    • Model: CP-UNC-TA81L3C

    Image & Video • Image Sensor: 1/2.7-inch 8MP Progressive Scan CMOS
    • Effective Pixels: 3840 (H) × 2160 (V)
    • Maximum Resolution: 3840 × 2160
    • Maximum Frame Rate: 15 fps at 3840 × 2160
    • Supported Frame Rates: 25/30 fps at 2688 × 1520
    • Shutter Speed: 1/3s to 1/100000s
    • Minimum Illumination (Color): 0.04 Lux @ F2.0
    • Minimum Illumination (B/W): 0.004 Lux @ F2.0
    • Minimum Illumination (IR): 0 Lux (IR On)
    • S/N Ratio: >56 dB
    • Image Rotation: 0° / 90° / 180° / 270°

    Lens • Lens Type: Fixed-focal
    • Focal Length: 3.6 mm
    • Optional Lens: 2.8 mm
    • Maximum Aperture: F2.0
    • Mount Type: M12
    • Close Focus Distance (3.6 mm): 1.9 m
    • Close Focus Distance (2.8 mm): 1.0 m
    • Angle of View (3.6 mm): 87° (H), 47° (V), 104° (D)
    • Angle of View (2.8 mm): 105° (H), 56° (V), 125° (D)

    Infrared / Night Vision • IR Range: 30 m
    • IR LEDs: 1
    • Smart IR: Supported

    Video Compression • Compression Formats: Instastream, H.265, Smart H.264+, H.264, H.264B
    • MJPEG: Supported on sub stream only

    Streaming • Main Stream Resolutions: 3840 × 2160, 2688 × 1520
    • Sub Stream Resolutions: 704 × 576, 704 × 480
    • Dual Stream: Supported

    Image Enhancement • Wide Dynamic Range: DWDR
    • Back Light Compensation: BLC
    • Highlight Compensation: HLC
    • Noise Reduction: 3D-DNR
    • White Balance Modes: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
    • Gain Control: Auto / Manual

    Audio • Built-in Microphone: Supported
    • Speaker: Not supported
    • Audio Compression: G.711A, G.711Mu, G.726, PCM

    Analytics & Events • Motion Detection: Supported
    • Motion Detection Areas: 4 (Rectangular)
    • Privacy Masking: Supported
    • Privacy Mask Areas: 4
    • ROI: Supported
    • ROI Areas: 4
    • Audio Detection: Supported

    Network & Protocols • Ethernet Interface: RJ-45 (10/100Base-T)
    • Wi-Fi: Not supported
    • Supported Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
    • ONVIF Support: Profile S, Profile T
    • SDK / API: Supported

    Software & Compatibility • Mobile Applications: iCMOB, gCMOB
    • CMS Software: KVMS Pro
    • Browser Support: Internet Explorer, Chrome, Firefox
    • Smartphone Support: iPhone, iPad, Android
    • Edge Storage: FTP

    Cyber Security • Video Encryption: Supported
    • Configuration Encryption: Supported
    • Authentication: Digest, WSSE
    • Security Features: Account Lockout, Security Logs
    • Certificate Support: X.509
    • Secure Functions: HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade

    Power • Power Supply: 12V DC
    • PoE: Supported (802.3af)
    • Power Consumption (12V DC): 2.4 W
    • Power Consumption (PoE): 2.9 W
    • Battery: Not supported

    Physical & Environmental • Casing Material: Metal
    • Weather Protection: IP67
    • Operating Temperature: −40°C to +60°C
    • Operating Humidity: <95% RH
    • Dimensions: 162.1 mm × Φ70.1 mm
    • Weight: 0.32 kg

    Certifications • Certification: STQC Certified
