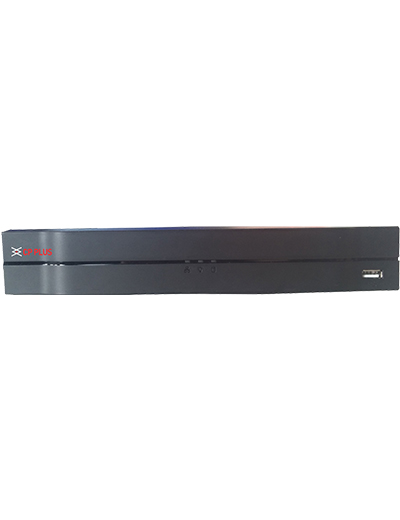

CP Plus UNVR CP-UNR-4K2041-4PG is a 4-channel PoE network video recorder supporting up to 8MP resolution, H.265/H.264 dual codec, and 80Mbps bandwidth. It features HDMI/VGA output, 4 PoE ports, 1 SATA HDD up to 8TB, and 2 USB ports. With built-in 4G SIM slot, Wi-Fi, ONVIF 2.4 compliance, and mobile apps (iCMOB, gCMOB) plus KVMS Pro CMS, it ensures seamless, reliable, and remote video surveillance for homes, offices, and businesses.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
CP Plus UNVR CP-UNR-4K2041-4PG is a high-performance 4-channel PoE network video recorder designed to deliver professional-grade surveillance for homes, offices, and businesses. Powered by a dual-core embedded processor and Embedded Linux OS, it ensures reliable performance and efficient video management.
This UNVR supports up to 4 IP camera inputs with built-in PoE ports (IEEE802.3at), providing hassle-free plug-and-play installation by powering cameras directly from the NVR. With H.265/H.264 dual codec decoding, it delivers superior video quality while optimizing storage space. The device supports up to 8MP resolution preview and playback, ensuring ultra-clear video monitoring, while the 80Mbps incoming bandwidth allows smooth streaming and recording across multiple channels.
For storage, the CP-UNR-4K2041-4PG supports 1 SATA HDD up to 8TB and features 2 USB 2.0 ports for easy data backup. It offers simultaneous HDMI and VGA video output for flexible display options. Advanced features such as 396 motion detection zones, video loss detection, and anomaly alarms provide comprehensive monitoring. Trigger events including recording, PTZ control, tours, snapshots, screen tips, and video push notifications ensure proactive security.
The recorder is designed for versatile connectivity with support for 4G networks (SIM slot), Wi-Fi, and ONVIF v2.4 compliance, ensuring compatibility with a wide range of IP cameras. Remote access and monitoring are simplified via iCMOB and gCMOB mobile apps, while KVMS Pro CMS software offers centralized management for larger setups.
Compact, efficient, and scalable, the CP Plus UNVR CP-UNR-4K2041-4PG is the ideal solution for users seeking dependable, high-resolution, and future-ready video surveillance.
| Feature | Specification |
|---|---|
| Processor | Dual-core embedded processor |
| Operating System | Embedded Linux |
| IP Camera Input | 4 channels |
| Two-way Talk | 1 channel input, 1 channel output (RCA) |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Video Recording | Max 80 Mbps, supports 6MP/5MP/4MP/3MP/1080P/720P/D1 |
| Video Display Split | 1/4 |
| Channel | 4 |
| Bandwidth (Incoming) | 80 Mbps |
| Motion Detection | MD Zones: 396 (22×18) |
| Video Loss | Supported |
| Smartphone Support | iPhone, iPad, Android |
| Hard Disk | 1 × SATA III port, up to 8TB |
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, Screen Tips |
| Recording Modes | Manual, Schedule (Continuous/MD/Stop) |
| Search Modes | Time/Date, Motion Detection, Exact Search (to second) |
| Backup Mode | USB device / Network |
| Playback | Play, Pause, Stop, Rewind, Fast, Slow, Next/Prev file, Next/Prev camera, Full screen, Repeat, Shuffle, Backup, Digital zoom |
| Max User Accounts | 128 users |
| Record Interval | 1–120 min (default 60 min); Pre-record: 1–30 sec; Post-record: 10–300 sec |
| Ethernet | 1 × RJ-45 (10/100 Mbps), 4 × PoE ports (IEEE 802.3at) |
| Interface Ports | 1 HDMI, 1 VGA, 2 × USB 2.0 |
| Protocols | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF v2.4, CGI |
| Power Supply | DC 48V / 1.25A |
| Power Consumption | NVR: <5.3W (without HDD); PoE: Max 25.5W per port, 50W total |
| Working Temperature | -10°C to +55°C, 10–90% RH, 86–106 kPa |
| Dimensions | 260 × 224.9 × 47.6 mm |
| Weight | 0.8 kg (without HDD) |
