TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA
TP-Link VIGI NVR2016H 16-Channel NVR system comes with 4K HDMI Video Output & 16MP Decoding Capacity,16-Channel Simultaneous Playback,H.265+,ONVIF Ensures Compatibility,Plug & Play, 24/7 Continuous Recording, Two-Way Audio, Remote Monitoring
₹26,999.00 Original price was: ₹26,999.00.₹6,899.00Current price is: ₹6,899.00. Inc. tax (₹5,846.61Exc. Tax)
Description
TP-Link VIGI NVR2016H 16 Channel Network Video Recorder offers 4K HDMI output with 16MP decoding, delivering sharp images up to 8MP and supporting 8-channel live view and playback at 2MP. It enables simultaneous playback from 16 channels, with speed adjustments and event search. H.265+ compression optimizes storage and network load, while ONVIF compatibility allows integration with VIGI and other brands. Plug & Play setup instantly adds new VIGI IP cameras. It supports 24/7 recording, storing up to 20 TB for extensive data security. With two-way audio, users can remotely communicate via the VIGI app, ensuring flexible monitoring and protection.
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.

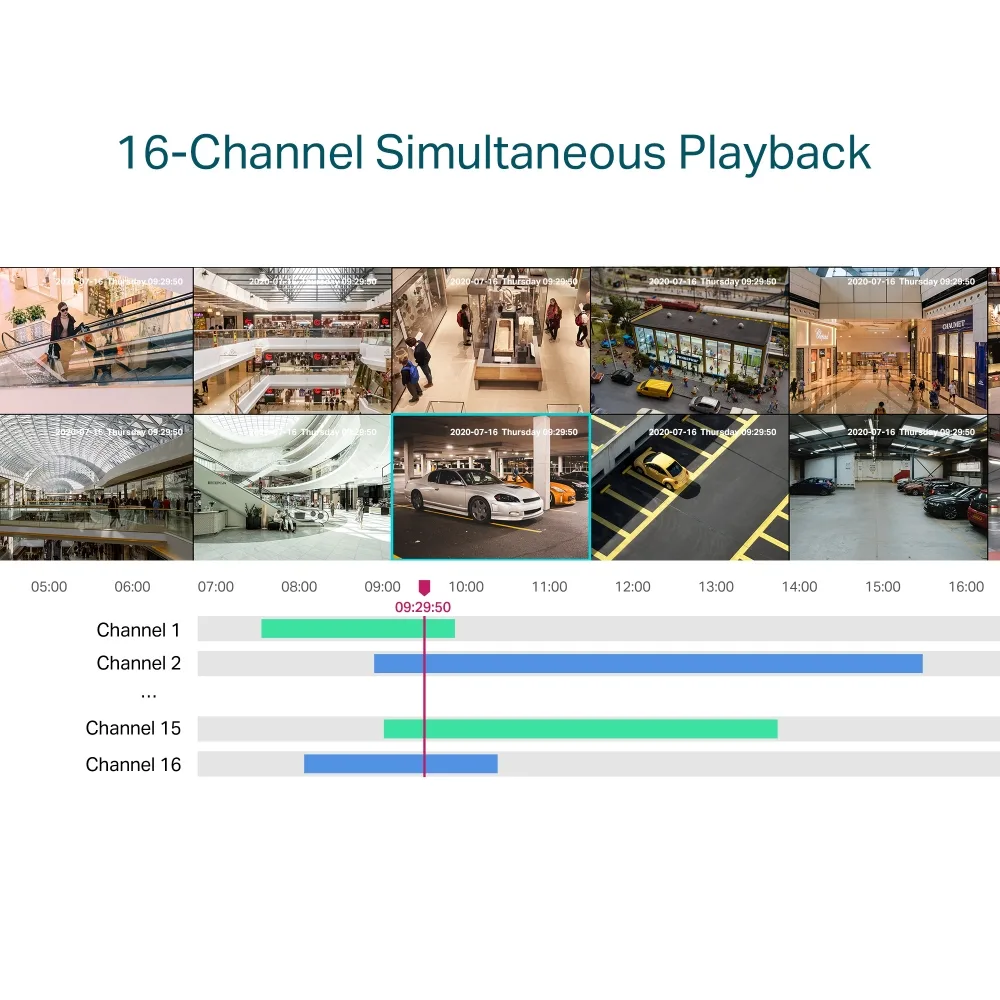

- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Tp-link VIGI NVR2016H allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

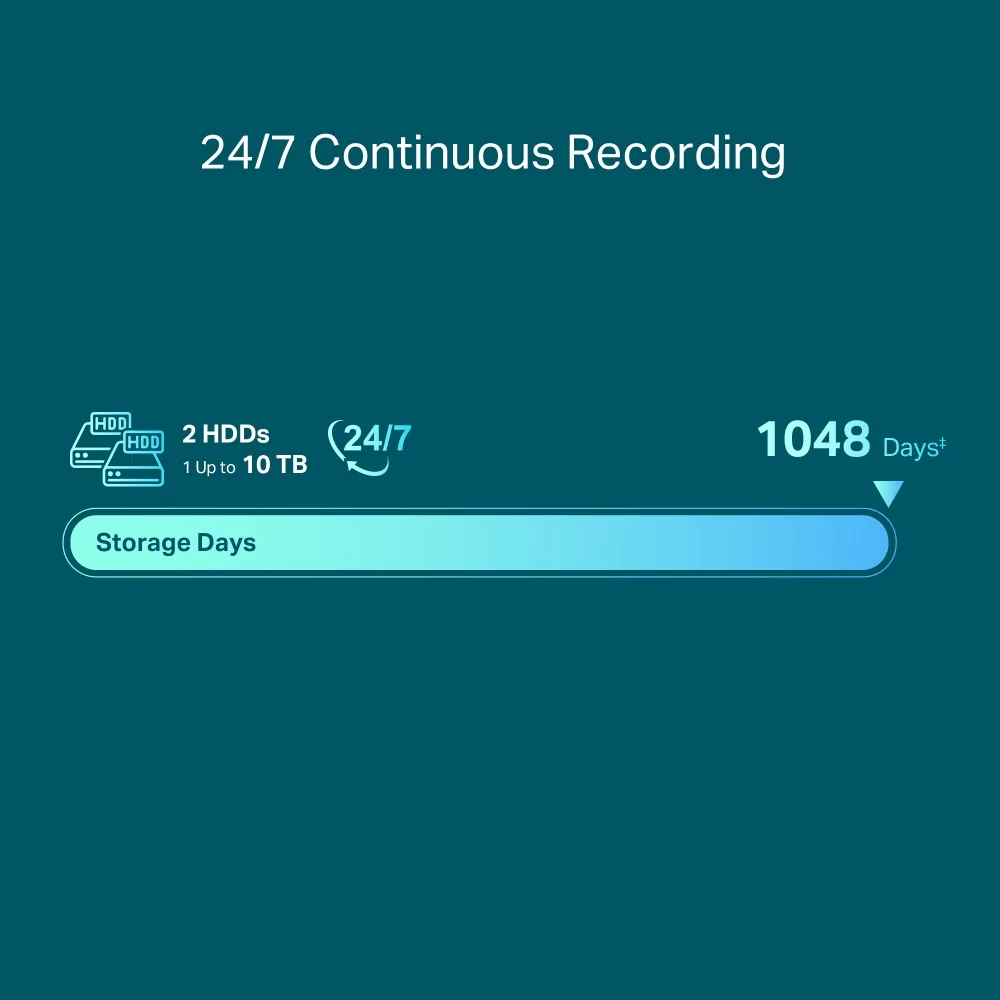

- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
TP-Link VIGI NVR2016H allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Weight | 3.16 kg |
---|---|
Dimensions | 51 × 42 × 11 cm |
Brand | |
CHANNEL |
16 |
SATA |
2 |
Badges |
24Hr Dispatch |
VIDEO AND AUDIO | |
---|---|
IP Video Input | 16-Channel |
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4/6/8/9/16 |
DECODING | |
---|---|
Audio Compression | G.711A/G.711U/G.726 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 16-Channel |
Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP30fps: 4-ch @ 3MP, 2-ch @ 5MP |
RECORD MANAGEMENT | |
---|---|
Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
Backup Mode | Regular Backup, Video Clip Backup |
Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
NETWORK | |
---|---|
Protocol | UPnP (Plug and Play), NTP (Network Timing) |
Mobile Phone Access | Android, iOS |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |

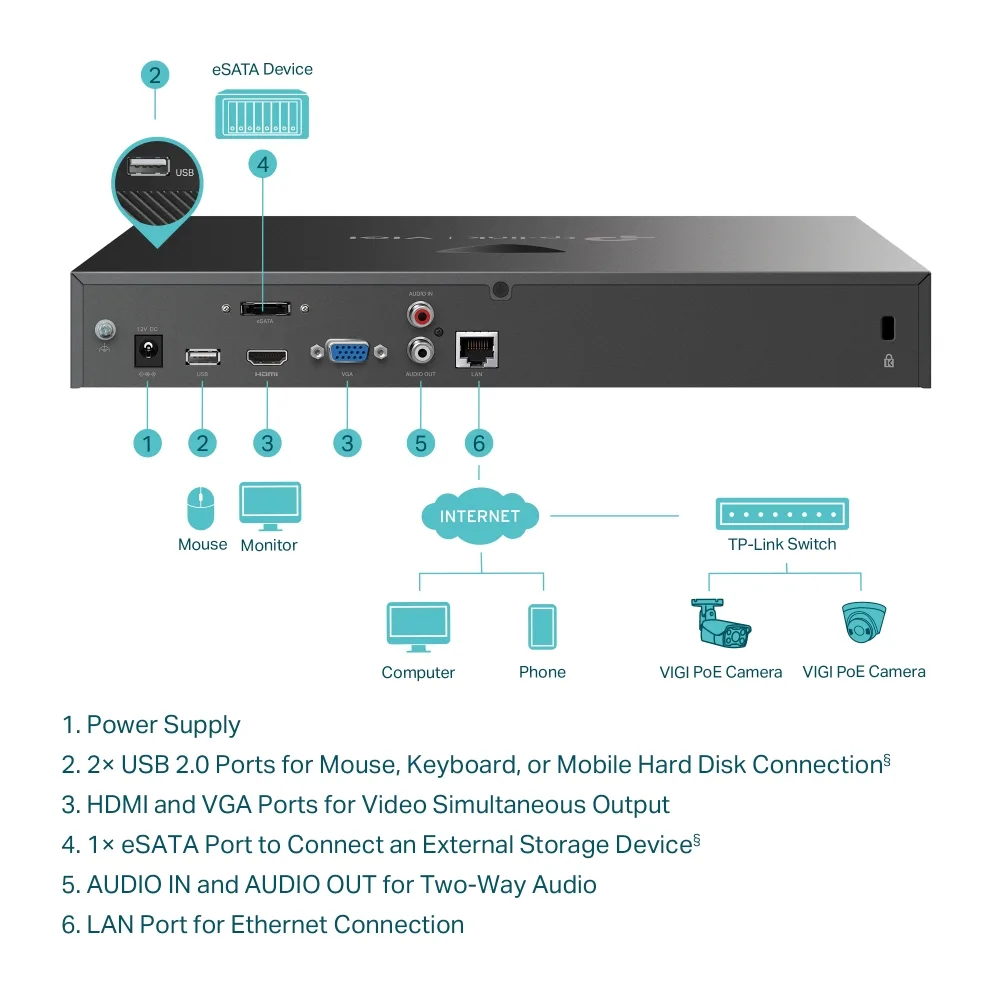

EXTERNAL INTERFACE | |
---|---|
Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | 1 |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
---|---|
SATA | 2 SATA Interfaces |
Capacity | Up to 10 TB Capacity for Each HDD |
ALARM | |
---|---|
General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
GENERAL | |
---|---|
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 330 × 285 × 45 mm |
Net Weight | 1.9 Kg |
Gross Weight | 3.2 Kg |
Power Supply | 12V DC/3.3A |
Power Consumption | 4.78 W (Without Disk) 24.16 W (With Disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
Origin Country | China |
