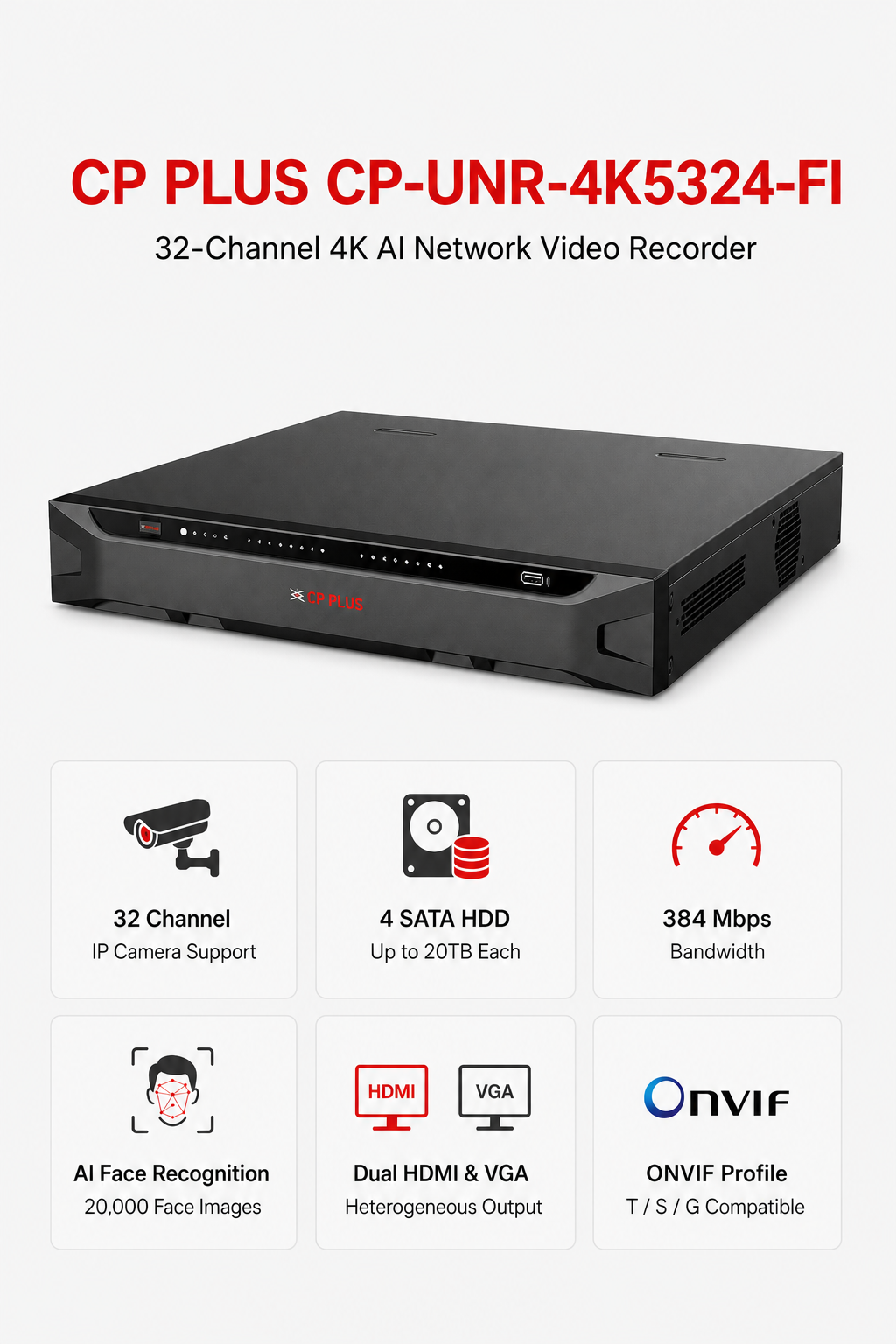

| General | Model | CP PLUS CP-UNR-4K5324-FI |
| Product Type | 32Ch. 4K AI Network Video Recorder |
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Multi-brand Camera Support | Supports multi-brand network cameras |
| Product Disclaimer | Product casing and specifications are subject to change without prior notice |
| Camera Support | IP Camera Input | Up to 32 channel IP camera input |
| Video Output | VGA Output | 2 VGA outputs |
| VGA Resolution | 1920 Ă— 1080, 1280 Ă— 1024, 1280 Ă— 720 |
| HDMI Output | 2 HDMI outputs |
| HDMI Resolution | 3840 Ă— 2160, 1920 Ă— 1080, 1280 Ă— 1024, 1280 Ă— 720 |
| HDMI Output Mode | Heterogeneous video source output for HDMI1 and HDMI2 |
| VGA1 & HDMI1 | Simultaneous video source output |
| VGA2 & HDMI2 | Simultaneous video source output |
| Video Compression | Supported Codecs | Instastream, H.265, H.264+, H.264, MJPEG |
| Instastream Benefit | Saves up to 70% more bandwidth than H.265 |
| Instastream Function | Intelligent region perception for motion detection and optimized storage efficiency |
| Decoding Capability | AI Disabled Decoding | 2Ch 32MP@25fps, 2Ch 24MP@25fps, 4Ch 16MP@30fps, 5Ch 12MP@30fps, 8Ch 8MP@30fps, 10Ch 6MP@30fps, 12Ch 5MP@30fps, 16Ch 4MP@30fps, 32Ch 1080p@30fps |
| AI Enabled Decoding | 1Ch 32MP@25fps, 1Ch 24MP@25fps, 2Ch 16MP@30fps, 4Ch 12MP@30fps, 6Ch 8MP@30fps, 8Ch 6MP@30fps, 8Ch 5MP@30fps, 12Ch 4MP@30fps, 24Ch 1080p@30fps |
| AI Features | AI by NVR | Face detection, Face recognition, Perimeter protection, SMD Plus |
| AI by Camera | Face detection, Face recognition, Video metadata, Perimeter protection, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| Metadata Types | Human metadata, Motor vehicle metadata, Non-motor vehicle metadata |
| Human Metadata | Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender, Umbrella |
| Motor Vehicle Metadata | License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle interior, Vehicle registration location |
| Non-motor Vehicle Metadata | Vehicle model, Vehicle color, Number of persons, Helmet |
| IntelliCheck AI by Camera + Recorder | Max. 32 channels, 1 combined event per channel/s |
| Smart Motion Detection | AI-based human and vehicle filtering to reduce false alarms caused by leaves, rain and lighting changes |
| Resolution Support | Supported Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth | AI Disabled Bandwidth | 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing |
| AI Enabled Bandwidth | 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing |
| Display | Video Display Split | Main screen: 1/4/8/9/16/25/36, Sub screen: 1/4/8/9/16 |
| Perimeter Protection | AI by NVR Performance | 4 channels |
| IVS Rules | 10 IVS rules for each channel |
| AI by Camera Performance | All channels (16 targets/s) |
| Face Analytics | Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Face Detection by Recorder | 2 channels (up to 12 face images/s each channel) |
| Face Detection by Camera | 16 channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, total capacity 2.5G |
| Face Database Information | Name, gender, birthday, address, credential type, credential No., countries & regions and state |
| Face Recognition by NVR | 16Ch FD(by camera) + FR(by NVR), image stream: 16 face images/s |
| Face Recognition by NVR Video Stream | 2Ch FD(by NVR) + FR(by NVR), video stream: 12 face images/s |
| Face Recognition by Camera | 16 channels |
| SMD Plus | SMD Plus by NVR | 8 channels; secondary filtering for human and motor vehicle |
| SMD False Alarm Reduction | Reduces false alarms caused by leaves, rain and lighting condition changes |
| SMD Plus by Camera | All channels (32 targets/s) |
| Metadata Analytics | Metadata Performance by Camera | 8 channels |
| ANPR | ANPR by Camera | All channels (8 targets/s) |
| License Plate Database Capacity | Create up to 20,000 plate numbers |
| License Plate List Types | Blocklist and allowlist |
| Alarm Features | Abnormality Alarm | Camera offline, Storage error, Disk full, IP conflict, MAC conflict, Login lock, Abnormal behaviour of fan, Cyber security exception |
| Intelligent Alarm | Face detection, Perimeter protection, Face recognition, Video metadata, SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map |
| General Alarm | Motion detection, Local alarm, Alarm box, Camera external alarm, Network alarm, Scene changing, PIR alarm, Thermal alarm |
| Alarm Linkage | Record, Snapshot (panoramic), Local alarm output, IPC external alarm output, Access controller, Audio, Buzzer, Log, Preset, Email |
| Audio | Audio Input | 1 channel RCA |
| Audio Output | 2 channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Storage | Disk Group Support | Supported |
| Hard Disk Bays | 4 SATA ports |
| Max HDD Capacity | Up to 20TB each HDD |
| HDD Capacity Note | Capacity limit varies depending on the environment temperature |
| eSATA Port | 1 eSATA port |
| Playback & Recording | Multi-channel Playback | Up to 16 channels |
| Record Mode | General, Motion detection, Intelligent, Alarm, POS |
| POS Recording Support | Supported |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Smart Playback Support | Face detection and motion detection |
| Alarm Interface | Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| Alarm Output Power | 1 channel 12V 1A output |
| Ports & Interfaces | USB Ports | 3 ports |
| USB Layout | 1 front USB 2.0 port + 2 rear USB 3.0 ports |
| Front USB | 1 Ă— USB 2.0 port |
| Rear USB | 2 Ă— USB 3.0 ports |
| RS232 | 1 port |
| RS485 | 1 port (half-duplex serial communication) |
| Protocols | Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, UDP, NTP, DHCP, DNS, SMTP, UPnP, DDNS, Alarm Server, Multicast, P2P, Auto Registration, iSCSI, ONVIF 23.12 (Profile T, Profile S, Profile G), CGI, SDK |
| Network Features | Network Mode | Multi-address mode |
| Load Balance | Supported |
| Fault Tolerance | Supported |
| Network Port Binding Modes | Supported |
| Other Port Binding Modes | Supported |
| Mobile & Browser Support | Smartphone Support | iPhone, iPad, Android Phone |
| Supported Browsers | Chrome, IE, Safari, Edge, Firefox |

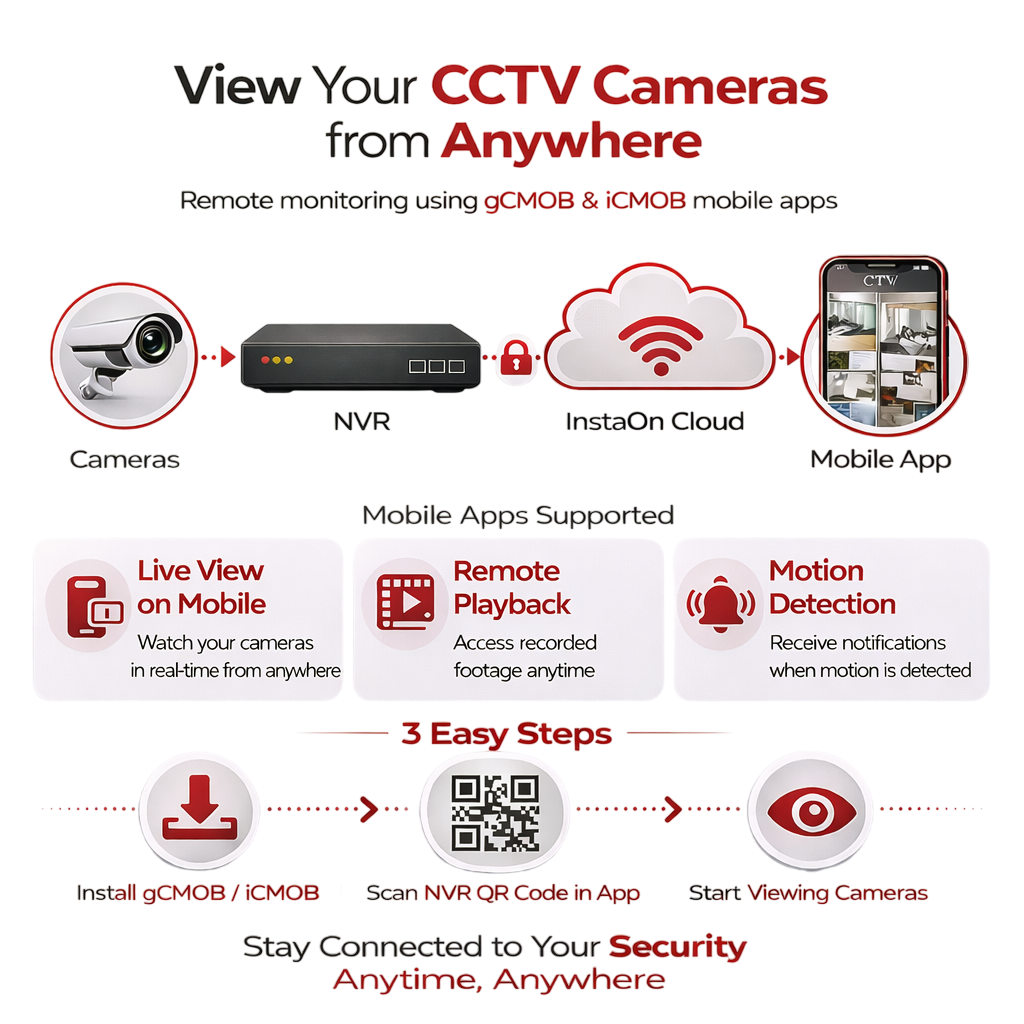

| Mobile App Features | Live view, playback, digital zoom, two-way talk, InstaOn cloud support, Easy GUI, up to 16 live viewing split-ups |
| Ethernet | Ethernet Ports | 2 Ă— RJ-45 |
| Ethernet Speed | 10/100/1000 Mbps Ethernet ports |
| Connector Type | RJ-45 |
| Power | Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | Total output of NVR is ≤ 13W (without HDD) |
| Environmental | Operating Temperature | -10°C to +55°C (14°F to +131°F) |
| Operating Humidity | 10%–93% RH, non-condensing |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
| Physical | Dimensions | 440.0 mm Ă— 415.1 mm Ă— 70.0 mm |
| Weight | 4.74 kg (without HDD) |
| Software | Mobile Software | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| KVMS Pro Lite Function | Hybrid security management software for cameras, DVRs/NVRs, encoders and decoders; exclusively supports CP PLUS devices |
| Company Information | Company Name | CP PLUS |
| Full Company Name | CP PLUS (Aditya Infotech Ltd.) |
| Address | F-28 Okhla Industrial Area, Phase 1, New Delhi - 110020, India |
| Contact Email | [email protected] |
