CP-UVR-1616K1-I2 | 16 Analog + 8 IP | AI Face Recognition | Full 16-Ch SMD Plus | 5M-N DVR with 10TB Storage Support

The CP-UVR-1616K1-I2 16Ch 5M-N DVR delivers next-level surveillance with full 16-channel SMD Plus, AI human/vehicle classification, and 2-channel face recognition—features rarely found in this segment. CP-UVR-1616K1-I2 also supports 16 Analog + 8 IP channels, 6MP IP input, H.265+ compression, and up to 10TB storage, offering unmatched flexibility and intelligent security performance.

Pick up from the FGTECH Store

To pick up today

0-1 Days

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINY3HZJMRL Categories: Surveillance and Security, DVR Brand: CP Plus

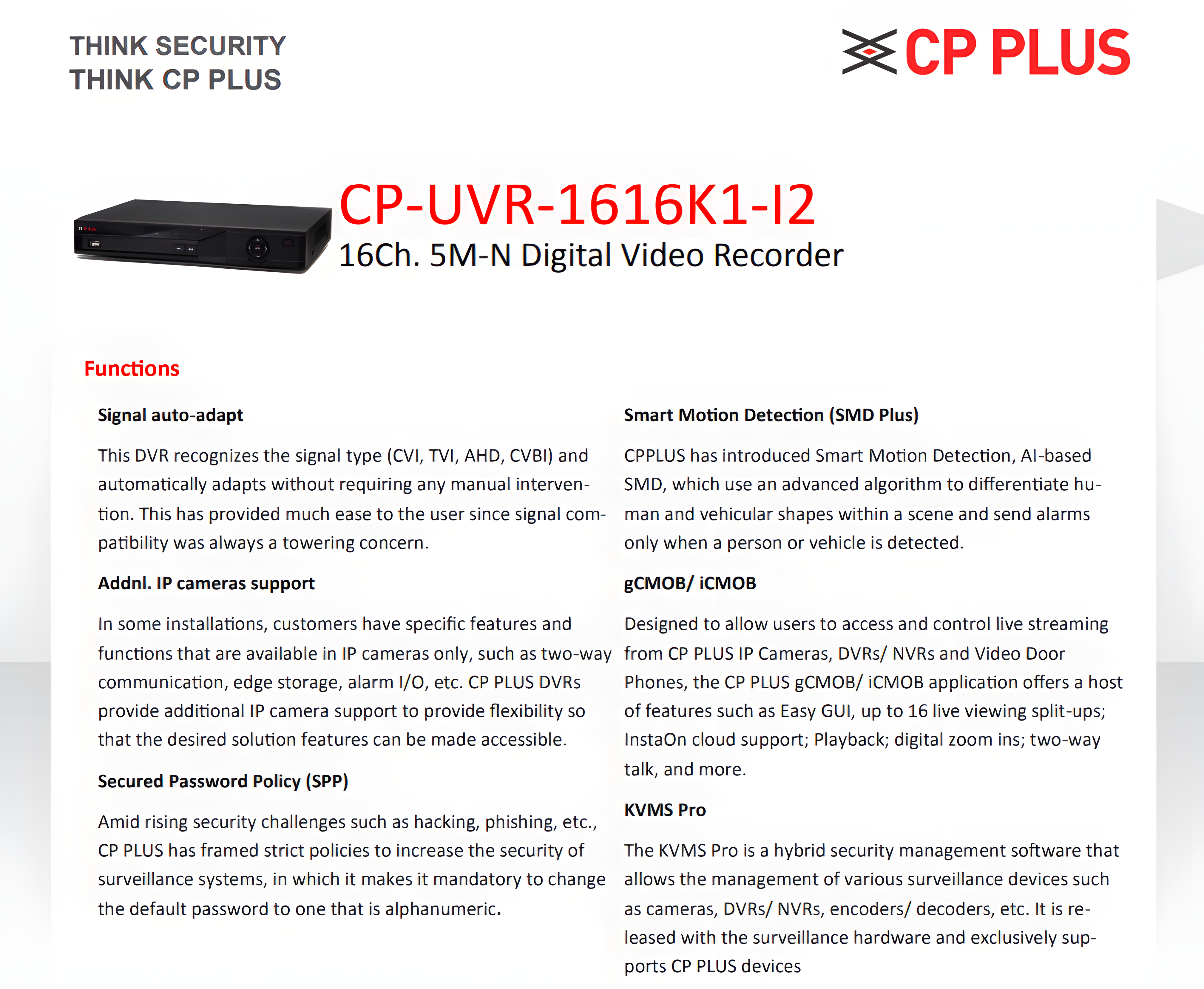

Description

The CP-UVR-1616K1-I2 16-Channel 5M-N Digital Video Recorder is engineered for high-capacity surveillance setups that demand powerful AI capabilities, wide compatibility, and reliable long-term performance. Unlike traditional DVRs, this model features complete 16-channel SMD Plus, enabling AI-based human/vehicle classification across every analog channel—dramatically reducing false alarms and enhancing event accuracy.

CP-UVR-1616K1-I2 advanced AI face recognition engine supports 2 analog channels with real-time human face analysis, stranger detection, 10,000-image face database, and rapid AI search with adjustable similarity thresholds—features typically available only in premium enterprise recorders.

CP-UVR-1601K1-I2 comes with maximum flexibility, the DVR accepts 16 analog inputs and additional 8 IP channels, allowing up to 24 channels in total, each IP channel supporting up to 6MP resolution. Smart H.265+ video compression reduces storage costs while maintaining crisp detail, and with support for a 10TB SATA HDD, it ensures long-duration continuous recording.

The CP-UVR-1616K1-I2 intelligently detects and adapts to any video signal (CVI/TVI/AHD/CVBS), eliminating manual configuration and simplifying installation. Remote access is seamless through iCMOB/gCMOB mobile apps and KVMS Pro desktop software, enabling live view, playback, zooming, alarms, and management of multiple CP PLUS devices from anywhere.

CP-UVR-1616K1-I2 comes with robust alarm I/O, 128-user support, secured password enforcement, and AI-driven surveillance automation, the CP-UVR-1616K1-I2 stands out as a future-ready DVR for homes, enterprises, institutions, and large-scale CCTV deployments.

🎥 High-Performance Recording

16 Analog + 8 IP channels (up to 6MP IP input)
H.265+/H.265 compression for efficient storage
HDMI (4K output) + VGA simultaneous display

🤖 Advanced AI Surveillance

Full 16-channel SMD Plus (Human/Vehicle detection)
2-channel face recognition with 10,000-image DB
AI search for humans/vehicles/faces with adjustable similarity

💾 Storage & Connectivity

1 SATA HDD up to 10TB capacity
2 USB ports (USB 2.0 + USB 3.0)
128 Mbps incoming bandwidth

📱 Smart Access & Control

Mobile apps: iCMOB, gCMOB
CMS software: KVMS Pro
Signal auto-adapt (CVI/TVI/AHD/CVBS) & secured password policy

Product Details

Category	Specification
Model	CP-UVR-1616K1-I2
Type	16 Channel 5M-N Digital Video Recorder
Processor	Embedded processor
Operating System	Embedded LINUX
Compression	AI Coding / H.265+ / H.265 / H.264+ / H.264
AI Functions	- SMD Plus (Smart Motion Detection) up to 16 channels - Perimeter Protection up to 2 channels - Face Recognition up to 2 channels (analog only)
Face Detection	Max 12 face pictures/sec; Detects strangers; 10 databases (10,000 face images total); Search up to 8 target faces; Adjustable similarity threshold
Object Classification	Human and vehicle recognition
AI Search	Search by target classification (Human, Vehicle, Face)
Video Inputs	16 Channels (BNC) supporting HDCVI/AHD/TVI/CVBS/IP
IP Camera Support	16 + 8 Channels (each up to 6MP, Max 128 Mbps)
Supported Signals	Auto-adaptive for CVI/TVI/AHD/CVBS
Video Output	1 HDMI, 1 VGA
Video Resolution	VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 In AI mode: 1920×1080, 1280×1024, 1280×720
Display Split	1/4/8/9/16 (Reduced to 1/4/9 in AI mode)
OSD Display	Camera title, Time, Video loss, Motion detection, Recording status
HDCVI Camera Input	5MP, 4MP, 1080P@25/30fps, 720P@25/30/50/60fps
AHD/TVI Camera Input	5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps
CVBS Input	PAL/NTSC compatible
Alarm Input / Output	16 In / 3 Out
Audio In / Out	16 In / 1 Out (RCA), supports two-way audio
Audio Compression	G.711A, G.711U, PCM
Audio Sample Rate	8 kHz, 16-bit
Audio Bit Rate	64 Kbps per channel
Video Bit Rate	32 Kbps – 6144 Kbps per channel
Recording Resolution	5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Recording Modes	Manual, Schedule, Motion Detection, Alarm, Stop
Recording Trigger Events	Motion, Tampering, Alarm, PTZ, Email, Snapshot, FTP, Buzzer
Record Interval	1–60 min (default 60 min); Pre-record 1–30 s; Post-record 10–300 s
Hard Disk	1 SATA HDD up to 10TB
USB Ports	2 (1×USB 2.0, 1×USB 3.0)
Network Interface	1 RJ-45 (Gigabit 1000 Mbps)
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI
Max User Access	128 users
Mobile Apps	iCMOB (iOS), gCMOB (Android)
CMS Software	KVMS Pro
Backup Mode	USB device / Network
Playback	1/4/9/16 (1/4/9 in AI mode)
Playback Functions	Play, Pause, Stop, Rewind, Fast/Slow, Next/Prev file/camera, Zoom, Backup
AI & Smart Functions	Smart Motion Detection Plus, Perimeter Protection, Human/Vehicle Recognition
Power Supply	DC 12V / 2A
Power Consumption	<12W (without HDD)
Working Temperature	-10°C to +55°C, 0–90% RH
Dimensions (W×D×H)	325 mm × 257 mm × 55 mm
Weight	1.3 kg (without HDD)
