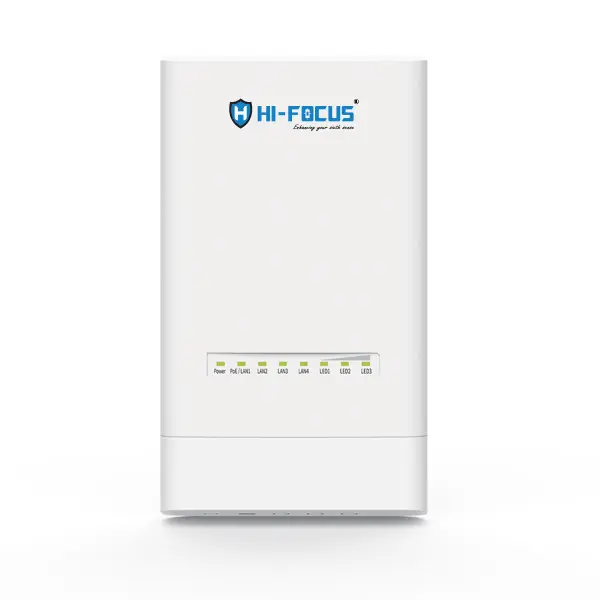

Hi-Focus HF-CPE05 5km Outdoor Wireless CPE Access Point – 5GHz Wi-Fi 5, Up to 867Mbps, 12dBi Directional Antenna, 4×10/100Mbps LAN Ports

The Hi-Focus HF-CPE05 5KM Outdoor Access Point is designed for long-distance outdoor wireless connectivity using the 5GHz frequency band and supports wireless rates up to 867Mbps. Hi-Focus HF-CPE05 it features a 12dBi directional antenna and supports IEEE 802.11a/n/ac wireless standards for compatible outdoor network deployments.

The HF-CPE05 supports Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless connections for private ISP access and CCTV surveillance applications. Its TD-MAX private TDMA protocol is designed for compatible long-distance wireless connections, while the device supports transmission distances of up to 5km as specified for the product.

The access point provides 4 × 10/100Mbps LAN ports and supports AP, Station, WISP, Repeater, and Router operating modes. Hi-Focus HF-CPE05 it also supports 20/40/80MHz channel bandwidth, adjustable transmission power, SSID isolation, wireless access control, and VLAN tagging for SSIDs.

For outdoor deployment, the HF-CPE05 features an IP65 waterproof enclosure and 6000V lightning protection. Hi-Focus HF-CPE05 it supports 12V 1A DC power and 12V 1A passive PoE, with passive PoE transmission of power over Ethernet up to 60 meters within the specified voltage range.

The device supports remote web access, Ping Watchdog, network diagnosis, firmware upgrade, configuration backup/restore, and controller management through PC Software CPE Assistant. Hi-Focus HF-CPE05 it measures 19.3 × 10.9 × 6.1 cm and supports pole or wall mounting.

Key Features

• 5GHz wireless connectivity with up to 867Mbps wireless rate and IEEE 802.11a/n/ac support
• 12dBi directional antenna for long-distance outdoor wireless connectivity
• Supports PtP and PtMP connections with TD-MAX private TDMA protocol
• 4 × 10/100Mbps LAN ports with AP, Station, WISP, Repeater, and Router modes
• IP65 outdoor protection, 6000V lightning protection, and 12V 1A passive PoE support

Best Suited For

• Long-distance outdoor wireless network connections
• Point-to-Point (PtP) wireless links
• Point-to-Multipoint (PtMP) wireless deployments
• Private ISP access applications
• CCTV surveillance and outdoor networking installations

Not Suited For

• Applications requiring wireless frequencies other than 5GHz
• Networks requiring wireless rates above 867Mbps
• Applications requiring Gigabit Ethernet ports
• Installations requiring wireless standards other than IEEE 802.11a/n/ac
• Deployments requiring features, operating modes, or interfaces not specified in the datasheet
