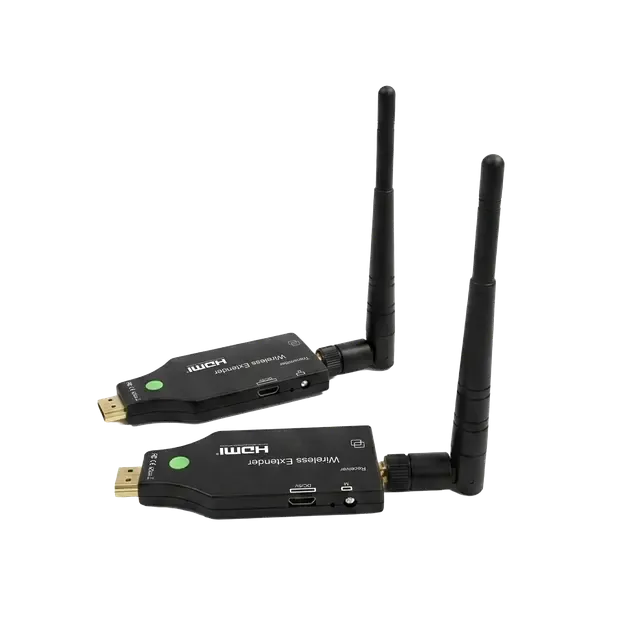

Hi-Focus HF-HEV150P-W 150m Wireless HDMI Extender – 1080p@60Hz Full HD, 5GHz Wireless Transmission, 148.5MHz Bandwidth, 1.485Gbps Baud Rate

The Hi-Focus HF-HEV150P-W 150M HDMI Wireless Extender enables wireless HDMI signal transmission up to 150 meters in open space without barriers. Under laboratory test conditions, Hi-Focus HF-HEV150P-W it can transmit through walls up to 40 meters. The same-screen transmission distance can reach up to 50 meters.

The extender supports HDMI input resolutions including 1280×720P, 720×480P, 720×576P, and 1920×1080P at supported refresh rates. The HDMI output supports 1920×1080P at 60Hz with stereo audio.

It operates in the 5GHz frequency band and supports the IEEE 802.11a/n wireless protocol. Hi-Focus HF-HEV150P-W it also supports Miracast and AirPlay, enabling wireless screen sharing from compatible Android phones, PCs, and Apple devices. HDCP 1.3 is supported for compatible HDMI content.

The HF-HEV150P-W provides a maximum 148.5MHz bandwidth and 1.485Gbps baud rate. Hi-Focus HF-HEV150P-W its full metal casing provides heat dissipation and anti-interference performance, while the external high-gain antenna supports improved wireless reception and stability.

Each unit measures 10.6 × 3.7 × 1.7 cm, with an antenna length of 15.5 cm, and weighs 0.105 kg. Hi-Focus HF-HEV150P-W the package includes one extender pair, two Type-C USB cables, two HDMI male-to-female cables, and one user manual.

Key Features

• Up to 150m wireless HDMI transmission in open space without barriers
• Supports 1920×1080P @ 60Hz HDMI output with stereo audio
• 5GHz wireless transmission with IEEE 802.11a/n protocol support
• Miracast and AirPlay support for wireless screen sharing from compatible devices
• 148.5MHz maximum bandwidth, 1.485Gbps baud rate, full metal casing, and external high-gain antenna

Best Suited For

• Wireless HDMI display extension in open spaces
• Conference presentations and meeting rooms
• Classrooms and training environments
• Wireless screen sharing from Android, PC, and Apple devices
• Home entertainment and compatible display applications

Not Suited For

• Applications requiring video output above 1920×1080P @ 60Hz
• Installations requiring wireless transmission beyond 150 meters in open space
• Applications requiring transmission through walls beyond the specified 40-meter laboratory test distance
• Systems requiring wireless protocols other than those supported by the extender
• Applications requiring bandwidth above 148.5MHz or baud rates above 1.485Gbps
