Hi-Focus HF-HKEL60 60m HDMI Extender – 1080p@60Hz, CAT-5e/CAT-6 Cable, 150MHz Bandwidth, 4.5Gbps Baud Rate, IR Remote Control, USB Mouse & Keyboard Extension

The Hi-Focus HF-HKEL60 60M HDMI Extender is designed to transmit HDMI video signals up to 60 meters between the transmitter (TX) and receiver (RX) using CAT-5e/6 cable. Hi-Focus HF-HKEL60 60M it supports HDMI input and output resolutions up to 1080p/60Hz and provides HDMI signal extension with USB, IR, and stereo audio support.

The extender supports HDMI resolutions including 1080p, 1080i, 720p, 576p, 576i, 480p, and 480i for both input and output. Hi-Focus HF-HKEL60 60M it provides a maximum bandwidth of 150MHz and a maximum baud rate of 4.5Gbps.

For HDMI connections, the supported input HDMI cable distance is up to 10m using AWG26 HDMI standard cable, while the output HDMI cable distance is up to 15m. Both the TX and RX support 3.5mm stereo audio output, while IR interfaces enable remote-control extension.

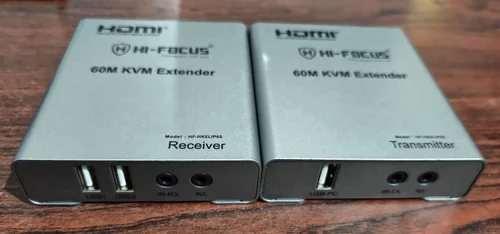

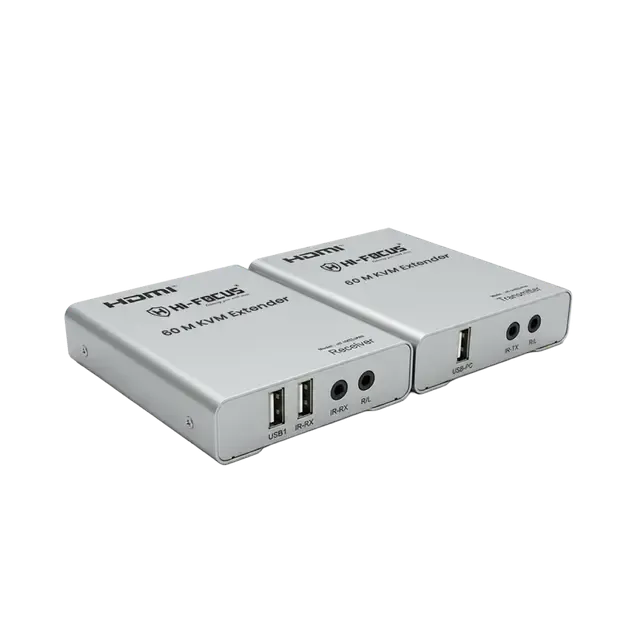

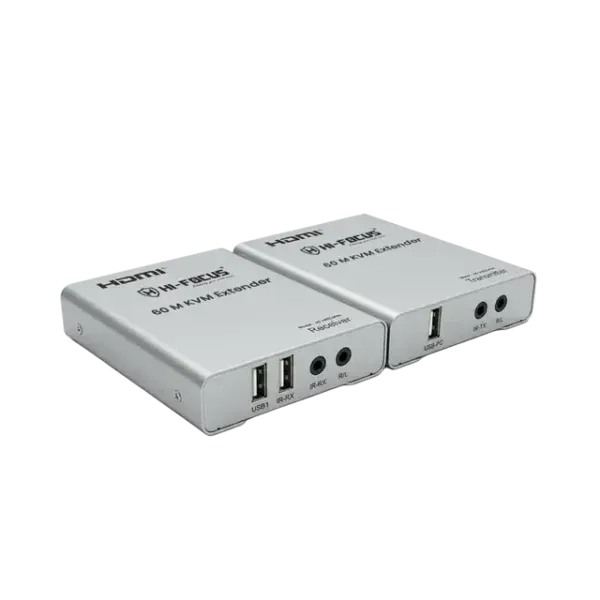

The TX includes an HDMI input, CAT-5e/6 output, USB-PC connection, stereo audio output, IR transmitter, and EDID switch. The RX provides an HDMI output, CAT-5e/6 input, two USB ports for mouse or keyboard, stereo audio output, and IR receiver. Both units use DC 5V/1A power adapters.

The HF-HKEL60 operates from -15°C to +45°C with 5% to 90% RH non-condensing humidity. Each TX and RX unit weighs 220g, and the dimensions are 9.4 × 8.4 × 2.4 cm.

Key Features

• 60m HDMI transmission between TX and RX using CAT-5e/6 cable
• Supports HDMI resolutions up to 1080p/60Hz
• 150MHz maximum bandwidth and 4.5Gbps maximum baud rate
• IR remote control and USB mouse/keyboard extension support
• Stereo audio output on both TX and RX with DC 5V/1A power

Best Suited For

• Home entertainment and HDMI display installations
• Conference rooms and presentation systems
• Digital signage and compatible display applications
• Installations requiring USB mouse and keyboard extension
• HDMI setups requiring IR remote control and stereo audio

Not Suited For

• Applications requiring HDMI resolutions above 1080p
• Installations requiring transmission distances beyond 60m
• Applications requiring bandwidth above 150MHz
• HDMI setups requiring cable distances beyond the specified 10m input or 15m output
• Applications requiring features or interfaces not specified in the datasheet
