Hi-Focus HF-HKELIP200 200m IP-Based HDMI Extender – 1080p Full HD, CAT-5e/CAT-6 Ethernet Cable, IR Remote Control, USB Mouse & Keyboard Extension

The Hi-Focus HF-HKELIP200 200M IP Based HDMI Extender is designed for long-distance HDMI signal transmission over CAT-5e/6 cable. Hi-Focus HF-HKELIP200 it supports video resolutions of 480p, 720p, and 1080p and provides HDMI connectivity through the transmitter and receiver units.

The extender supports point-to-point, point-to-multipoint, and cascade connection modes, providing flexible options for different HDMI distribution requirements. Hi-Focus HF-HKELIP200 it follows the 802.3 Ethernet standard and uses the network interface for CAT-5e/6 connectivity between the HDMI transmitter and receiver.

For audio, the HF-HKELIP200 supports sample rates of 32kHz, 44.1kHz, and 48kHz. Hi-Focus HF-HKELIP200 it also supports 38KHz NEC IR remote control and USB mouse and keyboard extension for compatible applications.

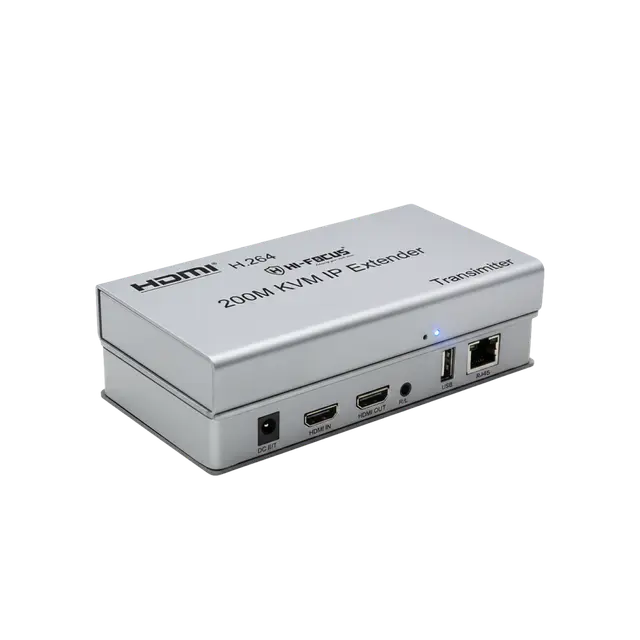

The HDMI transmitter includes HDMI input, HDMI output, IR-TX, USB, Ethernet, and DC 5V power interfaces. The receiver includes HDMI output, IR-RX, two USB inputs, Ethernet, and DC 5V power interfaces. The system uses DC 5V/1A power adapters.

The extender features a pure hardware design with plug-and-play operation, requiring no additional software. Each unit measures 16.3 × 8.7 × 2.4 cm and weighs 0.474 kg.

Key Features

• 200-meter IP-based HDMI extension using CAT-5e/6 network cable
• Supports 480p, 720p, and 1080p video resolutions
• Supports point-to-point, point-to-multipoint, and cascade connection modes
• 38KHz NEC IR remote control and USB mouse/keyboard extension
• Plug-and-play pure hardware design with no additional software required

Best Suited For

• Long-distance HDMI signal extension installations
• HDMI distribution using point-to-point connections
• Point-to-multipoint HDMI distribution applications
• Systems requiring USB mouse and keyboard extension
• Installations requiring IR remote control support

Not Suited For

• Applications requiring video resolutions above 1080p
• Installations requiring transmission distances beyond 200 meters
• Systems requiring audio sample rates other than those specified
• Applications requiring software-based HDMI extender management
• Installations without compatible CAT-5e/6 network cabling
