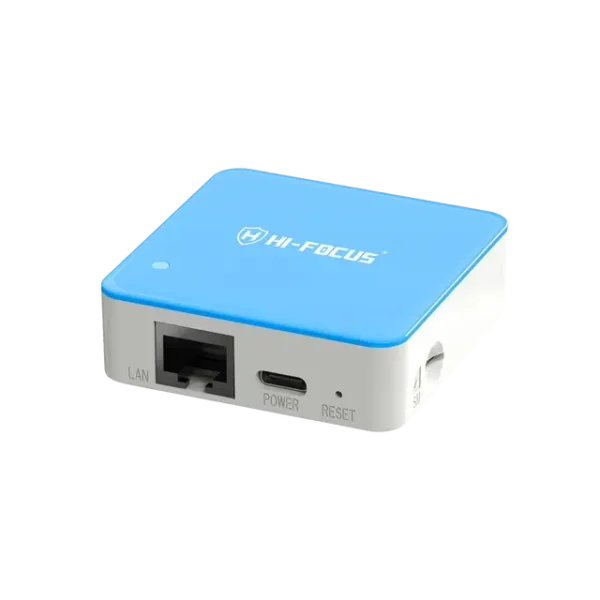

Hi-Focus HF-R1100T-4G LTE Cat4 Wireless Router – 150Mbps Download Speed, 2.4GHz Wi-Fi 4, 1×1 MIMO, 1×10/100Mbps LAN Port, Single 4FF SIM Slot, IPv4/IPv6 Support

The Hi-Focus HF-R1100T-4G 4G LTE CAT4 Wireless Router provides mobile broadband connectivity through support for multiple FDD LTE, TDD LTE, UMTS, and WCDMA frequency bands. Hi-Focus HF-R1100T-4G it features a single standard 4FF SIM slot, internal 2×2 MIMO LTE antennas, Wi-Fi 4 connectivity, and a 10/100Mbps RJ45 LAN port.

The router supports 3GPP R9 LTE Cat4 with FDD download/upload speeds of up to 150Mbps/50Mbps and TDD download/upload speeds of up to 110Mbps/10Mbps. It also supports 3GPP R7 3G connectivity with download speeds up to 21Mbps and upload speeds up to 5.76Mbps. Supported LTE bandwidths include 1.4/3/5/10/15/20MHz.

For wireless connectivity, the router supports Wi-Fi 4 at 2.4GHz with 1×1 MIMO and speeds up to 72.2Mbps. Hi-Focus HF-R1100T-4G it supports SSID and APN management, IPv4/IPv6, DHCP Server, Dynamic IP, Static IP, access control, local management, and multiple wireless security options including OPEN, WPA2(AES)-PSK, and WPA-PSK/WPA2-PSK.

The router provides additional mobile and network functions including SMS Manager, Auto-APN, Auto Data Connection, USSD Service, PIN/PUK Management, and 3G/LTE/Auto network mode selection. Hi-Focus HF-R1100T-4G it also supports an IPv4 firewall, port filtering, and port forwarding. The compact device measures 5.62 × 5.62 × 1.89 cm, weighs approximately 0.0338 kg, and uses a DC 5V/1A power adapter with power consumption of ≤5W.

Key Features

• 4G LTE Cat4 connectivity with FDD download speeds up to 150Mbps
• Supports multiple FDD LTE, TDD LTE, UMTS, and WCDMA frequency bands
• Wi-Fi 4 at 2.4GHz with 1×1 MIMO, supporting speeds up to 72.2Mbps
• 1 × 10/100Mbps RJ45 LAN port and a single standard 4FF SIM slot
• Supports IPv4/IPv6, DHCP, APN management, firewall, port filtering, port forwarding, and multiple network modes

Best Suited For

• Home and office internet connectivity using 4G LTE
• Locations requiring wireless internet through a compatible SIM card
• Small network setups requiring a compact LTE router
• Users requiring both Wi-Fi and 10/100Mbps wired LAN connectivity
• Indoor and outdoor usage scenarios where supported by the network and operating conditions

Not Suited For

• Applications requiring 5G mobile network connectivity
• Networks requiring Gigabit Ethernet LAN speeds
• Applications requiring Wi-Fi speeds above the specified 72.2Mbps
• Setups requiring more than one SIM card
• Networks requiring features or management functions not specified in the datasheet
