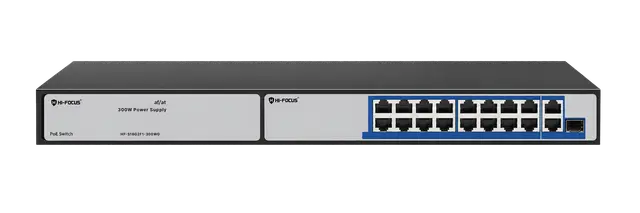

Hi-Focus HF-S16G2F1-300W 16-Port PoE Switch – 16× 10/100Mbps PoE RJ45, 2× Gigabit RJ45 Uplink, 1× Gigabit SFP Uplink, 300W Power Input, Up to 60W/Port, IEEE 802.3af/at/bt, AI PoE Watchdog, 6KV Lightning Protection

The Hi-Focus HF-S16G2F1-300W 16-Port PoE Switch provides network connectivity through 16 × 10/100Mbps PoE ports, 2 × 1000Mbps RJ45 uplink ports, and 1 × 1000Mbps SFP uplink port. The PoE ports support compatible wireless access points, CPEs, IP cameras, and PTZ devices.

The switch supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3af/at/bt standards. Hi-Focus HF-S16G2F1-300W 16-Port it provides 12.8Gbps bandwidth, an 8K MAC address table, and a 26.8 Mpps forwarding rate. Network latency is ≤16μs for 10–1000Mbps transmission using a 64-byte packet size.

For PoE applications, Ports 1–14 support up to 30W per port, while Ports 15–16 support up to 60W per port. Hi-Focus HF-S16G2F1-300W 16-Port the total power input is AC 100–240V with a maximum power rating of 300W. PoE Watchdog is supported on Ports 1–16 for automatic detection and restart of compatible PoE devices.

The switch supports a transmission distance of up to 130m and features Auto MDI/MDIX, zero-configuration power delivery, 6KV lightning protection, and 8KV ESD protection. Additional protection includes over-current, over-voltage, over-temperature, short-circuit, and anti-reverse connection protection. Hi-Focus HF-S16G2F1-300W 16-Port its dimensions are 43 × 18 × 4.5 cm.

Key Features

• 16 × 10/100Mbps PoE ports, 2 × 1000Mbps RJ45 uplink ports, and 1 × 1000Mbps SFP uplink port
• Up to 30W per port on Ports 1–14 and 60W per port on Ports 15–16
• 12.8Gbps bandwidth, 26.8 Mpps forwarding rate, and 8K MAC address table
• PoE Watchdog AI function for automatic PoE device detection and restart
• 130m transmission distance, 6KV lightning protection, 8KV ESD protection, and multiple electrical protections

Best Suited For

• CCTV and IP camera surveillance installations
• Wireless access point and CPE deployments
• Networks requiring multiple 10/100Mbps PoE ports
• Installations requiring SFP fiber uplink connectivity
• PoE setups requiring up to 60W per port on Ports 15–16

Not Suited For

• Applications requiring more than 16 PoE ports
• Devices requiring more than 60W per port
• Applications requiring Gigabit speeds on the 16 PoE ports
• Networks requiring SFP speeds above 1Gbps
• Applications requiring features or management functions not specified in the datasheet
