Lysora L7 Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point | 688 Mbps 2.4GHz + 4323 Mbps 5GHz | 2.5GbE + 1GbE | PoE+ | Up to 110+ Clients

The Lysora L7 Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point is a high-performance wireless networking solution designed for environments requiring fast and reliable Wi-Fi connectivity. It supports IEEE 802.11 a/b/g/n/ac/ax/be standards with 5 spatial streams, delivering throughput of up to 688 Mbps on 2.4 GHz and 4323 Mbps on 5 GHz. With a coverage area of up to 145 m² and support for 110+ clients, Lysora L7 it is designed for deployments with multiple connected devices.

The L7 supports 2 × 2 MU-MIMO on 2.4 GHz and 3 × 3 MU-MIMO on 5 GHz, with channel bandwidths of up to 40 MHz on 2.4 GHz and 160 MHz on 5 GHz. Lysora L7  it includes advanced wireless technologies such as Multi-Link Operation (MLO), 4K-QAM, OFDMA, RF Beamforming, Band Steering, Wireless Meshing, and WMM. Support for 802.11k, 802.11r, and 802.11v enables advanced roaming capabilities, including Layer 2 and Layer 3 roaming.

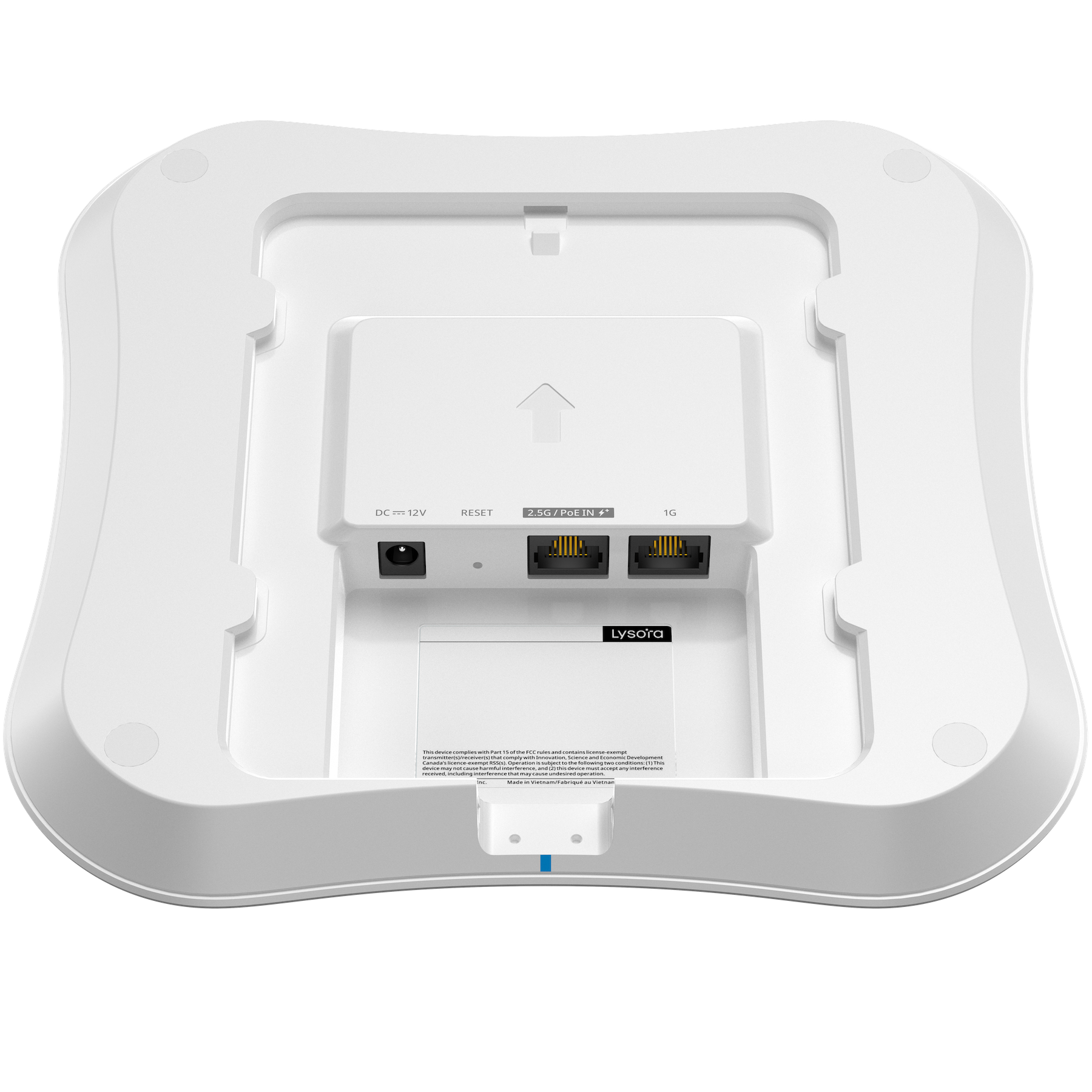

For wired connectivity, the access point provides one 2.5GbE RJ45 port and one 1GbE RJ45 port. It supports PoE+ and 12V DC power, with the DC power adapter not included. The device has a maximum power consumption of 30 W and can operate in both Router Mode and AP Mode. Networking functions include NAT, Static IP, DHCP Server, and PPPoE Client.

The L7 also provides extensive security and network management features, including WPA, WPA2, WPA3-SAE, WPA2-PSK/WPA3-SAE, OWE, 802.1X, 802.1Q VLAN, client device isolation, Wi-Fi speed limiting, Wi-Fi scheduling, bandwidth limiting, and captive portal. Lysora L7  it supports up to 8 SSIDs per radio, providing flexibility for different wireless network configurations.

For centralized administration, the L7 supports a self-organizing network of up to 300 access points. It can be managed locally through the Lysora App and web interface or remotely through Lysora Cloud, with unified configuration and monitoring available through the cloud platform. SNMP support is also provided for network monitoring.

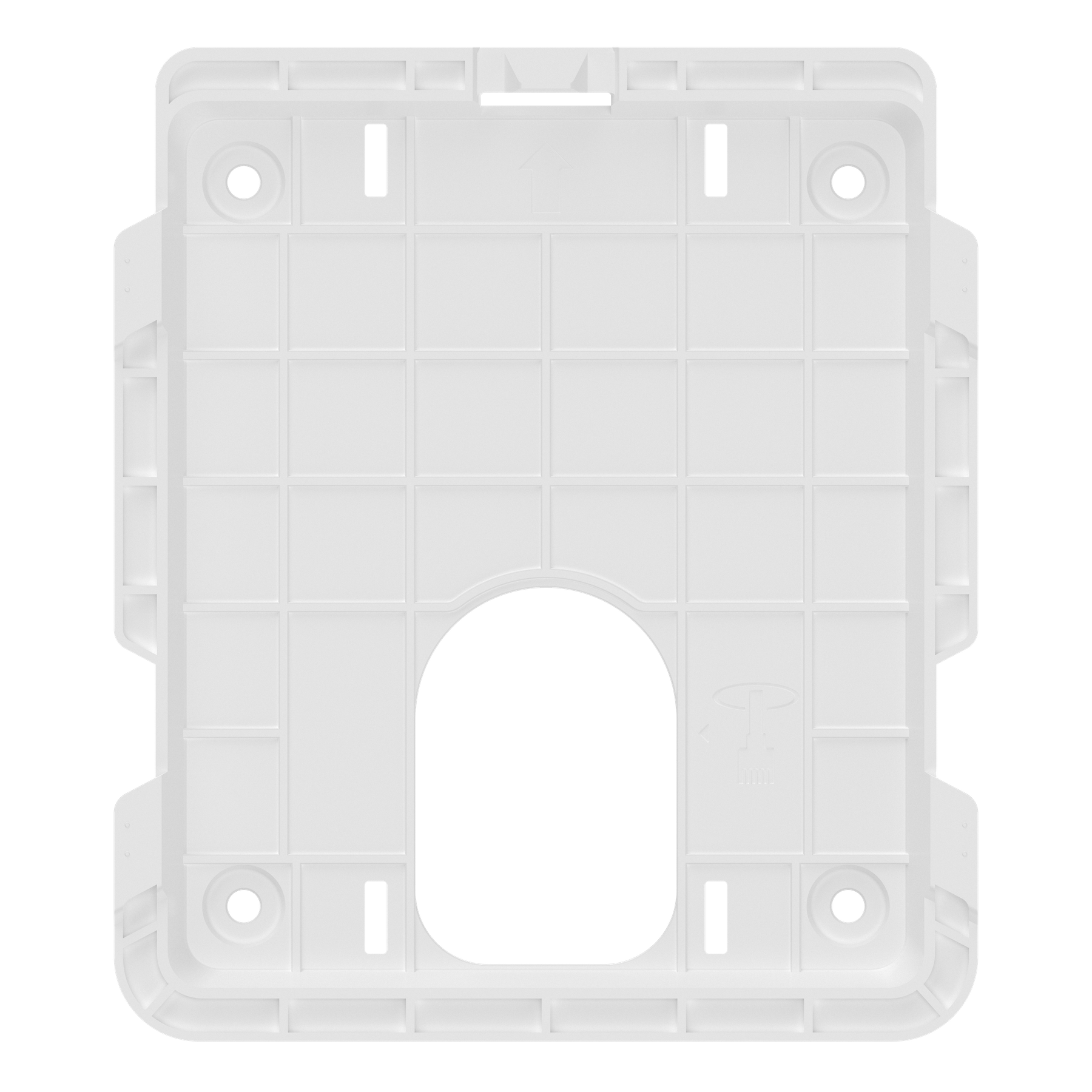

The access point supports ceiling and wall mounting and includes mounting hardware. Lysora L7  it has an IP41 rating, operates from 0°C to 40°C, and supports 5% to 95% non-condensing operating humidity. With Wi-Fi 7 support, multi-gigabit Ethernet connectivity, advanced wireless features, centralized management, and comprehensive security functions, the Lysora L7 is suitable for modern wireless network deployments requiring high-speed connectivity and flexible network management.

Key Features

• Wi-Fi 7 Connectivity: Supports IEEE 802.11 a/b/g/n/ac/ax/be with 5 spatial streams and throughput up to 688 Mbps (2.4 GHz) and 4323 Mbps (5 GHz).
• Advanced Wireless Technologies: Supports MLO, 4K-QAM, OFDMA, MU-MIMO, RF Beamforming, Band Steering, and Wireless Meshing.
• Multi-Gigabit Networking: Includes 1 × 2.5GbE RJ45 and 1 × 1GbE RJ45 ports for wired connectivity.
• High Client Capacity: Supports 110+ clients with a coverage area of up to 145 m².
• Flexible Power & Mounting: Supports PoE+ and 12V DC power and can be mounted on ceilings or walls.
• Centralized Management & Security: Supports Lysora Cloud, Lysora App, VLAN, WPA3-SAE, 802.1X, captive portal, client isolation, and up to 300 APs in a self-organizing network.

Best Suited For

• High-speed Wi-Fi deployments requiring Wi-Fi 7 connectivity
• Offices, commercial spaces, and professional wireless networks
• Environments with multiple connected client devices
• Networks requiring multi-gigabit wired uplinks
• Deployments requiring centralized cloud-based AP management
• Ceiling or wall-mounted wireless access point installations

Not Suited For

• Deployments requiring more than 145 m² coverage from a single access point
• Installations requiring more than 110+ clients per access point
• Environments requiring an included DC power adapter
• Outdoor installations requiring a higher weather-resistance rating than IP41
• Deployments requiring operating temperatures outside 0°C to 40°C
• Networks that do not require Wi-Fi 7, advanced wireless features, or centralized AP management
