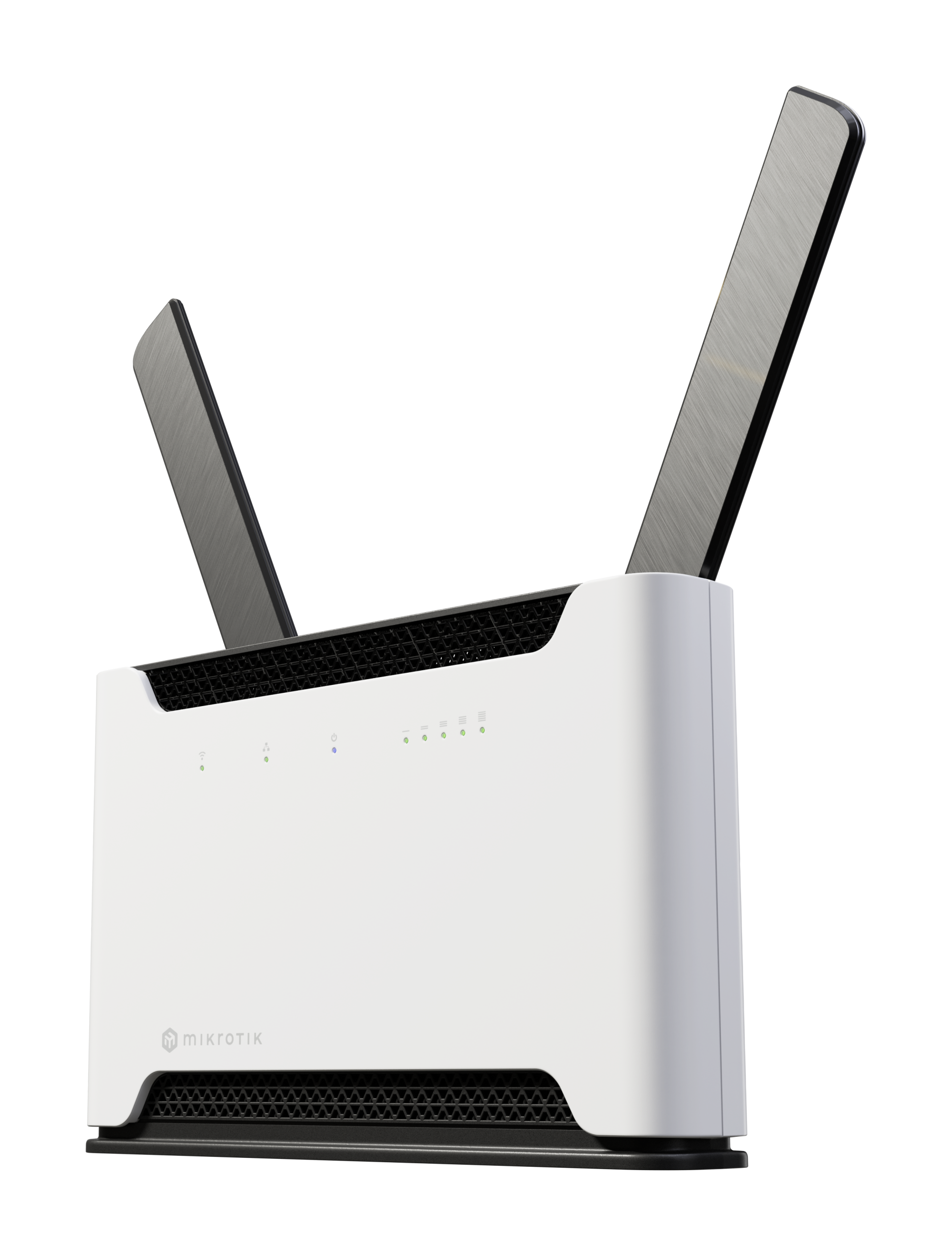

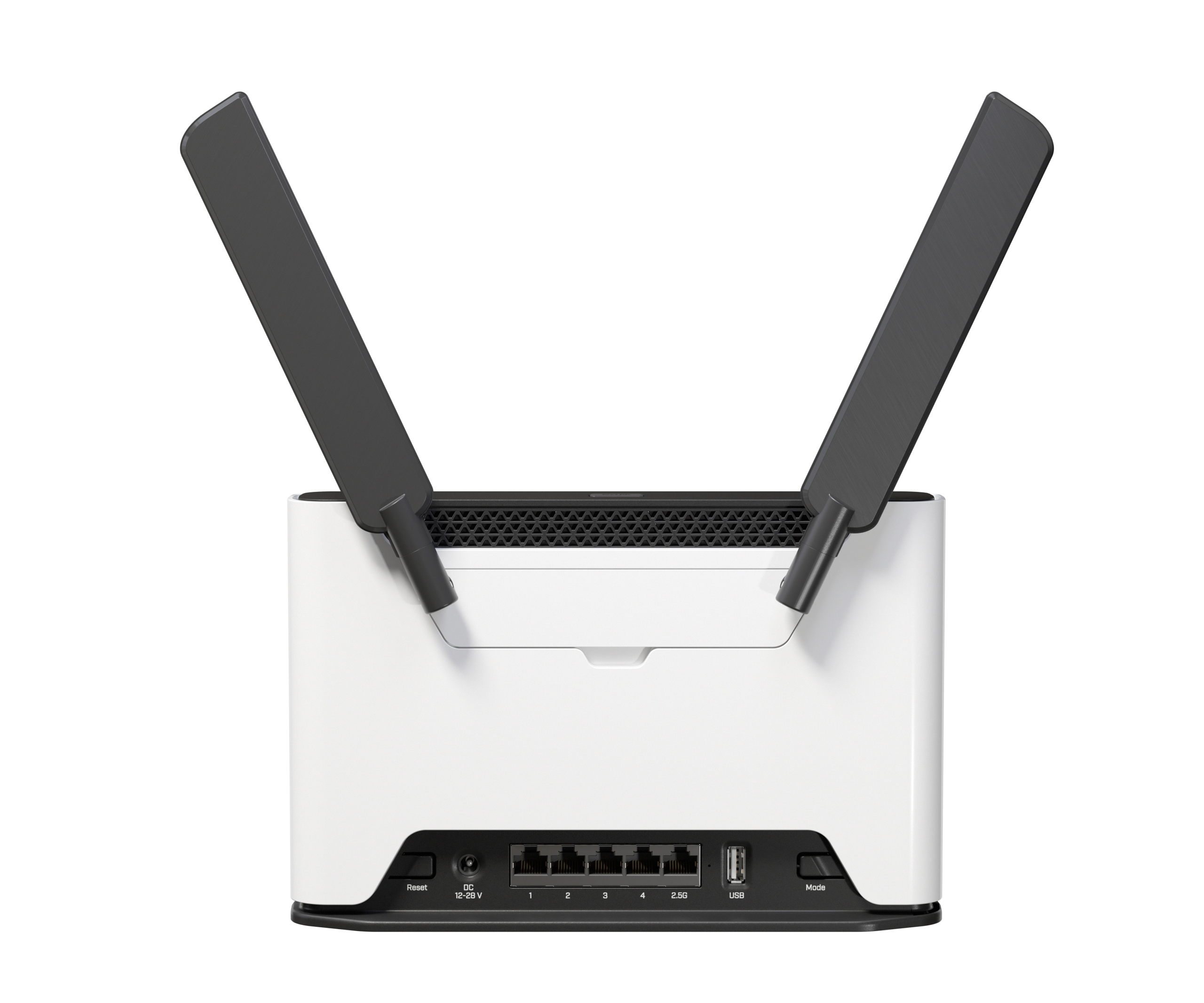

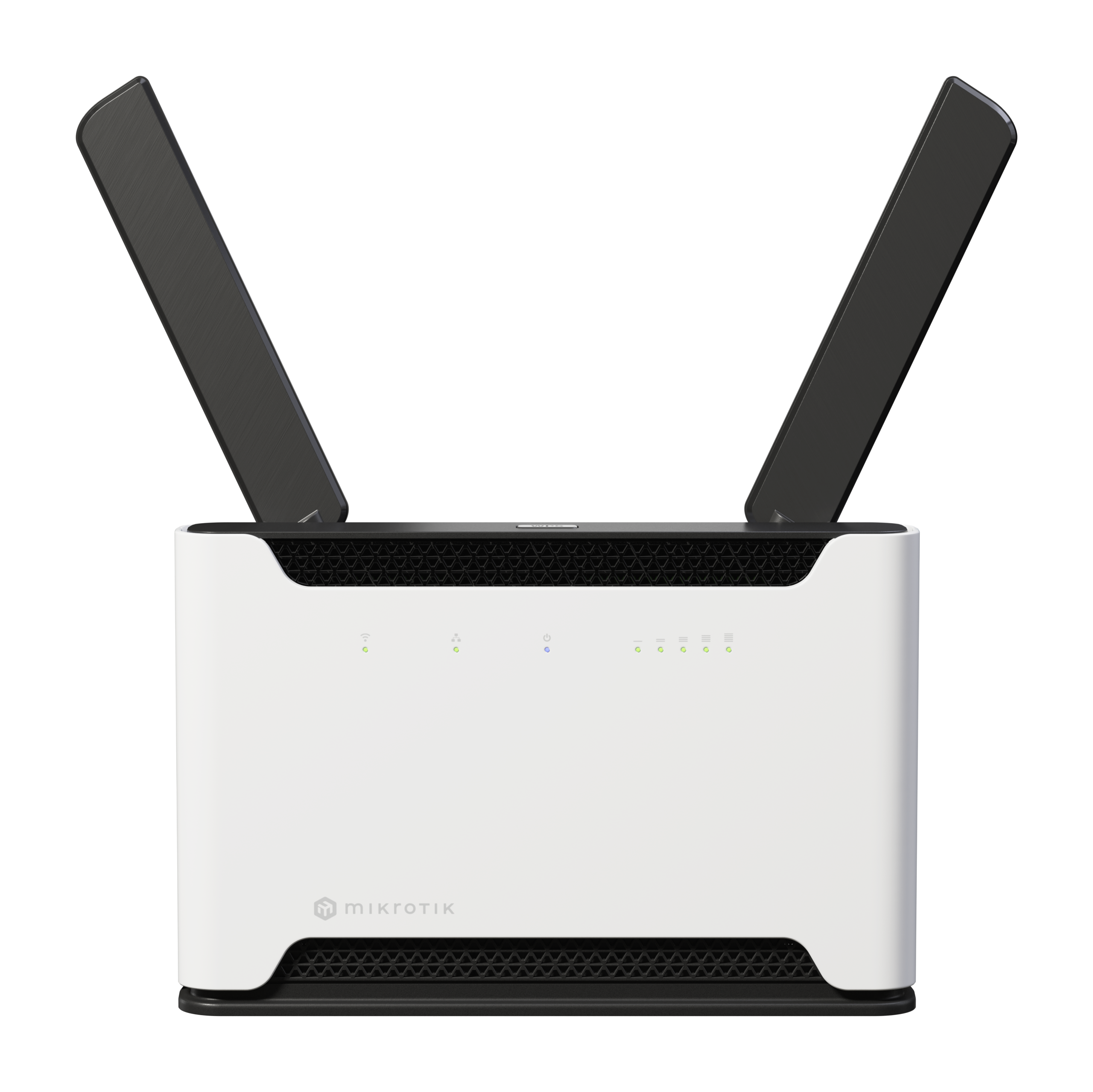

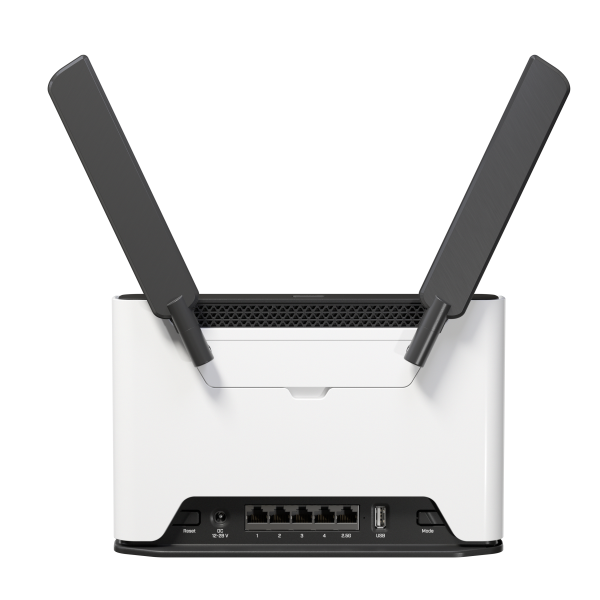

Mikrotik Chateau 5G R17 ax | Dual-Band Wi-Fi 6 5G Router for Home & Office | e-sim or microSIM compatible | Product Code- S53UG+5HaxD2HaxD-TC&RG650E-EU


Original price was: ₹59,999.00.Current price is: ₹42,999.00. Inc. tax (36,439.83Exc. Tax)

MikroTik Chateau 5G R17 ax is a powerful dual-band Wi-Fi 6 router with 5G Release 17 support, eSIM compatibility, and advanced RouterOS features for fast, stable, and flexible connectivity.

Available on: August 15, 2025 at 12:00 am
Estimated shipping date: 28/07/2025 - 29/07/2025

We are trying hard to provide best price, still not satisfied. Let us know

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    Description

    MikroTik Chateau 5G R17 ax is a powerful dual-band Wi-Fi 6 router featuring the latest 5G Release 17 modem, designed to deliver blazing-fast mobile internet with unmatched coverage, stability, and flexibility. Whether you’re working remotely, streaming 4K content, or managing a smart home, Chateau ensures ultra-reliable connectivity—even in areas with distant or weak cell towers—thanks to advanced carrier aggregation and 4×4 MIMO technology.

    Key Features – MikroTik Chateau 5G R17 ax

    • 5G Release 17 Modem: Advanced mobile connectivity with faster speeds, better signal, and improved responsiveness, even in low-signal areas.
    • Dual SIM Support: Includes built-in eSIM and microSIM slots; supports multiple profiles and third-party eSIMs.
    • Dual-Band Wi-Fi 6 (802.11ax): Strong and stable wireless performance with extended coverage for large and multi-story homes.
    • 4×4 MIMO LTE/5G Antennas: Four powerful internal mobile antennas ensure excellent signal pickup.
    • 2 External Dual-Chain Wi-Fi 6 Antennas: Boosts wireless range and reliability in dense environments.
    • Smart Carrier Aggregation: Supports both FDD and TDD bands, optimizing connectivity across regions.
    • Gigabit Ethernet Ports: Fast wired connections for desktops, servers, or streaming devices.
    • RouterOS v7: Enterprise-grade OS with features like VPN, traffic shaping, VLANs, firewall, and more.
    • User-Friendly Interface: Easy setup and management via a clean UI or the MikroTik mobile app (iOS/Android).
    • No Subscriptions or Licensing Fees: Full access to advanced features without hidden costs.
    • Compact, Sleek Design: Blends easily into home or office environments.
    • Ideal for Home, Office, or Remote Locations: Designed for versatility, performance, and ease of use.

    This sleek yet robust router is equipped with four internal LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, providing outstanding coverage in any home or office, including multi-floor environments. The MikroTik Chateau 5G R17 ax supports smart frequency aggregation, covering a broad range of regional FDD and TDD bands, making it perfect for diverse mobile network scenarios.

    Enjoy ultimate SIM flexibility with built-in eSIM and microSIM support. Switch between multiple profiles or use pre-activated MikroTik data plans or third-party eSIMs.

    Powered by RouterOS v7, offers advanced features like VPN setup, traffic shaping, VLANs, bandwidth control, site blocking, and SMS alerts—with no subscriptions or hidden fees. A user-friendly interface and iOS/Android mobile app make setup and management easy for both tech-savvy users and beginners.

    Take full control of your internet experience with the MikroTik Chateau 5G R17 ax —where next-gen mobile connectivity meets powerful, customizable networking.

    Product Details

    Details
    Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
    Architecture ARM 64bit
    CPU IPQ-6010
    CPU core count 4
    CPU nominal frequency auto MHz
    Switch chip model IPQ-6010
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C
    IPsec hardware acceleration Yes
    Suggested price $349.00

    Powering

    Details
    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-28 V
    Max power consumption 27 W
    Max power consumption without attachments 18 W
    Cooling type Passive

    Mobile

    Details
    3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
    LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
    MIMO DL 4x4
    MIMO UL 1x1
    LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
    LTE TDD bands 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 40 (2300MHz) / 43 (3700MHz)
    5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
    5G NSA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
    5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
    5G SA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
    TAC 86896506

    Wireless specifications

    Details
    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 3
    Wireless 2.4 GHz chip model QCN-5022
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 6
    Wireless 5 GHz chip model QCN-5052
    Wireless 5 GHz generation Wi-Fi 6

    Ethernet

    Details
    10/100/1000 Ethernet ports 4
    Number of 2.5G Ethernet ports 1

    Peripherals

    Details
    Number of SIM slots 1 Modem (Micro SIM)
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1.5

    Other

    Details
    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes
    eSIM Yes

    Certification & Approvals

    Details
    Certification CE, EAC, ROHS
    IP 20

    Wireless specifications

    2.4 GHz Transmit (dBm) Receive Sensitivity
    1MBit/s 23 -100
    11MBit/s 23 -94
    6MBit/s 24 -96
    54MBit/s 21 -80
    MCS0 24 -96
    MCS7 20 -75
    MCS9 19 -70
    MCS11 17 -67
    5 GHz Transmit (dBm) Receive Sensitivity
    6MBit/s 24 -96
    54MBit/s 21 -80
    MCS0 24 -96
    MCS7 20 -75
    MCS9 19 -70
    MCS11 17 -67
