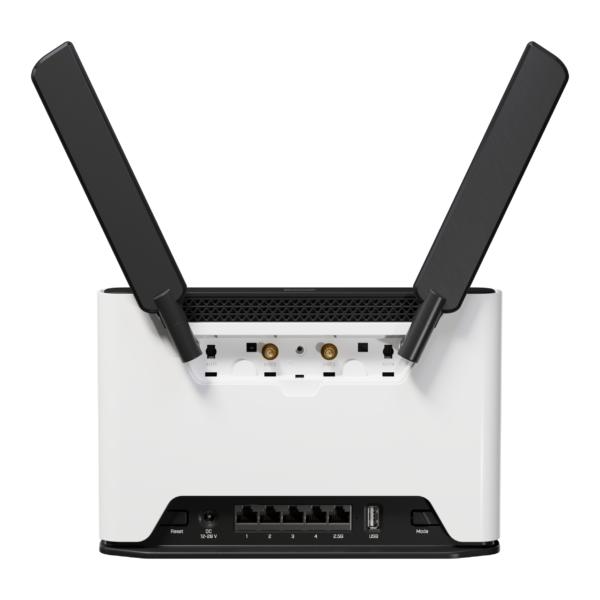

Mikrotik Chateau LTE18 ax | LTE AX Router Last Mile Connectivity Solution
Mikrotik Chateau LTE18 ax High-performance LTE-A router with Wi-Fi 6 for reliable last-mile connectivity. Offers fast 4G LTE speeds, dual-band Wi-Fi, and multiple Ethernet ports. Ideal for homes or businesses seeking dependable internet access in remote locations.
₹39,999.00 Original price was: ₹39,999.00.₹35,880.00Current price is: ₹35,880.00. Inc. tax (₹30,406.78Exc. Tax)
Out of stock
Out of stock
Description
Mikrotik Chateau LTE18 ax On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.
The next obvious step in the Chateau series was perfecting the wireless capabilities. Mikrotik Chateau LTE18 ax comes With the Generation6 802.11ax wireless standard and Wave 2 support, Mikrotik Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Mikrotik Chateau LTE18 ax supports MIMO 4×4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!
Mikrotik Chateau LTE18 ax comes With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.
The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.
The most advanced software on the market – RouterOS
We have been making our own software since 1996. And over the years, we’ve managed to create the most powerful and flexible networking software on the market. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, QoS (traffic prioritization for certain needs, such as streaming), complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications.. You can even automate complex trigger notifications (“Your bandwidth has reached X for Y minutes!”) and modify queues based on bandwidth usage. If you can imagine it – RouterOS can achieve it.
There are no paywalls and no confusing subscriptions. You’re getting all the features – from consumer to enterprise-grade. For mobile operators and ISPs, this is groundbreaking. Finally – a single product to satisfy the most diverse group of people.
Built with security in mind
Not only does RouterOS come with robust security options, we also focus on the production security. There is no outsourcing, every Chateau device is assembled at our EU contract manufacturers, and all the components come from reputable, trusted partners – such as Qualcomm. We cooperate with European law-makers and work hard to ensure full compliance with all the necessary safety policies. MikroTik is all about smooth, long-term cooperation without surprises.
Jack of all trades… master of many!
Chateau is a remarkable choice for any mobile operator. It can be customized with a variety of labels or printed branding. And operators can use the TR-069 technology to create custom remote client management options, such as router configuration via the same web-page clients are using to pay the mobile bill. Advanced users, seasoned sysadmins, and networking enthusiasts can take advantage of the astounding depth of RouterOS. And the non-tech households can skip all that, using a simple, straightforward web-page instead. Now is the time for great networking without compromises. Secure remote work options and a blazing fast Internet connection are no longer a luxury. They are a necessity. And Chateau is the solution.
Ethernet test results
S53UG+5HaxD2HaxD-TC&EG18-EA | IPQ-6010 All port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 219.2 | 2662 | 593.5 | 2430.9 | 1509.2 | 821 |
Bridging | 25 bridge filter rules | 218.1 | 2649.1 | 460.3 | 1885.3 | 468.5 | 254.9 |
Routing | none (fast path) | 218.9 | 2657.8 | 596.6 | 2443.6 | 1228.3 | 668.2 |
Routing | 25 simple queues | 218.5 | 2653.5 | 463.4 | 1898 | 468.5 | 254.9 |
Routing | 25 ip filter rules | 215.3 | 2614.4 | 279.6 | 1145.2 | 281.8 | 153.3 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
S53UG+5HaxD2HaxD-TC&EG18-EA | IPQ-6010 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 78.4 | 878.1 | 91.9 | 376.4 | 93.6 | 47.9 |
256 tunnels | AES-128-CBC + SHA1 | 50.1 | 561.1 | 55.5 | 227.3 | 58.6 | 30 |
256 tunnels | AES-128-CBC + SHA256 | 50 | 560 | 55.4 | 226.9 | 58.6 | 30 |
256 tunnels | AES-256-CBC + SHA1 | 49.4 | 553.3 | 54.8 | 224.5 | 58.6 | 30 |
256 tunnels | AES-256-CBC + SHA256 | 49.4 | 553.3 | 55 | 225.3 | 58.6 | 30 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Brand | |
---|---|
MODEL |
S53UG+5HaxD2HaxD-TC&EG18-EA |
Details | |
---|---|
Product code | S53UG+5HaxD2HaxD-TC&EG18-EA |
Architecture | ARM 64bit |
CPU | IPQ-6010 |
CPU core count | 4 |
CPU nominal frequency | auto (864 -1800) MHz |
Switch chip model | IPQ-6010 |
Dimensions | 240 x 156 x 44 mm |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 65°C |
IPsec hardware acceleration | Yes |
Suggested price | $299.00 |
Powering
Details | |
---|---|
Number of DC inputs | 1 (DC jack) |
DC jack input Voltage | 12-28 V |
Max power consumption | 19 W |
Max power consumption without attachments | 16 W |
Cooling type | Passive |
Mobile
Details | |
---|---|
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 18 (1.2Gbps Downlink, 150Mbps Uplink) |
MIMO DL | 4x4 |
MIMO UL | 1x1 |
LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
TAC | 86981604 |
Wireless specifications
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 574 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n/ax |
Antenna gain dBi for 2.4 GHz | 3 |
Wireless 2.4 GHz chip model | QCN-5022 |
Wireless 2.4 GHz generation | Wi-Fi 6 |
Wireless 5 GHz Max data rate | 1200 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Antenna gain dBi for 5 GHz | 6 |
Wireless 5 GHz chip model | QCN-5052 |
Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 4 |
Number of 2.5G Ethernet ports | 1 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Mode button | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 23 | -100 |
11MBit/s | 23 | -94 |
6MBit/s | 24 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 24 | -96 |
MCS7 | 20 | -75 |
MCS9 | 19 | -70 |
MCS11 | 17 | -67 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 24 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 24 | -96 |
MCS7 | 20 | -75 |
MCS9 | 19 | -70 |
MCS11 | 17 | -67 |
