Mikrotik RB911G-5HPnD | Small wireless router with an integrated 5Ghz high power wireless card

Name: Mikrotik RB911G-5HPnD | Small wireless router with an integrated 5Ghz high power wireless card - FGTECH STORE
SKU: FGINGUDU98X5
Price: 6600.00 INR
Availability: OutOfStock

SKU: FGINGUDU98X5

Warranty Period :- 1 Year

Mikrotik RB911G-5HPnD—a small, powerful wireless router with an integrated 5GHz high-power wireless card and a Gigabit Ethernet port. Ideal for PtP and PtMP wireless applications.

Original price was: ₹6,999.00.Current price is: ₹6,600.00. Inc. tax (₹5,593.22Exc. Tax)

Out of stock

Compare

Add to wishlist

Description

Mikrotik RB911G-5HPnD is a compact and powerful wireless router designed for seamless connectivity and high performance in the 5GHz frequency range. With an integrated high-power wireless card, this device is perfect for point-to-point (PtP) and point-to-multipoint (PtMP) wireless links, providing stable and extended coverage.

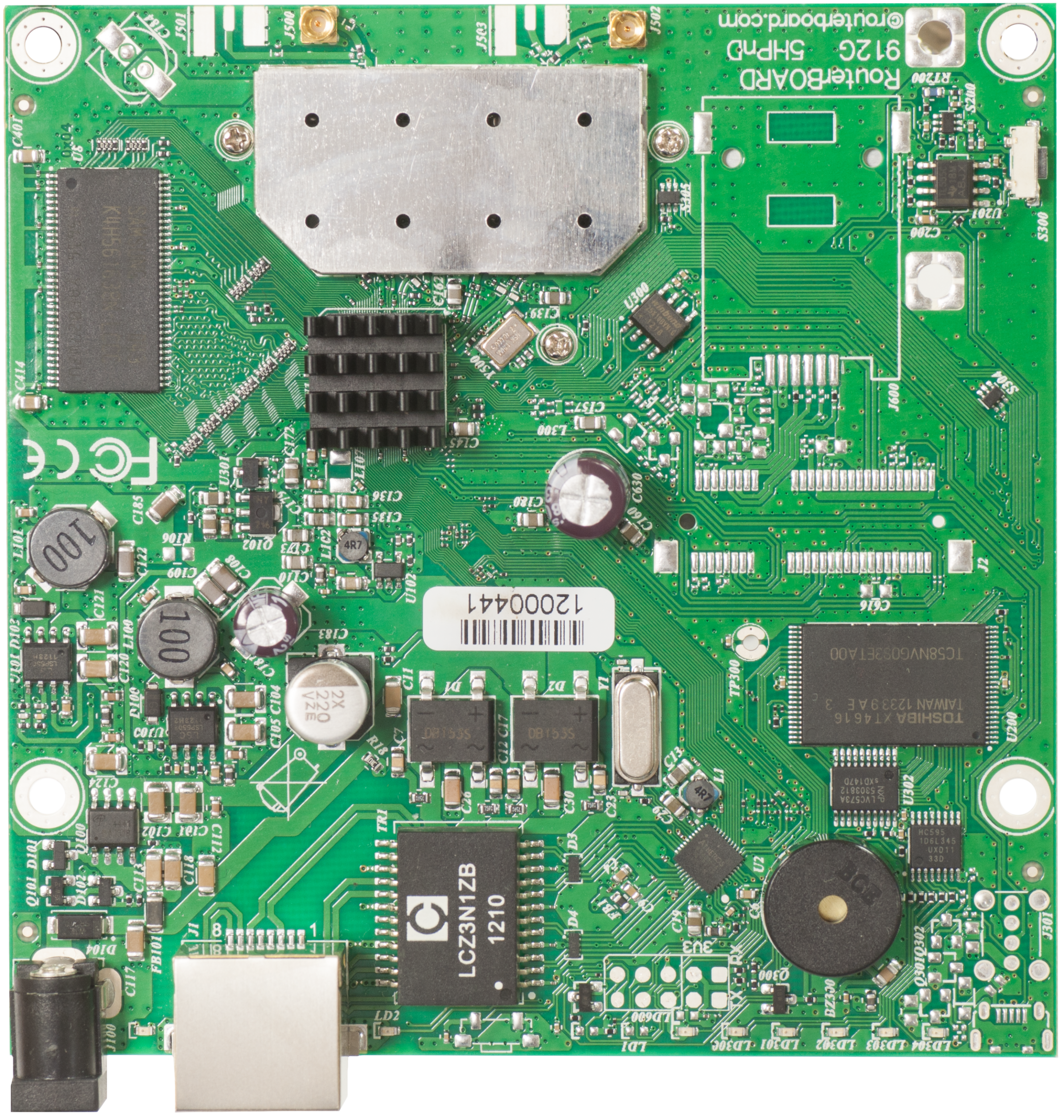

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

It has built in 16kV ESD protection on both the Ethernet and the
MMCX ports.

– RB911G-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RB911G-5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Ethernet test results

RB911G-5HPnD		AR9342 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Additional information

Brand	Mikrotik

Product Details

Details
Product code	RB911G-5HPnD
Architecture	MIPSBE
CPU	AR9342
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	105x105mm
RouterOS license	3
Operating System	RouterOS
Size of RAM	64 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	8-28 V
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-28 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Wireless 5 GHz chip model	AR9342
Wireless 5 GHz generation	Wi-Fi 4
