Mikrotik RB922UAGS-5HPacD

SKU: FGINYW43E8P8

Warranty Period :- 1 Year

720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4



Original price was: ₹11,999.00.Current price is: ₹11,880.00. Inc. tax (10,067.80Exc. Tax)

Out of stock

Out of stock

Description

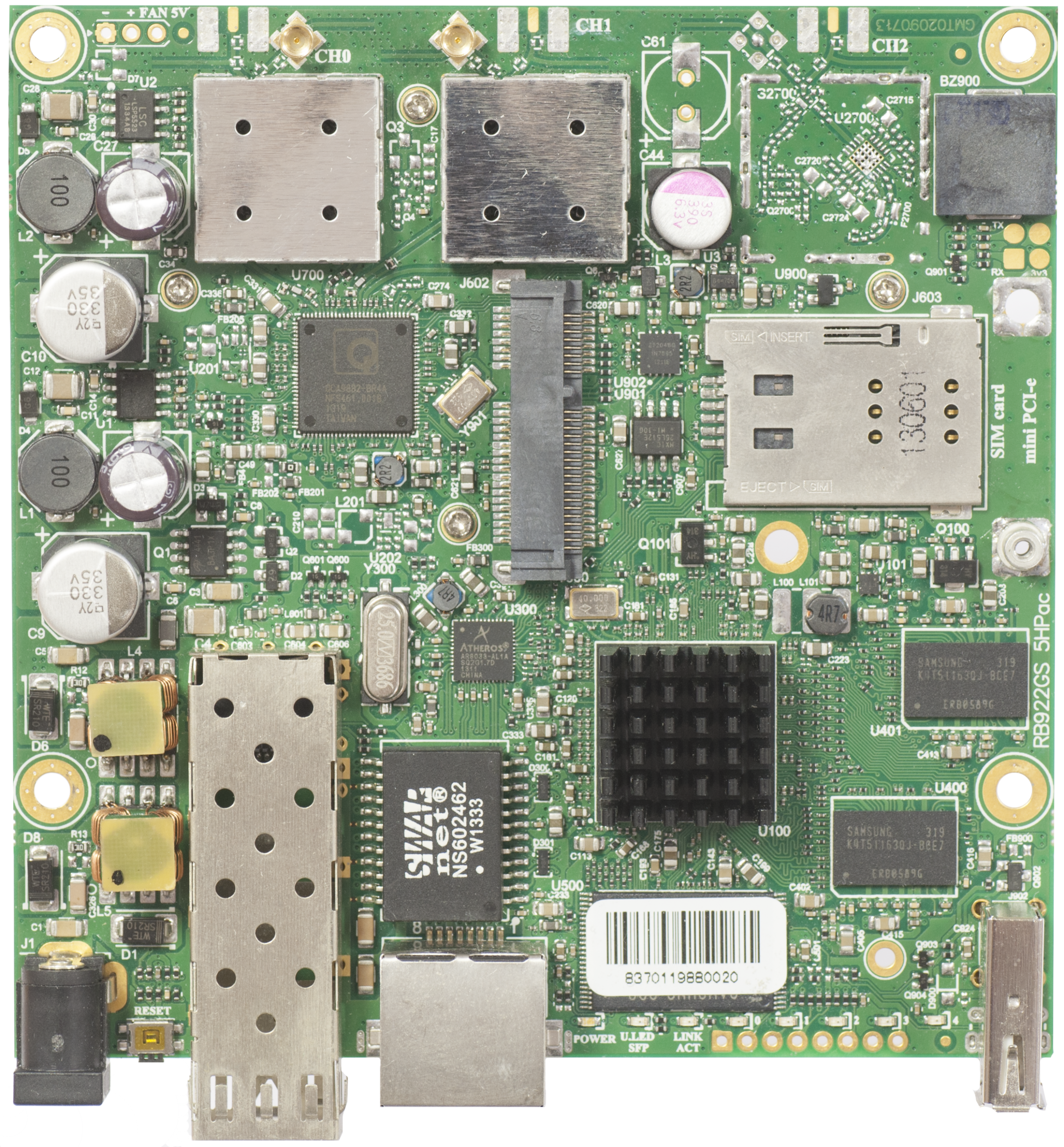

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2×2 radio. Comes with RouterOS L4 (AP) license.

– RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).





Ethernet test results

RB922UAGS-5HPacD QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..



Additional information
Brand

Mikrotik

MODEL

RB922UAGS-5HPacD

Product Details

Details
Product code RB922UAGS-5HPacD
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 105x105mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 17 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V

Wireless specifications

Details
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model QCA9882
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP DDMI yes
SFP ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP00

Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

Download Brochure
