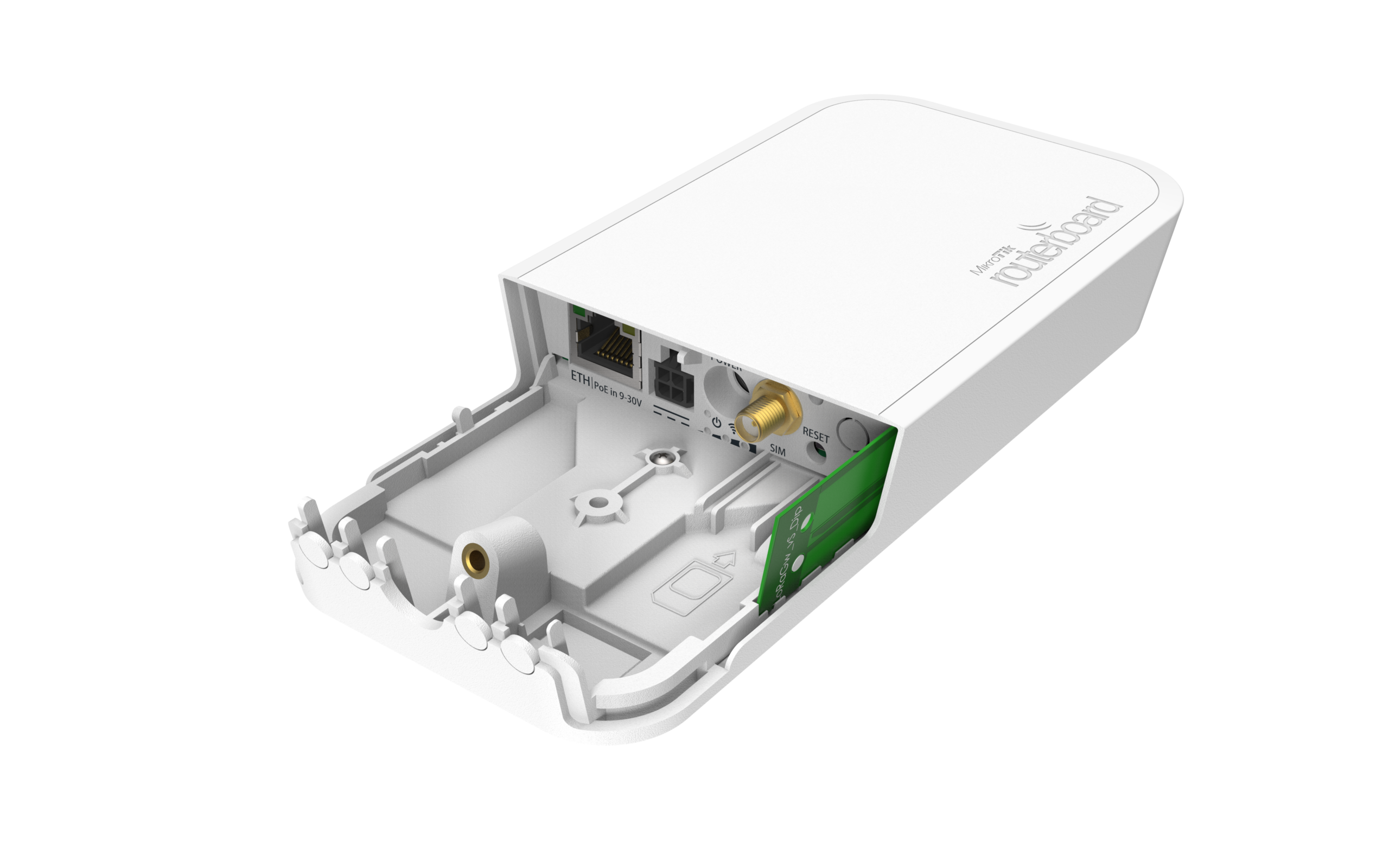

Mikrotik wAP LR8 Kit An Out-Of-The-Box Gateway Solution For LoRa Technology , 863-870 MHz


Original price was: ₹33,999.00.Current price is: ₹16,999.00. Inc. tax (14,405.93Exc. Tax)

The MikroTik wAP LR8 Kit is a ready-to-use LoRaWAN gateway solution operating in the 863-870 MHz frequency range, designed for seamless integration into IoT environments.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Description

The MikroTik wAP LR8 Kit is an advanced gateway for LoRa technology, offering a complete, out-of-the-box solution for implementing LoRaWAN networks. Mikrotik wAP LR8 Kit is Operating in the 863-870 MHz frequency band, Mikrotik wAP LR8 Kit is ideal for IoT applications, such as smart cities, agricultural monitoring, and industrial automation.

The gateway is built around MikroTik’s durable and weatherproof wAP (wall AP) platform, enabling both indoor and outdoor deployment. Mikrotik wAP LR8 Kit It also features a pre-installed LoRaWAN concentrator and an integrated antenna, providing excellent range and reliability for LoRa-enabled devices. Mikrotik wAP LR8 Kit includes intuitive software integration for managing and configuring LoRaWAN networks via the MikroTik RouterOS.

With robust performance, long-range connectivity, and support for advanced networking protocols, the Mikrotik wAP LR8 Kit simplifies the setup of LoRaWAN gateways and bridges the gap between IoT devices and the internet.

Mikrotik wAP LR8 Kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.

Mikrotik wAP LR8 Kit supports 863-870 MHz frequency, used in European Union, Russia, India etc.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR8 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.

Ethernet test results

RBwAPR-2nD&R11e-LR8 QCA9531 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1



About Mikrotik

Buy MikroTik Products in India – Best Deals at FGTech Store

MikroTik – Powering Networks with Innovation

MikroTik is a globally recognized leader in networking solutions, offering high-performance routers, switches, and wireless devices tailored for businesses, ISPs, and advanced home users. Known for their durability, scalability, and cost-effectiveness, MikroTik products are a top choice for those seeking reliable and customizable networking solutions.

Why MikroTik is Important for Indian Customers

India’s growing digital infrastructure demands networking solutions that are both affordable and high-performing. MikroTik caters to:
✅ ISPs & Enterprises – Scalable routing solutions for seamless connectivity.
✅ Small Businesses & Startups – Cost-effective network management tools.
✅ Home & SOHO Users – Advanced Wi-Fi solutions for uninterrupted internet.

MikroTik’s RouterOS provides unparalleled control, security, and flexibility, making it a preferred choice for Indian businesses looking for customized and budget-friendly networking solutions.

Why FGTech Store is the Best for MikroTik Purchases?

At FGTech Store, we ensure:
🔹 100% Genuine MikroTik Products – We are authorised partner to bring Mikrotik products in India
🔹 Competitive Pricing – Best value for your investment.
🔹 Expert Support & Consultation – Pre-sales and post-sales assistance.
🔹 Fast Shipping Across India – Quick and reliable delivery.
🔹 Diverse Product Range – From entry-level routers to enterprise-grade networking gear.

MikroTik’s L2TP VPN (Layer 2 Tunneling Protocol) is a widely used VPN solution that provides secure remote access, site-to-site connectivity, and network extension. Some of its advanced features include:

✅ L2TP Over IPsec – Enhances security by encrypting L2TP traffic with IPsec, ensuring end-to-end encryption and data protection.
✅ Multi-User VPN – Supports multiple remote clients for secure workforce connectivity.
✅ Dynamic IP Support – Works even when ISPs assign dynamic IPs, making it ideal for home offices and remote access.
✅ MSS Clamping & MTU Adjustments – Prevents fragmentation issues, improving VPN performance and stability.
✅ User Authentication – Supports local user authentication, RADIUS, and external authentication methods for flexible access control.
✅ MPLS over L2TP – Allows seamless integration into multi-site MPLS networks, enhancing network flexibility.

With the release of RouterOS v7, MikroTik has introduced major upgrades in performance, routing capabilities, and security:

🚀 New Kernel & Improved Performance – The upgraded Linux kernel brings better stability, improved hardware support, and enhanced processing speeds.
🔹 BGP, OSPF, and MPLS Enhancements – Optimized for large-scale ISPs, better handling of full BGP tables, improved OSPF stability, and faster MPLS switching.
🔹 WireGuard VPN Support – A modern, lightweight VPN alternative to L2TP/IPsec, providing faster and simpler encrypted tunnels.
🔹 IPv6 Improvements – Enhanced dual-stack routing, making MikroTik devices more future-proof for growing IPv6 networks.
🔹 Multi-Threaded Performance – RouterOS v7 fully utilizes multi-core processors, improving performance in routing, NAT, and firewall processing.
🔹 VXLAN Support – Enables Layer 2 connectivity over Layer 3 networks, useful for data center interconnects and cloud networking.
🔹 NAT64 & DNS64 – Helps transition from IPv4 to IPv6 by allowing IPv6 clients to communicate with IPv4-only services.

Upgrade your network with MikroTik’s cutting-edge technology and experience unparalleled performance.

Product NameCategoryKey FeaturesIdeal For
MikroTik hAP ax³Wi-Fi RouterWi-Fi 6, Quad-Core CPU, Gigabit Ports, High-Speed PerformanceHomes, Small Offices
MikroTik RB5009UPr+S+INRouter7x PoE Gigabit Ports, 1x SFP+, 2.5G Ethernet, Passive CoolingISPs, Enterprises, Powering Multiple Devices
MikroTik L009UiGS-RMRouter1x SFP, 8x Gigabit Ports, ARM CPU, Rackmount & DesktopSmall Businesses, Branch Offices
MikroTik CCR2004-1G-12S+2XSCloud Core Router12x SFP+ Ports, 2x 25G SFP28, ARM 64-bit CPUData Centers, Large Networks
MikroTik CRS304-4XG-INEthernet Switch4x 10G Ethernet Ports, Compact Metal Case, FanlessHigh-Speed Networking, Servers
MikroTik CRS305-1G-4S+INFiber Switch4x 10G SFP+, 1x Gigabit Port, Fanless DesignHigh-Speed Fiber Networks
MikroTik WAP axWi-Fi Access PointWi-Fi 6, Dual-Band, Compact Weatherproof DesignIndoor & Outdoor Wireless
MikroTik LHG XL HP5Wireless CPELong-Range 5GHz, 27 dBi Antenna, High Power OutputPoint-to-Point Wireless Links
MikroTik E50UGRouterCompact, 5x Gigabit Ports, USB, Affordable & EfficientSOHO, Small Networks

Shop now at FGTech Store – India’s trusted destination for MikroTik products.

Product Details

Brand Name Mikrotik
Model Name wAP LR8 kit
Dimension(cm) 18.5 X 8.5 X 3.0
Weight(kg) 0.5

Specifications

Details
Product code RBwAPR-2nD&R11e-LR8
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 3 (PoE-IN, Automotive, DC jack)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 54

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71


Datasheet
